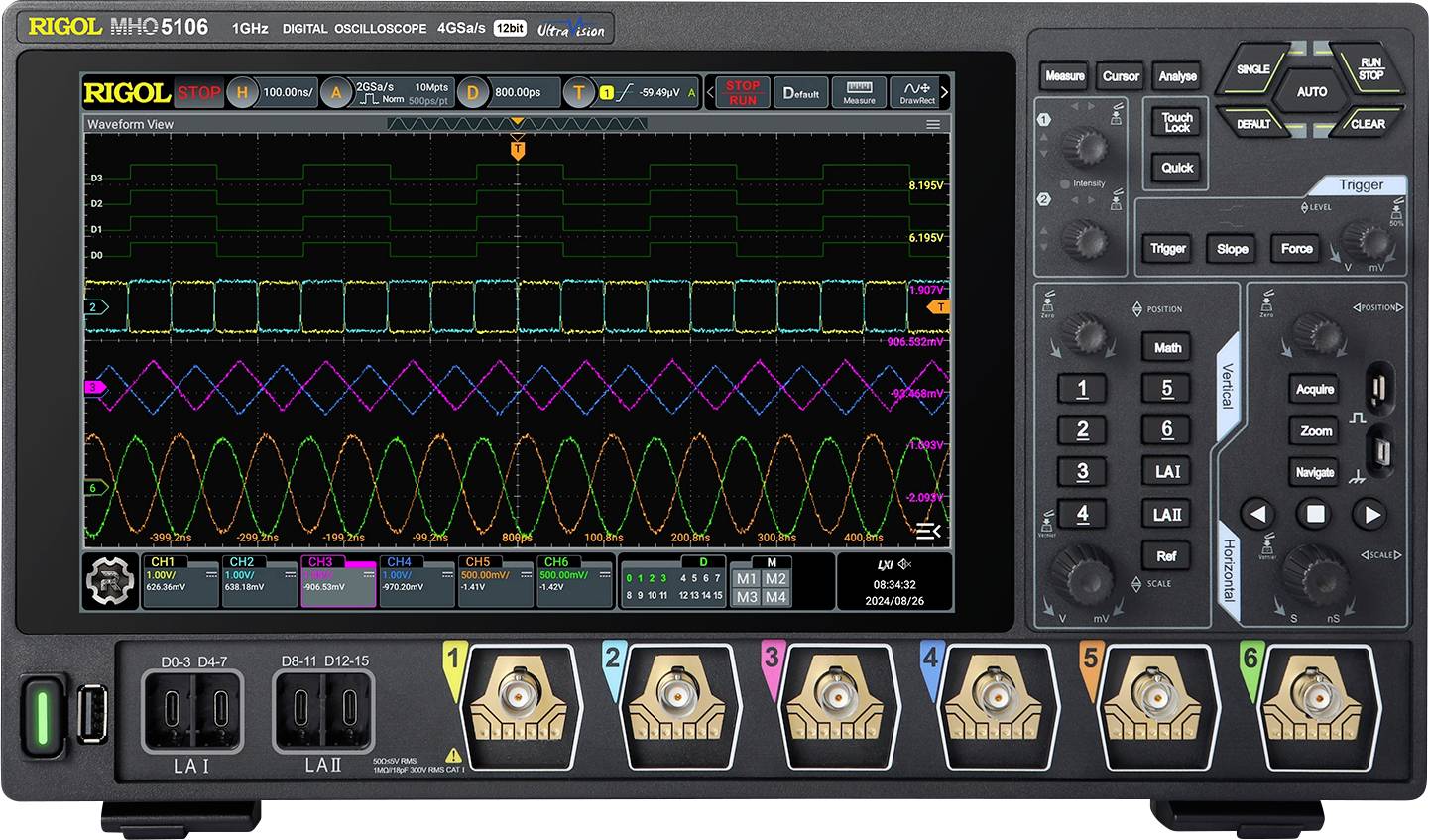

Digital oscilloscope with multi-coloured waveforms on a screen, displaying signal measurements. Control panel with numerous buttons on the right.

Digital oscilloscope with multi-coloured waveforms on a screen, displaying signal measurements. Control panel with numerous buttons on the right.

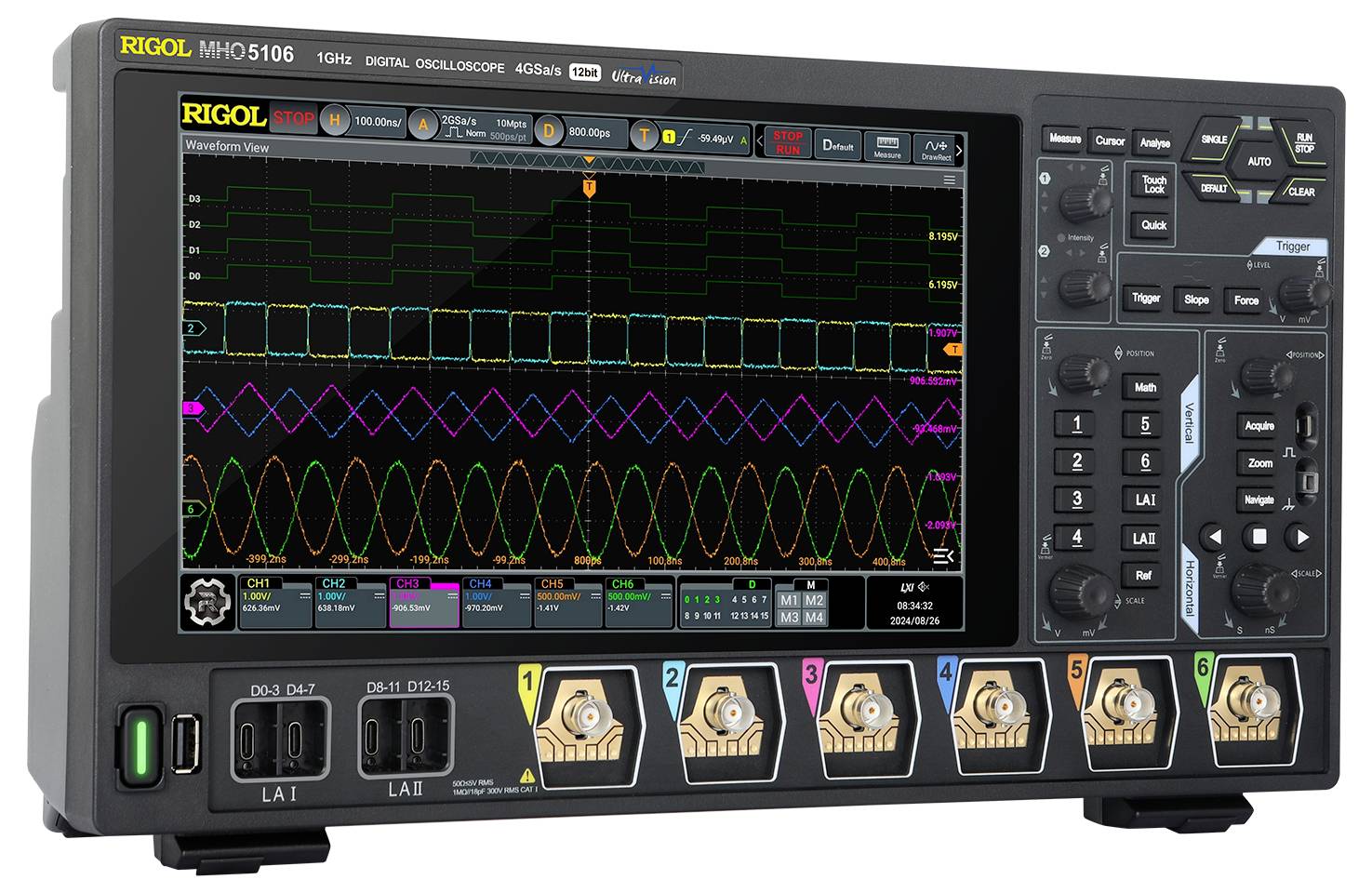

Digital oscilloscope with multiple coloured waveforms on the screen and controls on the right. Touchscreen display and five inputs at the bottom.

1/2

Rigol

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 16,225.00 / piece)

€ 16,225.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

RIGOL MHO5106 oscilloscope

1 GHz
No. of analogue inputs 6

Technical specifications

Product type: Digital

Bandwidth: 1 GHz

Channel sample rate: 4 GS/s

Screen size: 10.1 inch

Oscilloscope features: Mixed signal (MSO)

No. of analogue inputs: 6

: Manufacturer's standards (no certificate)

No. of digital inputs (max.): 16

Interfaces: USB host

Channel memory depth: 500 MP

Type: MHO5106

Documents & Downloads

Datasheet

Datasheet 3393810 Rigol MHO5106 Digital 1 GHz 4 GS/s 500 MP Mixed signal (MSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3393810 Rigol MHO5106 Digital 1 GHz 4 GS/s 500 MP Mixed signal (MSO) 1 pc(s)

User & Safety Instructions 3393810 Rigol MHO5106 Digital 1 GHz 4 GS/s 500 MP Mixed signal (MSO) 1 pc(s)

User & Safety Instructions 3393810 Rigol MHO5106 Digital 1 GHz 4 GS/s 500 MP Mixed signal (MSO) 1 pc(s)

Description

Mixed-signal oscilloscope, 1 GHz, 6 channels + 16 digital (optional with PLA3204), 10.1" WXGA touchscreen,
Sampling rate 4/2 GS (1-3/6 channel), memory depth 500/250M points (1-3/6 channel),
RS232/UART and I2C/SPI trigger and analysis function, signal acquisition rate of up to 1,000,000 signals/s, real-time hardware recorder up to 500,000 recordings (1 channel), 41 automatic measurements, extended FFT up to 1M points, four freely definable mathematical functions, signal analysis with Zoom, memory play, playback, zone trigger, Pass/Fail test, interfaces: USB 3.0 host, USB 3.0 device, Ethernet, HDMI

This text is machine translated.

Scope of delivery

Power cord, USB cable, per channel: Passive probe RP3500A, 10:1, 500 MHz

Description

Mixed-signal oscilloscope, 1 GHz, 6 channels + 16 digital (optional with PLA3204), 10.1" WXGA touchscreen,
Sampling rate 4/2 GS (1-3/6 channel), memory depth 500/250M points (1-3/6 channel),
RS232/UART and I2C/SPI trigger and analysis function, signal acquisition rate of up to 1,000,000 signals/s, real-time hardware recorder up to 500,000 recordings (1 channel), 41 automatic measurements, extended FFT up to 1M points, four freely definable mathematical functions, signal analysis with Zoom, memory play, playback, zone trigger, Pass/Fail test, interfaces: USB 3.0 host, USB 3.0 device, Ethernet, HDMI

This text is machine translated.

Scope of delivery

Power cord, USB cable, per channel: Passive probe RP3500A, 10:1, 500 MHz
