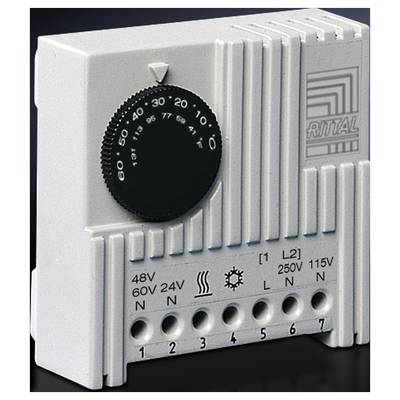

Rittal 3110.000 19 inch Server rack cabinet temperature control Grey
EAN:
Part number:
Item no:
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
Highlights & Details
Rittal switch cabinet internal temperature regulator (2-point control)
- Allowed contact load: Cl. 5 - 3 (heating) AC 10 (4*) A, DC = 30 W cl. 5 - 4 (cooling) AC 5 (4*) A, DC = 30 W * () = inductive load at cos phi = 0.6
Technical specifications
- Product type
Server rack cabinet temperature control
- Suitable for server rack cabinet (inch)
19 inch
- Voltage (max.)
230 V AC
- Dim
(W x H x D) 71 x 71 x 33.5 mm
30 W
- Cable length
0 mm
- Content
1 pc(s)
- Factory colour
Grey
- Width
71 mm
- Height
71 mm
- Depth
33.5 mm
- Rack size
483 mm (19")
- Screen size diagonal (inches)
1 inch
- Keyboard layout
German, QWERTZ
- Weight
0.112
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 973162 Rittal 3110.000 19 inch Server rack cabinet temperature control Grey
Conformity certificate
Conformity certificate 973162 Rittal 3110.000 19 inch Server rack cabinet temperature control Grey
Certificate
Certificate 973162 Rittal 3110.000 19 inch Server rack cabinet temperature control Grey
Certificate 973162 Rittal 3110.000 19 inch Server rack cabinet temperature control Grey
Description
This temperature controller is particularly suitable for controlling filter fans, heaters and heat exchangers, but also as a signal for monitoring the internal temperature of switch cabinet.
Features
- 1pin converter (change over)
- Approved contact load: AC 10 (4)
- 24 to 230 V
- Setting range +5 to +55°C
