RSL Switch Flush mount Eyelets Switching capacity (max.) 2000 W Max. range (open field) 70 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
5% = € 0.59
€ 11.17
5
7% = € 0.82
€ 10.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Highlights & Details

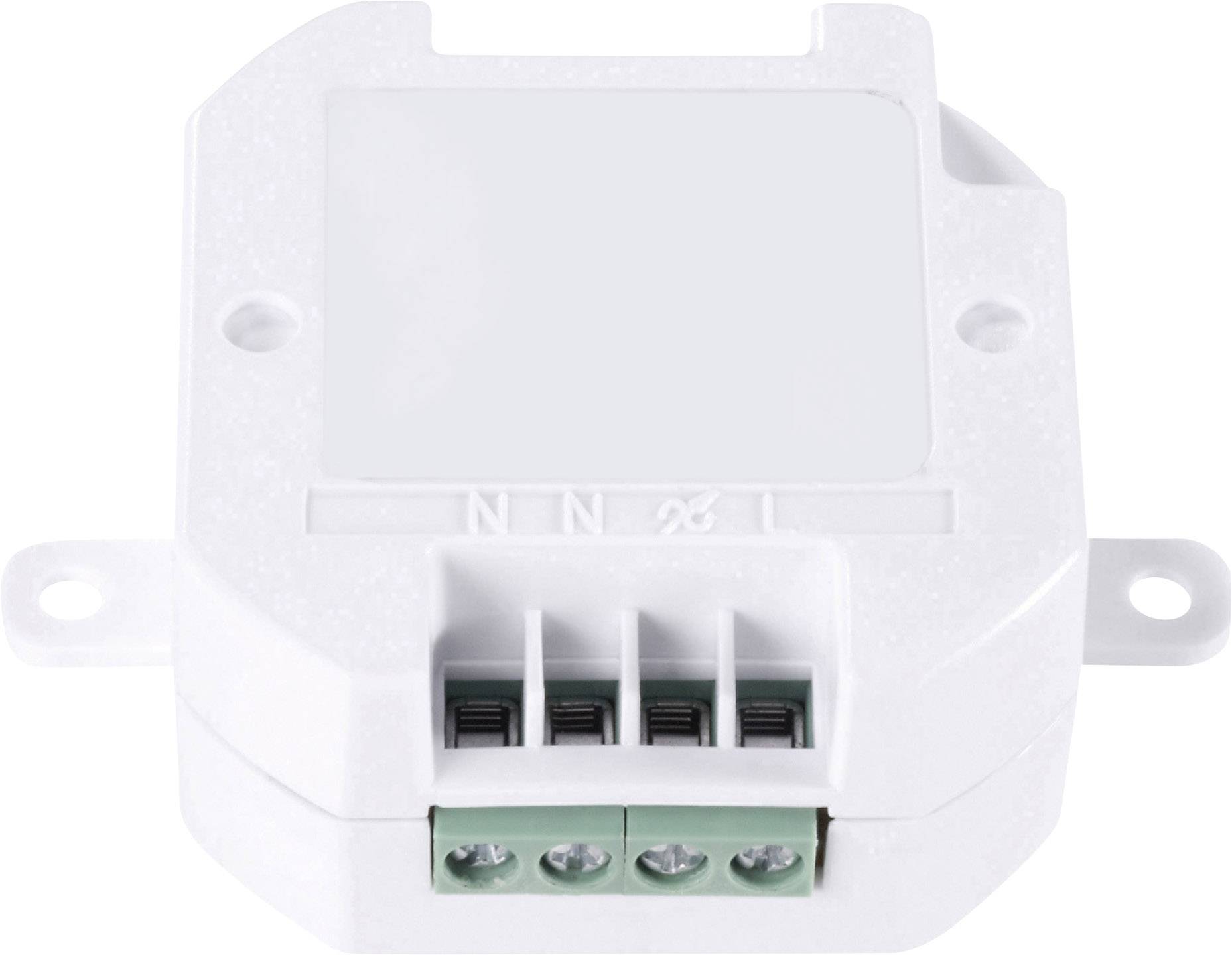

RSL wireless flush-mounted switch
- For fixed screws in the conventional flush-mounted sockets
- Makes your electrical sockets are adjustable by radio
- Up to 2000 W switching capacity (resistive load)
Technical specifications
- Product type
Switch
- Series
RSL
Alexa
Google Home
- Transfer Standard (Smart Home)
Manufacturer-specific
- Max. switching capacity
2000 W
- Power supply (LOV)
mains-powered
- Data transfer (Smart Home)
Wireless
- Channels
1
- Frequency
433 MHz
70 m
- Mounting type
Flush mount
- Width
68 mm
- Height
49 mm
- Depth
25 mm
- Weight
37 g
- Dim
(W x H x D) 68 x 49 x 25 mm
- Hub
Not required, optional for remote access
n.rel.
- Fitting method
Eyelets
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1761733 RSL Switch Flush mount Eyelets Switching capacity (max.) 2000 W Max. range (open field) 70 m
Conformity certificate
Conformity certificate 1761733 RSL Switch Flush mount Eyelets Switching capacity (max.) 2000 W Max. range (open field) 70 m
Warranty Terms
Warranty Terms 1761733 RSL Switch Flush mount Eyelets Switching capacity (max.) 2000 W Max. range (open field) 70 m
Description
Comfortable - comfortably switch.
So easy to realize your desire circuit with the practical RSLR2 built-in wireless receiver: Install Remote Control - done! For example, you switch off all lighting in your room at the same time and with just the push of a single button.
It can be connected to loads up to max. 2000 W (Ohm resistive load) or 300 W (inductive load) can be connected. To protect your equipment has the built-in switch also has an integrated overload protection.
Easy to set up
With its compact dimensions, the receiver fits into any commercially available flush-mounted socket or surface. This is tightened using the lateral fastening eyes. The distance between the holes for the mounting lugs is 60 mm. Thus it is installed and ready to use in just a few minutes.
To a built-in receiver can be up to 10 different transmitters can be programd. And since all components of the RSL wireless switching system are compatible with each other, you can easily extend the system at any time according to your wishes.
This text is machine translated.
So easy to realize your desire circuit with the practical RSLR2 built-in wireless receiver: Install Remote Control - done! For example, you switch off all lighting in your room at the same time and with just the push of a single button.
It can be connected to loads up to max. 2000 W (Ohm resistive load) or 300 W (inductive load) can be connected. To protect your equipment has the built-in switch also has an integrated overload protection.
Easy to set up
With its compact dimensions, the receiver fits into any commercially available flush-mounted socket or surface. This is tightened using the lateral fastening eyes. The distance between the holes for the mounting lugs is 60 mm. Thus it is installed and ready to use in just a few minutes.
To a built-in receiver can be up to 10 different transmitters can be programd. And since all components of the RSL wireless switching system are compatible with each other, you can easily extend the system at any time according to your wishes.
This text is machine translated.
Features
- Inputs: L and N
- Outputs: N and switched L
- Up to 70 meters range in free field.
- LED for status display
- Compatible with all wireless transmitters of the RSL system
- It can be paired with up to 10 different RSL stations.
Scope of delivery
- RSL wireless flush-mounted switch
- User manual
Hints
All components of the RSL radio switching system are inter-compatible and thus offer a great introduction to home automation.
(Receiver - actuator)
