Name: Schabus GX-D3 Gas detector incl. external sensor mains-powered detects Carbon dioxide
Brand: Schabus
SKU: 2998592
Availability: InStock

Plug-in carbon dioxide detector with a digital display reading 0.58%, shown with its sensor and cord attached.

Advertising graphic for CO₂ pressure cylinders and technical equipment: detects dangerous CO₂ leaks early; shows sensor placement, CO₂ reduction and warning notice regarding room air measurement.

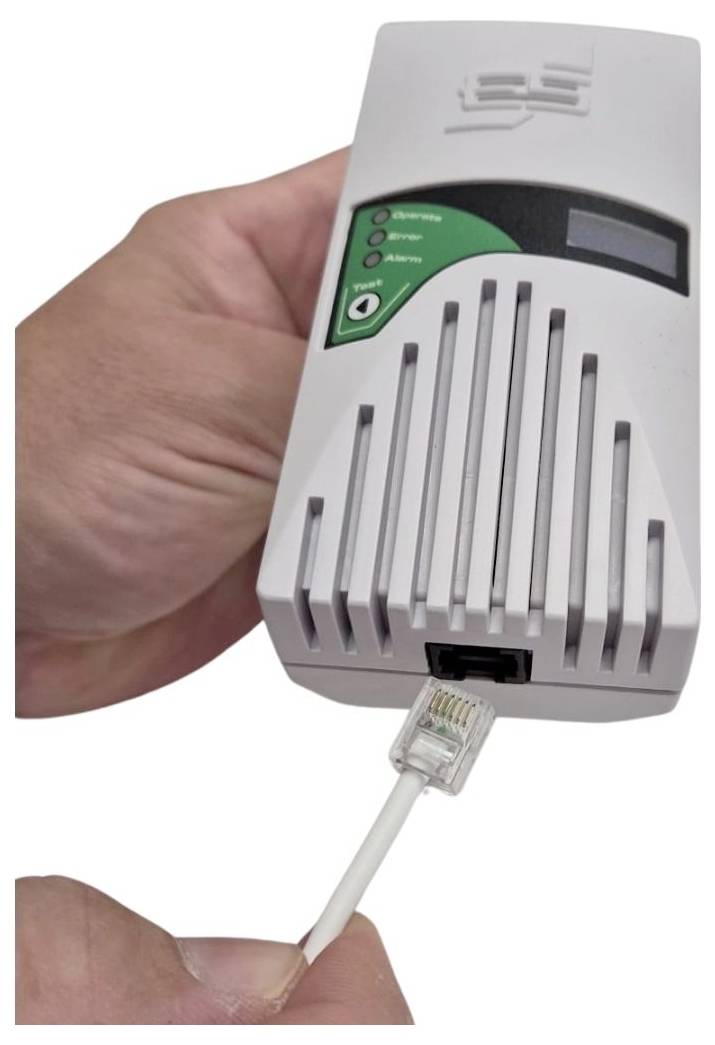

Hand holding a silver electronic phone line tester connected to an Ethernet cable, with status lights and indicator panel visible.

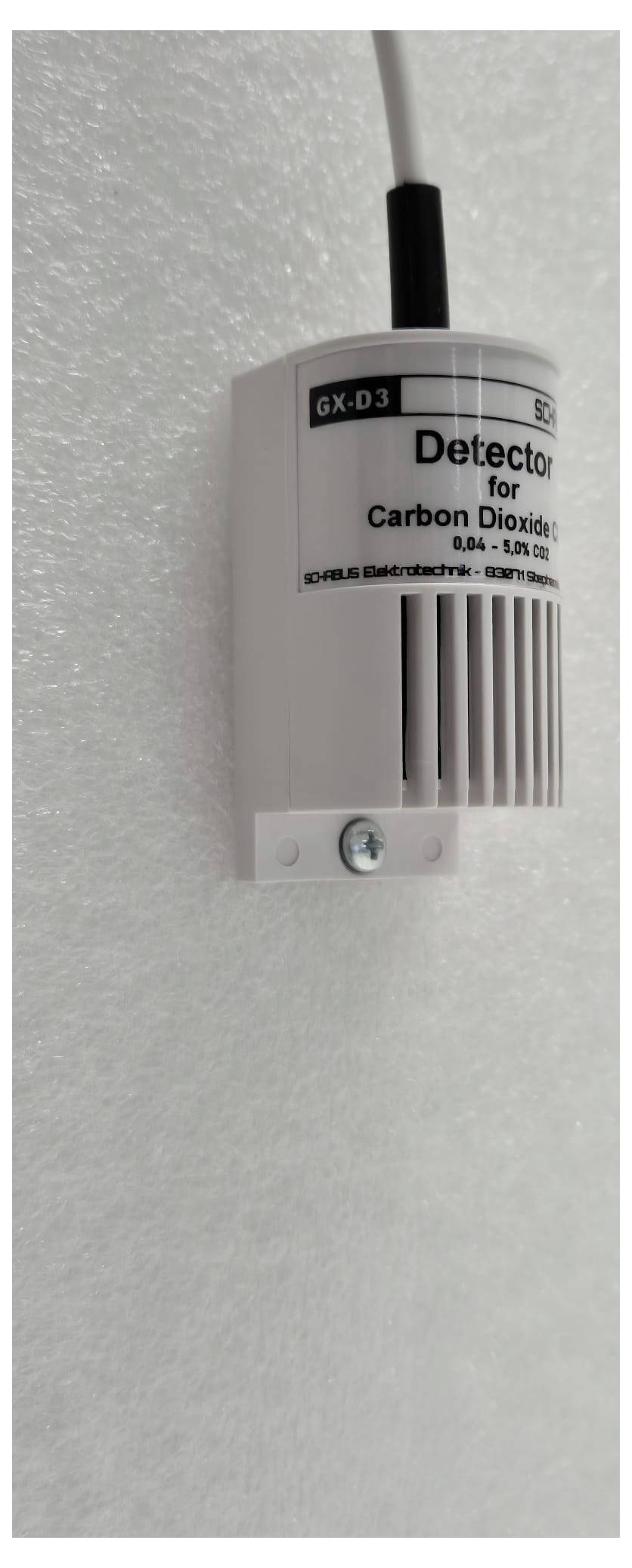

Wall-mounted carbon dioxide detector sensor labeled 'GX-D3' on a white wall.

Advertising graphic: CO2 leakage is detected early at a gas cylinder using sensors; Text: 'Detects dangerous CO2 leaks early'.

Schabus GX-D3 Gas detector incl. external sensor mains-powered detects Carbon dioxide-5

Advertising graphic for a CO₂ monitor: Central device with display, surrounded by information regarding NDIR sensor, 85-dB alarm, high alarm threshold, continuous operation and certified safety.

Three-part infographic for the CO2 monitor GX-D3: Insert and mount sensor near ground level, automatic initialisation, then protection active; below notes on 85 dB alarm, plug socket sufficient and low-maintenance.

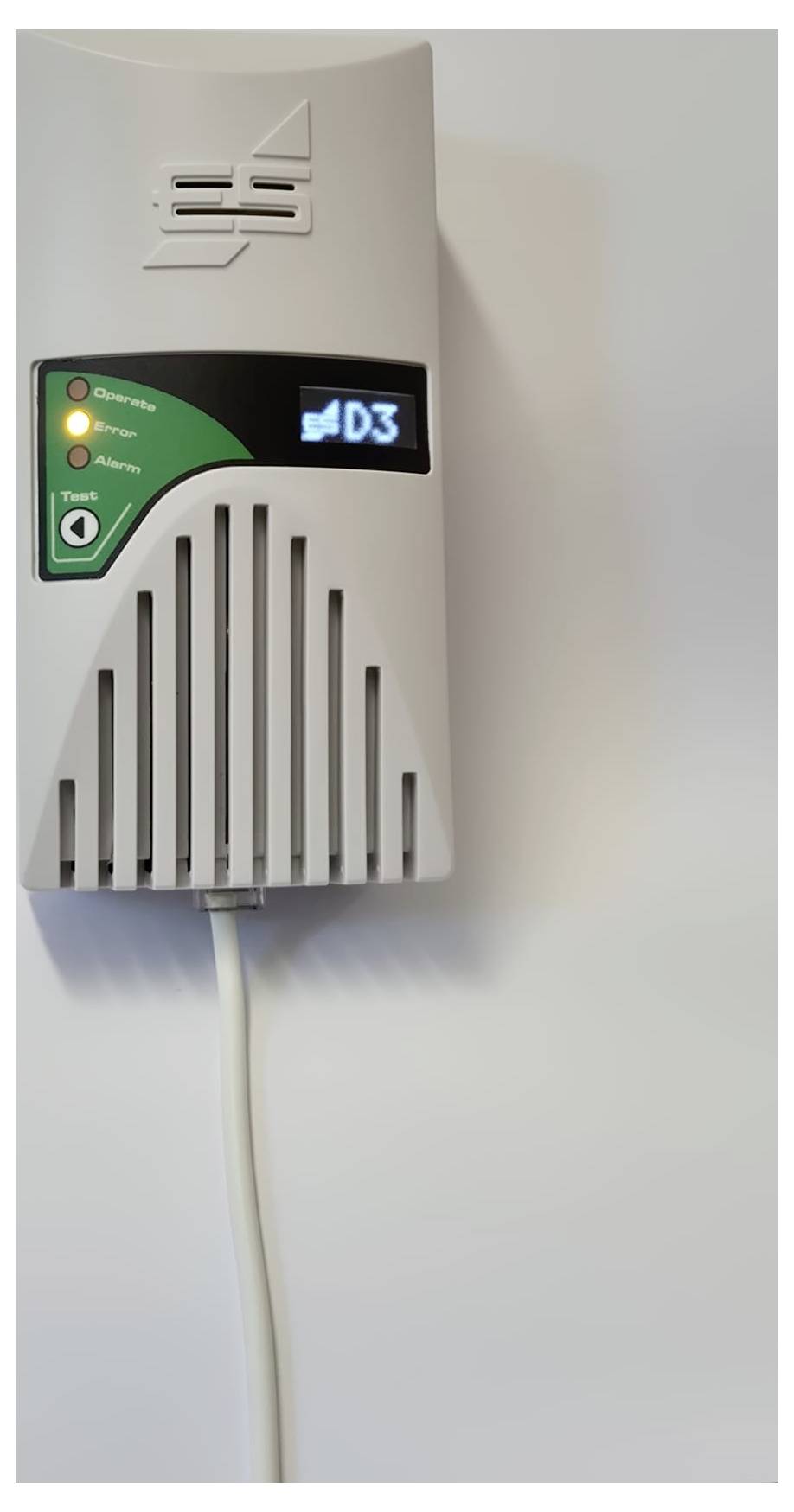

Wall-mounted white electronic device with a glowing 'D3' display, status lights, vented front, and a power cable hanging below.<br>

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 27 Oct

20 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 204.99 / piece)

€ 204.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

GAS ALARM GX-D3 with external sensor

Simple and fast installation
Audio and visual warning
Detection of carbon dioxide (CO2) from technical plants
This can be optimally placed by external sensor

Technical specifications

Operating voltage 230 (+/-10%) V AC/50 - 60 Hz
Power consumption: Max. 3 VA
Protection class: IP20
Acoustic pressure of < 90 dB (distance 10 cm)
Display: LED: Green (Operate), yellow (Error), red (Alarm)
Sensor type: External, NDIR infrared
Heating-up time: About 3 minutes
Trigger concentration CO2: 1.5% pre-alarm/3.0% main alarm
Operating range of sensor -0°C/+40 °C
Storage temperature: -20 °C…+70 °C
Humidity (ambient): 5 - 90% RH (non-condensing)

Product type: Gas detector

Detector features: incl. external sensor

Alarm at gas/gas mixture: 1.5 %

detects: Carbon dioxide

Power supply (LOV): mains-powered

Width: 60 mm

Height: 118 mm

Depth: 44 mm

Content: 1 pc(s)

Dim: (W x H x D) 60 x 118 x 44 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2998592 Schabus GX-D3 Gas detector incl. external sensor mains-powered detects Carbon dioxide

User & Safety Instructions

User & Safety Instructions 2998592 Schabus GX-D3 Gas detector incl. external sensor mains-powered detects Carbon dioxide

Conformity certificate

Conformity certificate 2998592 Schabus GX-D3 Gas detector incl. external sensor mains-powered detects Carbon dioxide

Description

GAS ALARM GX-D3 with external sensor is a gas detector for carbon dioxide from technical systems.

Usage possibilities:
Monitoring of cool rooms
Drinks dispensing equipment
Tea kitchen with water carbonators

The GAS ALARM GX-D3 with external sensor is a gas detector for carbon dioxide from technical installations and warns you at a gas concentration, which is below a dangerous value, but well above natural loads in indoors. The device is suitable for normal household use as well as for commercial premises with similar use in households and may not be used in potentially explosive rooms or in the area of industrial processes.

The device is not suitable for use in greenhouses or nurseries!
The device does not replace the proper installation, use and maintenance of CO2I cylinder devices and their valves, including associated ventilation and exhaust systems.:

This text is machine translated.
