Buy Wisualarm HY-GC20B Carbon monoxide detector incl. 10-year battery battery-powered detects Carbon monoxide

Carbon monoxide alarm with digital display. Shows CO reading in PPM. Includes alarm and battery indicators, along with a Test/Silence button.

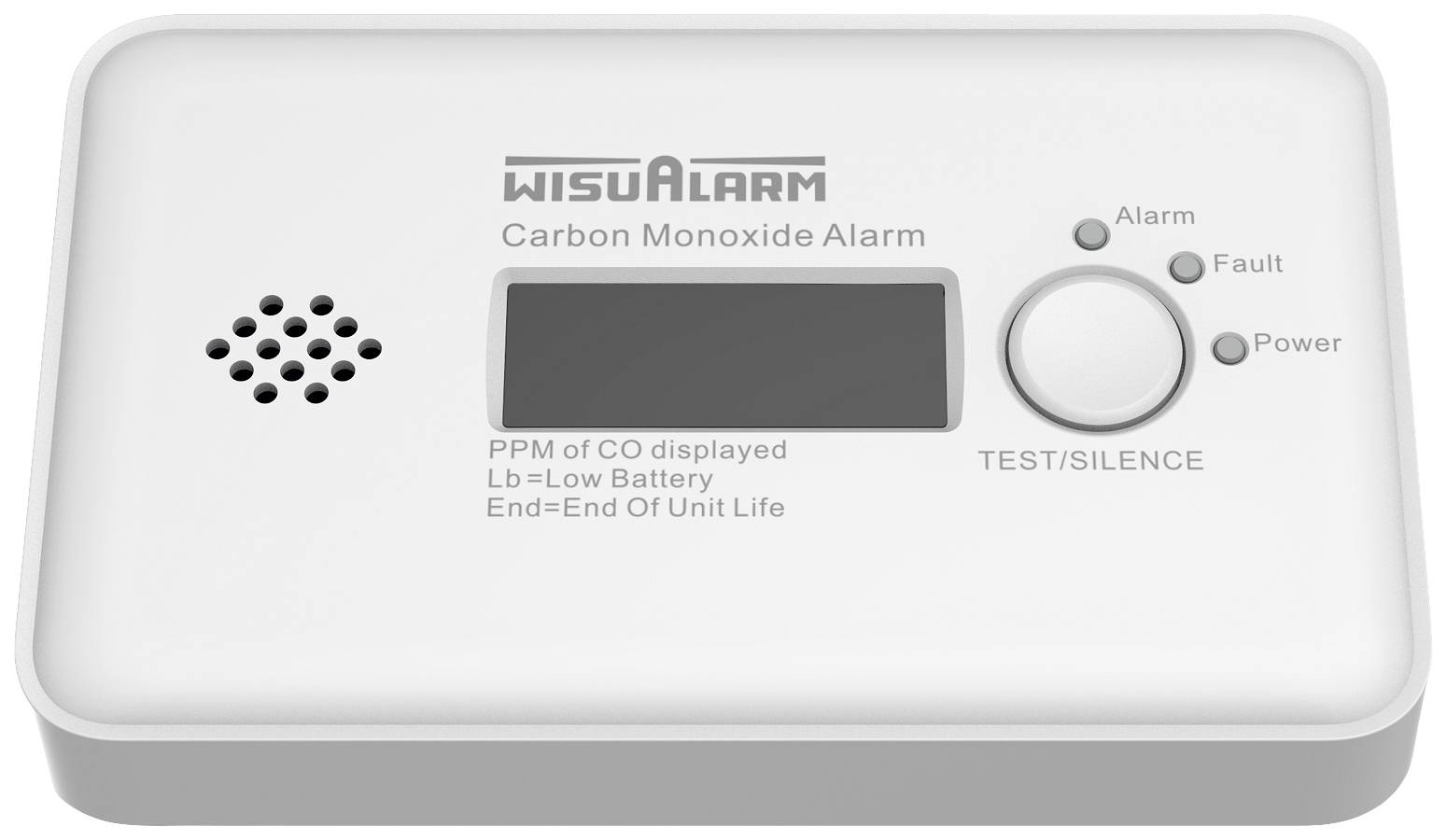

A carbon monoxide detector with display and button. Inscription 'Carbon Monoxide Alarm', showing parts like 'Alarm', 'Fault', 'Power'.

Carbon monoxide detector with digital display and test/silence button. Shows CO concentration in ppm, battery status, and alarm state.

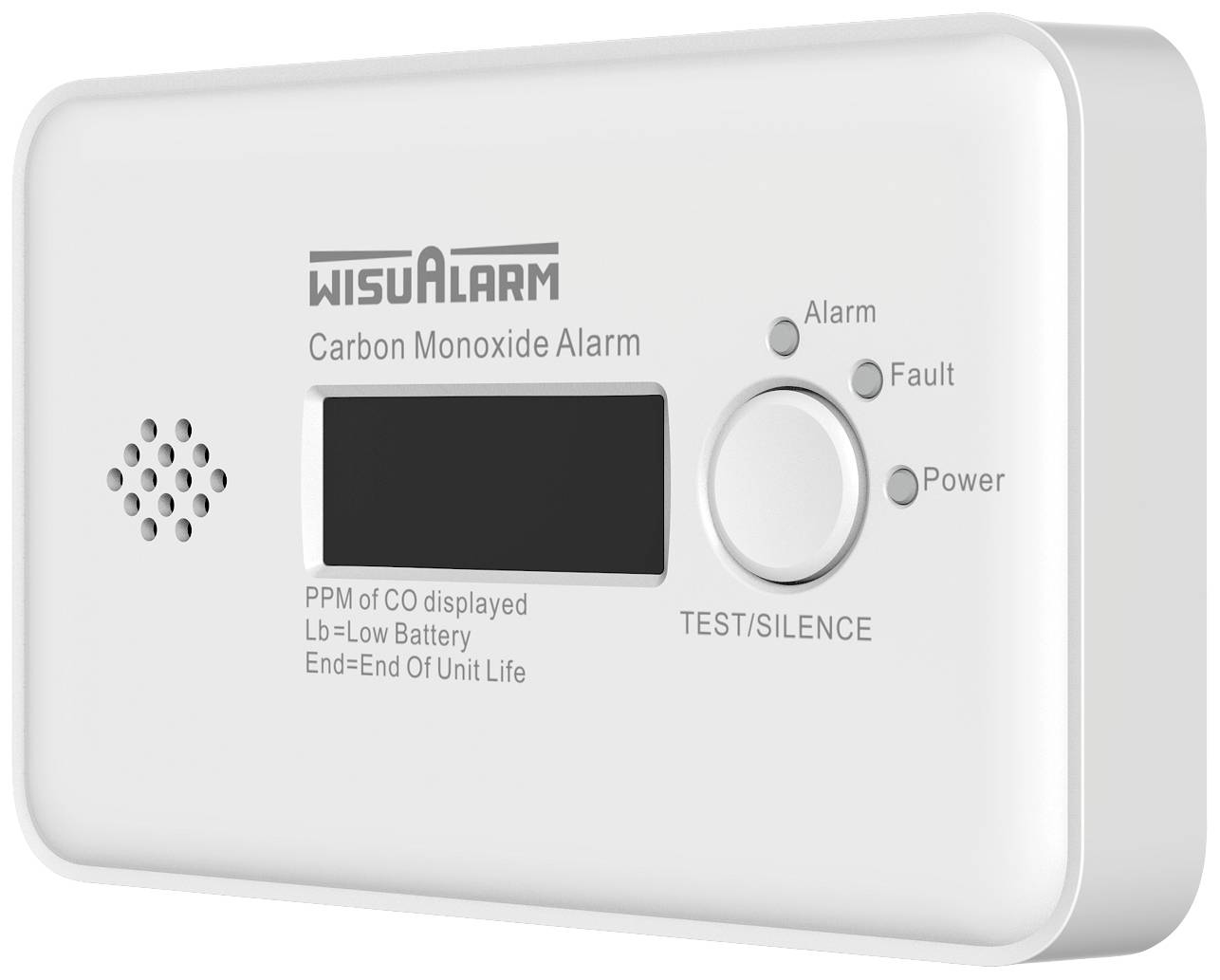

Battery-powered carbon monoxide detector with LCD display, alarm orientation and test/mute button. Displays PPM of CO.

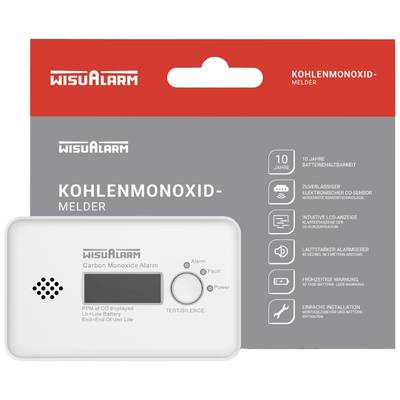

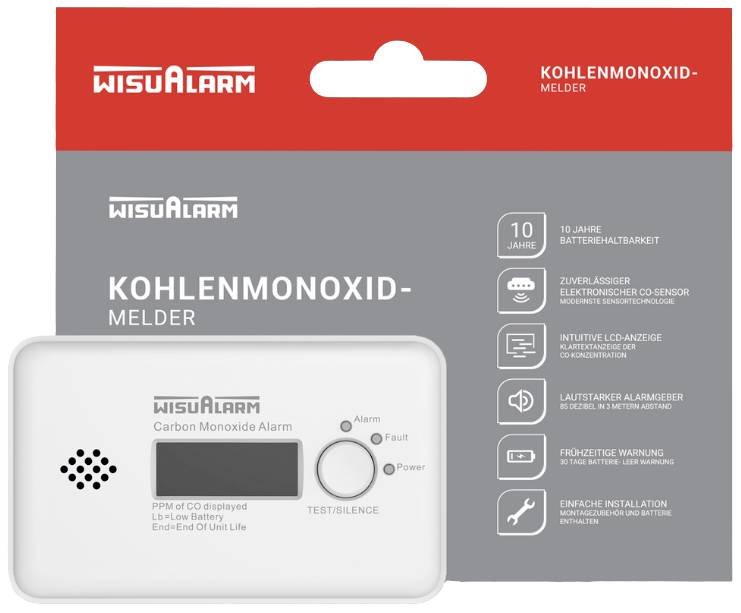

Carbon monoxide detector in a white package with red and grey elements. Functions: acoustic alarm, battery life 10 years.

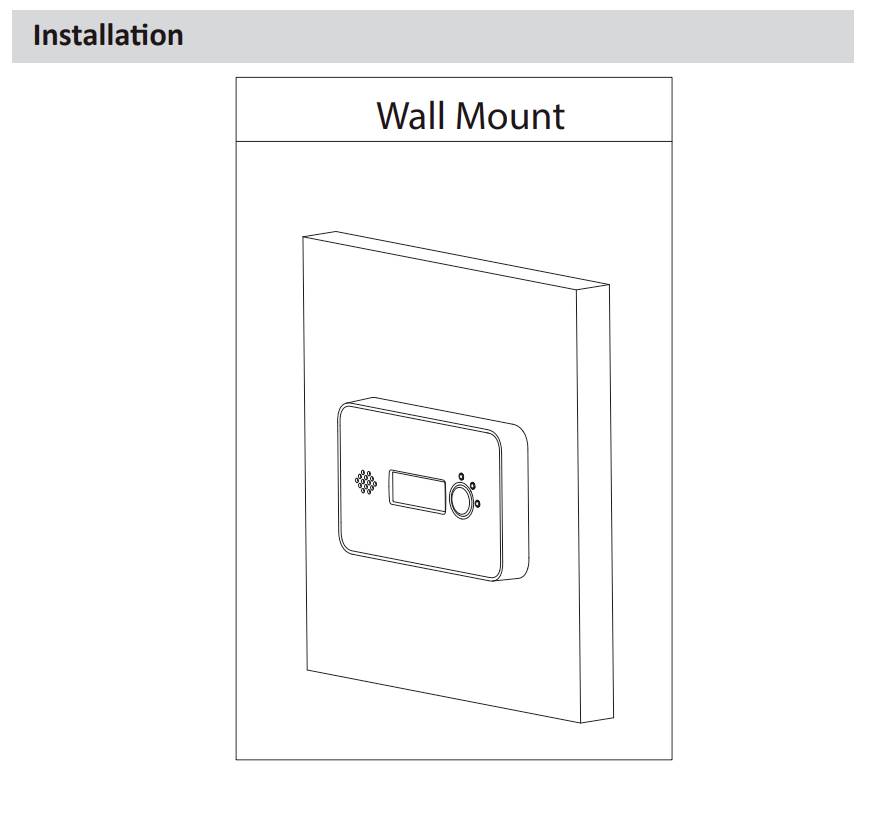

Illustration shows a rectangular control unit being mounted on a wall. Above it reads 'Installation - Wall Mount'.

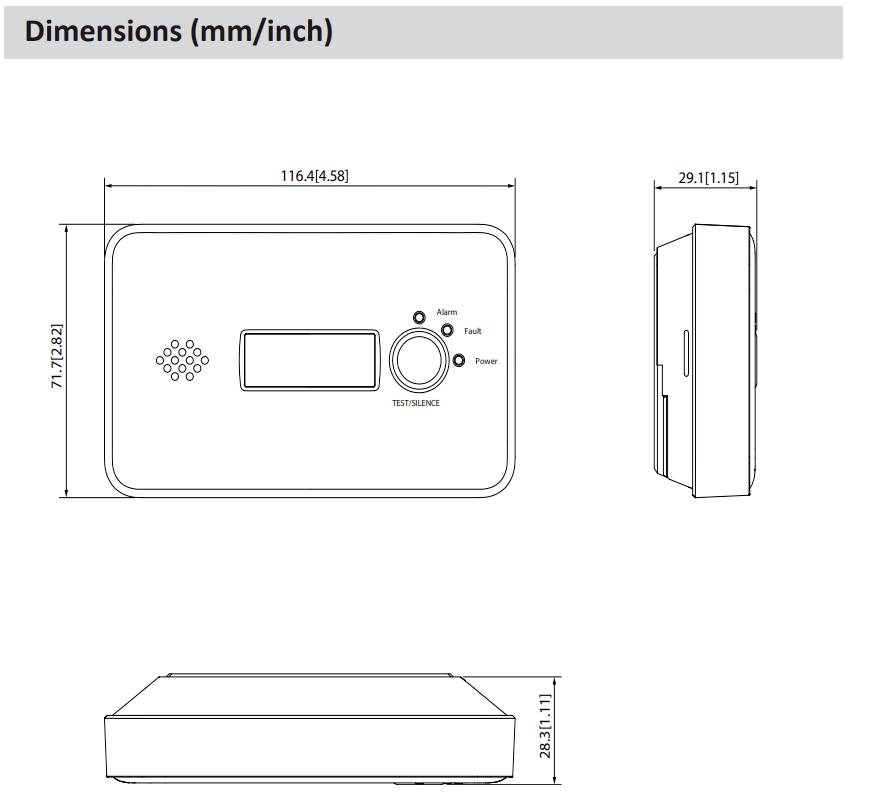

Figure of a rectangular device with a screen and buttons. Dimensions: Length 116.44 mm, Width 71.72 mm, Height 29.11 mm.

1/7

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

12 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 30.24 / piece)

€ 30.24

plus VAT.

Report legal concerns

Highlights & Details

WisuAlarm CO detector with LCD display

Powerful electrochemical CO sensor from Figaro
For accurate detection of carbon monoxide leaks and rapid reaction
Long standby time, low power consumption, 10 years battery life

Technical specifications

Alarm response threshold: 50 ppm: 60 to 90 min / 100 ppm: 10 to 40 min / 300 ppm: < 3 min
Alarm volume: Over 85 dB (A) at 3 m.
Batteries life: 10 years
3 V CR123A lithium battery (replaceable)
Installation: Wall mounting
Operating temperature: -10 °C to + +40 °C.
Material: PC & ABS

Product type: Carbon monoxide detector

Detector features: incl. 10-year battery

detects: Carbon monoxide

Power supply (LOV): battery-powered

Width: 116.4 mm

Height: 71.7 mm

Depth: 28.3 mm

Weight: 125 g

Content: 1 pc(s)

Dim: (W x H x D) 116.4 x 71.7 x 28.3 mm

Documents & Downloads

Datasheet

Datasheet 2763941 Wisualarm HY-GC20B Carbon monoxide detector incl. 10-year battery battery-powered detects Carbon monoxide

Information

Test Summary Report 2763941 Wisualarm HY-GC20B Carbon monoxide detector incl. 10-year battery battery-powered detects Carbon monoxide

Conformity certificate

Conformity certificate 2763941 Wisualarm HY-GC20B Carbon monoxide detector incl. 10-year battery battery-powered detects Carbon monoxide

Security datasheet

Security datasheet 2763941 Wisualarm HY-GC20B Carbon monoxide detector incl. 10-year battery battery-powered detects Carbon monoxide

Description

The carbon monoxide detector D-HY-GC20B from WisuAlarm detects and already detects very small quantities of carbon monoxide in the ambient air. Carbon monoxide is a dangerous breathing toxin and is caused by the incomplete combustion of fossil fuels such as oil, gas, wood, coal pallets, etc. The CO detector warns early against CO poisoning and triggers a loud acoustic and visual alarm.

This text is machine translated.

Features

Type of sensor: Electrochemical
Alarm method: Visual and audible alarms
Display: LCD
Three control lights for clear display of device status
LED indicator (red/yellow/green)
Supports warning with low battery status, mute button with a click and self-test
Built-in loud buzzer, over 85 dB (A) at 3 m
Informative and easy to read CO concentration display on the screen
For indoor use only.
