Schlegel SSSA12II_M07 Key button lockable Key 1 pc(s)

A black metal padlock with a silver ring and an inserted key. It is suitable for security devices.

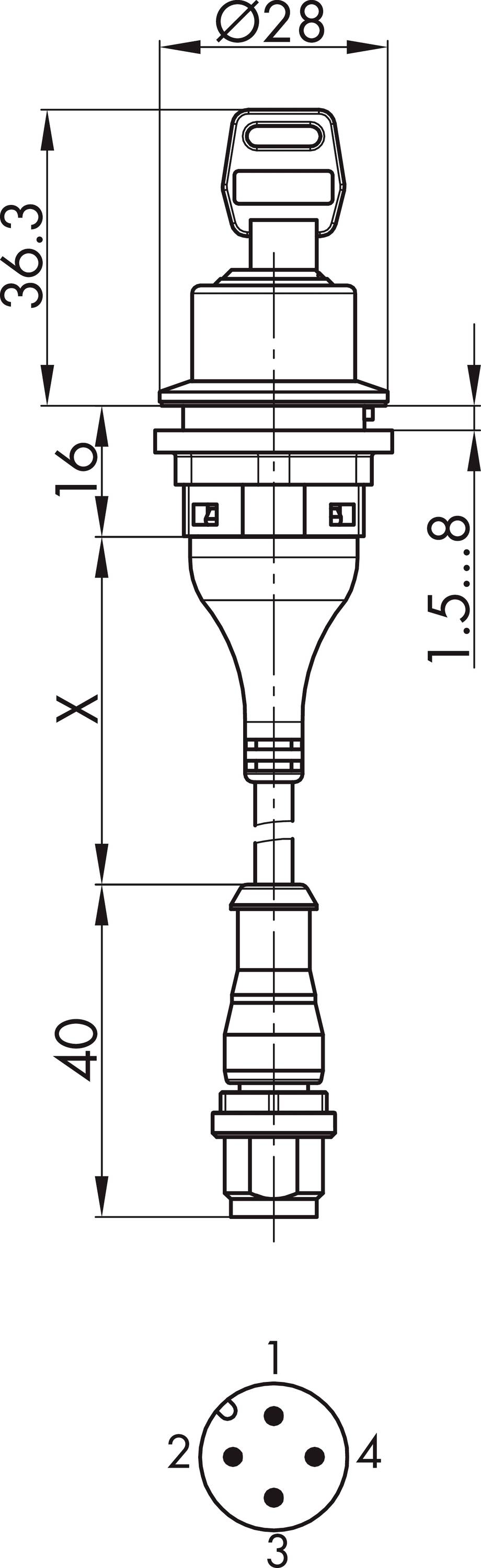

Technical drawing of an electrical plug with dimensional specifications. Key dimensions: Length 40mm, Diameter 28mm. Top view shows 5-pin socket.

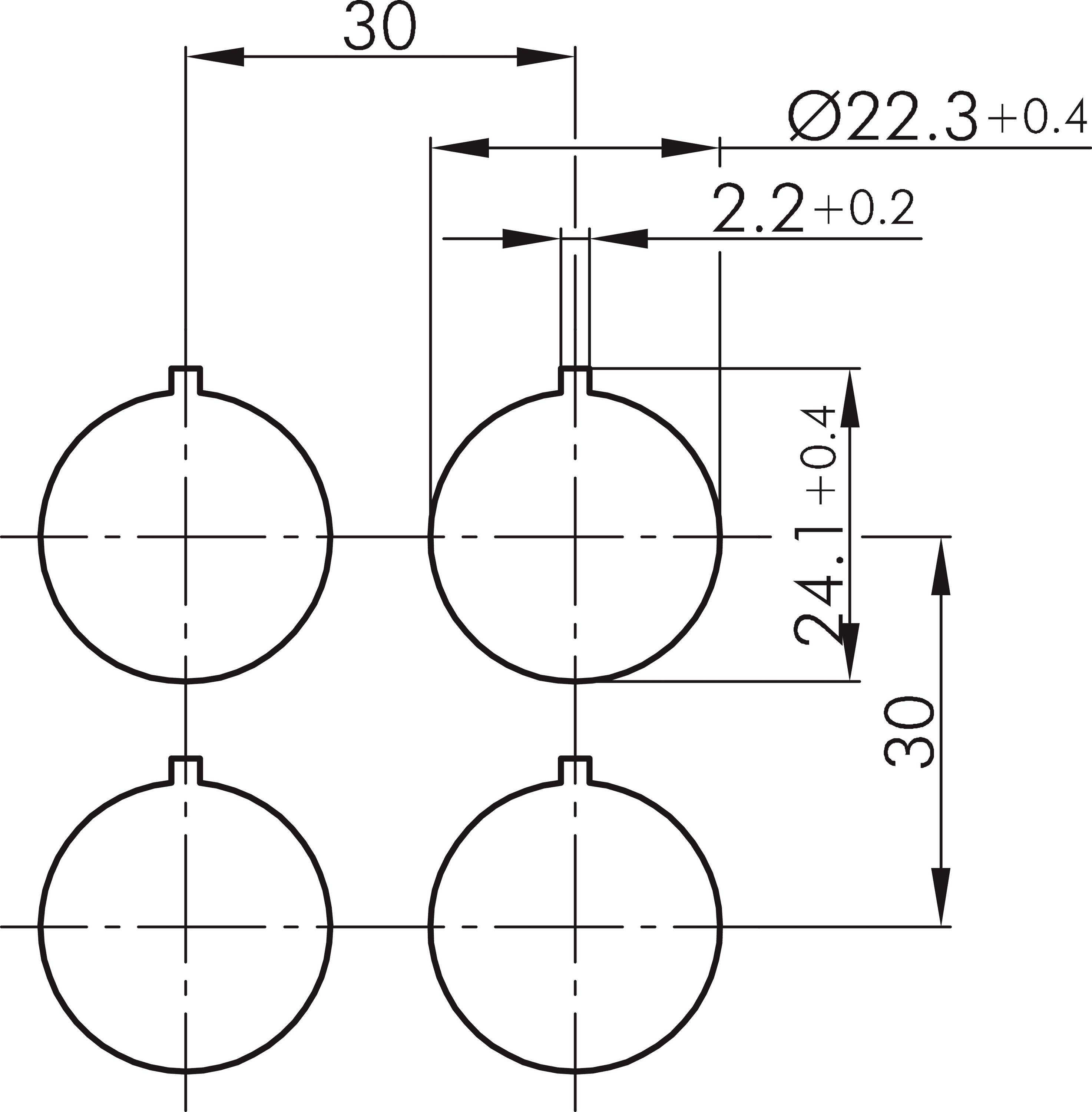

Technical drawing with four identical circular objects spaced 30 mm apart. Diameter 22.3 mm, hole size 2.2 mm.
'Pin 1' leads to 'Pin 2' and 'Pin 4'. Diagram shows electrical connections between the pins.

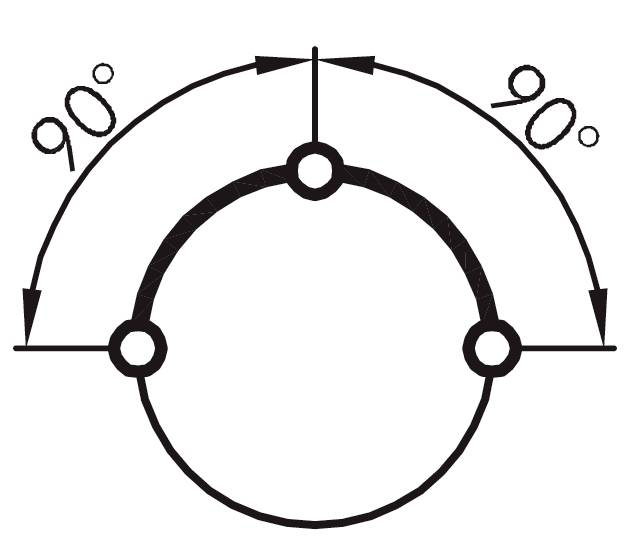

Diagram of a circle with two 90-degree angles, pointing to opposite diameter points that are symmetrically connected along an arc.

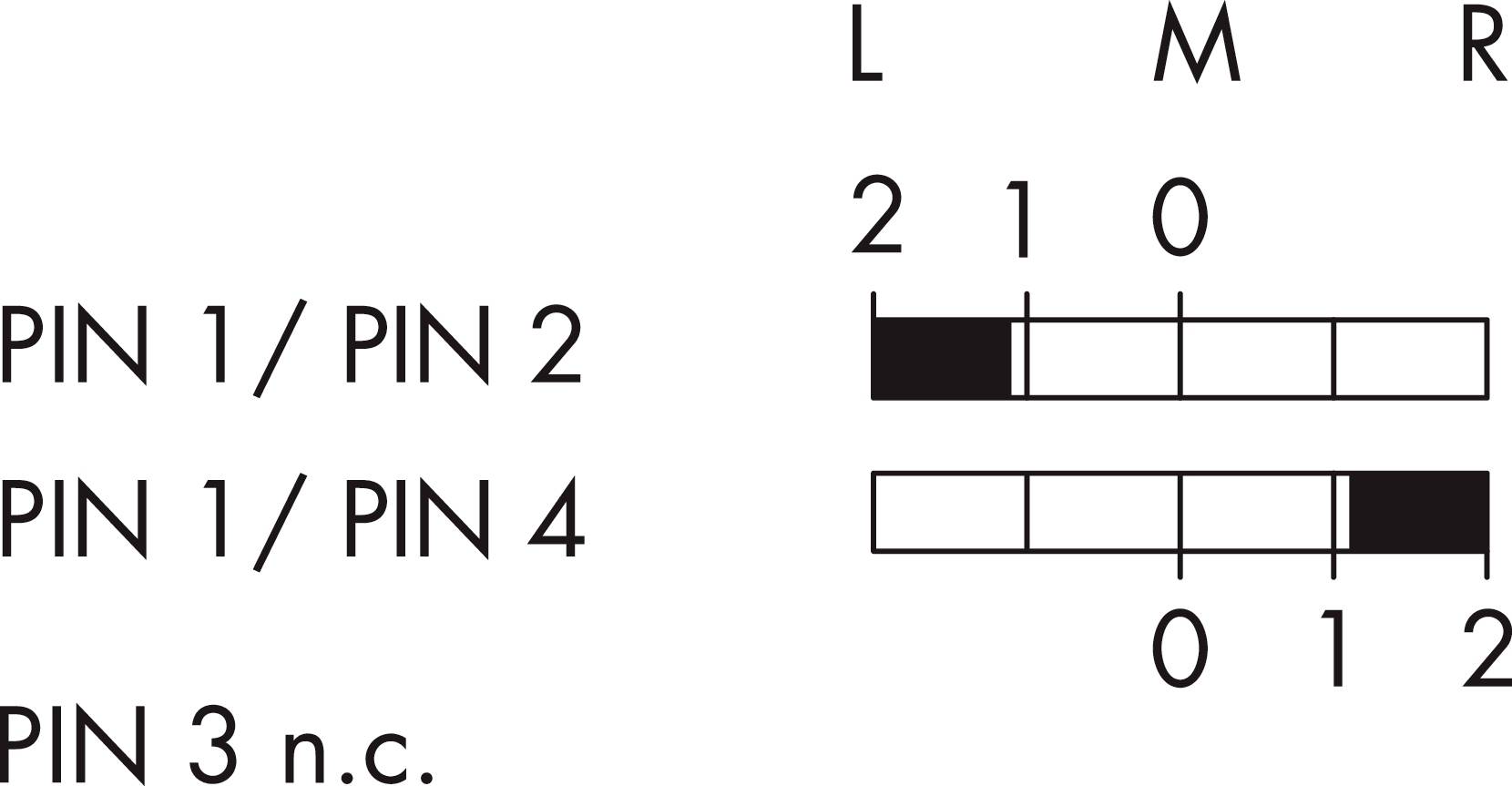

Diagram shows a pin assignment. Left: 'PIN 1/2', 'PIN 1/4', 'PIN 3 n.c.'. Right: Label 'L', 'M', 'R'. Bar diagram with marked segments.
1/6
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
2 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 63.99 / piece)
€ 63.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Category: Key switch (momentary/latch)SHORTRON®-M12 seriesIP65 (from front and rear)Lighting: No.Can be labeled: No.Contact material AgNiStandards: EN 60947-5-1, EN 61058-1Contact type 2SM12 4-pin connection With PUR cable, A coded; length 25 cm; wires 4 x 0.34 mm² (AWG22)Switching function: Latching functionStroke: 2.3 mmElectrical life: 30,000 cycles at nominal loadMechanical life 30,000 switching cyclesMounting hole dia. 22.3 mm.Cable length (X) 250±30 mmFront frame: Silver coloredOperating temperature: -25°C ... 70 °C.Storage temperature: -40°C ... 80 °C.Shape: Round
Product type

Key button

Switch/button features

lockable

Lighting type

None

Operation type

Key

Connection

M12 plug

Shape

Round

Front panel cut-out

Ø 22.3 mm

Functions

latch

Contact type

2 makers

Durability

30,000 switching cycles

Electrical lifespan

30,000 cycles at nominal load

Recess diameter

22.3 mm

IP65

Min. temperature

-25 °C

Max. temperature

+70 °C

Content

1 pc(s)

Type

SSSA12II_M07

Casing/button colour

Silver

Contact material

AgNi

Documents & Downloads

Datasheet

Datasheet 2865264 Schlegel SSSA12II_M07 Key button lockable Key 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2865264 Schlegel SSSA12II_M07 Key button lockable Key 1 pc(s)

Description

SHORTRON®-M12 illuminated contact generator 1 Ö 1S M12-connector 5-pin, AIDA
