Schlegel SWALI_M03 Selector button illuminable Tappet 1 pc(s)

A silver and black threaded rotary knob, commonly used for electronic devices.

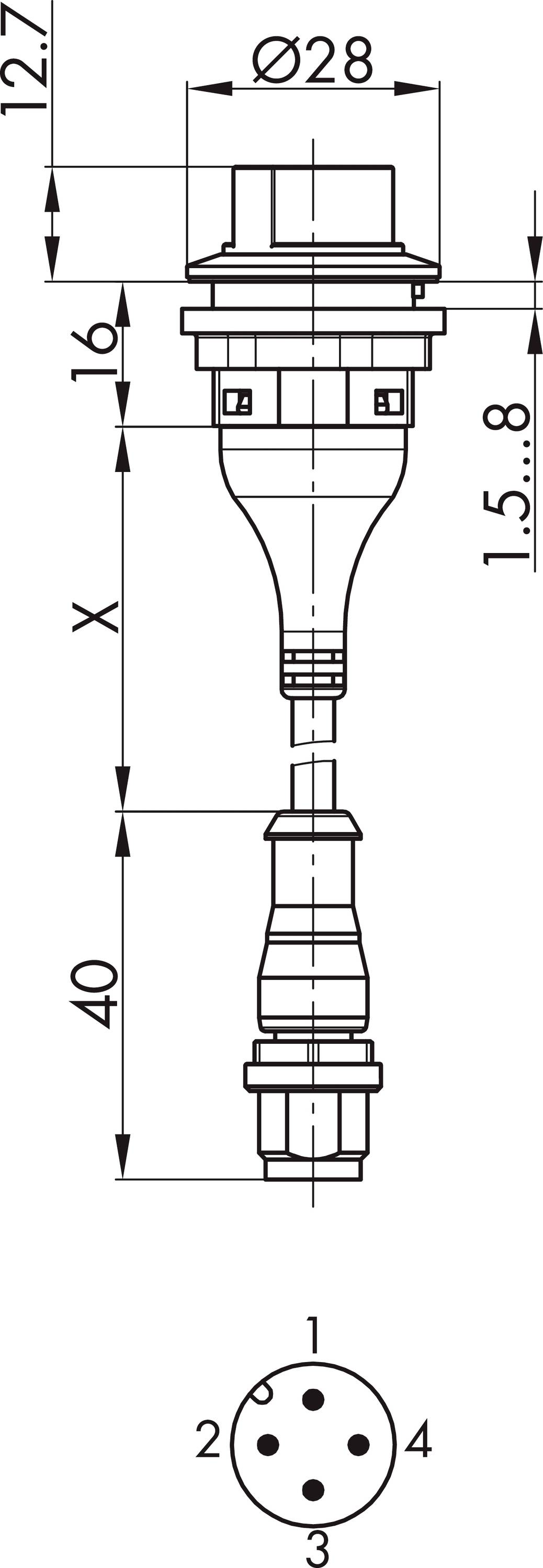

Technical drawing of an electrical connector, showing dimensions and pin configuration. Symmetrical design with measurements in millimetres.

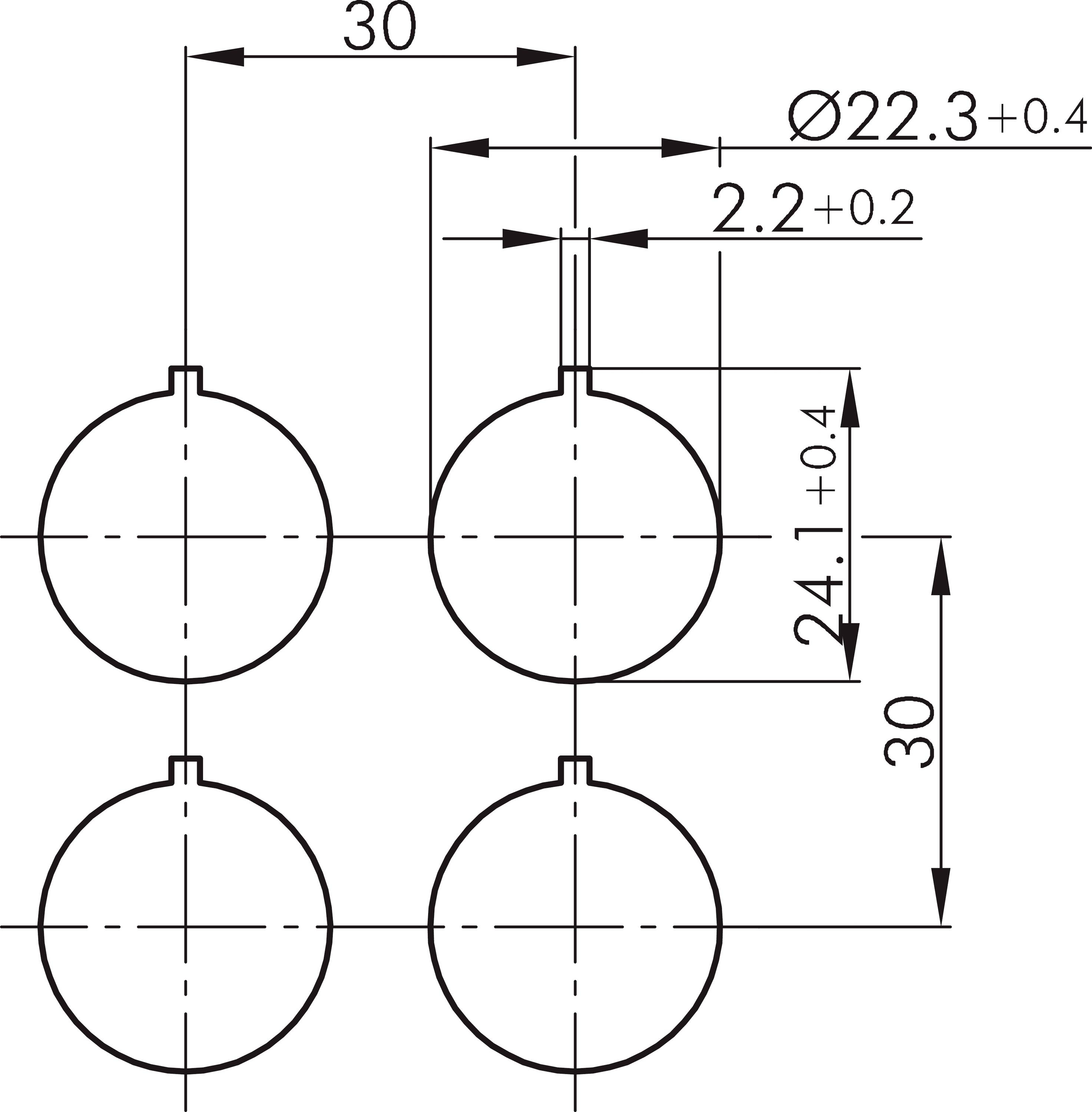

Technical drawing with four evenly distributed circles, diameter 22.3 mm, spacing between circles 30 mm.

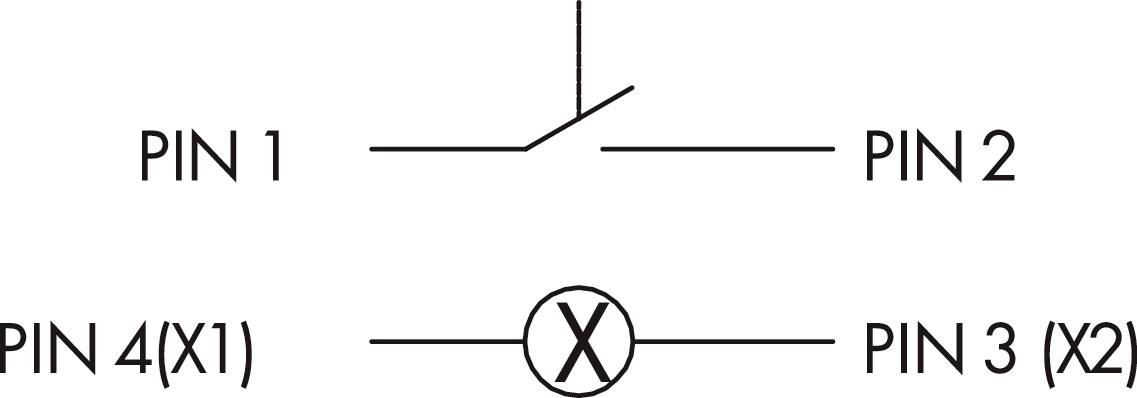

Circuit symbol shows a toggle switch: Pin 1 is connected to Pin 2. Pin 4 is connected to Pin 3. X1 and X2 are marked.

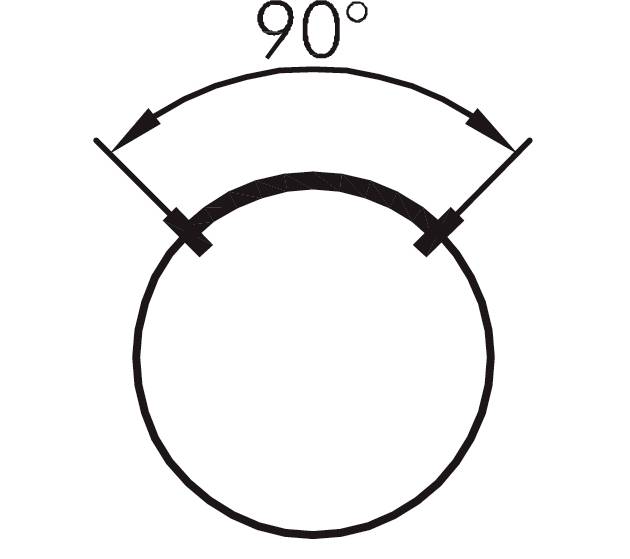

Diagram of a circle with an arched circular arc measuring 90 degrees. Two arrows indicate the direction of the arc.

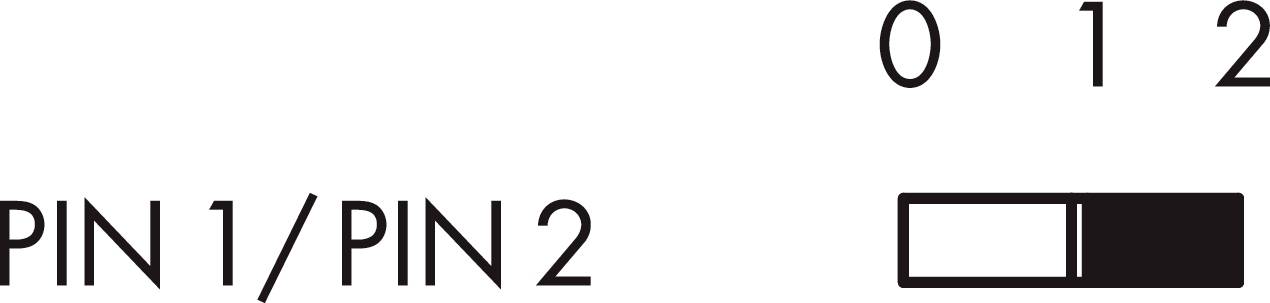

Diagram shows 'PIN 1/PIN 2' setting with slider at 1, numbers 0 to 2 alongside.
1/6
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 5
Multiple: 5
Total (€ 85.99 / piece)
€ 85.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Category: Option key (momentary/latch)SHORTRON®-M12 seriesIP65 (from front and rear)Lighting: YesCan be labeled: No.Contact material AgNiStandards: EN 60947-5-1, EN 61058-1Contact type 1SM12 4-pin connection With PUR cable, A coded; length 25 cm; wires 4 x 0.34 mm² (AWG22)Lamp holder: None, white 3 mm LED integratedSwitching function: Latching functionStroke: 2.3 mmElectrical life: 30,000 cycles at nominal loadMechanical life 30,000 switching cyclesMounting hole dia. 22.3 mm.Cable length (X) 250±30 mmFront frame: Silver coloredOperating temperature: -25°C ... 70 °C.Storage temperature: -40°C ... 80 °C.Shape: Round
Product type

Selector button

Switch/button features

illuminable

Lighting type

LED

Bulb type

LED (monochrome)

Operation type

Tappet

Colour

White

Connection

M12 plug

Shape

Round

Front panel cut-out

Ø 22.3 mm mm

Functions

latch

Contact type

1 maker

Durability

30,000 switching cycles

Electrical lifespan

30,000 cycles at nominal load

Recess diameter

22.3 mm

IP65

Min. temperature

-25 °C

Max. temperature

+70 °C

Switch position

1 x On/Off

Content

1 pc(s)

Type

SWALI_M03

Casing/button colour

Silver

Contact material

AgNi

Documents & Downloads

Datasheet

Datasheet 2865188 Schlegel SWALI_M03 Selector button illuminable Tappet 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2865188 Schlegel SWALI_M03 Selector button illuminable Tappet 1 pc(s)

Description

SHORTRON®-M12 Light pushbutton 1NC+cable Cable length 25CM molded

This text is machine translated.
