Schlegel SWBOI_M01 Selector button Key 1 pc(s)

A black rotary switch with a silver rim, suitable for industrial applications.

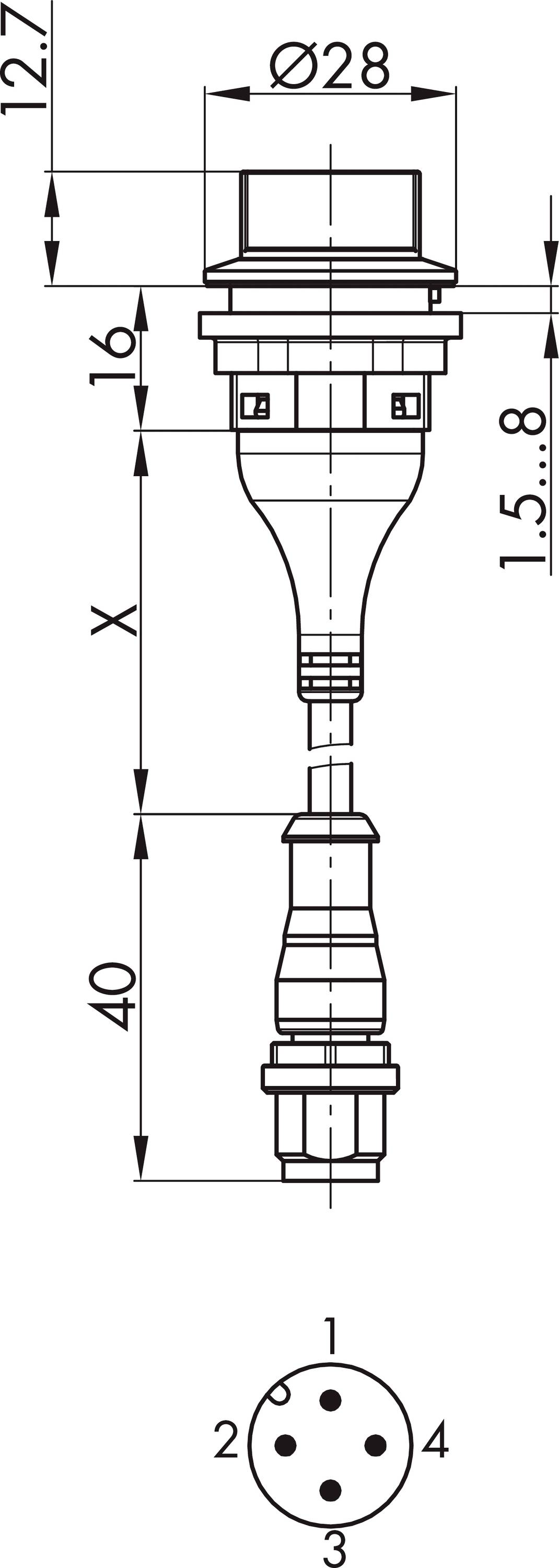

Technical drawing of a circular connector with dimensions of 28 mm diameter and various length specifications. Device with four contact points.

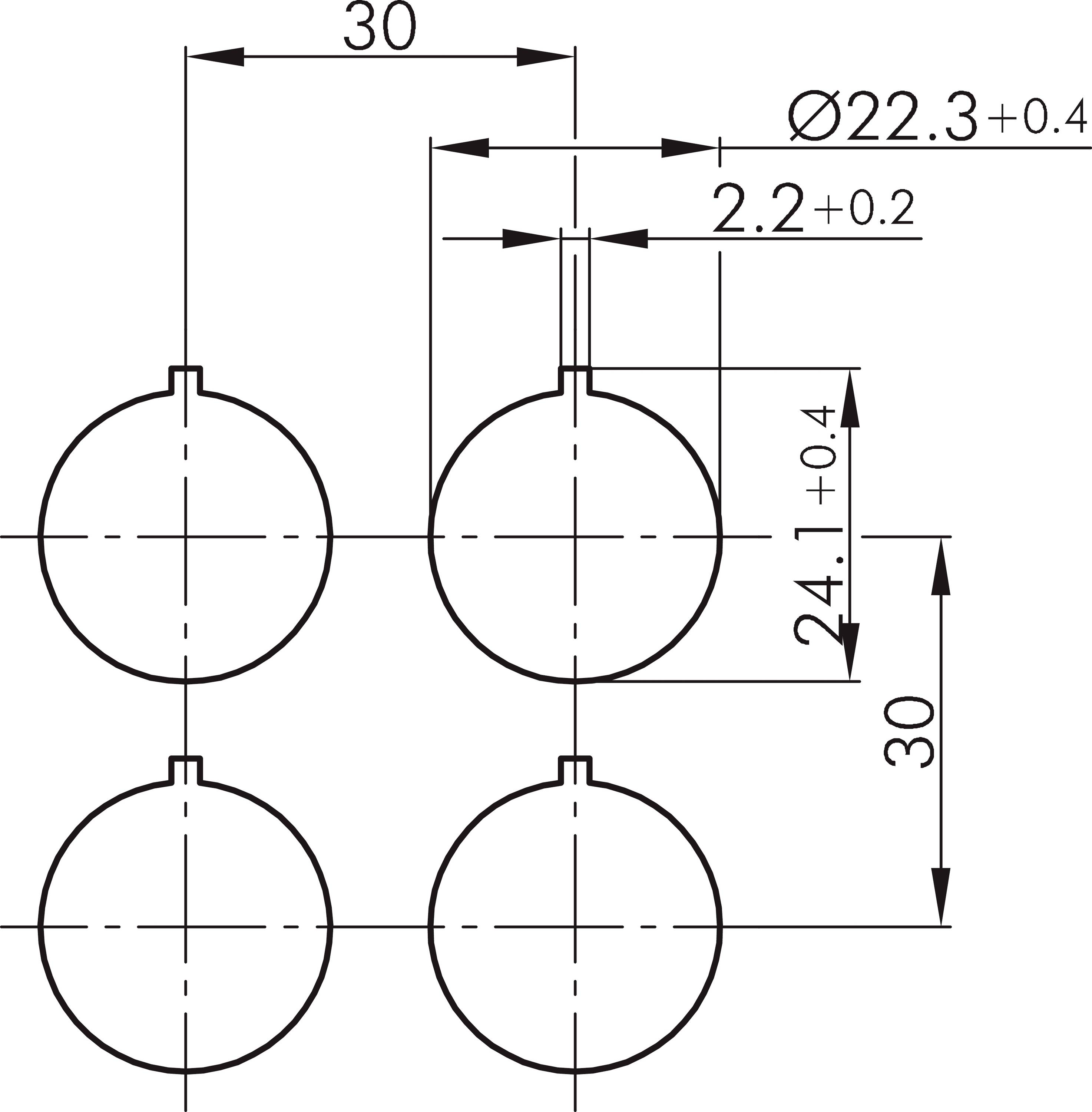

Technical drawing of four circular objects with dimensional measurements in millimetres, showing distance, diameter, and position.
'Switching Symbol: Pin 1 connected with Pin 2 and Pin 4. Pin 1 switches between the two. Wiring diagram for electrical connection.'

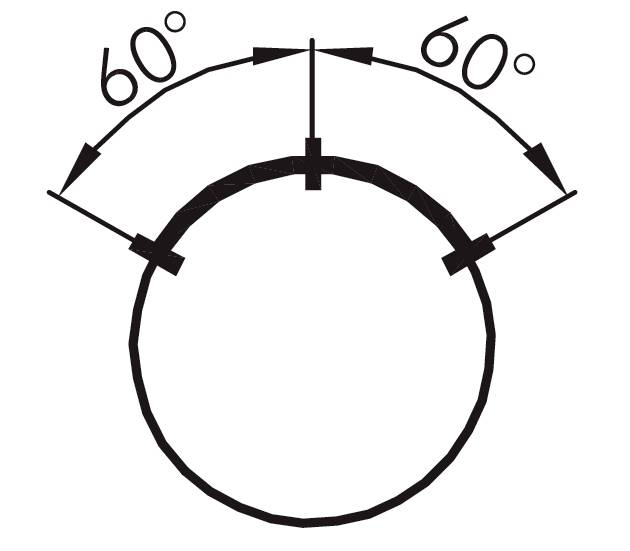

Pie chart with two arrows, each indicating an angle of 60 degrees above the circle.

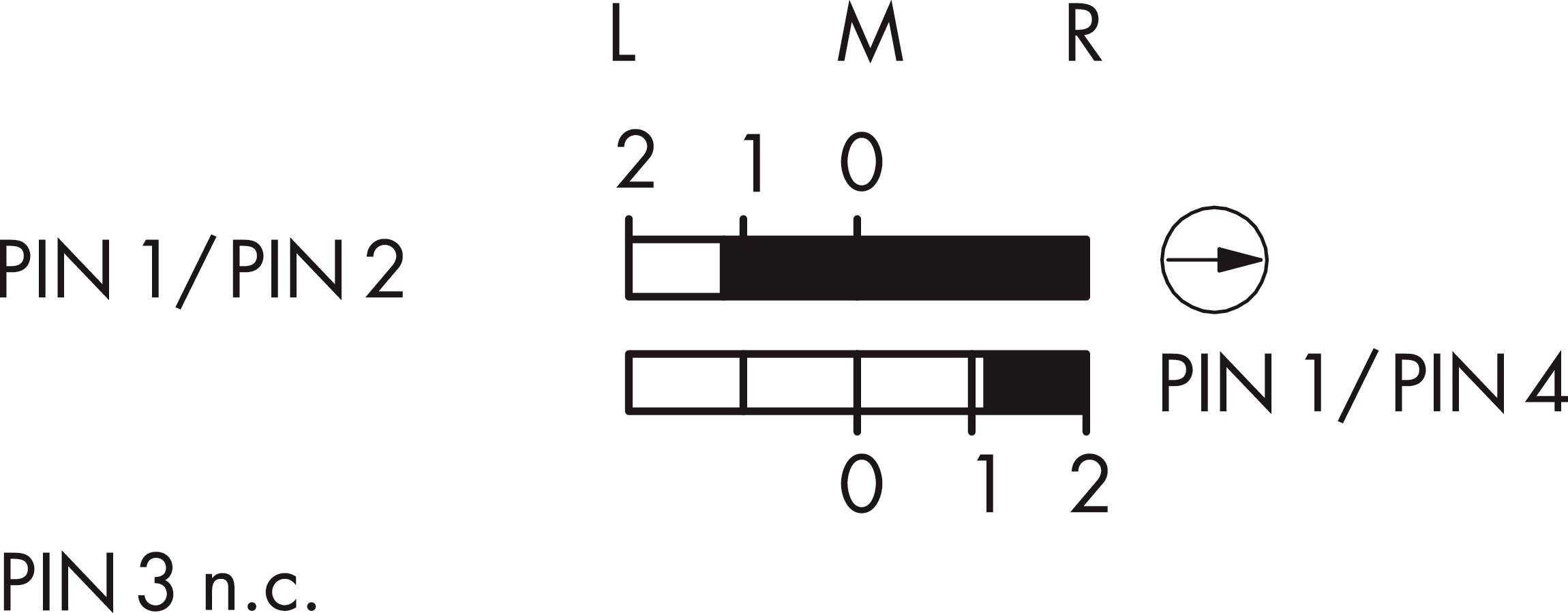

'PIN 1/PIN 2', 'PIN 1/PIN 4', 'PIN 3 n.c.' with arrow diagram. Upper bar: 100% at centre strike (M). Lower bar: 100% right (R).
1/6
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
1 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 57.99 / piece)
€ 57.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Category: Option key (momentary/latch)SHORTRON®-M12 seriesIP65 (from front and rear)Lighting: No.Can be labeled: No.Contact material AgNiStandards: EN 60947-5-1, EN 61058-1Contact type 1NC + 1NOM12 4-pin connection With PUR cable, A coded; length 25 cm; wires 4 x 0.34 mm² (AWG22)Switching function: Latching functionStroke: 2.3 mmForced opening: Acc. To EN60947-5-1, Anh KElectrical life: 1 MIO. Switching cycles DC13: Max. 100,000Mechanical lifespan 1 MIO Switching cyclesMounting hole dia. 22.3 mm.Cable length (X) 250±30 mmFront frame: Silver coloredOperating temperature: -25°C ... 70 °C.Storage temperature: -40°C ... 80 °C.Shape: Round
Product type

Selector button

Lighting type

None

Operation type

Key

Connection

M12 plug

Shape

Round

Front panel cut-out

Ø 22.3 mm

Functions

latch

Contact type

1 breaker

1 maker

Durability

1 million operations

Electrical lifespan

1 MIO Switching cycles DC13: Max. 100,000

Recess diameter

22.3 mm

IP65

Min. temperature

-25 °C

Max. temperature

+70 °C

Length

25 cm

Content

1 pc(s)

Type

SWBOI_M01

Casing/button colour

Silver

Contact material

AgNi

Documents & Downloads

Datasheet

Datasheet 2865184 Schlegel SWBOI_M01 Selector button Key 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2865184 Schlegel SWBOI_M01 Selector button Key 1 pc(s)

Description

SHORTRON®-M12 key switch latching 1N/C+1S Cable length 25CM molded

This text is machine translated.
