Schlegel SSWSSA28I_C007 Key switch round Key Black 1 pc(s) Piece

A black security lock with a keyhole and inserted key. The lock has a thread on its underside.

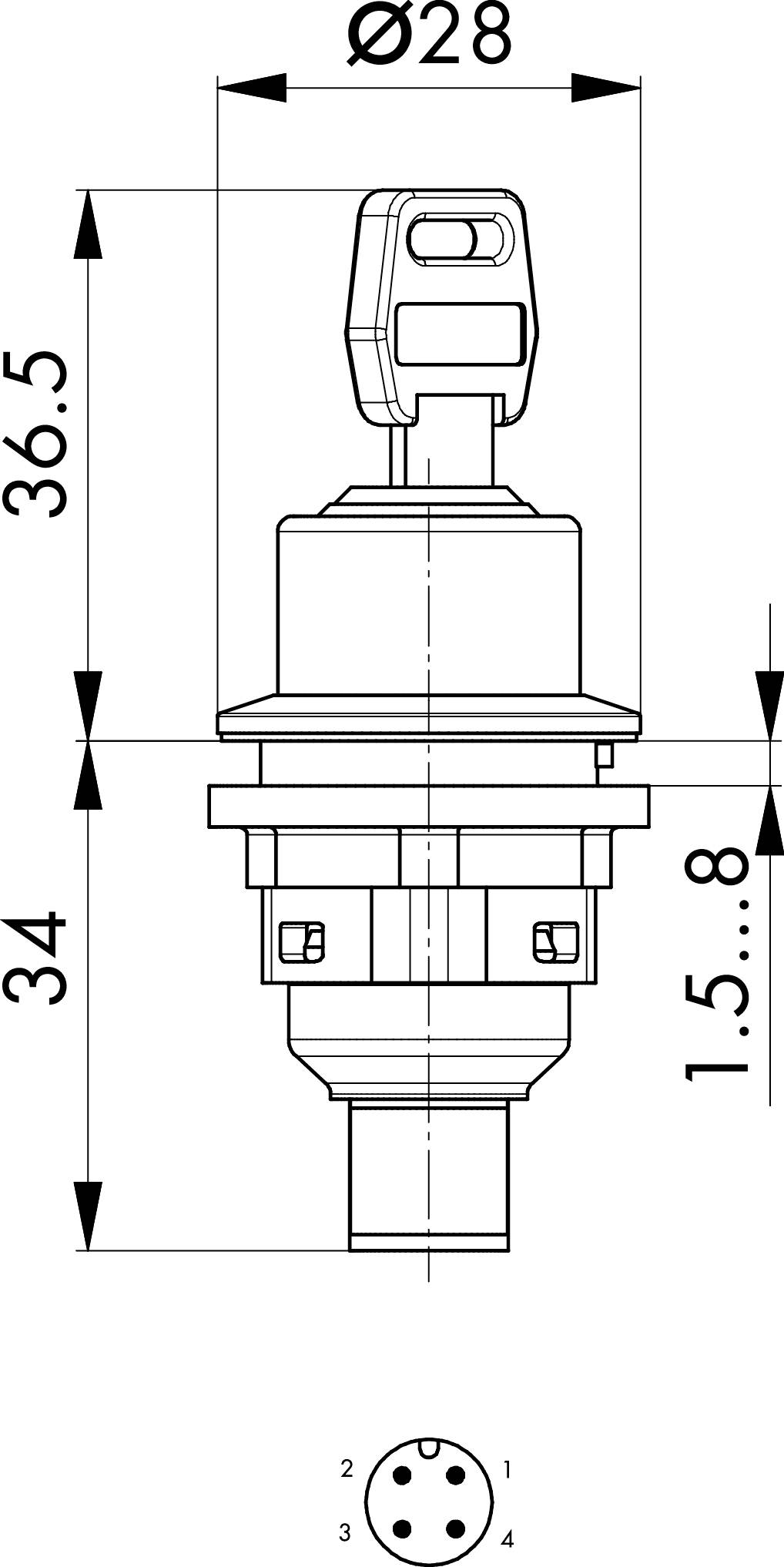

Technical drawing of a key switch with dimensions: Total height 36.5 mm, diameter 28 mm, mounting depth 34 mm, contact diagram.

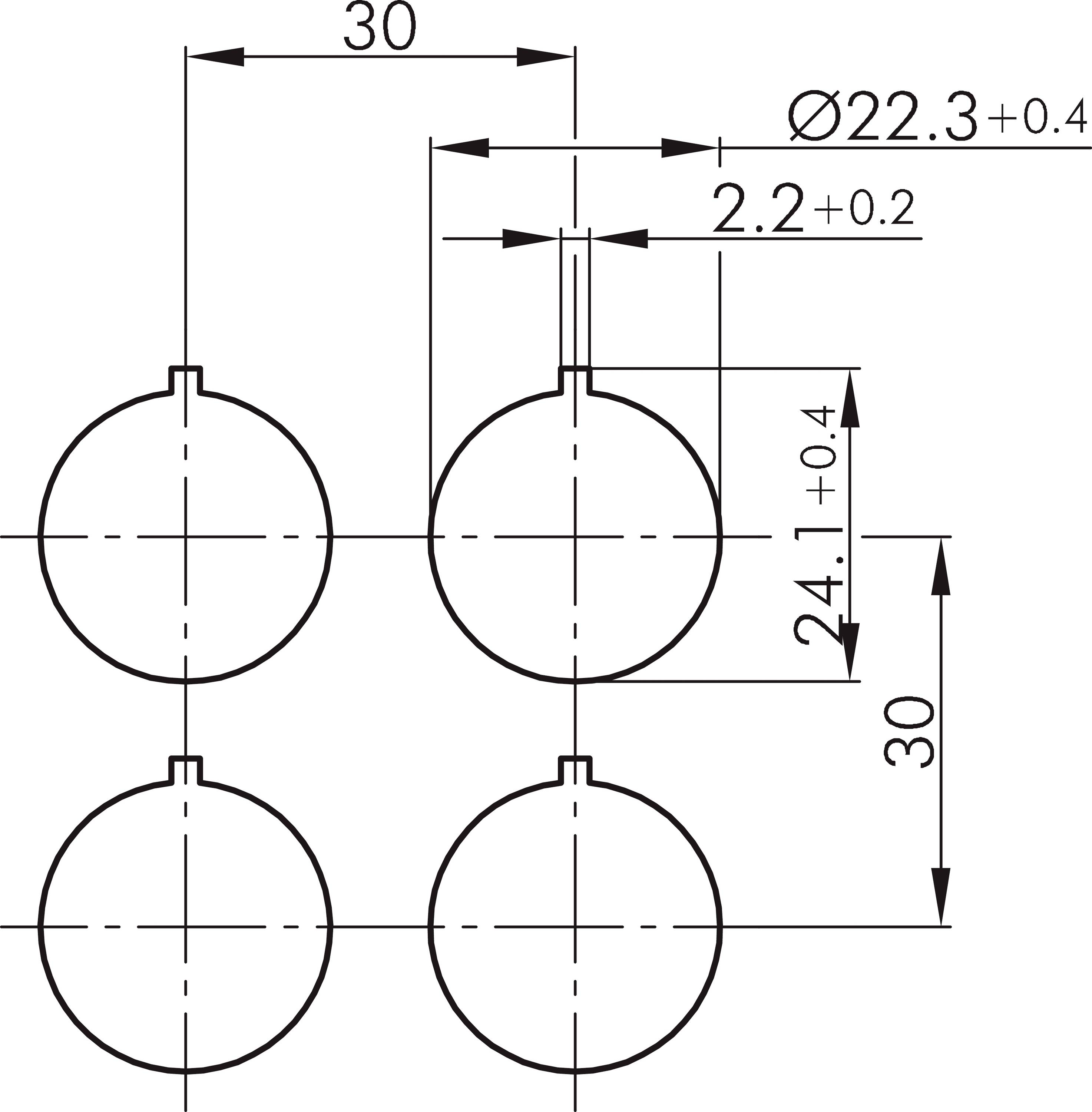

Technical drawing with four circles in a grid. Dimensions: Diameter 22.3 ± 0.4 mm, spacing 30 mm, centred. Additional dimensions and tolerances specified.
Electrical Circuit Diagram: A toggle switch connects PIN 1 and PIN 2. In the shown position, the switch is open, with no connection.

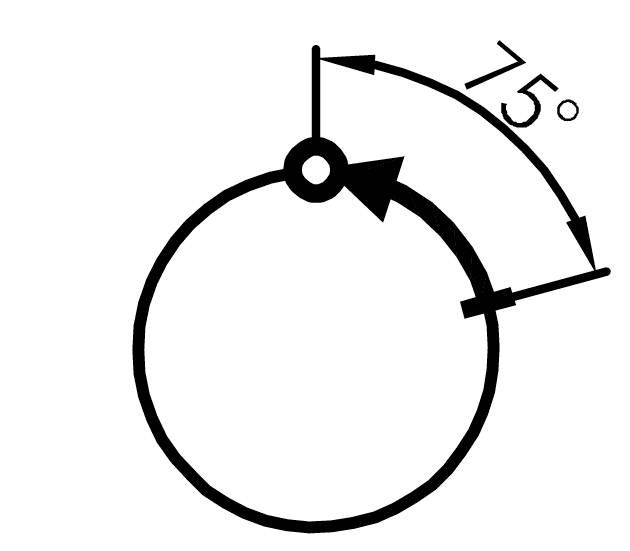

Circle with an arrow indicating a 75-degree angle. The arrow starts from the inner edge of the circle and points outwards.

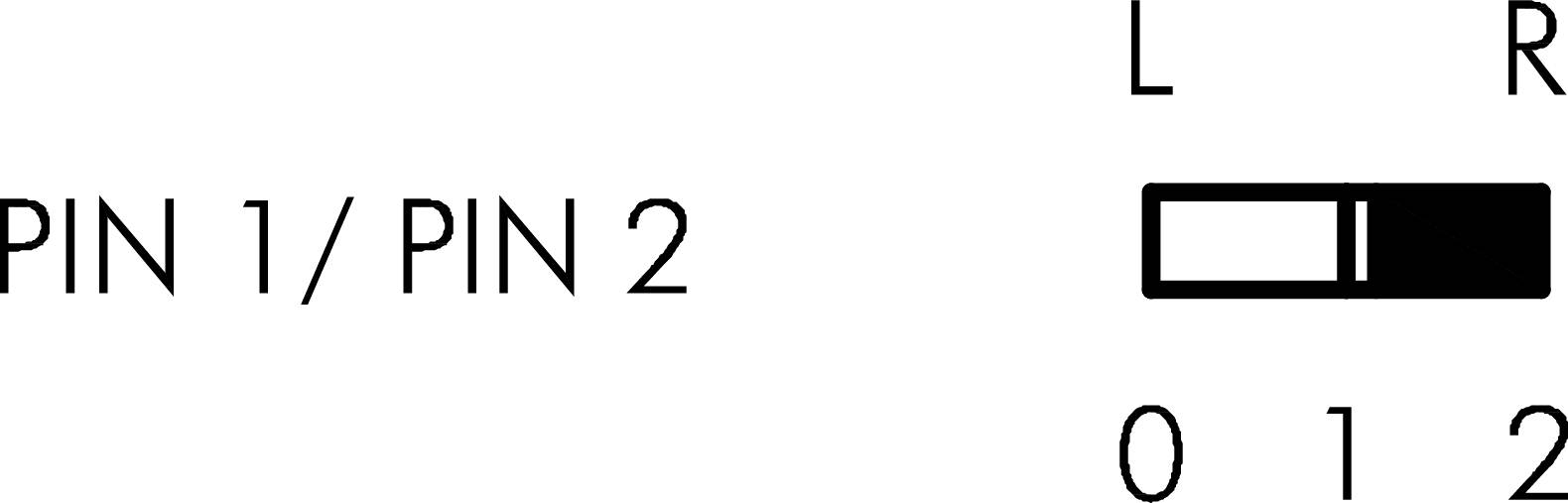

'PIN 1 / PIN 2' with slider in three positions: L and R for Right and Left, 0, 1, 2 for different settings.
1/6
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 5
Multiple: 5
Total (€ 85.99 / piece)
€ 85.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Category: Key switch (momentary/latch)SHORTRON® connect seriesIP65 (from front); IP65 / IP67 (from rear, with M12 plug connected)Lighting: No.Can be labeled: No.Contact material AgNiStandards: EN 60947-5-1, EN 61058-1Contact type 1SConnection type: M12 plug (integrated), 4-pin A-codedProtection class II (protective insulation)Switching function: Key functionStroke: 2.3 mm (button)Forced opening: No.Electrical life: 30,000 cycles at nominal loadMechanical life 30,000 switching cyclesMounting hole dia. 22.3 mm.Front frame: BlackOperating temperature: -25°C ... 70 °C.Storage temperature: -40°C ... 80 °C.Shape: RoundInstallation depth: 33.7 mm
Packaging type

Piece

Product type

Key switch

Switch/button features

round

Lighting type

None

Operation type

Key

Factory colour

Black

Case colour

Black

Connection

M12 plug

Shape

Round

Front panel cut-out

Ø 22.3 mm

Functions

latch

Contact type

1 maker

Durability

30,000 switching cycles

Electrical lifespan

30,000 cycles at nominal load

Recess diameter

22.3 mm

IP65

IP67

Min. temperature

-25 °C

Max. temperature

+70 °C

(Ø)

22.3 mm

Content

1 pc(s)

Dim

(Ø x D) 22.3 mm x 33.7 mm

Depth

33.7 mm

Type

SSWSSA28I_C007

Casing/button colour

Black

Contact material

AgNi

Documents & Downloads

Datasheet

Datasheet 2865173 Schlegel SSWSSA28I_C007 Key switch round Key Black 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2865173 Schlegel SSWSSA28I_C007 Key switch round Key Black 1 pc(s) Piece

Description

SHORTRON® connect key switch, momentary action, 1S stainless steel with M12 4-pin
