Schneider Electric A9Z65440 A9Z65440 RCCB RCD (all types of current) B 40 A 0.3 A
EAN:
Part number:
Item no:
Product type
RCCB
Release characteristics
B
Differential current rating
0.3 A
Nominal current - rounded value
40 A
Nominal current
40 A
Datasheet (PDF)
Number
Total (€ 760.50 / piece)
€ 760.50
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Product type
RCCB
- Release characteristics
B
- Differential current rating
0.3 A
- Nominal current
40 A
- Nominal current - rounded value
40 A
- Model
RCD (all types of current)
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2933962 Schneider Electric A9Z65440 A9Z65440 RCCB RCD (all types of current) B 40 A 0.3 A
Datasheet 2933962 Schneider Electric A9Z65440 A9Z65440 RCCB RCD (all types of current) B 40 A 0.3 A
User & Safety Instructions
User & Safety Instructions 2933962 Schneider Electric A9Z65440 A9Z65440 RCCB RCD (all types of current) B 40 A 0.3 A
Information
Information 2933962 Schneider Electric A9Z65440 A9Z65440 RCCB RCD (all types of current) B 40 A 0.3 A
Information 2933962 Schneider Electric A9Z65440 A9Z65440 RCCB RCD (all types of current) B 40 A 0.3 A
Information 2933962 Schneider Electric A9Z65440 A9Z65440 RCCB RCD (all types of current) B 40 A 0.3 A
Information 2933962 Schneider Electric A9Z65440 A9Z65440 RCCB RCD (all types of current) B 40 A 0.3 A
Description

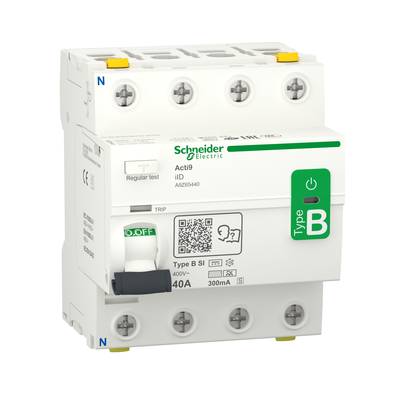

Residual current circuit breaker, all-current sensitive Acti 9 iID. 4-pole,rated current 40A,type B-SI Selective,nominal residual current 300mA,operating voltage (Ue) 400 AC,50Hz,isolation voltage 500V AC. Jumber switching for low wear switching of the contacts. With mechanical front-side fault reporting display (VisiTrip) for displaying tripping due to residual current. Reliable contact display (VisiSafe) of the error current protection switch, in case of green display Safe freedom of voltage on the output side. Test button for regular function check. Double terminals for connecting cables or phase rails on both sides. Easy removal of the individual device with installed phase rail, thanks to the front-accessible fixing element. Additional stackable auxiliary modules (optional) under-voltage release (IMN), over-voltage release (iMSU), working current release (IMX), auxiliary switch for status message (IOF), error alarm switch (ISD). Type B-SI is integrated with SI technology which offers a higher resistance against electrical interference. Protects with smooth DC-fault currents in 1 - or 3-phase supply networks caused by frequency converter, inverter & emergency power supply. Colour tone RAL 9003. Complies with the following standards IEC/EN 61008-2-1,IEC/EN 62423,IEC 61543,VDE 0664.
