Schneider Electric RSL1PRPU Plug-in relay 230 V DC, 230 V AC 6 A 1 change-over 1 pc(s)

EAN:
Part number:
Item no:

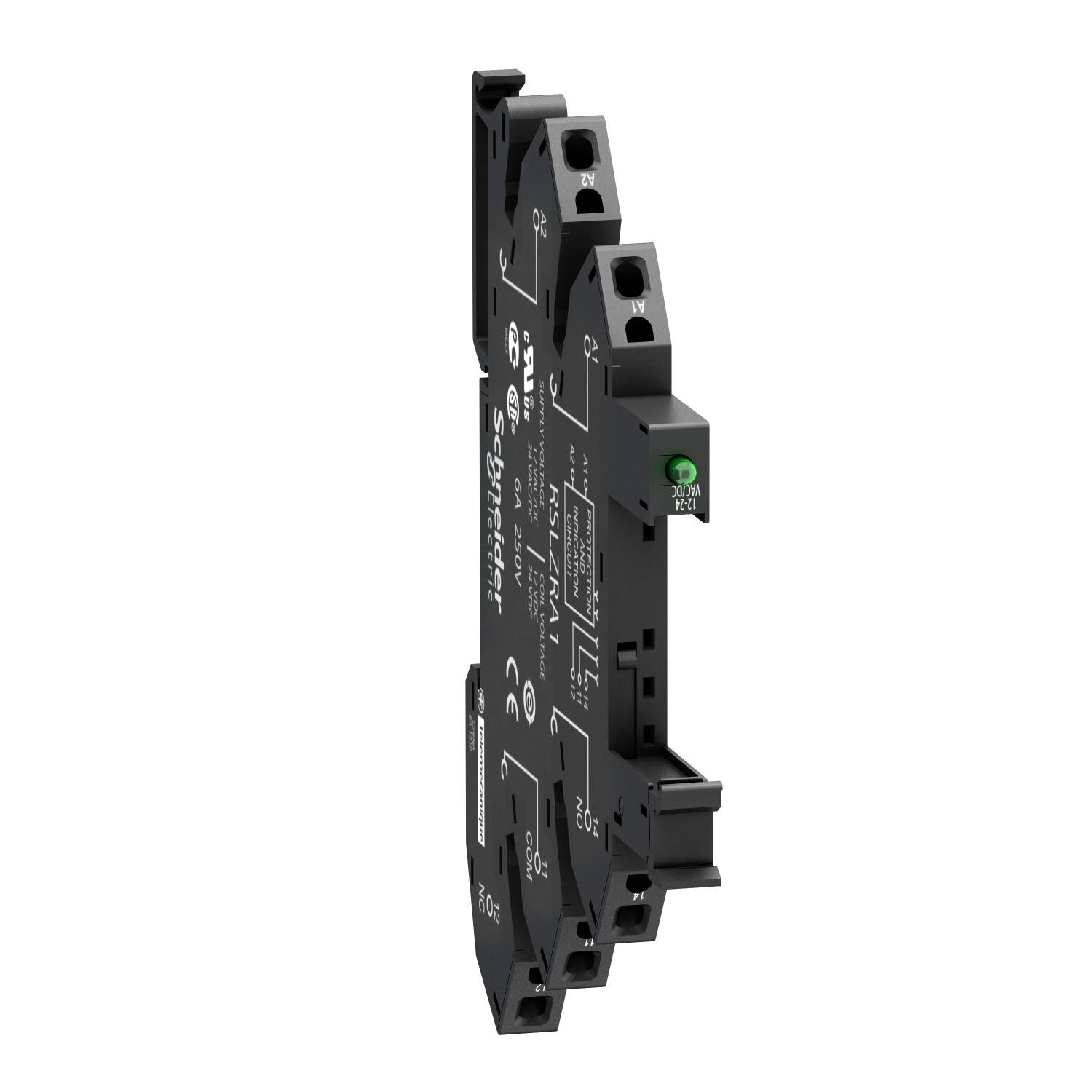

Schneider Electric RSLZ Relay Module. Black housing with technical specifications and logos.
Product type
Plug-in relay
Contact type
1 change-over
Nominal voltage
230 V DC
230 V AC
Switching voltage (max.)
277 V DC
277 V AC
Switching current (max.)
6 A
Datasheet (PDF)
Dispatches on Tue 3 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 20.99 / piece)
€ 209.90
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Plug-in relay

Type

RSL1PRPU

Connection

Spring-loaded terminal

Factory colour

Anthracite (matt)

Contact type

1 change-over

Contact material

AgSnO2

Nominal voltage

230 V DC

230 V AC

Switching voltage (max.)

277 V DC

277 V AC

Switching current (max.)

6 A

Max. switching capacity

1500 VA

Durability

1000 0000 cycles

Features

+ diode bridge

+ bracket

+ LED

IP40

Max. temperature

+70 °C

Min. temperature

-40 °C

Depth

78.6 mm

Width

6.2 mm

Height

101 mm

Dim

(W x H x D) 6.2 x 101 x 78.6 mm

Content

1 pc(s)

Weight

29 g

Documents & Downloads

Datasheet

Datasheet 1667443 Schneider Electric RSL1PRPU Plug-in relay 230 V DC, 230 V AC 6 A 1 change-over 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1667443 Schneider Electric RSL1PRPU Plug-in relay 230 V DC, 230 V AC 6 A 1 change-over 1 pc(s)

Description

Harmony relay Pre-mounted narrow interface-relay RSL. Relay with 1 changeover contact, standard contact. Control voltage 230 VAC/DC. Contact rating up to 6 A. Installation width 6.2 mm. Spring-loaded terminals, receives comb rails. LED display, voltage adjustment and protection integrated into the base. Lever for easily latching and removing the relay. Acceptance on the socket for label plate. Base can be snapped onto DIN rail. The relay is already plugged into the socket and can be assembled immediately.

This text is machine translated.

Hints

Important: Voltage adjustment and protection integrated in the socket.
The RSL1PRPU interface relay consists of the following components:
- Relay: RSL1AB4ND (coil voltage = 60 VDC)
- Socket: RSLZRA4 (supply voltage = 230 VAC/DC)
