Buy Senseca DX 115-00-300-L02 Immersion probe -196 up to +500 °C Sensor type Pt100

Probe thermometer with a long, thin metal stem, labeled 'EXPRESSIONS' on the handle, used for measuring temperature.

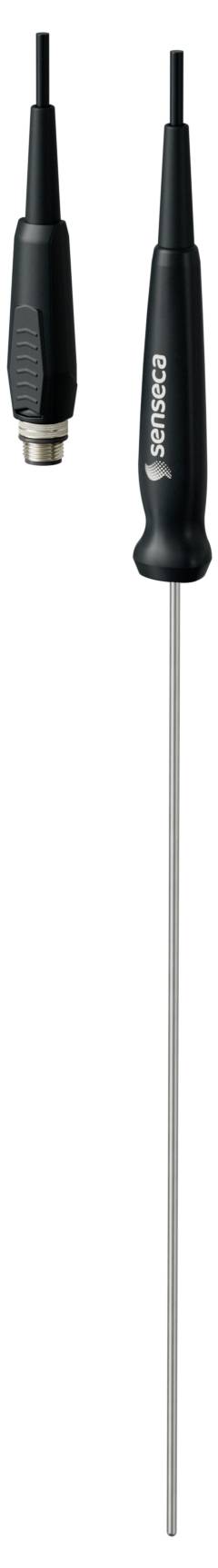

A long, thin metal probe thermometer with a black handle and connector.

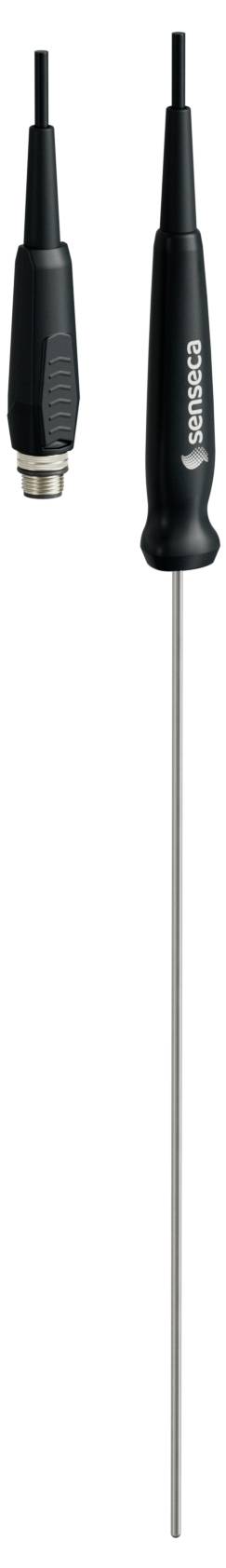

A black-handled probe with a thin metal rod, connected by a cable to a plug, typically used for precise temperature measurement in cooking.

A long, cylindrical metal rod with a smooth surface and a metallic sheen, possibly used in construction or engineering applications.

1/4

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 197.47 / piece)

€ 197.47

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

DX 115 digital Pt100 immersion sensor, large handle (e.g. for PRO D5x)

Sensor type Pt100
-196 up to +500 °C

Technical specifications

Product type: Immersion probe

Sensor type: Pt100

Temperature reading range (min.): -196 °C

Temperature reading range (max.): +500 °C

Dim: (Ø) 3 mm

Probe length: 300 mm

: Manufacturer's standards (no certificate)

Weight: 503 g

Cable length: 2 m

Temperature reading range: -196 up to +500 °C

Reading category: Ohne Messkategorie

(Ø): 3 mm

Documents & Downloads

Datasheet

Datasheet 3046651 Senseca DX 115-00-300-L02 Immersion probe -196 up to +500 °C Sensor type Pt100

User & Safety Instructions

User & Safety Instructions 3046651 Senseca DX 115-00-300-L02 Immersion probe -196 up to +500 °C Sensor type Pt100

Description

DX 115 is a highly precise, digital, wire wound Pt100 temperature sensor for the PRO D01 / PRO D05 hand-held measuring devices.

The sensor is factory calibrated and is immediately ready for use. It can optionally be supplied with a DAkkS/ACCREDIA calibration certificate.

Calibration data is stored in the probe, WAS allows interchangeability without recalibration.

The user can adjust the probe in two points (offset and slope) or by setting R0 (sensor resistance at 0°C) and the Callendar Van Dusen parameters.

Supplied with 2 m cable with 4-pin M12 connector.

This text is machine translated.

Features

2-point factory calibration
Changeable
quick and precise
Ergonomic handle with high operating temperature of up to 120 °C.
Robust for many years professional use
Easy to clean
Water resistance as per IP 67
