Name: Senseca ECO 511-SET135 pH / ORP meter pH, ORP, Temperature
Brand: Senseca
SKU: 3410746
Availability: BackOrder

'A portable pH measurement kit with a digital meter, probe, and solution bottles organized in a foam-lined carrying case.'

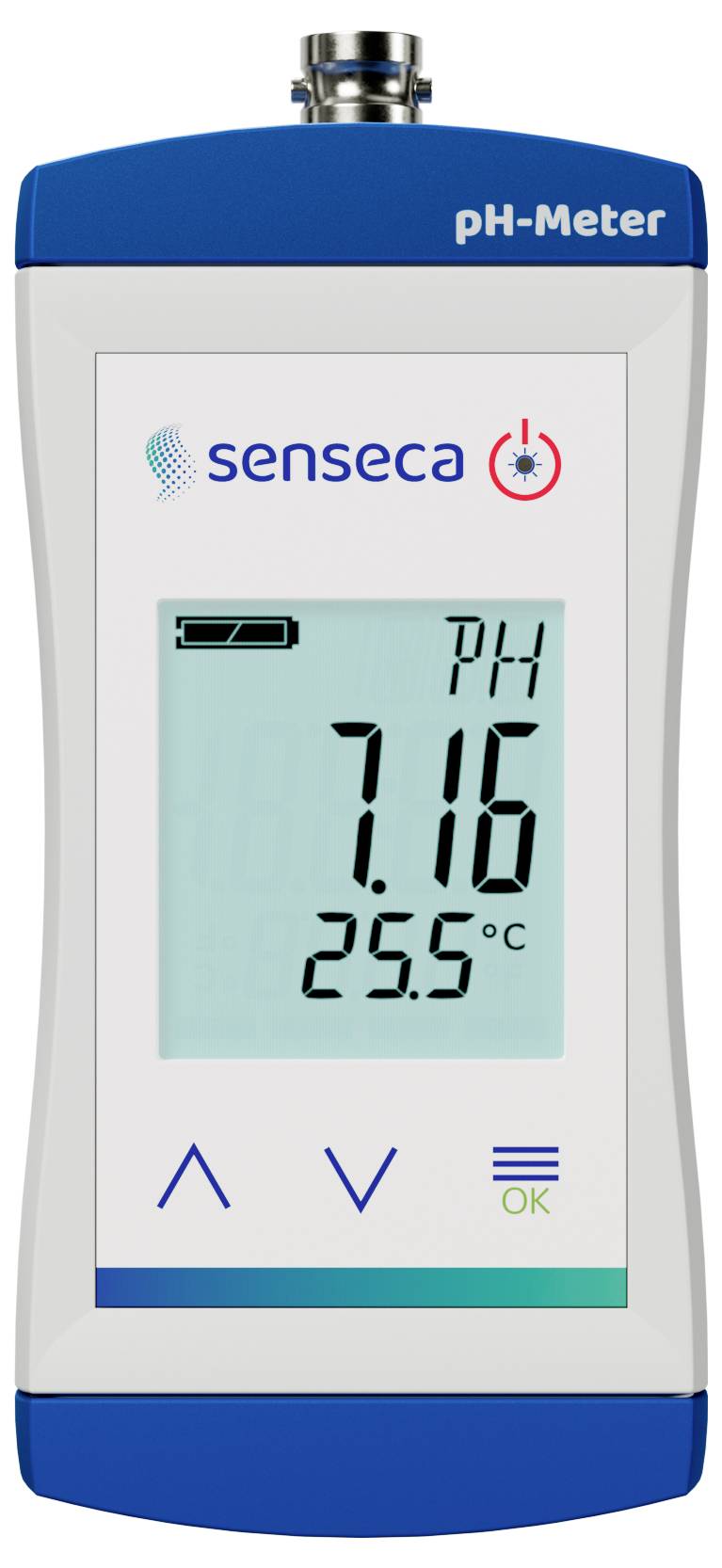

Portable pH meter displaying '7.16 pH' and '25.5°C' on screen, with buttons for navigation and an 'OK' indicator below.

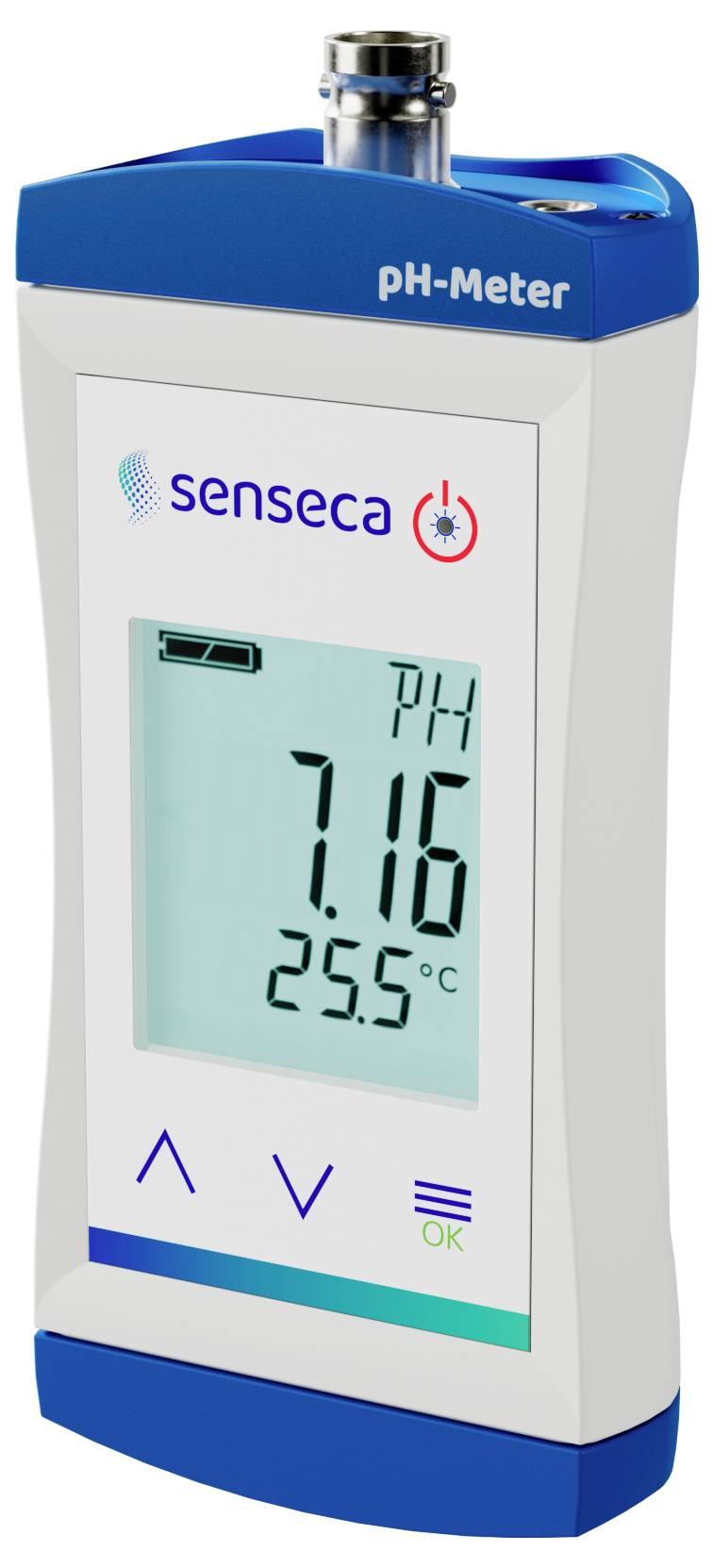

'Seneca pH meter showing pH 7.16 and temperature 25.5°C on digital display.'

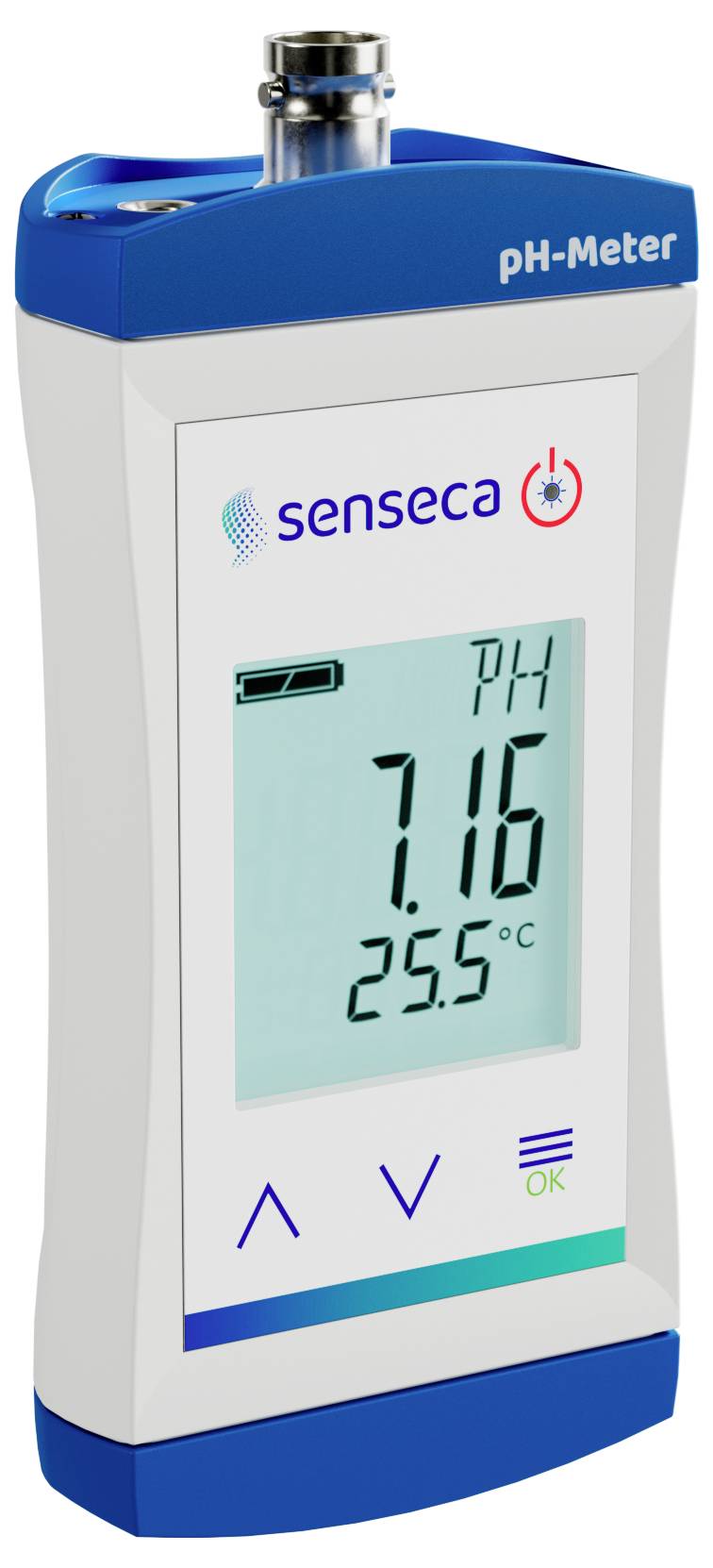

A digital pH meter displaying a pH reading of 7.16 and a temperature of 25.5°C. The device is handheld, branded with 'Senseca'.

A blue electronic device with three circular ports labeled 'CND' and 'T' on its front panel. Central port is larger, surrounded by two smaller ones.

A blue liquid-filled glass tube with a black plastic cap, featuring a visible measurement scale and electronic probe at the bottom.

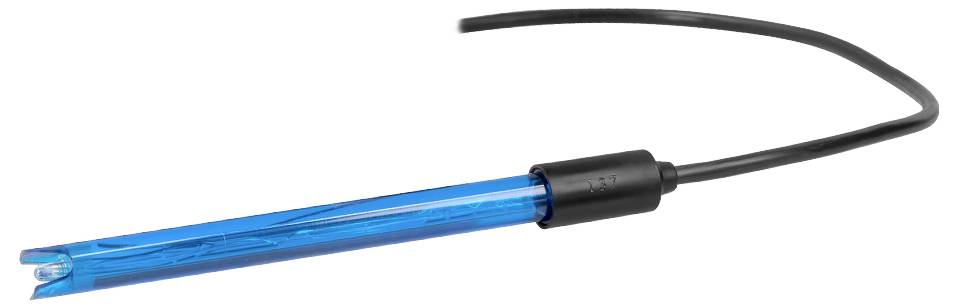

A blue pH probe with a black connector and cable, used for measuring pH levels in liquids in scientific and educational settings.

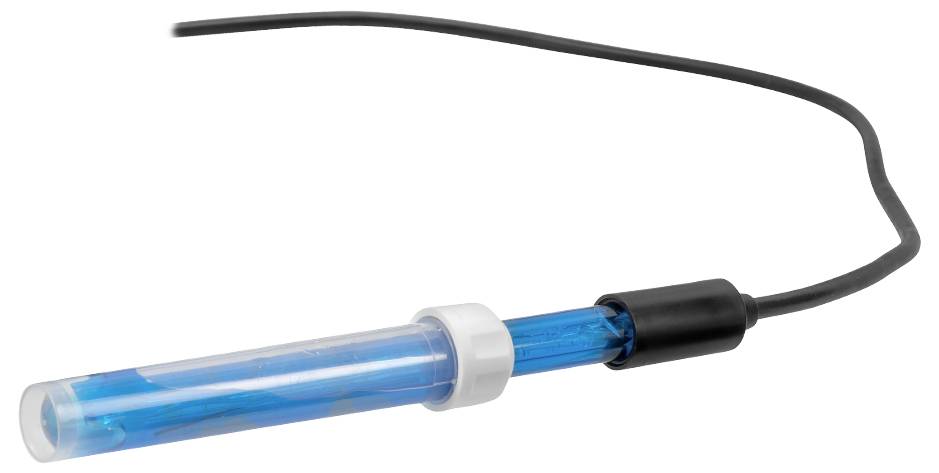

A blue glass pH electrode with a black wire, designed for measuring acidity levels in solutions.

Senseca ECO 511-SET135 pH / ORP meter pH, ORP, Temperature-8

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 465.00 / piece)

€ 465.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Senseca ECO 511 SET114 Waterproof pH/redox meter with Pt1000 input (formerly Greisinger G 1501)

• Modern and functional housing
• Excellent value for money
• Waterproof (IP65/IP67)
• 3-line display / overhead display by pressing a button, illuminated
• Robust, long battery life
• BNC connection for AC electrodes
• Sets with low-maintenance pH electrodes GE 114 / GE 135
• Excellent accuracy by matching with GPH-DOS 4/7/10
(Accessories)
• HOLD function for "freezing" measuring values
• Min/max function for minimum and maximum measured values

Technical specifications

Measuring range Redox: -1500 ... +1500 mV

Product type: pH / ORP meter

Reading type: pH
ORP
Temperature

Accuracy: ±0.02 pH ± 1 digit (at nominal temperature 25 °C)

Display: Digital

Operating temperature: -20 ... +50 °C

Dim: (L x W x H) 108 x 54 x 28 mm

Weight: 1532 g

Temperature reading range: -5.0 up to +105.0 °C

Temperature reading range (max.): +105.0 °C

Temperature reading range (min.): -5.0 °C

pH reading range: 0.00 - 14.00 pH

pH reading range (max.): 14.00 pH

pH reading range (min.): 0.00 pH

Width: 54 mm

Height: 28 mm

Length: 108 mm

Interfaces: BNC

Documents & Downloads

Datasheet

Datasheet 3410746 Senseca ECO 511-SET135 pH / ORP meter pH, ORP, Temperature

User & Safety Instructions

User & Safety Instructions 3410746 Senseca ECO 511-SET135 pH / ORP meter pH, ORP, Temperature

Signal word

GHS / EUH statements

EUH 210: Safety data sheet available on request
EUH 208: Contains a substance that may cause an allergic reaction

Description

While developing the ECO 51x series, the focus was on the essential functions of the measurement technology. The Pure measuring with focus on precision, speed and reliability, packed in a compact housing enables the outstanding price performance ratio, made in Germany. The hand-held measuring devices also impress through their ergonomic design, the dust and water-protected version according to IP 65/67 and the illuminated display. The pH-meters are a real alternative to pH-sticks on the one hand and to high-priced, complex devices on the other. The ECO 510 enables measurements in the pH range, the ECO 511 offers additional options for measurements in the pH/redox range and a temperature input (Pt1000).

This text is machine translated.

Scope of delivery

• Dust and waterproof hand-held measuring device according to IP 65 / 67 in case GKK 1001
• PH electrode GE 135 1m (Pt1000)
• GAK 1400
• Testing protocol
• 2x AA battery
• Operating instructions

Description

Scope of delivery

• Dust and waterproof hand-held measuring device according to IP 65 / 67 in case GKK 1001
• PH electrode GE 135 1m (Pt1000)
• GAK 1400
• Testing protocol
• 2x AA battery
• Operating instructions
