Name: Siemens 3NC1091 Switch disconnector fuse 32 A 690 V AC, 800 V DC 12 pc(s)
Brand: Siemens
SKU: 2262479
Availability: InStock

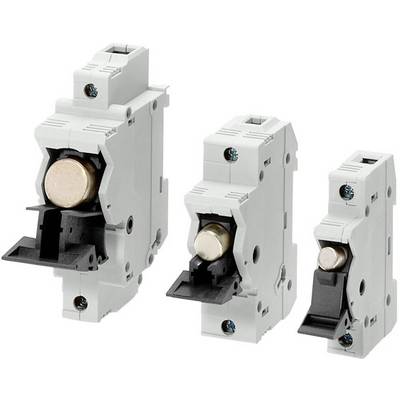

Three grey electrical circuit breakers of varying sizes with black switches, positioned on a white background surface.

Image similar

Product type

Switch disconnector fuse

Number of pins

Release characteristics

Very quick acting -FF-

Nominal current - rounded value

32 A

Type

SITOR

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

2 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 12 pc(s))

Set(s)

Total (€ 13.75 / piece)

€ 164.99

incl. VAT

Only 2 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Design of the electrical connection / for the main circuit: Screw connection
Design of the device: For DIN rail mounting
Size of fuse insert: 10x38 mm
Mounting type / front mounting with 4-hole mounting: Yes
Suitability for use / switch disconnectors: Yes
Suitability for use / safety switch: Yes
Position / actuator: Front
AWG number / as coded connectable conductor cross-section / single-wire / minimum: 18
AWG number / as coded connectable conductor cross-section / single-wire / maximum: 4
Connectable conductor cross-section / for main contacts / multi-wired / minimum: 1.5 mm²
Connectable conductor cross-section / for main contacts / multi-wired / maximum 25 mm²

Type: SITOR

Product type: Switch disconnector fuse

Number of pins: 1

Release characteristics: Very quick acting -FF-

RoHS-compliant: Yes

Dim: (W x H x D) 17.7 x 58 x 85 mm

Content: 12 pc(s)

Nominal current: 32 A

Nominal current - rounded value: 32 A

Nominal voltage: 690 V AC
800 V DC

Width: 17.7 mm

Height: 58 mm

Depth: 85 mm

: Other

: 32 A

: 1

: 50 kA

: IP20

: Other

: FALSE

: Screw connection

: FALSE

: Other

: FALSE

: TRUE

: FALSE

: TRUE

: FALSE

: 690 V

: FALSE

: FALSE

: Front side

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2262479 Siemens 3NC1091 Switch disconnector fuse 32 A 690 V AC, 800 V DC 12 pc(s)

User & Safety Instructions

User & Safety Instructions 2262479 Siemens 3NC1091 Switch disconnector fuse 32 A 690 V AC, 800 V DC 12 pc(s)

Description

SITOR backup circuit breakers 10x 38, to 32A, 690V AC SITOR 3NE solid-state fuses, 3NC protect power semiconductors against the effects of a short circuit. The SITOR fuse system from Siemens, an important component of the SENTRON protective components for electrical installations, provides effective protection for people, equipment and systems by safely switching off in case of overload and short circuit. The application area also includes frequency converters with fuses in the input and in the DC-DC link as well as UPS systems and soft starters for motors. The Siemens SITOR fuses feature: 1. Super-quick cut-off characteristics as compared to the conventional NH-fuses. 2. Power semiconductors are also protected safely in case of a short circuit. 3. The Siemens quality standard ensures very good characteristics. 4. SITOR cylinder fuses are approved in accordance with IEC and UL and, for the most part, CCC and can therefore be used worldwide. 5. Partially suitable for installation in NH fuse bases, in NH fuse switch disconnectors and switch disconnectors with fuses. For the secure, efficient electrical infrastructure in buildings and industry, Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, installation distributors as well as switches and sockets.
