Buy Siemens 3RK1315-6KS41-3AA0 3RK13156KS413AA0 Motor starter Motor power at 400 V 0.75 kW 400 V Nominal current 2 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

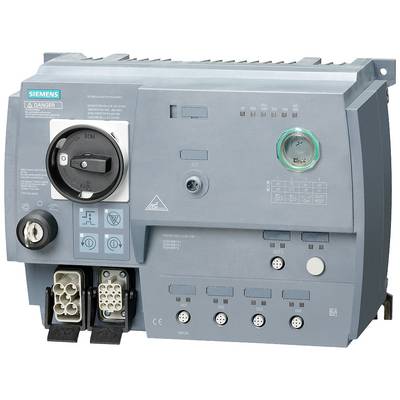

A grey Siemens switching device with various connections, switches, and a rotary dial. Used in industrial applications.

A grey Siemens switching device with various connections, switches, and a rotary dial. Used in industrial applications.

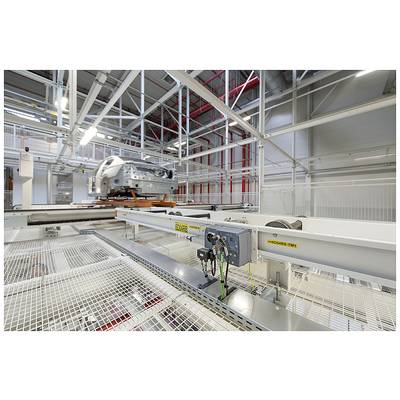

A car is being transported on a conveyor belt in a factory hall. In the background, the industrial hall with metal structures can be seen.

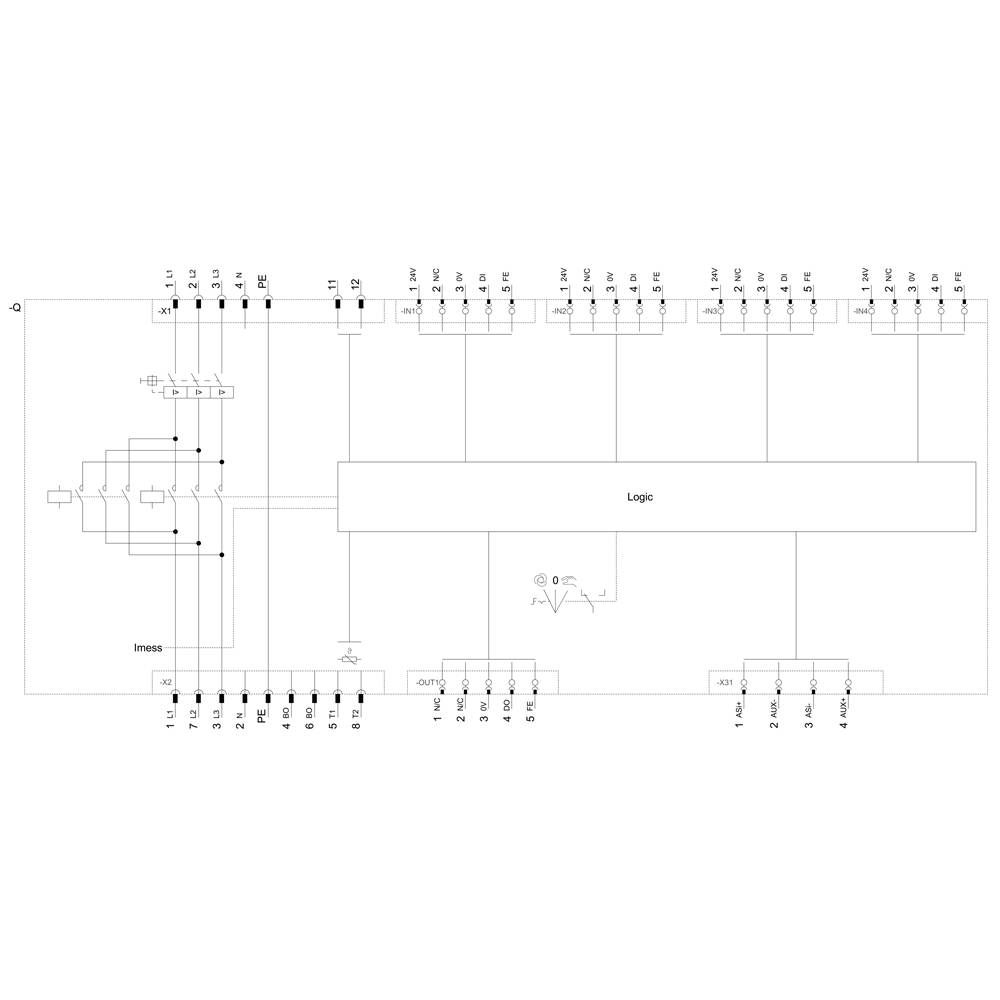

Circuit diagram of a digital logic circuit: shows various inputs, logical connections, and outputs for signal analysis.

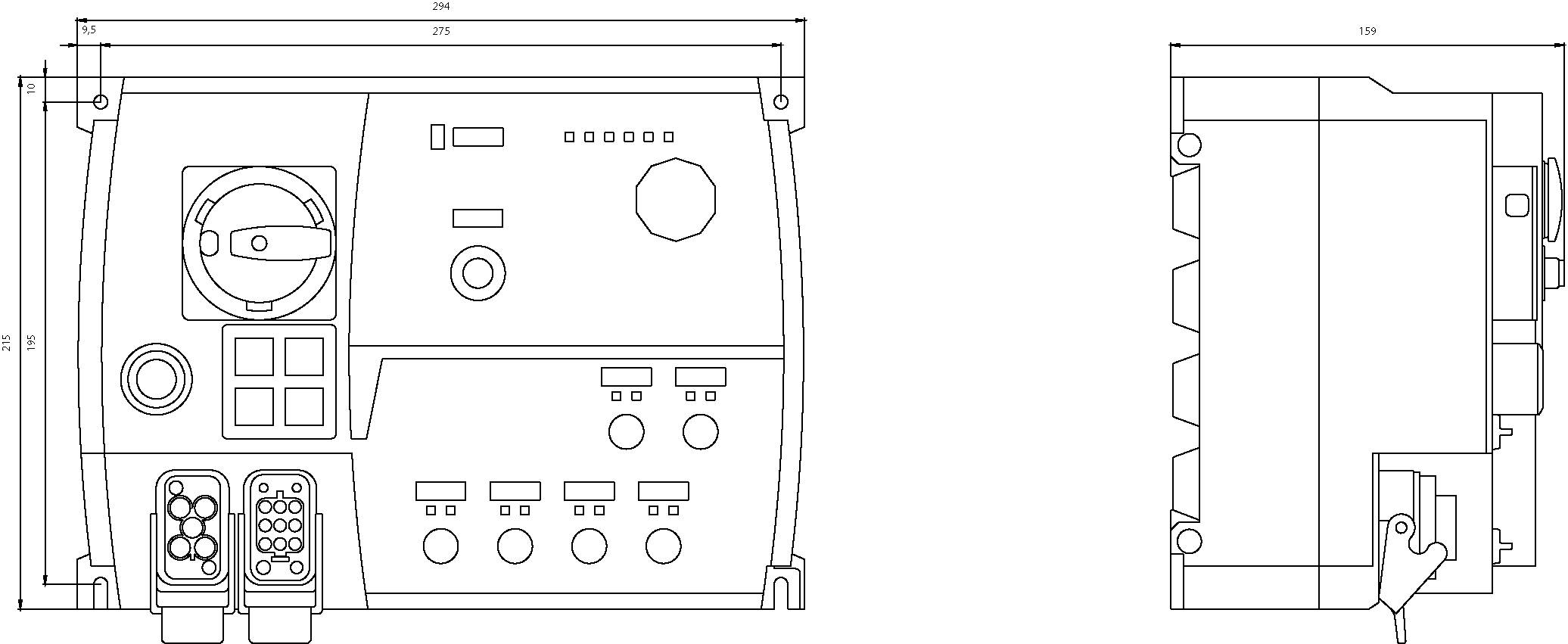

Technical drawing of an electronic device with control buttons, connections, and control panel. Dimensions specified above.

1/4

Image similar

Siemens

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 18 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,035.00 / piece)

€ 1,035.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: screw fastening
IP65 rating
Operating frequency: 50/60 Hz
Number of pins: 3
Number of digital inputs: 4

Motor voltage: 400 V

Product type: Motor starter

Supply current: 2 A

Motor power at 400 V: 0.75 kW

Nominal voltage: 400 V

Operating phases: 3

Type: M12-Bush

Manufacturer part #: 3RK13156KS413AA0

Nominal current: 2 A

Nominal current - rounded value: 2 A

Type: 3RK1315-6KS41-3AA0

Motor power at 230V / 400V: 0.75 kW

Dim: (W x H x D) 294 x 215 x 159 mm

Width: 294 mm

Height: 215 mm

Depth: 159 mm

Max. temperature: +55 °C

Min. temperature: -25 °C

: 294

: 215 mm

: 159 mm

: FALSE

: 0.75 kW

: 2

: 0

: 0

: 2 A

: 12

: TRUE

: IP65

: CLASS 10

: TRUE

: Other

: Other

: DC

: Reversing starter

: 0.37 kW

: 0.75 kW

: 2 A

: 40 °C

: 50000

: 50000

: 50000

: 12

: Class 2

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1735698 Siemens 3RK1315-6KS41-3AA0 3RK13156KS413AA0 Motor starter Motor power at 400 V 0.75 kW 400 V Nominal current 2 A

User & Safety Instructions

User & Safety Instructions 1735698 Siemens 3RK1315-6KS41-3AA0 3RK13156KS413AA0 Motor starter Motor power at 400 V 0.75 kW 400 V Nominal current 2 A

Description

SIRIUS motor starter M200D AS-i Communication: AS-Interface Reversing starter Basic Electronic switching AC-3, 0.75KW / 400 V 0.15 A...2.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC with brake contact 400 V AC 2DI AS-i + 2DI / 1DO on device Han Q4/2 - Han Q8/0 with manual on-site operation and key-operated switch

Description

SIRIUS motor starter M200D AS-i Communication: AS-Interface Reversing starter Basic Electronic switching AC-3, 0.75KW / 400 V 0.15 A...2.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC with brake contact 400 V AC 2DI AS-i + 2DI / 1DO on device Han Q4/2 - Han Q8/0 with manual on-site operation and key-operated switch
