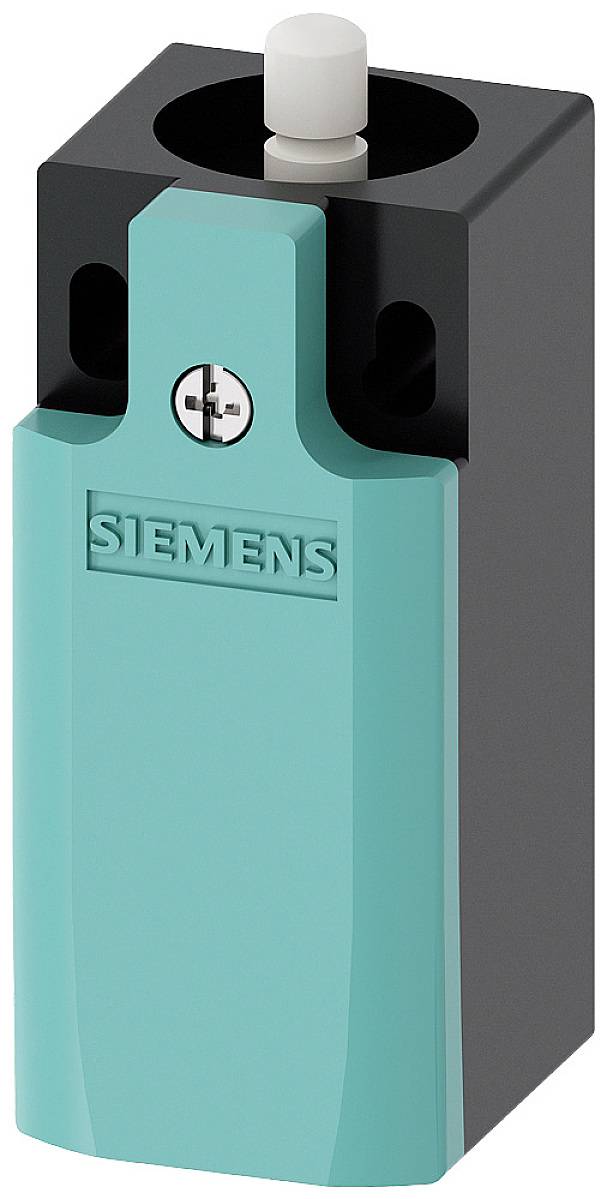

Siemens 3SE52320LC05 3SE5232-0LC05 Limit switch 240 V AC 1.5 A Tappet momentary IP67 1 pc(s)

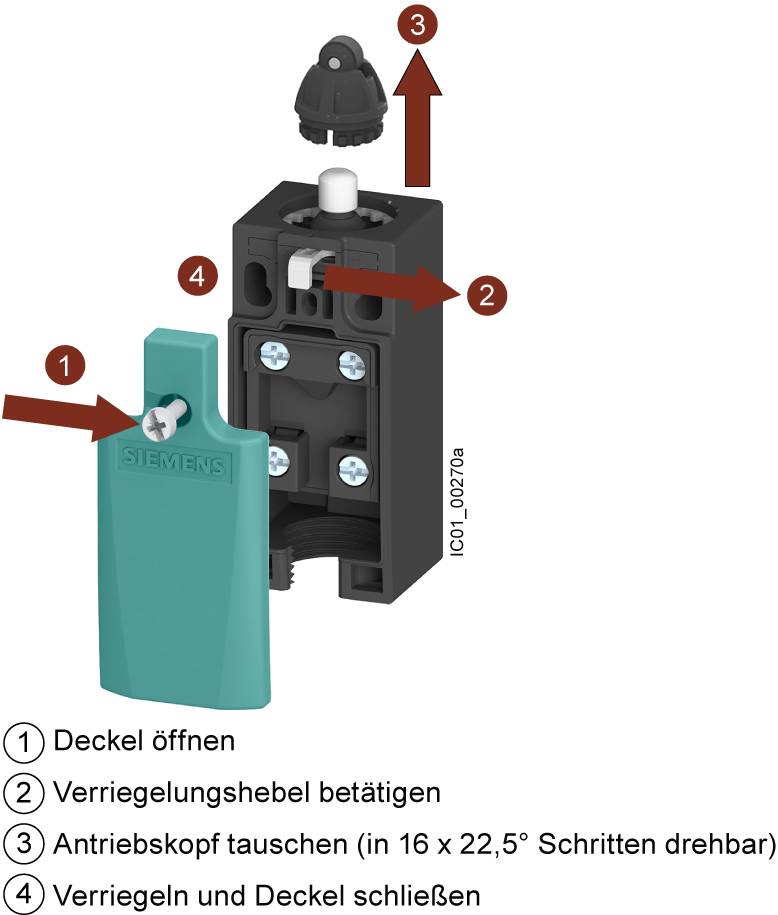

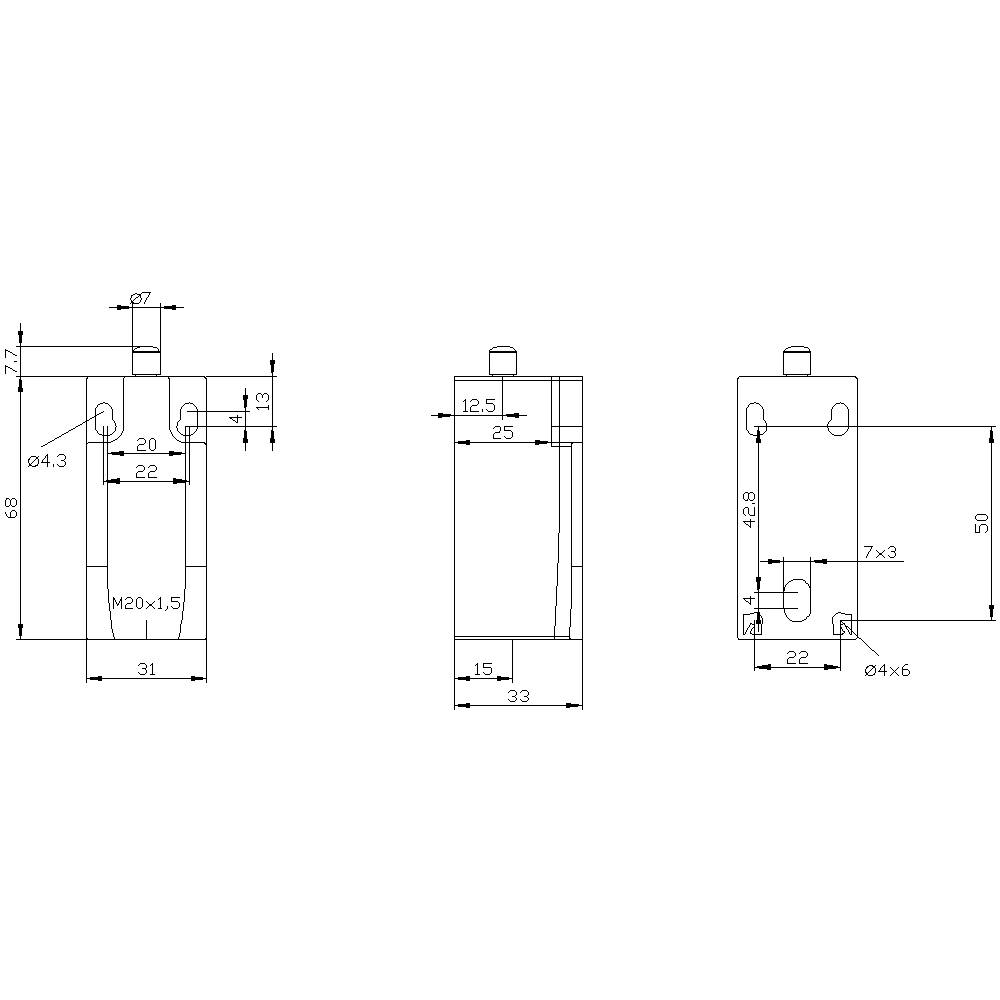

Position switch plastic housing according to DIN EN 50047, 31 mm device connection 1 x (M20 x 1.5) 1S/2Ö jump contacts cam follower, shape B Mechanical position switch SIRIUS 3SE5 for position and position detection of machine parts and position monitoring of safety devices.The modular design of the 3SE5 position switches enables a variety of variants with a small number of bearing types. The wide variety of plug and rollers meets almost all requirements in industrial everyday life. LEDs indicate the current status of the device. Thanks to quick connection technology, connection times can be reduced considerably. Switching points and fixing to EN 50047 and EN 50041. The devices are approved worldwide (IEC, UL). The highest security requirements can be established according to PL e or SIL 3 must be satisfied. The integrated ASIsafe electronics require low power consumption.There are various housing sizes available, with different switching elements, in plastic or metal or compact design. Some versions are available with optional LED status indicator and M12 connector. The 3SF1 series with direct connection to the AS-Interface bus system rounds off the portfolio.Depending on the version, drive heads and plugs as well as additional mounting/connection accessories are available.Safety is a SIRIUS business.

This text is machine translated.
