Buy Siemens 3SK1230-1AW20 3SK12301AW20 Input expansion 110 V AC, 240 V AC, 110 V DC, 230 V DC | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

A grey electronic device by Siemens with 'SIRIUS' labelling, showing input (AC/DC 110–240V) and output voltage (DC 24V).

A grey electronic device by Siemens with 'SIRIUS' labelling, showing input (AC/DC 110–240V) and output voltage (DC 24V).

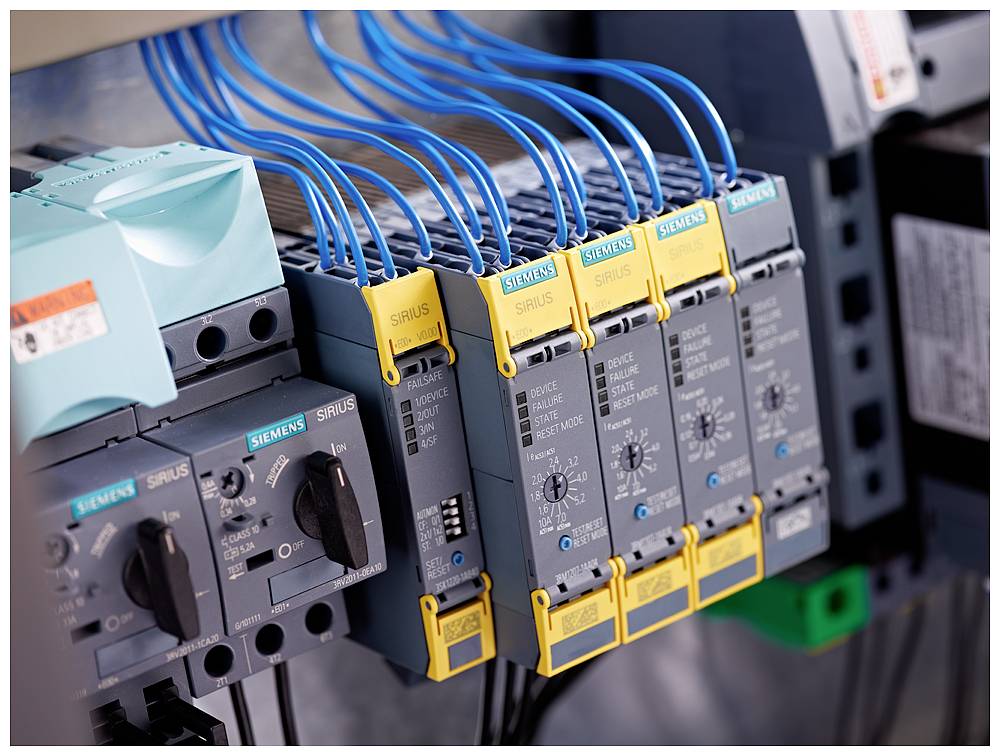

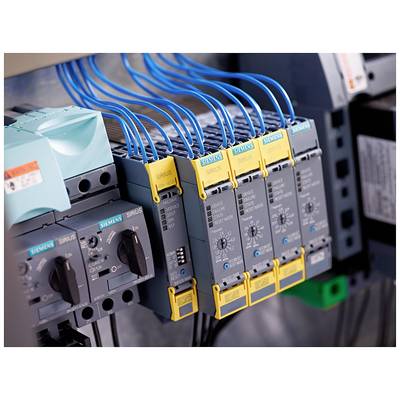

Switchboard with multiple Siemens SIRIUS contactors and blue wires connected via upper terminals. Technical control component.

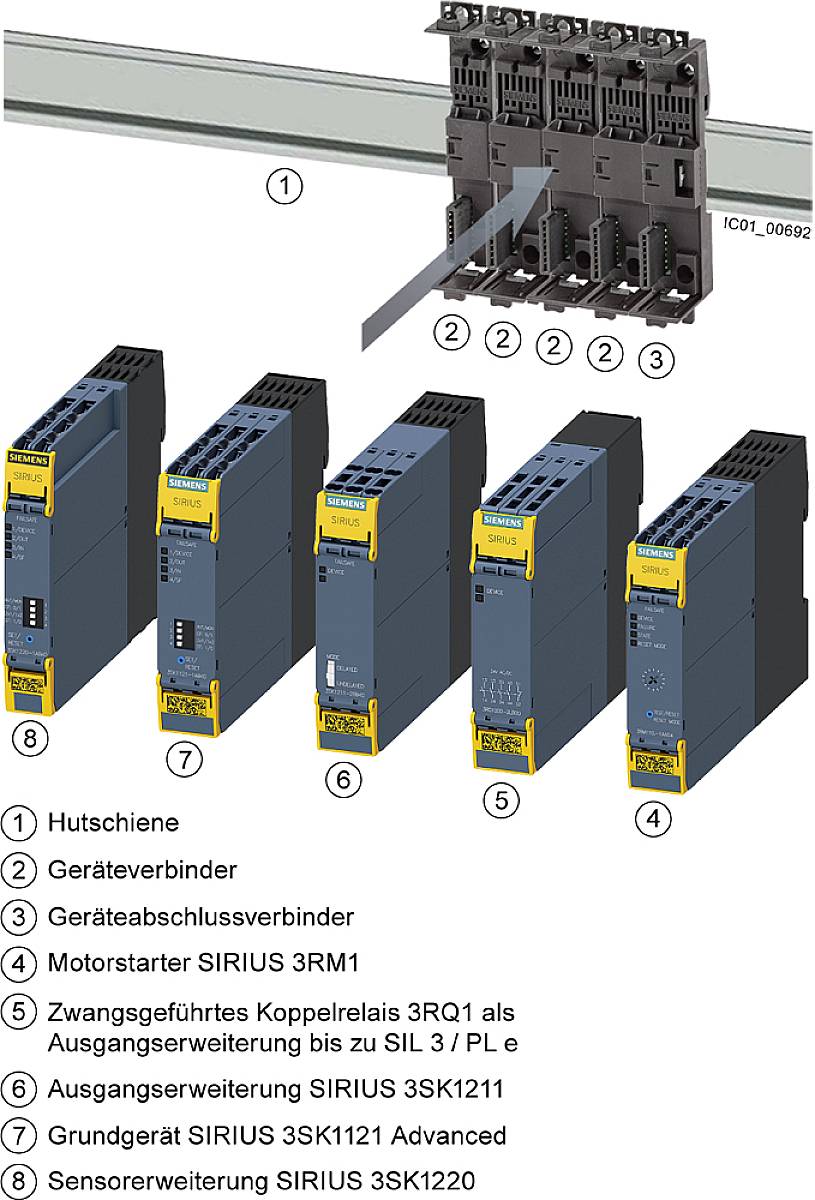

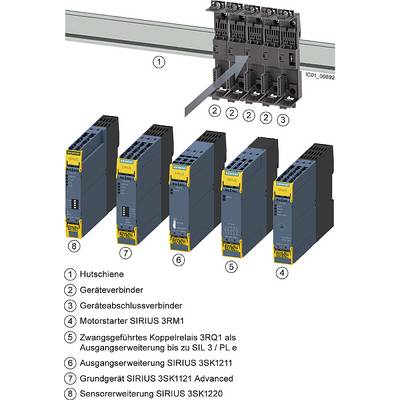

'Diagram of an assembly line with electrical components and extension modules (1-8) of the SIRIUS series, numbered and labelled.'

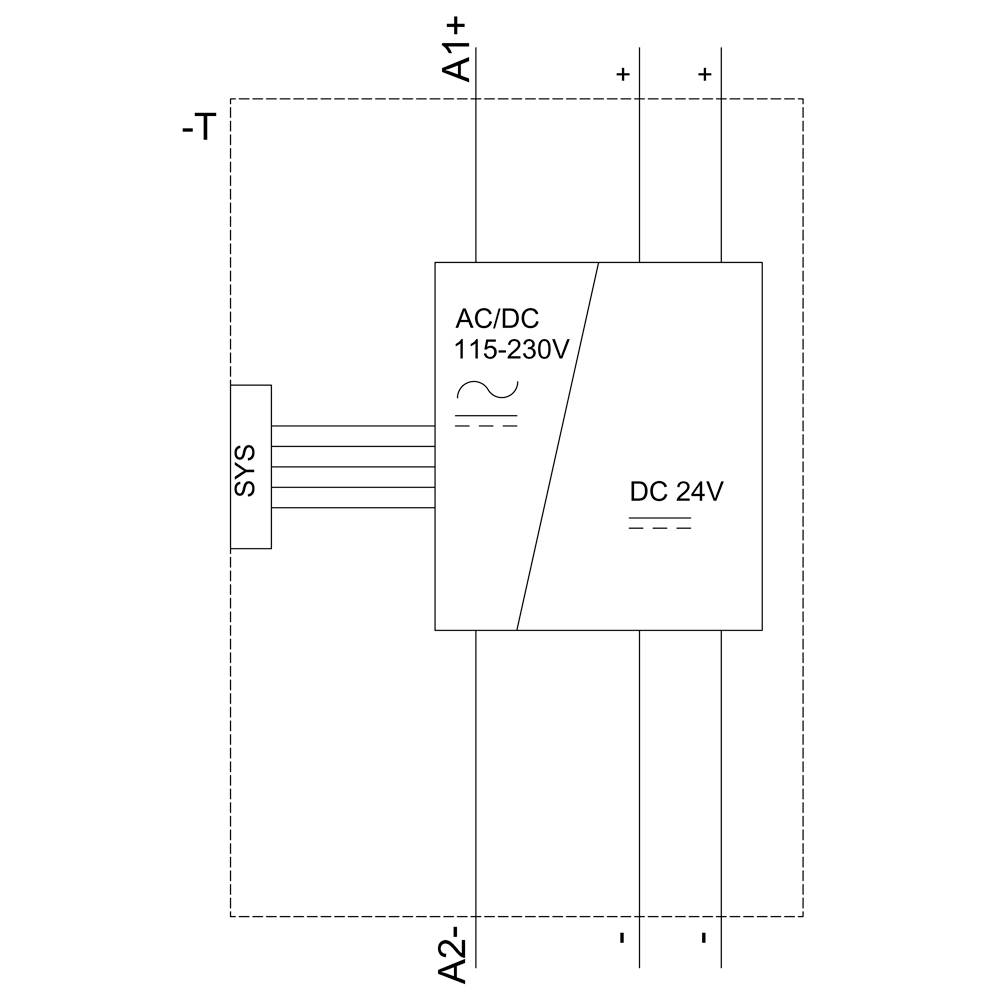

'Circuit diagram of an AC/DC converter: Input voltage 115-230V AC/DC, output 24V DC, showing system and control line connections.'

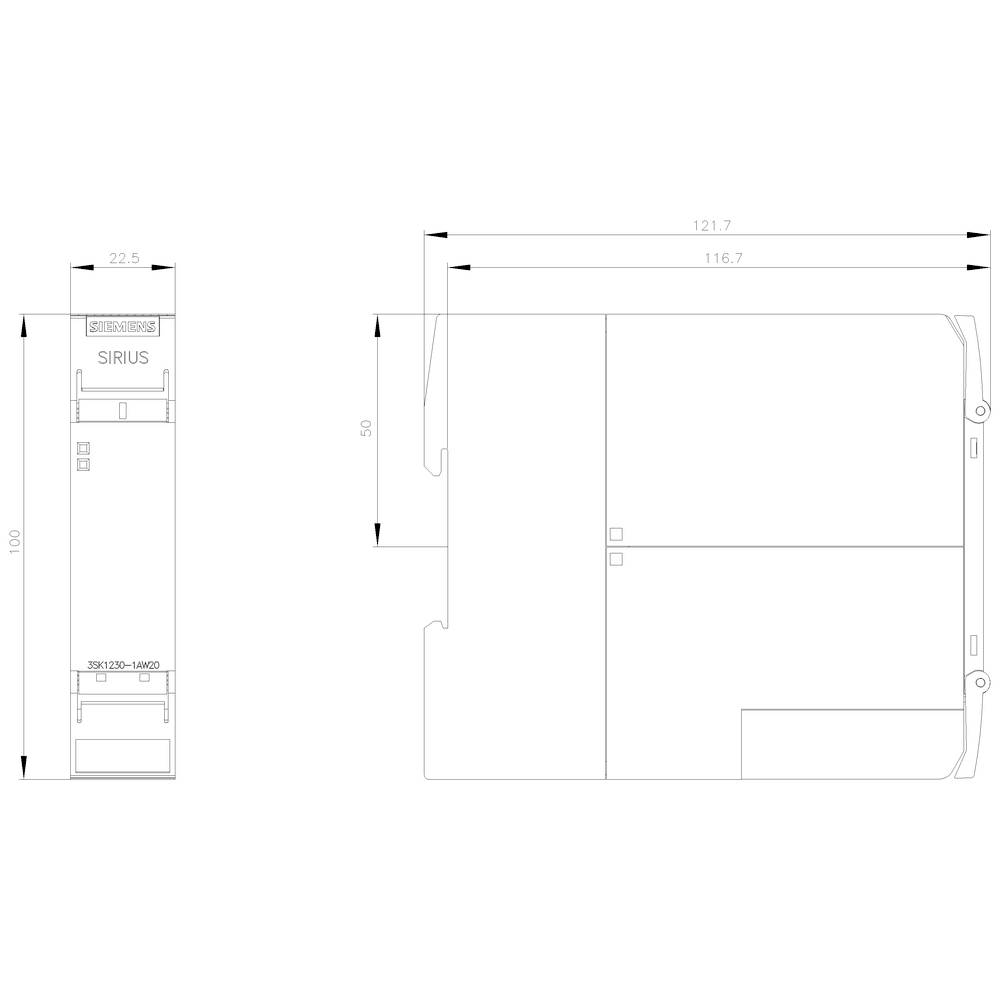

Electrical Switchboard Drawing: Shows dimensions and placement for 'SIRIUS' component, height 100 mm, width 22.5 mm, depth 121.7 mm.

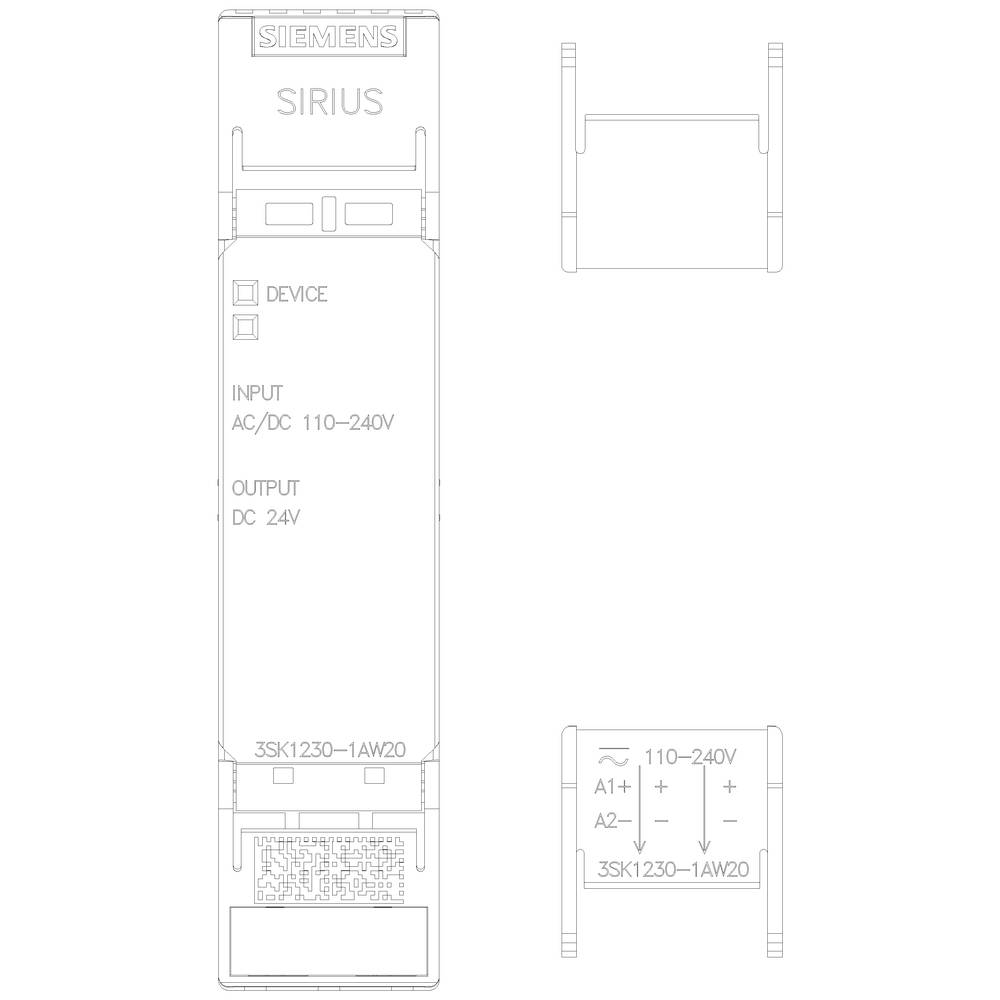

'SIEMENS SIRIUS' switching device diagram with input specification 'AC/DC 110-240V' and output 'DC 24V'. Model number: '3SK1230-1AW20'.

1/6

Siemens

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 159.99 / piece)

€ 159.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Input expansion

Nominal voltage: 110 V AC
240 V AC
110 V DC
230 V DC

Manufacturer part #: 3SK12301AW20

Type: 3SK1230-1AW20

Dim: (W x H x D) 22.5 x 100 x 121.6 mm

Connection: Screw terminal

Width: 22.5 mm

Height: 100 mm

Depth: 121.6 mm

Max. temperature: 60 °C

Min. temperature: -25 °C

: IP20

Weight: 0.1639 kg

: 22.5

: 100 mm

: 121.6 mm

: 100 mm

: 17 W

: 22.5 mm

: TRUE

: AC/DC

: 17 W

: Screw connection

: FALSE

: FALSE

: IP20

: FALSE

: TRUE

: 0.6 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1420003 Siemens 3SK1230-1AW20 3SK12301AW20 Input expansion 110 V AC, 240 V AC, 110 V DC, 230 V DC

User & Safety Instructions

User & Safety Instructions 1420003 Siemens 3SK1230-1AW20 3SK12301AW20 Input expansion 110 V AC, 240 V AC, 110 V DC, 230 V DC

Description

SIRIUS safety relay Power supply for 3SK1 Advanced series US = 110-240 V AC/DC Screw connection Power supply SIRIUS 3SK1 for supplying the basic units Advanced.
The power supply 3SK1230 enables the universal use of the 3SK1 devices independant of the available control supply voltage at AC/DC 110-240 V. The connection can be made using device connector 3ZY1212.
The devices are continuously available with screw or spring-type terminals (push-in).
The 3SK safety switching devices replace the proven 3TK28 series.
Safety is a SIRIUS business.

This text is machine translated.

Description

SIRIUS safety relay Power supply for 3SK1 Advanced series US = 110-240 V AC/DC Screw connection Power supply SIRIUS 3SK1 for supplying the basic units Advanced.
The power supply 3SK1230 enables the universal use of the 3SK1 devices independant of the available control supply voltage at AC/DC 110-240 V. The connection can be made using device connector 3ZY1212.
The devices are continuously available with screw or spring-type terminals (push-in).
The 3SK safety switching devices replace the proven 3TK28 series.
Safety is a SIRIUS business.

This text is machine translated.
