Name: Siemens 5SV31116 5SV3111-6 RCCB A 2-pin 16 A 0.01 A 230 V
Brand: Siemens
SKU: 1419236
Availability: InStock

A grey RCD (residual current device) with a 'Siemens' label is pictured. The switch indicates 'O-OFF' and is rated at 40 A.

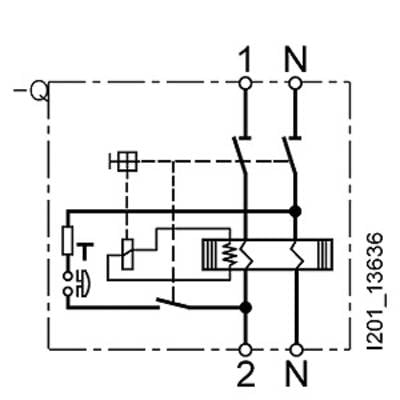

'Electrical circuit diagram' shows a complex circuit with symbols for switches, contacts, and conductors. Numberings are '1', '2', 'N'.

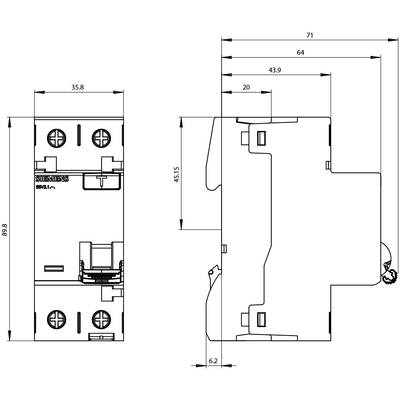

Technical drawing of an electrical component with dimensions: Width 35.8 mm, Height 89.8 mm, Depth 71 mm. Shows front and side views.

1/3

Product type

RCCB

Number of pins

Release characteristics

Differential current rating

0.01 A

Nominal current - rounded value

16 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 2 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 95.99 / piece)

€ 95.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Mechanical life (Cycles): 10000
IP20, for distributor installation, with the connected conductors

Product type: RCCB

Number of pins: 2

Release characteristics: A

Differential current rating: 0.01 A

Nominal current: 16 A

Nominal current - rounded value: 16 A

Dim: (L x W x H) 150 cm x 36 mm x 90 mm

Type: Design of the product: without delay; Mounting Type: DIN rail

Switch-off capacity: 0.5 kA

Factory colour: Grey

Content: 1 pc(s)

Nominal voltage: 230 V

Width: 36 mm

Height: 90 mm

Length: 150 cm

Depth: 70 mm

RoHS-compliant: Yes

Weight: 0

: DIN rail

: AC

: 70 mm

: 16 A

: 230 V

: 2000 V

: 2

: 0.01 A

: A

: FALSE

: 10 kA

: 1 kA

: 2

: 2

: FALSE

: 7035

: FALSE

: 0.7 W

: 50 Hz

: IP20

: 0.75-35 mm²

: 0.75-35 mm²

: TRUE

: -25-45 °C

: TRUE

: 6

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Differential current rating

Nominal current - rounded value

Siemens 5SV31116 5SV3111-6 RCCB A 2-pin 16 A 0.01 A 230 V

Item no:1419236

Fast track dispatch on Mon 2 Nov

4 Piece(s)Conrad Electronic

This article

0.01 A

16 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 95.99^*

Siemens 5SV31116KL 5SV3111-6KL RCCB A 2-pin 16 A 0.01 A 230 V

Item no:1419237

Dispatches on Tue 10 Nov

Conrad Electronic

0.01 A

16 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Siemens 5SV33116 5SV33116 RCCB A 2-pin 16 A 0.03 A 230 V

Item no:1419238

Fast track dispatch on Mon 2 Nov

8 Piece(s)Conrad Electronic

0.03 A

16 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 48.99^*

Siemens 5SV33116KL 5SV3311-6KL RCCB A 2-pin 16 A 0.03 A 230 V

Item no:1419239

Dispatches on Tue 10 Nov

Conrad Electronic

0.03 A

16 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

Siemens 5SV33126 5SV3312-6 RCCB A 2-pin 25 A 0.03 A 230 V

Item no:1419240

Fast track dispatch on Mon 2 Nov

127 Piece(s)Conrad Electronic

0.03 A

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 32.99^*

Siemens 5SV33126KK01 5SV3312-6KK01 RCCB A 2-pin 25 A 0.03 A 230 V

Item no:1419241

Dispatches on Tue 10 Nov

Conrad Electronic

0.03 A

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

Siemens 5SV33126KK12 5SV3312-6KK12 RCCB A 2-pin 25 A 0.03 A 230 V

Item no:1419242

Fast track dispatch on Mon 2 Nov

5 Piece(s)Conrad Electronic

0.03 A

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 63.99^*

Siemens 5SV33126KL 5SV3312-6KL RCCB A 2-pin 25 A 0.03 A 230 V

Item no:1419243

Fast track dispatch on Mon 2 Nov

26 Piece(s)Conrad Electronic

0.03 A

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 32.99^*

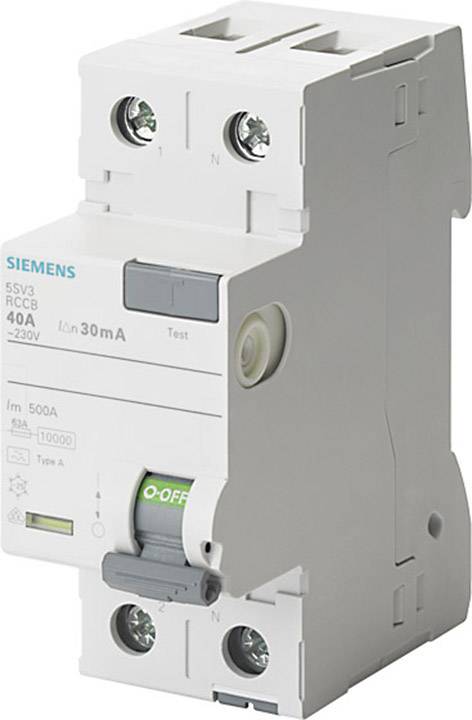

Siemens 5SV33146 5SV3314-6 RCCB A 2-pin 40 A 0.03 A 230 V

Item no:1419244

Fast track dispatch on Mon 2 Nov

95 Piece(s)Conrad Electronic

0.03 A

40 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

Siemens 5SV33146KK01 5SV3314-6KK01 RCCB A 2-pin 40 A 0.03 A 230 V

Item no:1419245

Dispatches on Tue 10 Nov

Conrad Electronic

0.03 A

40 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Documents & Downloads

Datasheet

Datasheet 1419236 Siemens 5SV31116 5SV3111-6 RCCB A 2-pin 16 A 0.01 A 230 V

User & Safety Instructions

User & Safety Instructions 1419236 Siemens 5SV31116 5SV3111-6 RCCB A 2-pin 16 A 0.01 A 230 V

Description

GROUND fault circuit breaker, 2-pole, type A, in: 16 A, 10 mA, UN AC: 230 V of the FI switch is the residual current protection device for touch protection The patented residual current protection devices from Siemens are an important component of the SENTRON protective components for electrical installation, because they prevent life-threatening electric shocks by safely switching off dangerous fault currents against earth. Electrically ignited fires can be prevented even in the . Whether by direct contact with live parts during operation or by indirect contact with equipment, the protection is achieved primarily by rapid shutdown. The Siemens 5SV FI circuit breakers are characterized above all by: 1. Comprehensive protection for persons and property against electric shock. 2. Whether sinusoidal AC fault currents or smooth DC fault currents, Siemens offers the right type and special versions for all requirements. 3. Reliable safety during installation thanks to the standard included comprehensive and touch protection. 4. Tool-free release from the DIN rail or from the busbar network by means of convenient slide-manual operation. 5. Datamatrix code on the front of the device offers all information about the FI-circuit breaker quickly and easily. 6. Be protected according to standards: The residual current circuit breakers comply with the DIN VDE regulations. 7. Optimum technology for your safety - only from Siemens.

This text is machine translated.
