Name: Siemens 5SV36128 5SV3612-8 RCCB A 25 A 0.3 A 230 V
Brand: Siemens
SKU: 1751489
Availability: BackOrder

A two-pole Siemens residual current device (RCD), Model 5SU1, with a rated current of 40A and a fault current of 30mA, shows the switch in the "OFF" position.

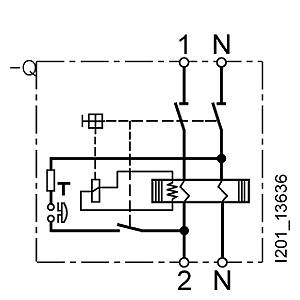

Circuit diagram of an electrical circuit with circuit symbols, conductors and a transformer. Markings 'N' and numbers.

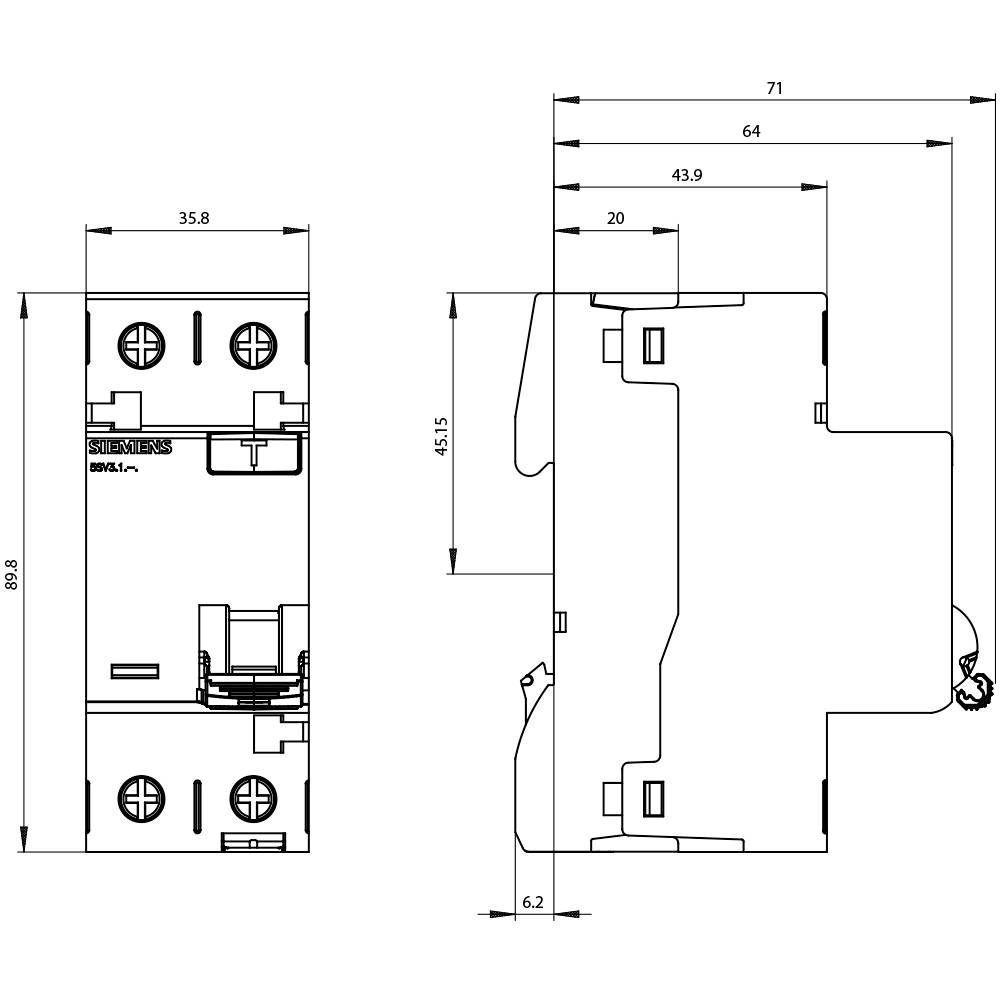

Technical drawing of a device with front and side views; dimensions and proportions are precisely specified.

1/3

Image similar

Product type

RCCB

Number of pins

Release characteristics

Differential current rating

0.3 A

Nominal current - rounded value

25 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 119.99 / piece)

€ 119.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mechanical life (Cycles): 10000
IP20, for distributor installation, with the connected conductors

Product type: RCCB

Number of pins: 2

Release characteristics: A

Differential current rating: 0.3 A

Nominal current: 25 A

Nominal current - rounded value: 25 A

Dim: (W x H x D) 36 x 90 x 70 mm

Switch-off capacity: 0.5 kA

Content: 1 pc(s)

Nominal voltage: 230 V

Width: 36 mm

Height: 90 mm

Depth: 70 mm

RoHS-compliant: Yes

: DIN rail

: AC

: 70 mm

: 25 A

: 230 V

: 2000 V

: 2

: 0.3 A

: A

: TRUE

: 10 kA

: 5 kA

: 2

: 2

: FALSE

: 7035

: 0.5 W

: 50 Hz

: IP20

: TRUE

: TRUE

: 6

UKCA: not relevant
