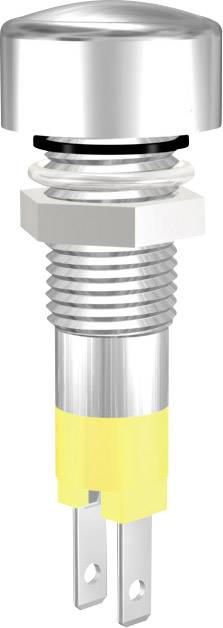

Image similar
Signal Construct SMLD 08114 LED indicator light Yellow 24 V DC 17 mA 180 mcd
Product type
LED indicator light
Operating voltage
24 V DC
Operating current
17 mA
Recess diameter
8.2 mm
IP rating
IP67
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 6.49 / piece)
€ 7.99
-19 %
€ 6.49
incl. VAT
14-day return policy included
Highlights & Details
Signal Construct SMLD 08114 LED indicator light Yellow 24 V DC 17 mA 180 mcd
Our service for you
Technical specifications
- M8 x 0.75 screw
- Product type
LED indicator light
- Type
SMLD 08114
- Factory colour
Yellow
- Operating voltage
24 V DC
- Operating current
17 mA
- Recess diameter
8.2 mm
- Head Ø
13 mm
- Head height
6.6 mm
- Case colour
Yellow
- Material
Brass
- Mounting type
Screw
IP67
- Light intensity I(V)
180 mcd
- Wavelength
590 nm
- Radiation angle
25°
- LED features
splashproof
- Connection
Type C CEE 7/16 plug 2.8 mm
- Min. temperature
-30 °C
- Max. temperature
85 °C
- RoHS-compliant
Yes
- Type
Splash-proof
- Content
1 pc(s)
- Radiation angle
25°
- Operating current
17 mA
- Operating temperature
-30 - +85 °C
- Operating voltage
24 V
Documents & Downloads
Datasheet
Datasheet 150710 Signal Construct SMLD 08114 LED indicator light Yellow 24 V DC 17 mA 180 mcd
Conformity certificate
Conformity certificate 150710 Signal Construct SMLD 08114 LED indicator light Yellow 24 V DC 17 mA 180 mcd
Description
With inbuilt series resistor. Glass lens sealed from the reflector with an O ring.
