Staudte-Hirsch Interior light 570036 LED (monochrome) 12 V DC (L x W x H) 605 x 17 x 9 mm

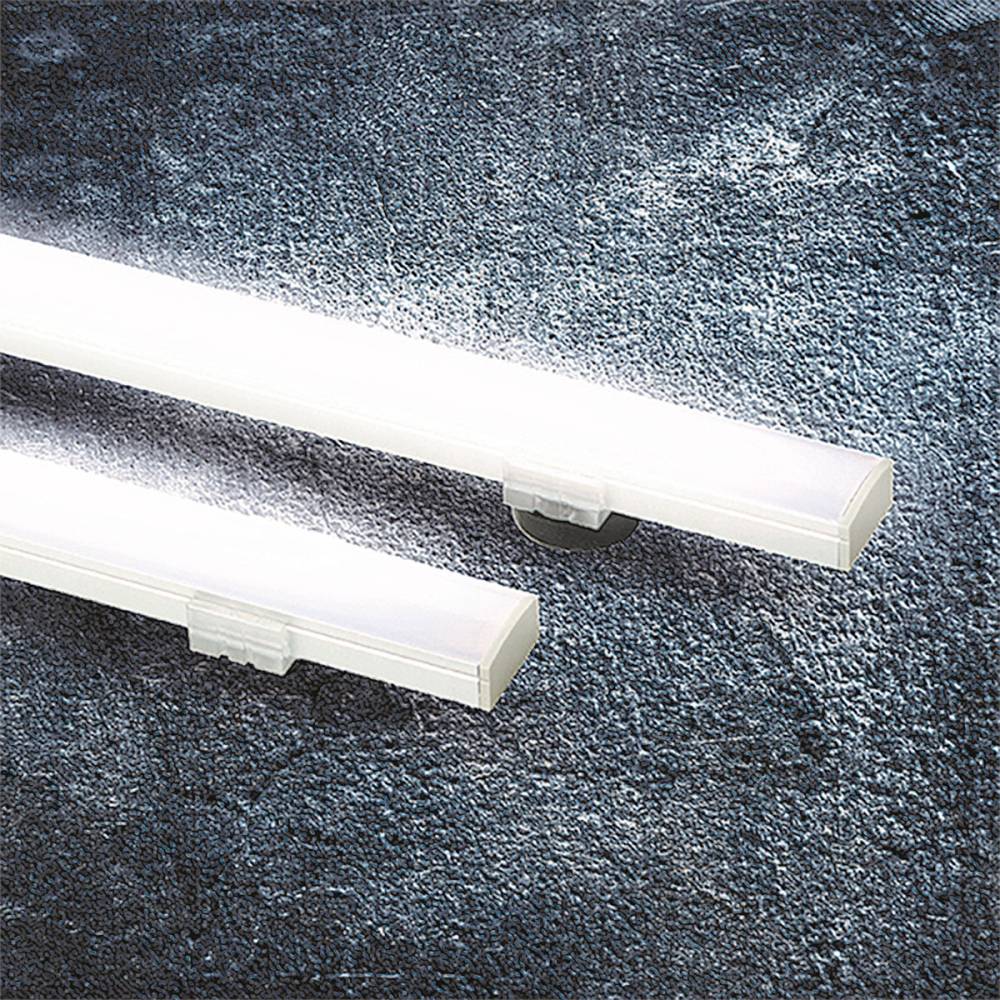

Two lit fluorescent tube light fixtures on a textured dark blue background, shown diagonally side by side.

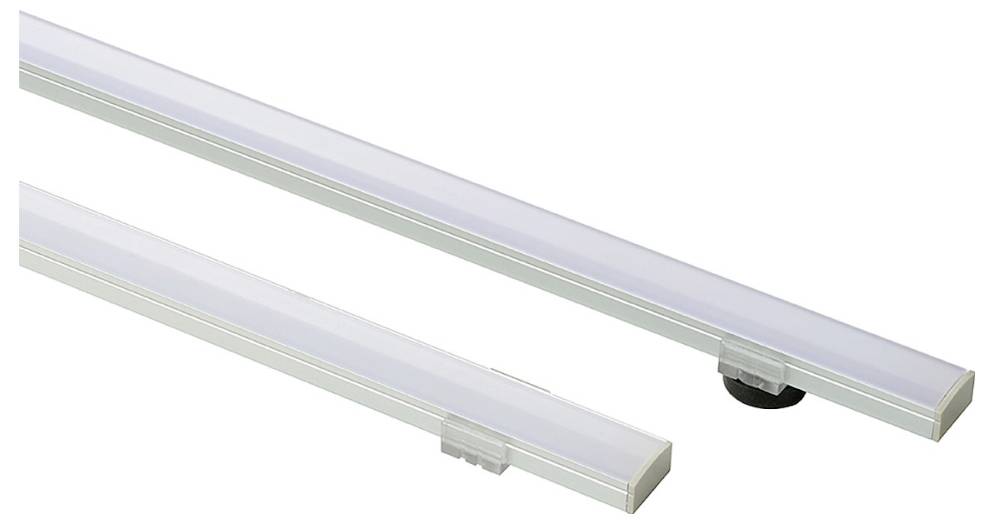

Two long aluminum strip lights with frosted diffusers, one shown with a mounting clip and black connector, on a white background

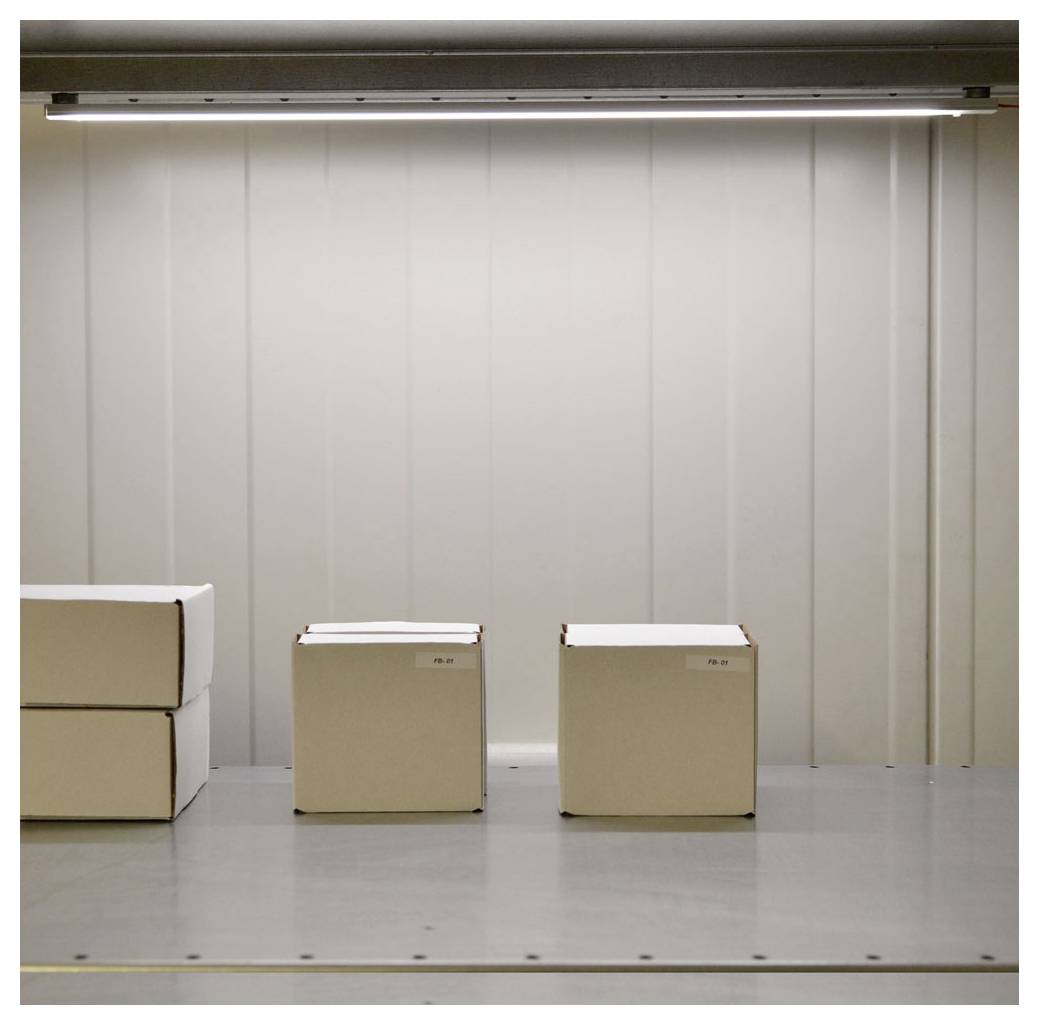

Three cardboard boxes sit on a metal table inside a plain white enclosed testing chamber under fluorescent lights.
Close-up of a silver metal rail or beam with a red cable entering the left end and a black knob on top near the left side.
Close-up of a linear guide or rail assembly with a red rod extending from the left, mounted on a silver track with a black adjustment knob.
Close-up of a gray device with a black knob and a red horizontal laser line extending from the left side.

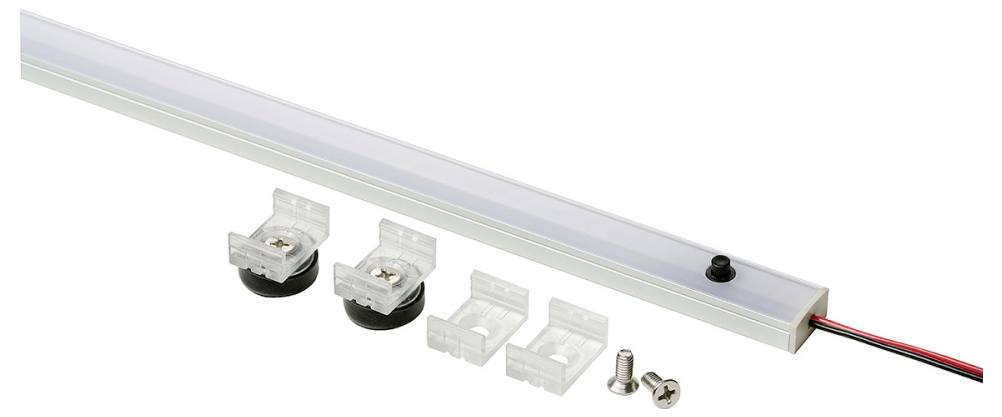

LED strip light mounted in a slim aluminum channel, with two clip holders and screws shown for installation.
1/7
Datasheet (PDF)
EAN:
Part number:
Item no:
Currently not available
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 81.99 / piece)
€ 81.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

LED interior lighting Staudte Hirsch SH-5,686, 12 V DC, 6.6 W, 605 mm, with magnet and clip

  • E-certification: Approved for fixed mounting in cars
  • Operating voltage: 12 V DC
  • Durable and powerful LED technology
  • Colour temperature 4,500 K | neutral white
  • Built-in ESD protection
  • High-quality casing: Dimensionally stable aluminum profile
  • Diffuser for uniform lighting
  • Integrated on/off push button switch
  • 1 m connection cable with pre-tinned ends
  • Flexible attachment using the enclosed magnets or transparent clips
  • Compact design, timeless design
  • Low mounting height, particularly light
  • Combination version, suitable for all installation situations
  • Ideal for installation on flat surfaces as well as on sticky-less structured surfaces, with small installation dimensions as well as cabinet under-cabinet luminaire

Technical specifications

Dim

(L x W x H) 605 x 17 x 9 mm

Product type

Interior light

Bulb type

LED (monochrome)

LEDs

66

Fastening method

Magnetic fastening

Clip

Operating voltage

12 V DC

Factory colour

Silver

White

Black

Colour temperature (max.)

4500 K

Weight

118 g

Content

1 pc(s)

6.6 W

Colour

Neutral white

Luminous flux

550 lm

Width

17 mm

Height

9 mm

Length

605 mm

ECE type approval labels

E24

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3814691 Staudte-Hirsch Interior light 570036 LED (monochrome) 12 V DC (L x W x H) 605 x 17 x 9 mm

User & Safety Instructions

User & Safety Instructions 3814691 Staudte-Hirsch Interior light 570036 LED (monochrome) 12 V DC (L x W x H) 605 x 17 x 9 mm

Description

The Staudt Hirsch LED interior lighting offers everything, one can expect WAS from a high-quality LED light output:
The high-quality LEDs provide neutral white (4,500 K) light. The glare-free diffuser provides a homogeneous illumination. The integrated ESD-protection (Electrostatic Discharge) protects against harmful voltage peaks from the electrical system and considerably extends the life of the LEDs. The E-certification permits the fixed installation in all vehicles with road approval.

This text is machine translated.

Scope of delivery

  • 1x LED interior lighting
  • 2x transp Plastic clips
  • 2x screw
  • 2x clip-on magnets
