Name: Sygonix 1582021 Code lock Flush mount IP66 + backlit keypad, + separate verification unit
Brand: Sygonix
SKU: 1582600
Availability: SoldOut

Door intercom and metal keypad with numbers 1 to 9, star, hash, and RFID sensor for access control.

Door access system set with electronic card reader, keypad, speaker, screws, wall plugs, and connection cable.

Housing cover and rear side of an electronic device, both in rectangular shape.

Electronic Door Lock System: On the left, a keypad with numeric keys and an RFID reading area, on the right a video entry phone.

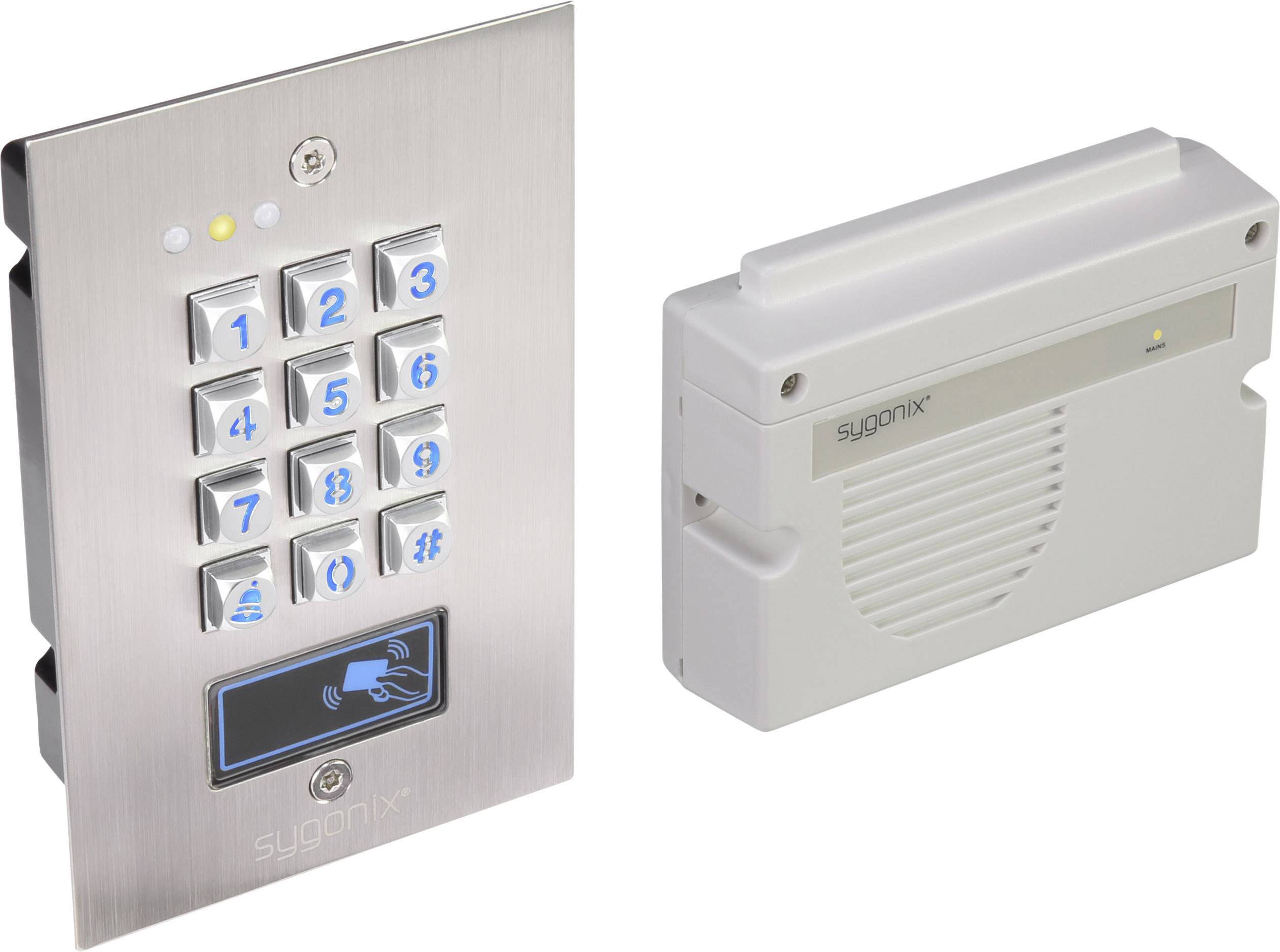

Electronic door lock set with keypad and RFID reader, suitable for access control in buildings, manufactured by Sygonix.

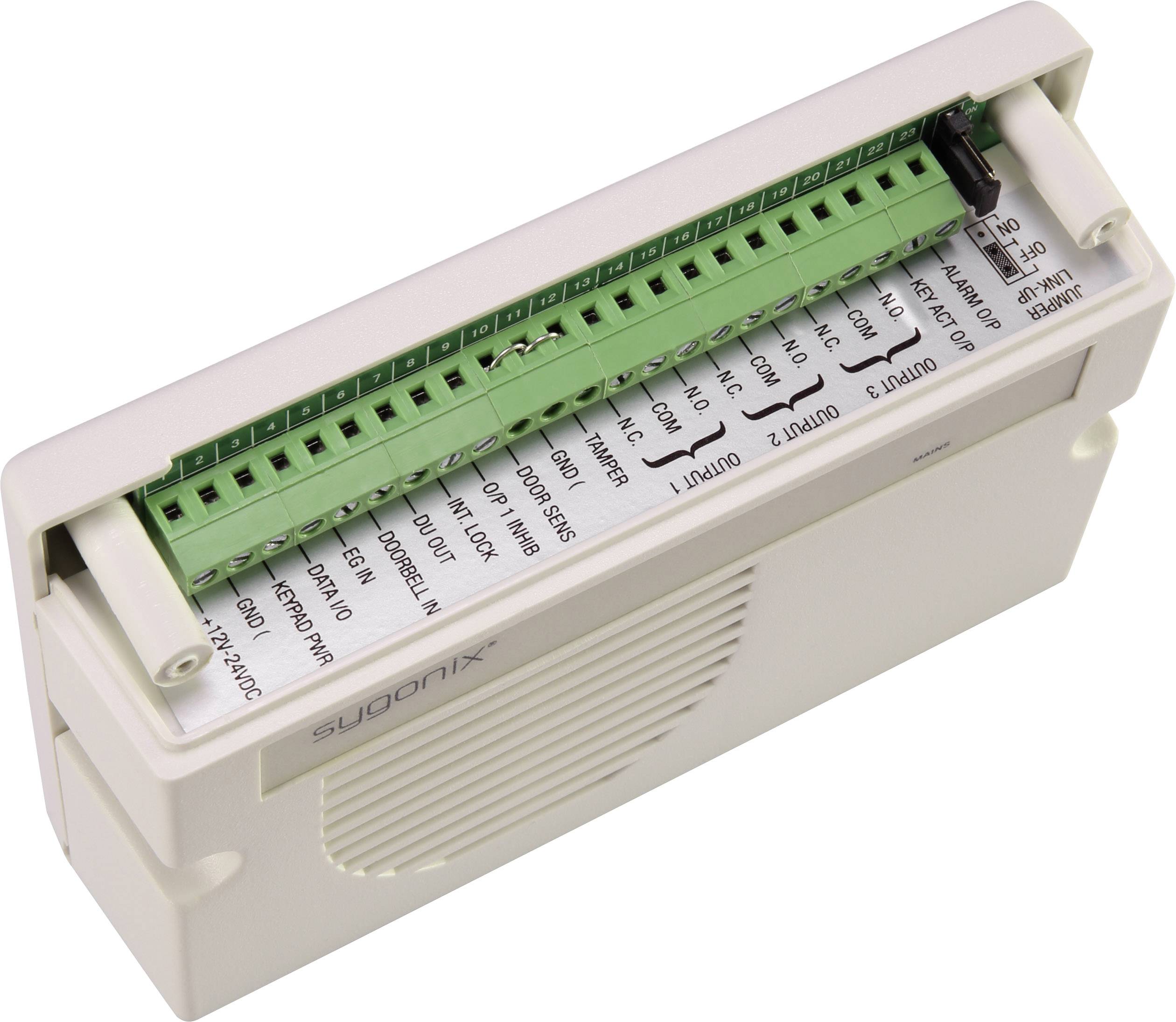

A white electrical device with a green plug and labelled connections, likely a component of a safety system.

1/6

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 174.99 / piece)

€ 174.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Transponder code lock, IP66, UP

Weatherproof, vandalism-proof housing
100,000 code combinations
Separate evaluation unit

Our service for you

Technical specifications

Temperature range: -30 to 70°C, evaluation unit: Temperature range: -20 to 70°C, dimensions evaluation unit: 33 x 120 x 87 mm

Product type: Code lock

Current consumption: Standby power: 50 mA, loaded: 100 mA (all 3 relays on) evaluation unit: Standby power: 65 mA, loaded: 100 mA (all 3 relays on)

Mounting type: Flush mount

Triggered by: Numerical code
Transponder

No. of codes/combinations: 100000

LEDs: 3

Contact load capacity: Relay 1: potential-free N.C. and N.O. max. 5A/24V/DC, relay 2: potential-free N.C. and N.O. max. 1A/24V/DC, relay 3: potential-free N.C. and N.O. max. 1A/24V/DC, tamper switch: potential-free N.C. max. 50mA/24V/DC

: IP66

Weight: 460 g

Dim: (W x H x D) 98 x 151 x 42 mm

Features: + backlit keypad
+ separate verification unit

Width: 98 mm

Height: 151 mm

Depth: 42 mm

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1582600 Sygonix 1582021 Code lock Flush mount IP66 + backlit keypad, + separate verification unit

Conformity certificate

Conformity certificate 1582600 Sygonix 1582021 Code lock Flush mount IP66 + backlit keypad, + separate verification unit

Warranty Terms

Warranty Terms 1582600 Sygonix 1582021 Code lock Flush mount IP66 + backlit keypad, + separate verification unit

Description

Safety comes first.

With this transponder lock code, you can cover a multitude of access scenarios. The weatherproof and vandalism-proof metal housing can also easily be used outdoors, by a separate evaluation unit is also a high protection against manipulation is guaranteed. The backlit metal keypad allows it to be easy to use. An access authorization can be granted by pin code and/or transponder card. In addition, extend a variety of interfaces the application possibilities.

This text is machine translated.

Features

Certified according to ISO 17025
Relay 1: 1,000 users (number code and/or transponder card) + 50 panic codes
Relay 2: 100 users (number code and/or transponder card) + 10 panic codes
Relay 3: 100 users (number code and/or transponder card) + 10 panic codes
50 users codes for relay 1 (one time or time-limited for maximum 99 hours)
Master code for using or blocking the outputs
Deviating data output (code number: 34 Bit, transponder card: 26 Bit)
Data input and output for evaluation unit
125 kHz transponder reader
Intelligent output controller
Output delay
Off switchable LEDs
Input for opening detector
Additional switches and blocking of relay 1
Programmable timer function from one second to 24 hours
Vandal contact.

Scope of delivery

Mounting transponder code lock
Evaluation unit
User manual.

Hints

Evaluation unit: Programmable timer (1 - 30 seconds), tamper alarm; input for opening detector, additional switch, doorbell and blocking of relay 1; output for panic, alarm, lock; relay 2: Potential-free N.C. and N.O. max. 5 A/24 V/DC, relay 1: Potential-free N.C. and N.O. max. 1 A/24 V/DC, relay 3 (switchable only via the doorbell button): potential-free N.C. and N.O. max. 1 A/24 V/DC, open collector: max. 100 mA/24 V/DC;
