TAMS Elektronik 53-04015-01-C BSA LC-NG-01 Flashing control circuits Town lighting 1 pc(s)

A green printed circuit board with blue and green switch screw terminals and a black cylindrical component in the centre.

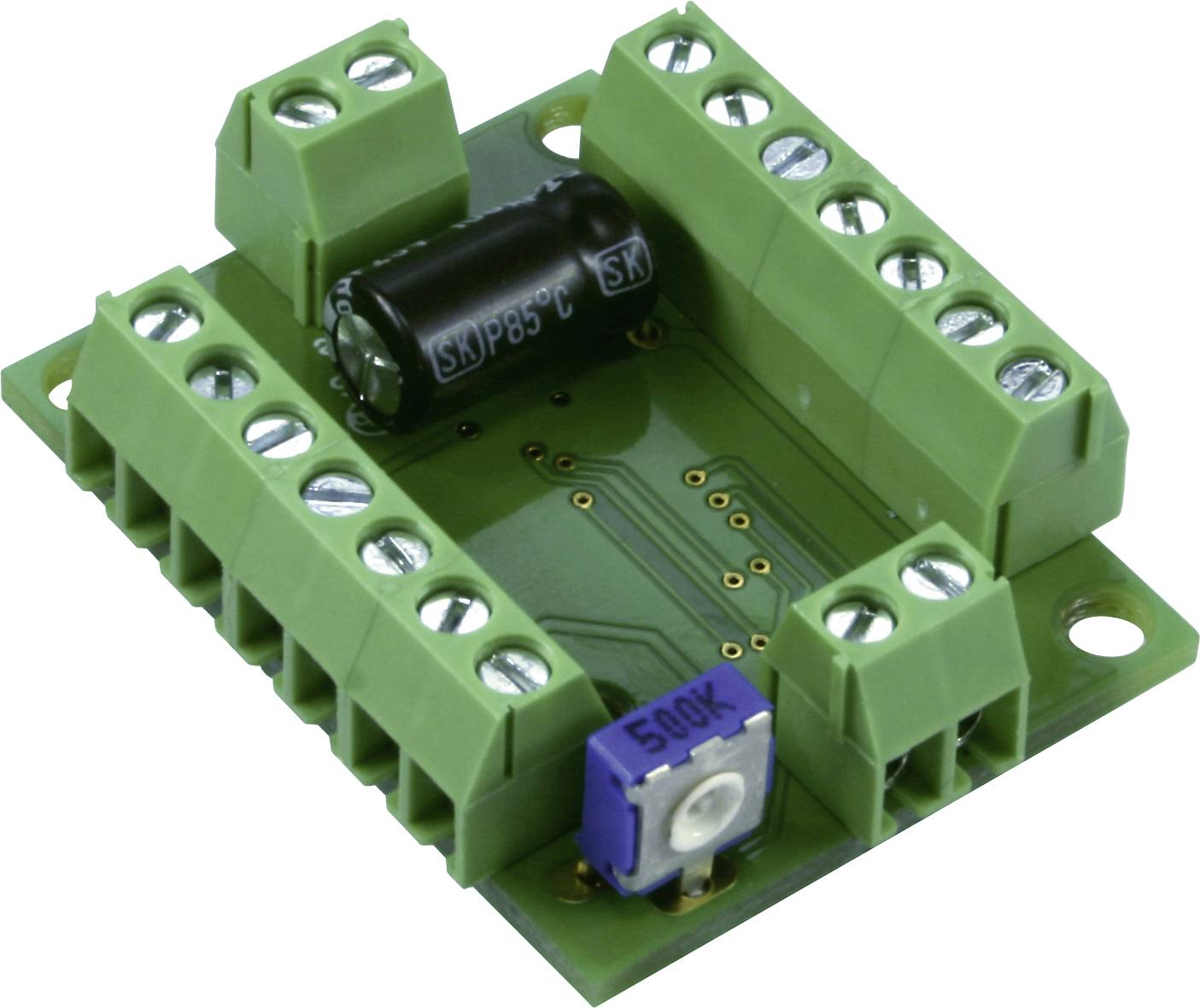

Green electronic circuit board with multiple screw terminals. A large black capacitor in the centre and a small blue rotary potentiometer are visible.

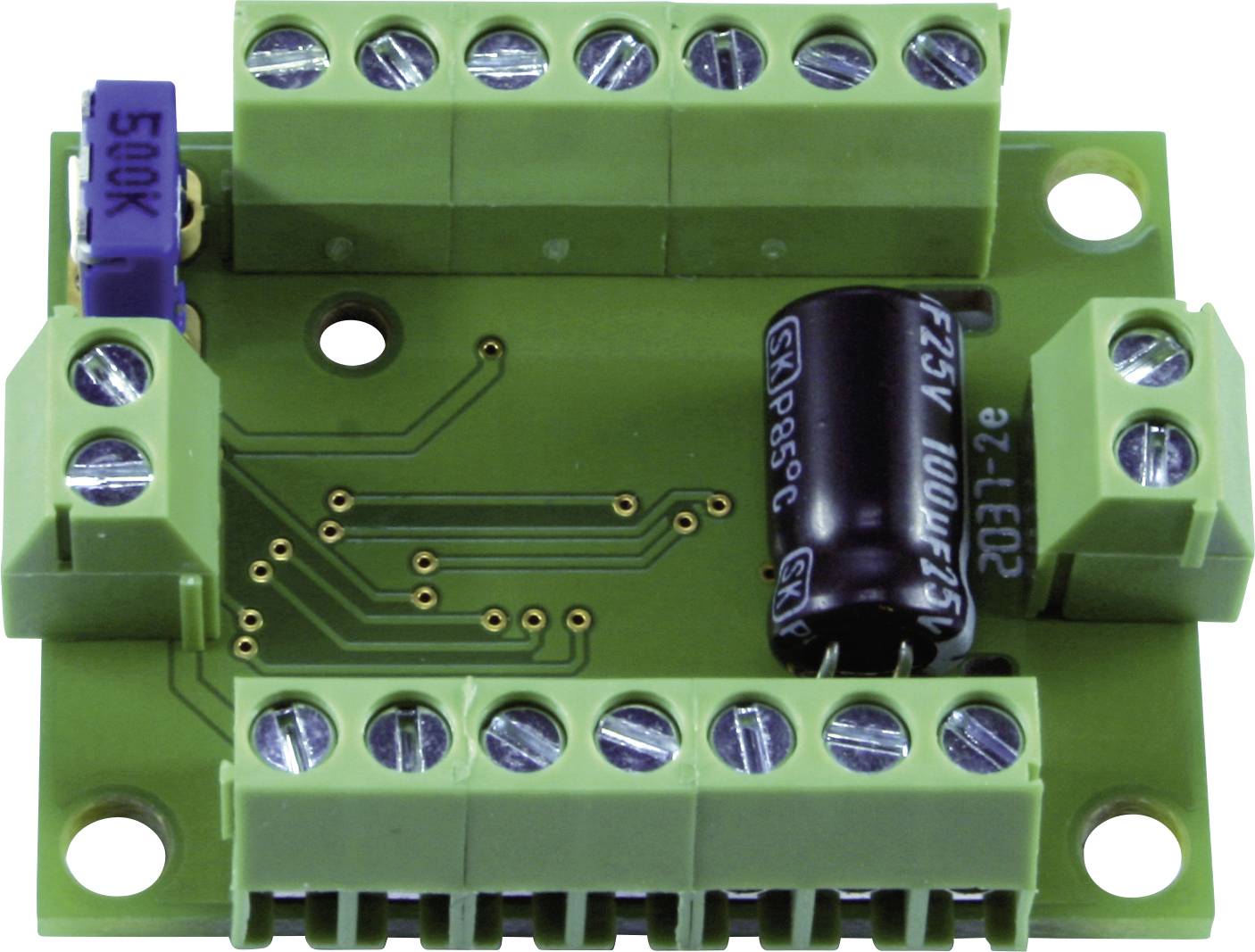

Green printed circuit board with multiple screw terminals, resistor, and capacitor. Serves for electronic connection and circuitry.

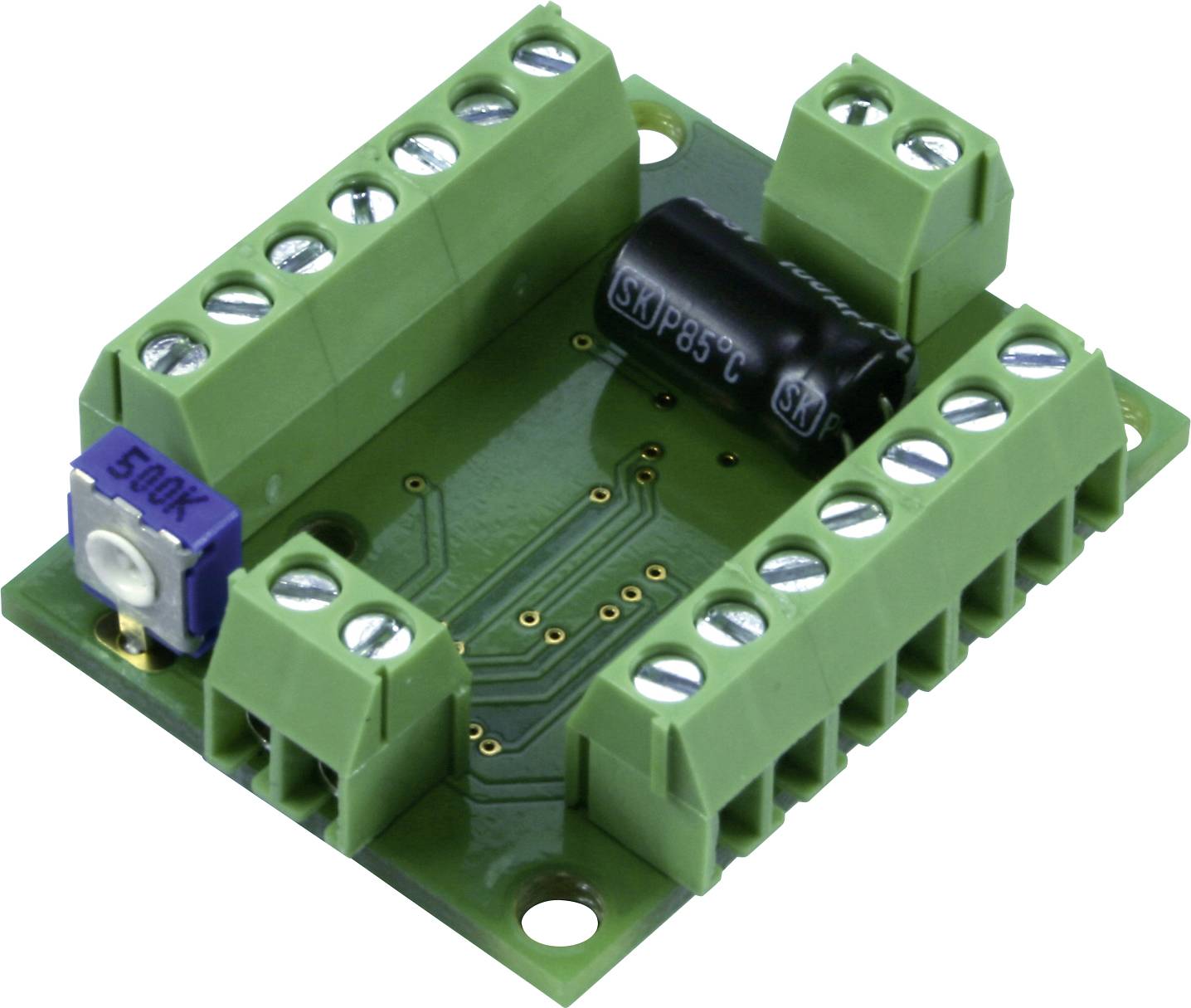

A green electronic circuit board with multiple terminal blocks and a black cylindrical capacitor.

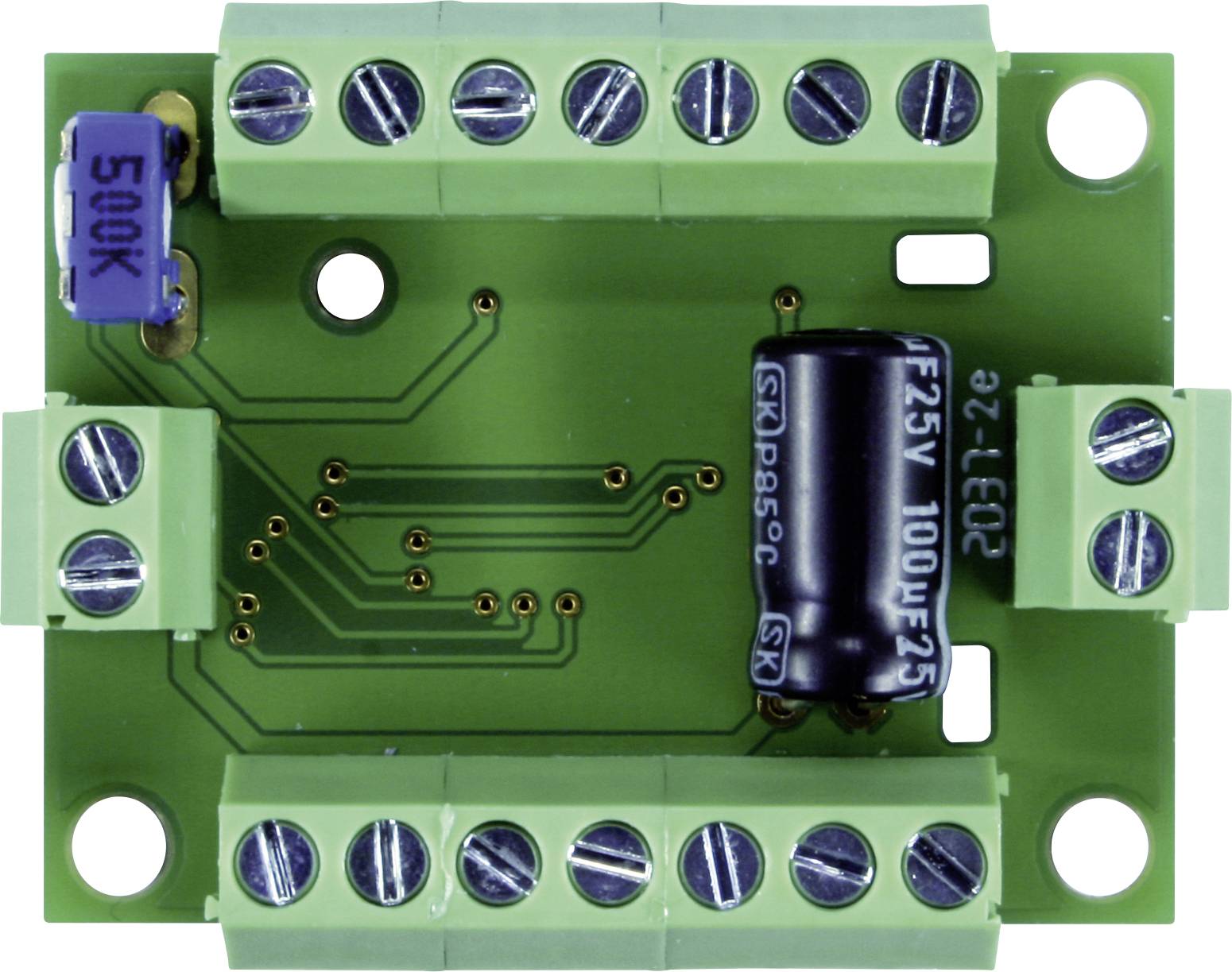

Green printed circuit board with resistor, capacitor and terminal screws. Labelled with '500K' and 'F25V 100μF'.

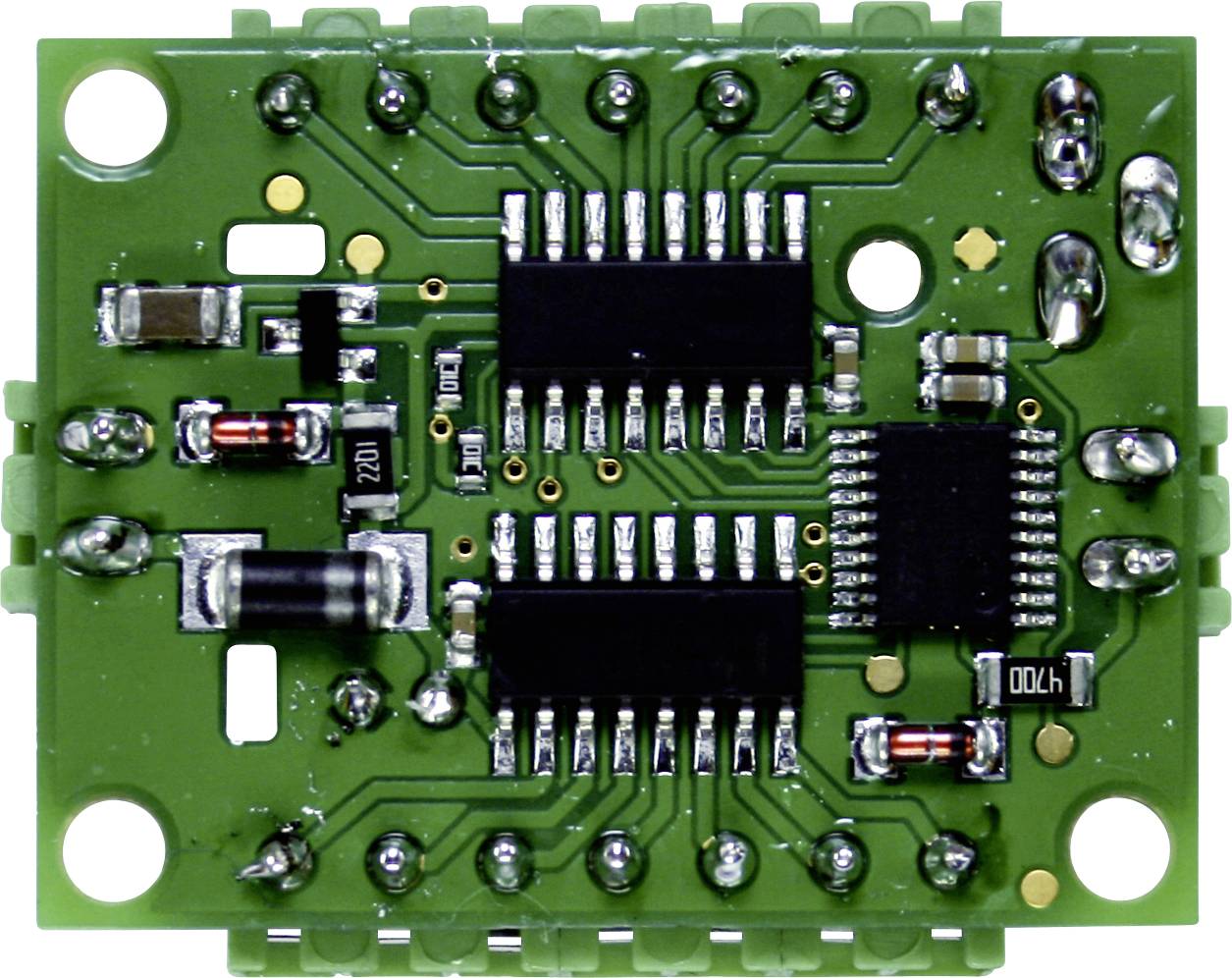

Green electronic circuit board with multiple integrated circuits, resistors, and other components.

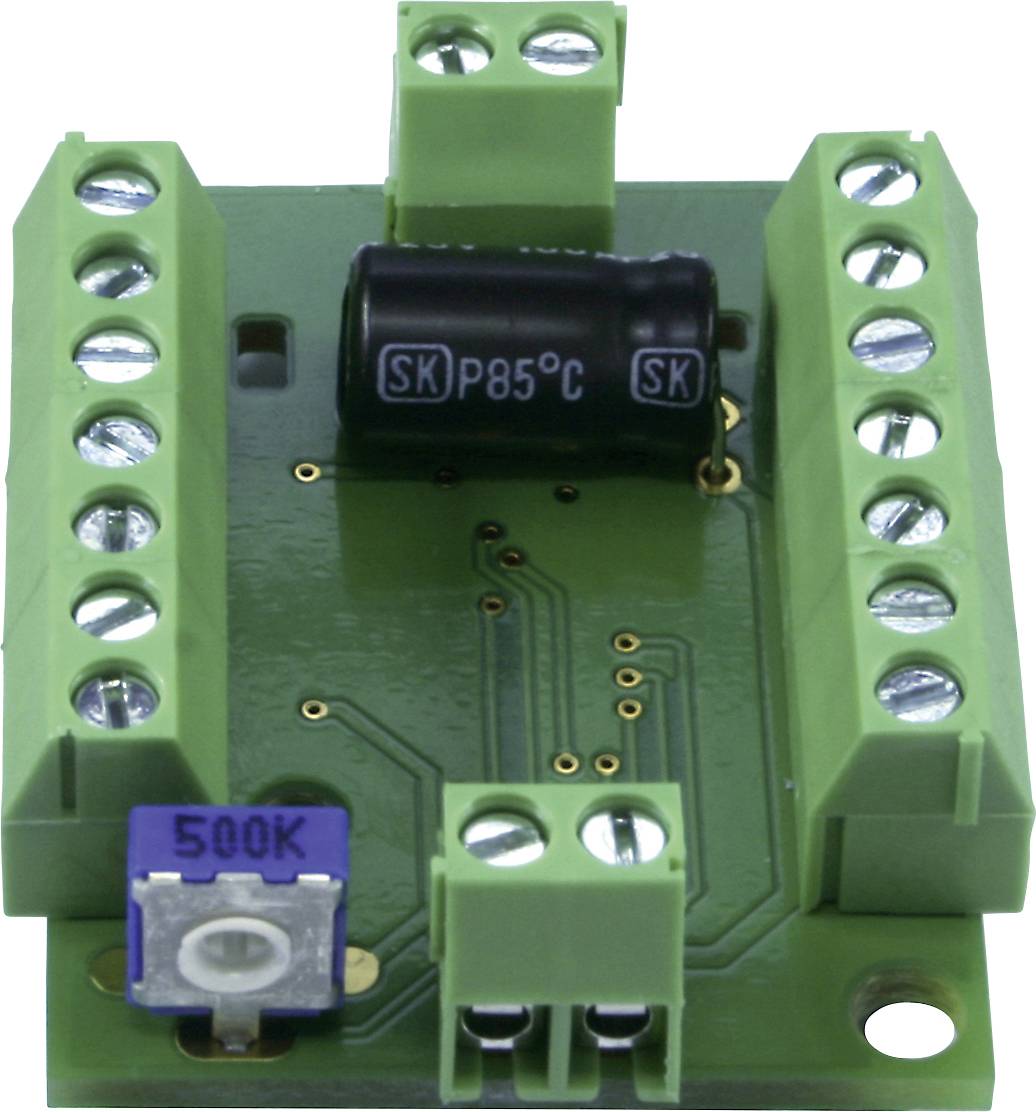

Green electronic circuit with multiple terminal blocks, a black capacitor, and a blue potentiometer.

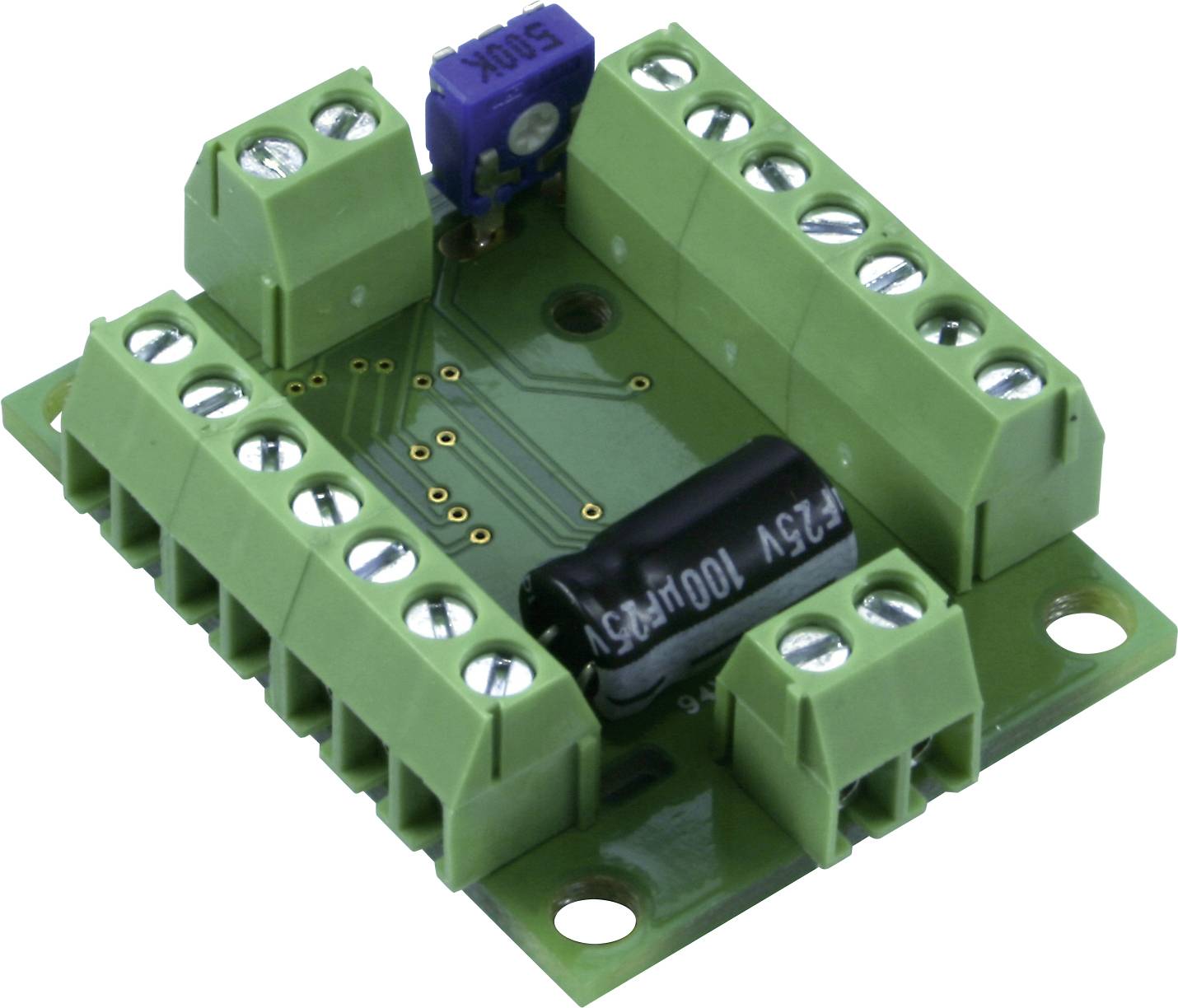

A green electronic circuit with multiple terminals, a capacitor, and a blue potentiometer; used for power distribution.
1/8
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
15 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 19.99 / piece)
€ 19.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Size

Universal

Product type

Flashing control circuits

Functions

Town lighting

Type

Assembly kit

Age category

15 years and over

Type

Assembly Kit

Manufacturer part #

53-04015-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373273 TAMS Elektronik 53-04015-01-C BSA LC-NG-01 Flashing control circuits Town lighting 1 pc(s)

Warranty Terms

Warranty Terms 2373273 TAMS Elektronik 53-04015-01-C BSA LC-NG-01 Flashing control circuits Town lighting 1 pc(s)

Description

Freely cascadable LC-NG-module for randomly controlled, delayed control of individual lighting or subordinated circuits. Can be extended as required, therefore also suitable for the lighting control of complete model railway systems.

This text is machine translated.

Features

  • 14 outputs (max. 200 mA each) for connecting incandescent lamps, LEDs (via series resistors), other LC-NG-01 modules or other subordinated circuits (e.g. other versions of the LC-NG modules)
  • Maximal total current: 1,000 mA
  • Use of the switching input: Start / end the sequence
  • Settings on the trim potentiometer: Maximum length of the pauses between successive switching on and off of the 14 outputs
  • Supply voltage: 12 - 18 V AC or 10 - 22 V DC.

Hints

Lamps and LEDs are not included.
