TAMS Elektronik 53-04016-01-C BST LC-NG-01 Flashing control circuits Town lighting 1 pc(s)

'Green electronic circuit with multiple terminal blocks, a large black capacitor, and potentiometer, top view.'

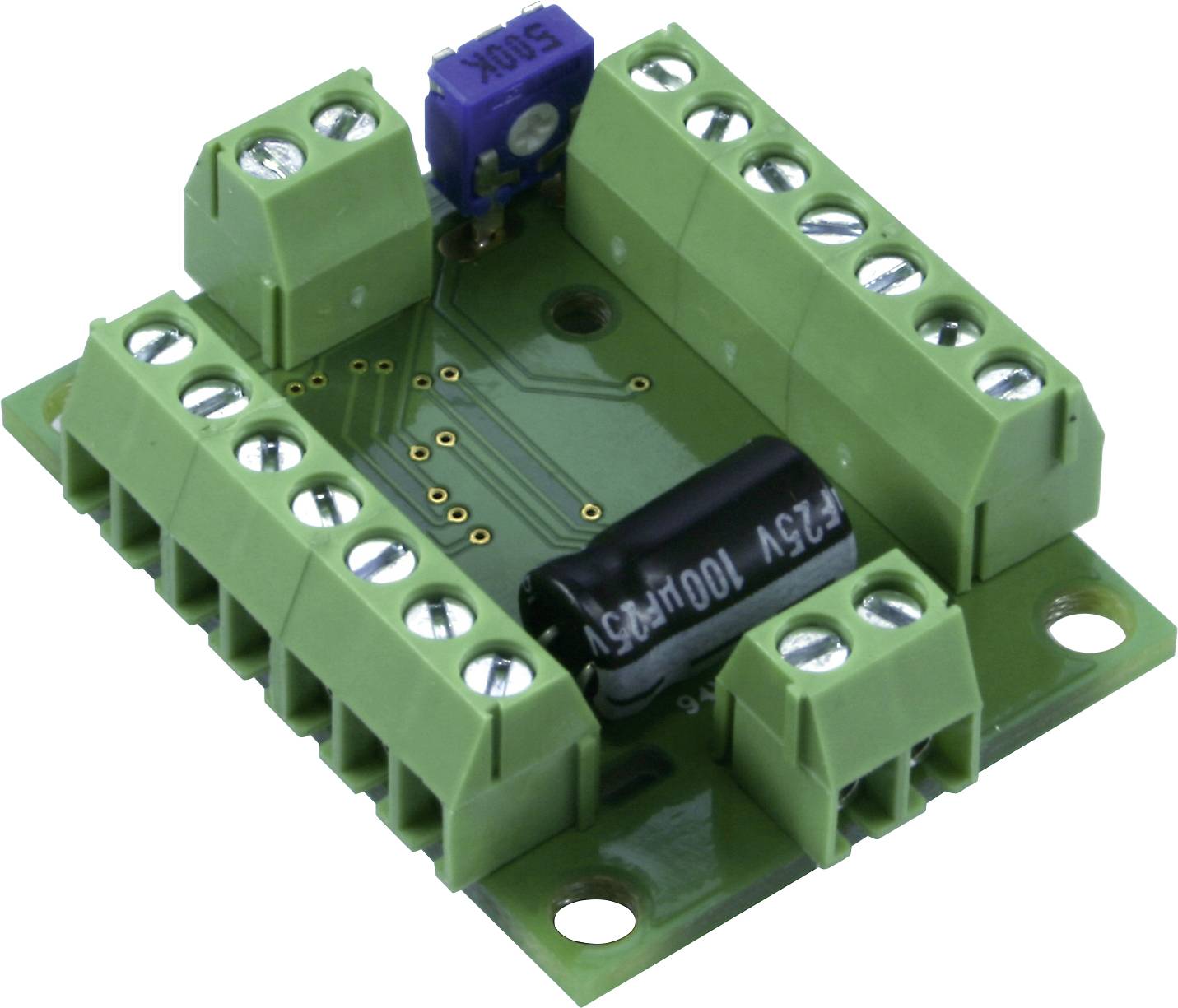

A green printed circuit board with multiple screw terminals, a large black capacitor and a blue potentiometer in the top left corner.

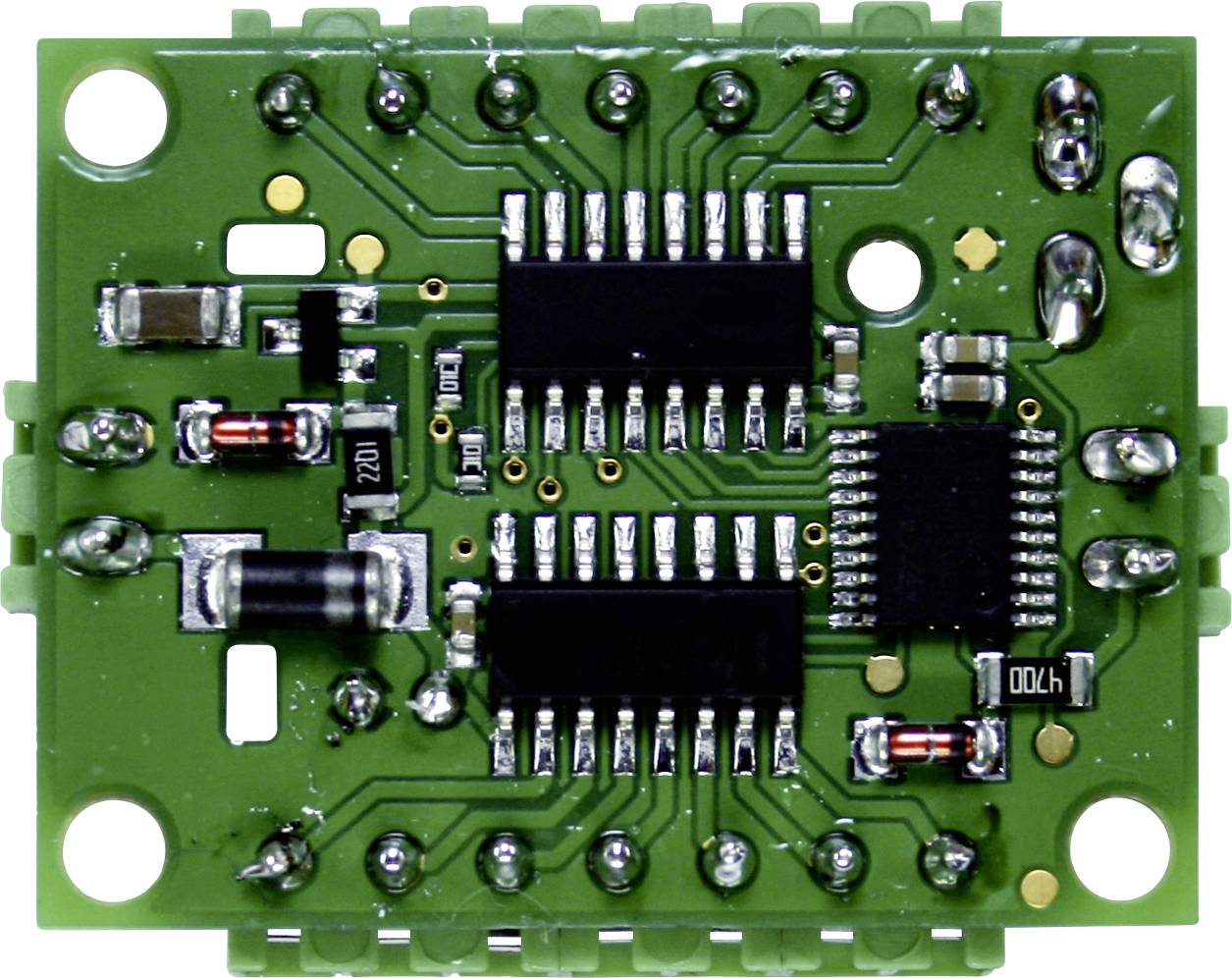

A green electronic circuit board with various integrated circuits, resistors, and solder points visible.

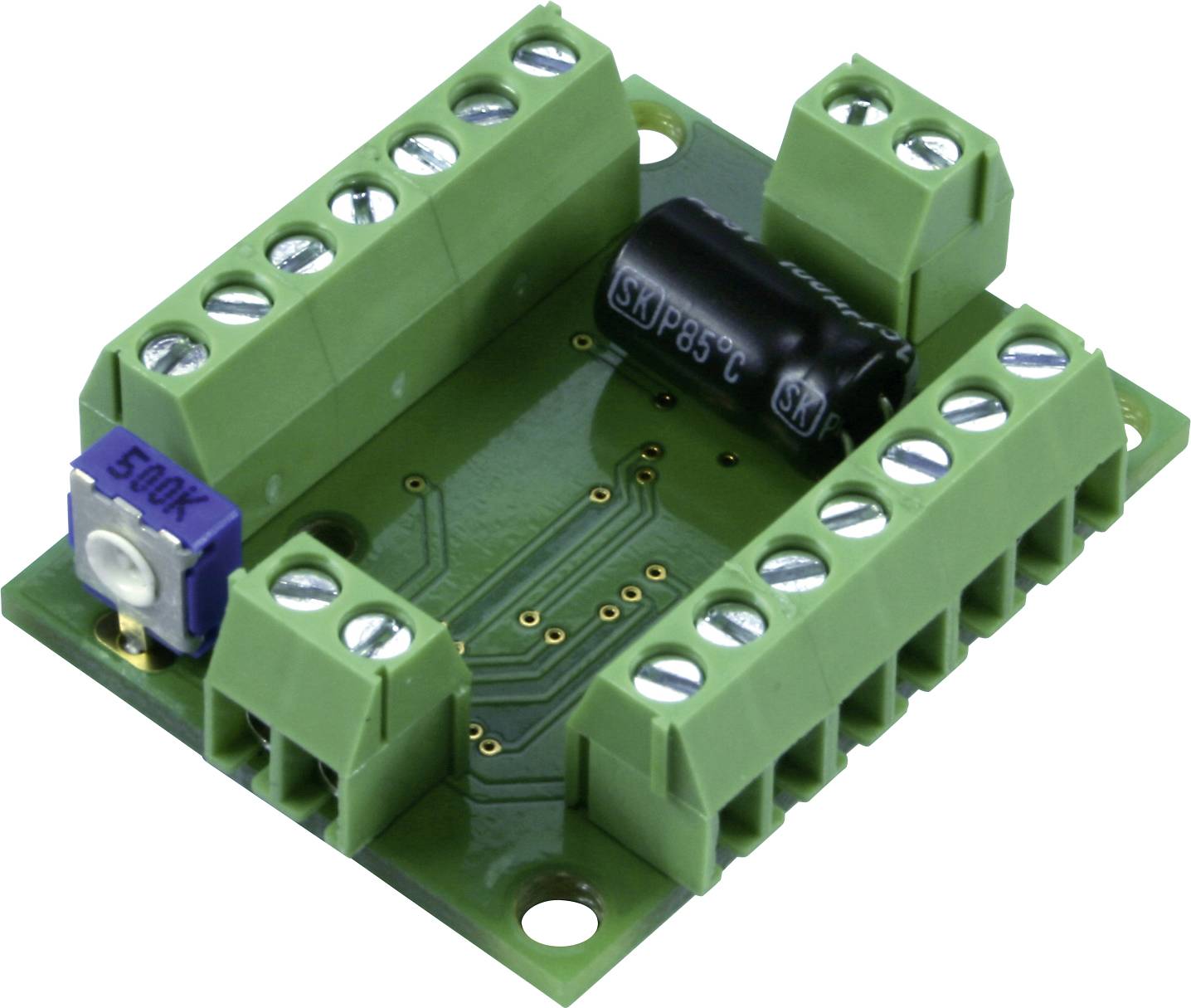

A green printed circuit board with multiple screw terminals, a black cylindrical capacitor and a blue potentiometer marked with '500K'.

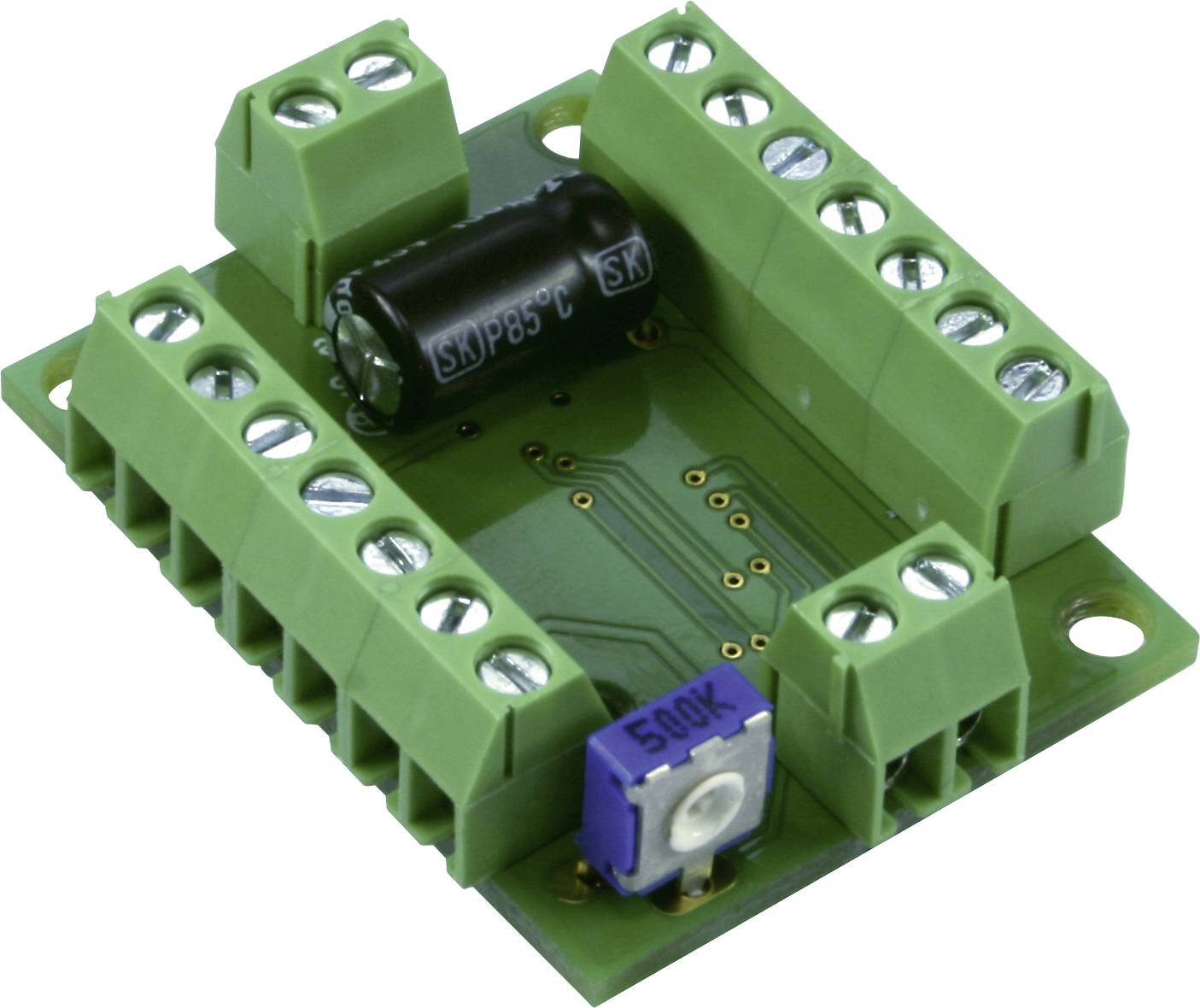

'Green electronic circuit board with multiple connections and a component element in the centre.'

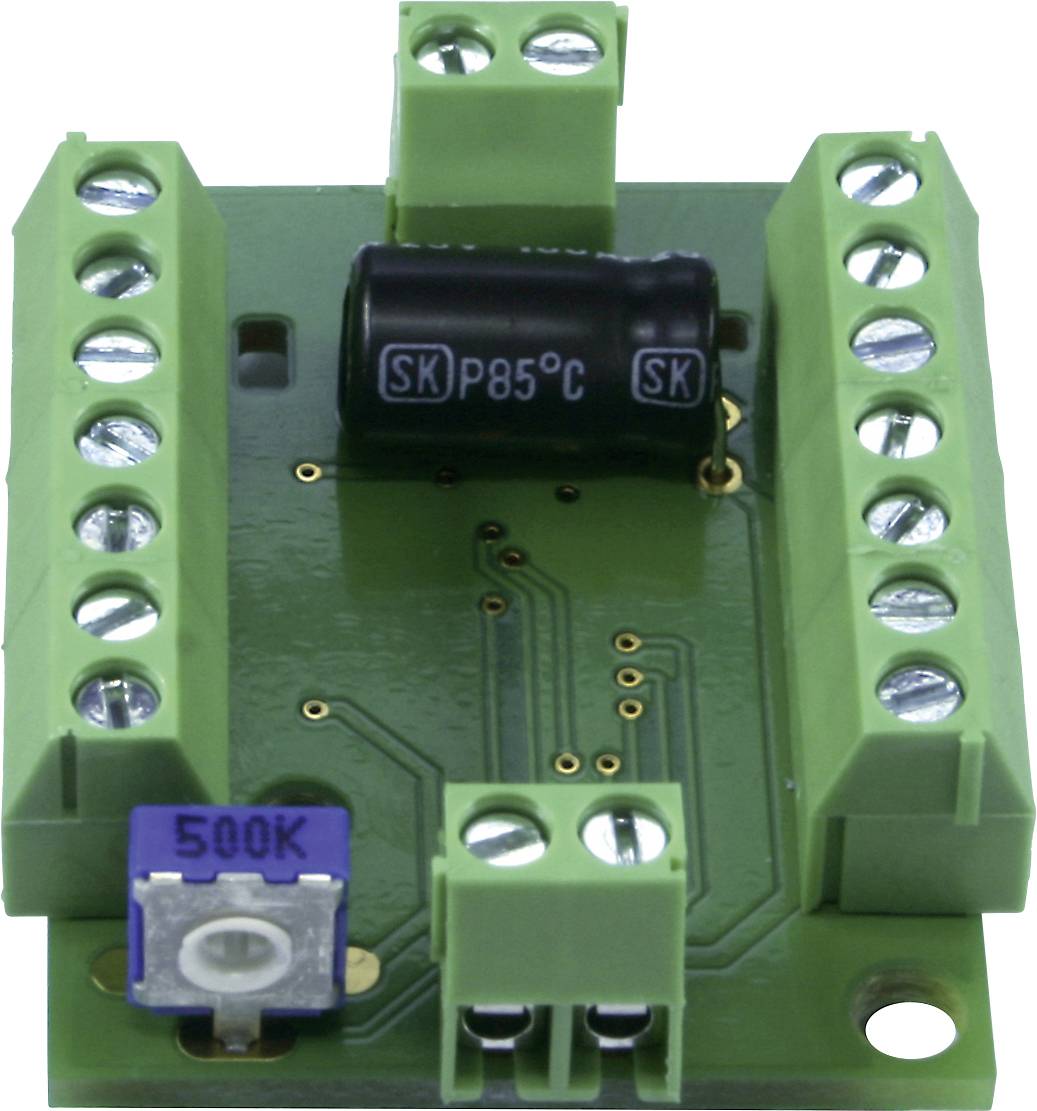

Green electronic circuit board with screw terminals, a black capacitor, and a blue potentiometer, marked with '500K'.

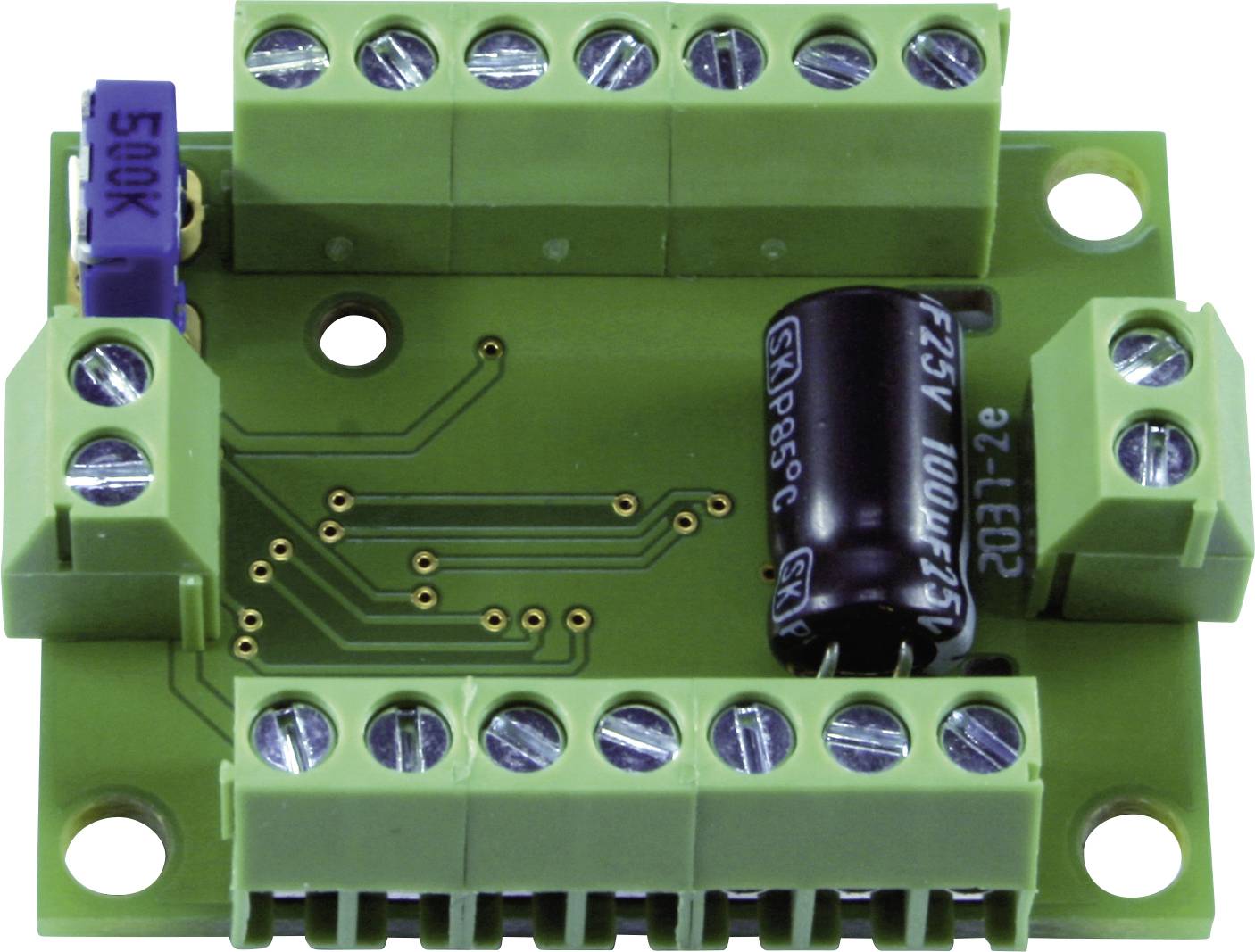

Green printed circuit board with several green terminal blocks and a black capacitor. Surface-mounted components visible.

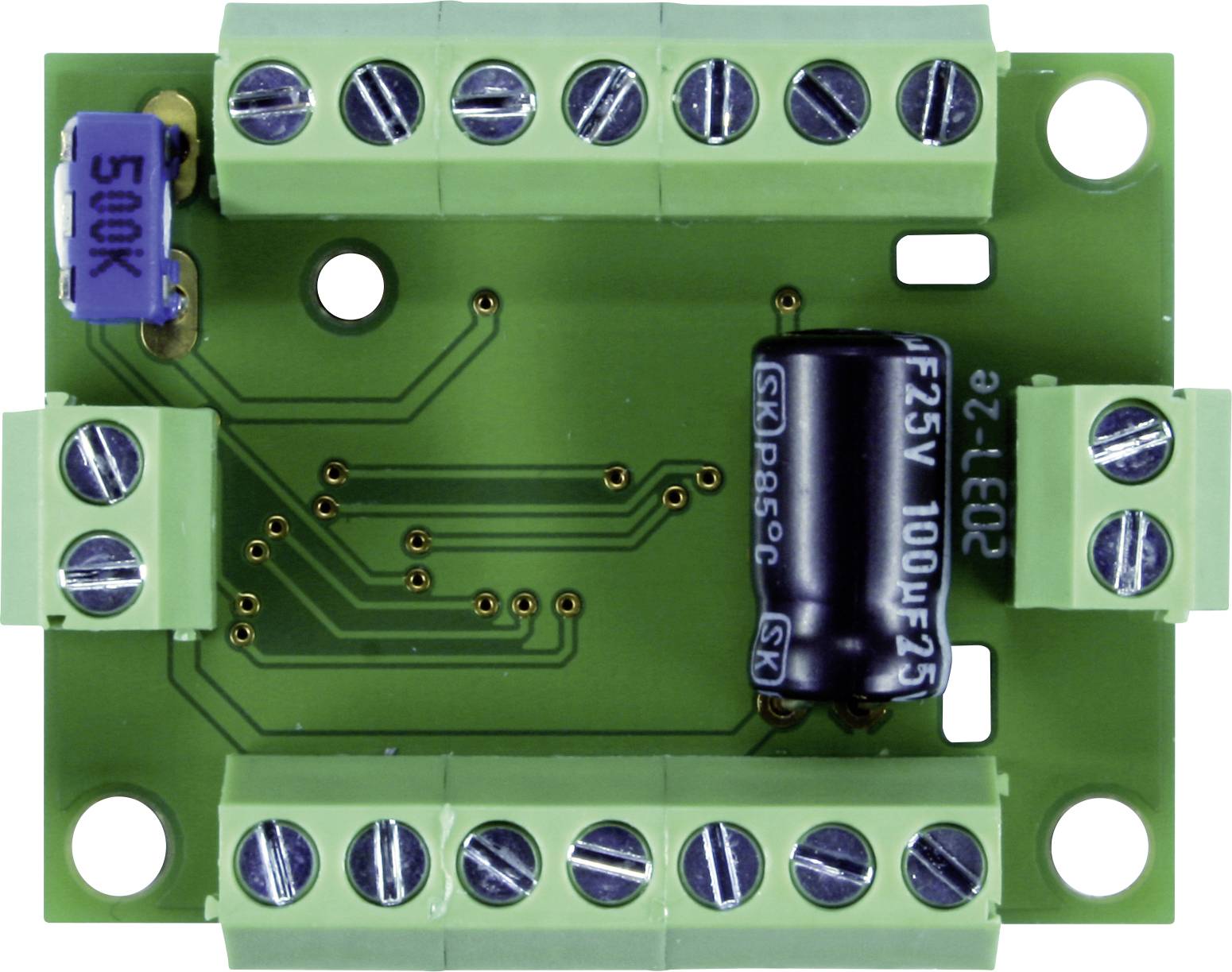

A green electronic circuit board module with multiple screw terminals and a large black capacitor, labelled 'F25V 100μF25'.
1/8
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
22 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 21.99 / piece)
€ 21.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Size

Universal

Product type

Flashing control circuits

Functions

Town lighting

Type

Prefab component

Age category

15 years and over

Type

Prefab component

Manufacturer part #

53-04016-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373274 TAMS Elektronik 53-04016-01-C BST LC-NG-01 Flashing control circuits Town lighting 1 pc(s)

Warranty Terms

Warranty Terms 2373274 TAMS Elektronik 53-04016-01-C BST LC-NG-01 Flashing control circuits Town lighting 1 pc(s)

Description

Freely cascadable LC-NG-module for randomly controlled, delayed control of individual lighting or subordinated circuits. Can be extended as required, therefore also suitable for the lighting control of complete model railway systems.

This text is machine translated.

Features

  • 14 outputs (max. 200 mA each) for connecting incandescent lamps, LEDs (via series resistors), other LC-NG-01 modules or other subordinated circuits (e.g. other versions of the LC-NG modules)
  • Maximal total current: 1,000 mA
  • Use of the switching input: Start / end the sequence
  • Settings on the trim potentiometer: Maximum length of the pauses between successive switching on and off of the 14 outputs
  • Supply voltage: 12 - 18 V AC or 10 - 22 V DC.

Hints

Lamps and LEDs are not included.
