TAMS Elektronik 53-04045-01-C BSA LC-NG-04 Flashing control circuits Street lamps 1 pc(s)

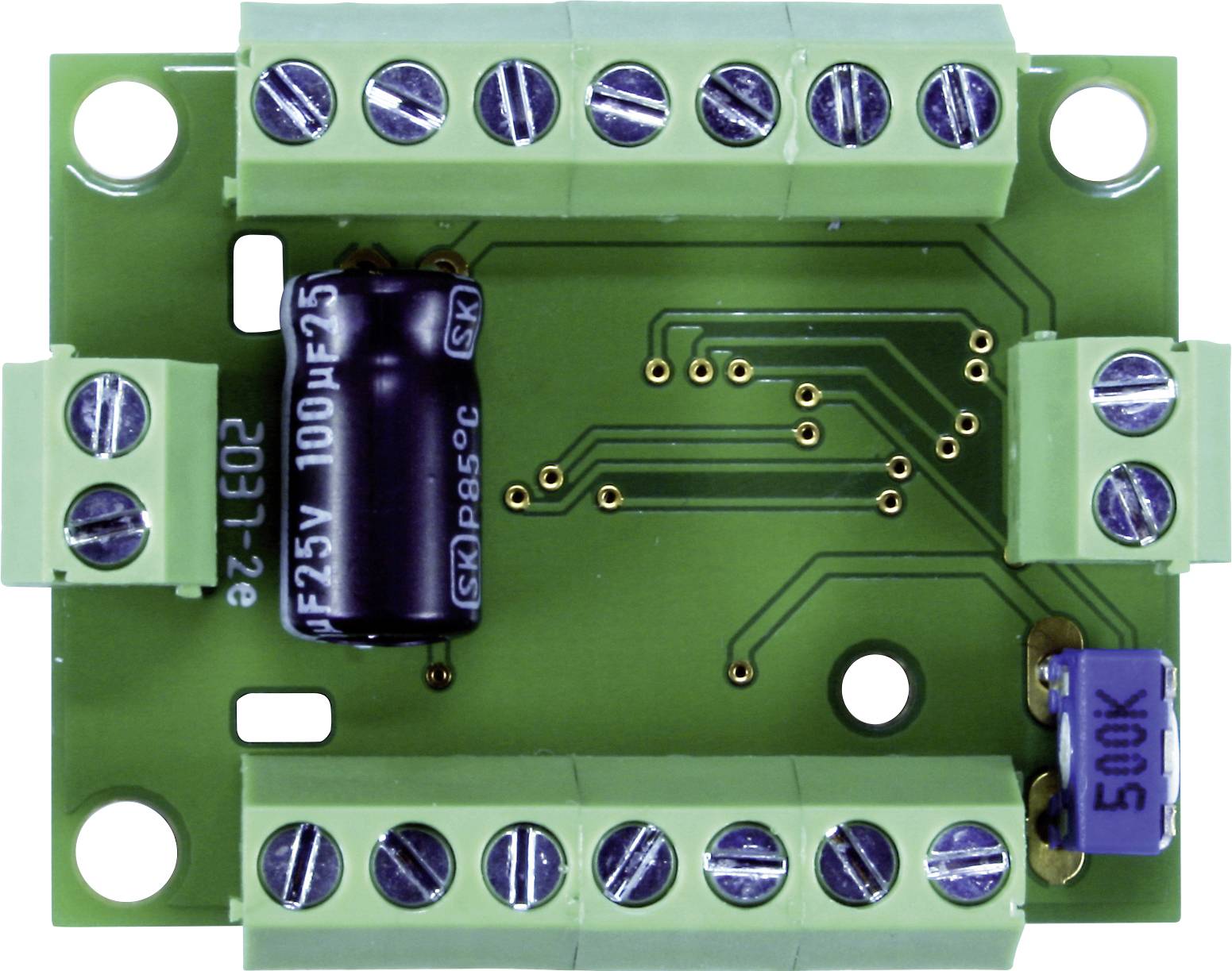

Green printed circuit board with multiple terminal blocks, a large black capacitor, and a blue trimmer potentiometer.

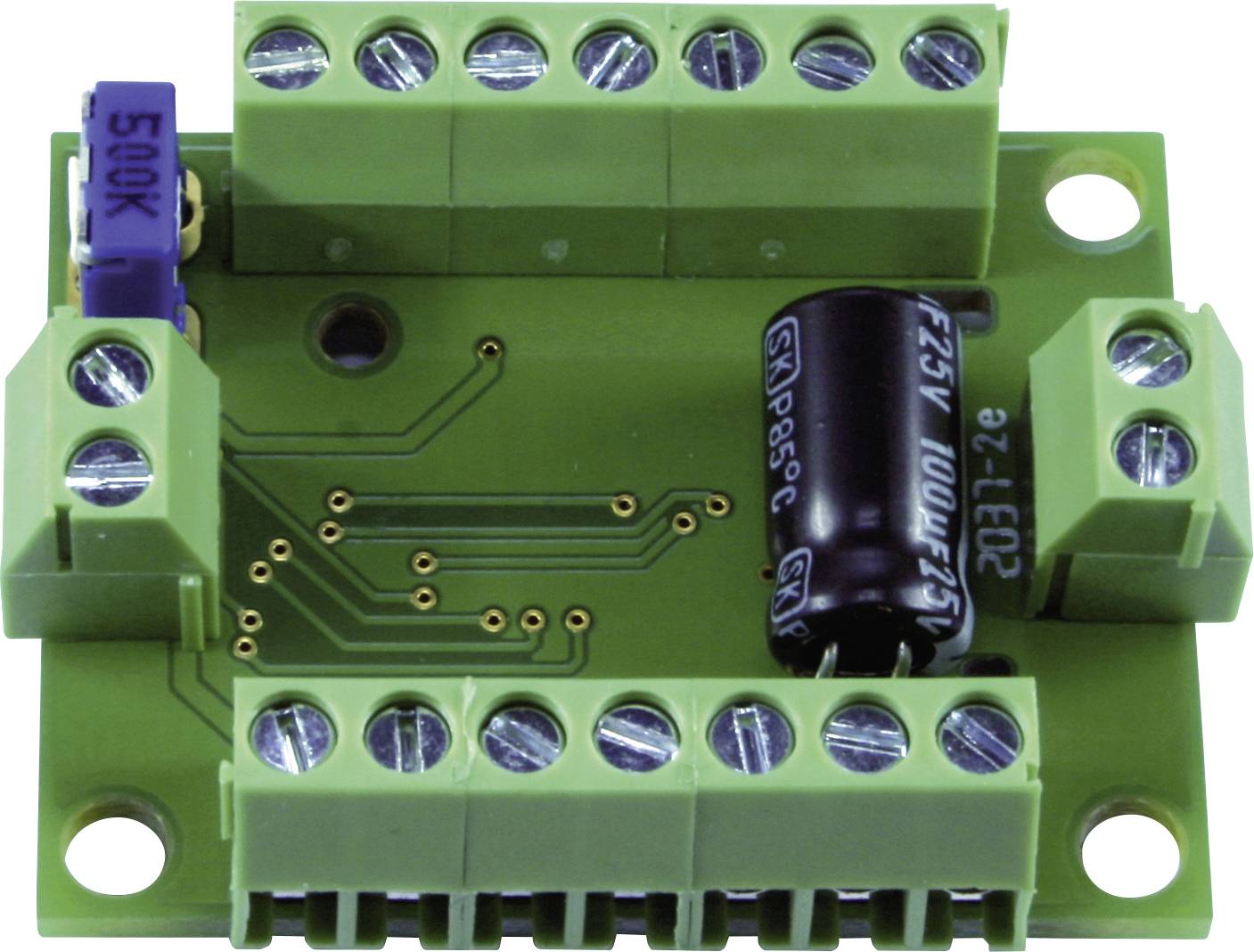

A green electronic circuit board with screw terminals and a capacitor, likely used for controlling electrical connections.

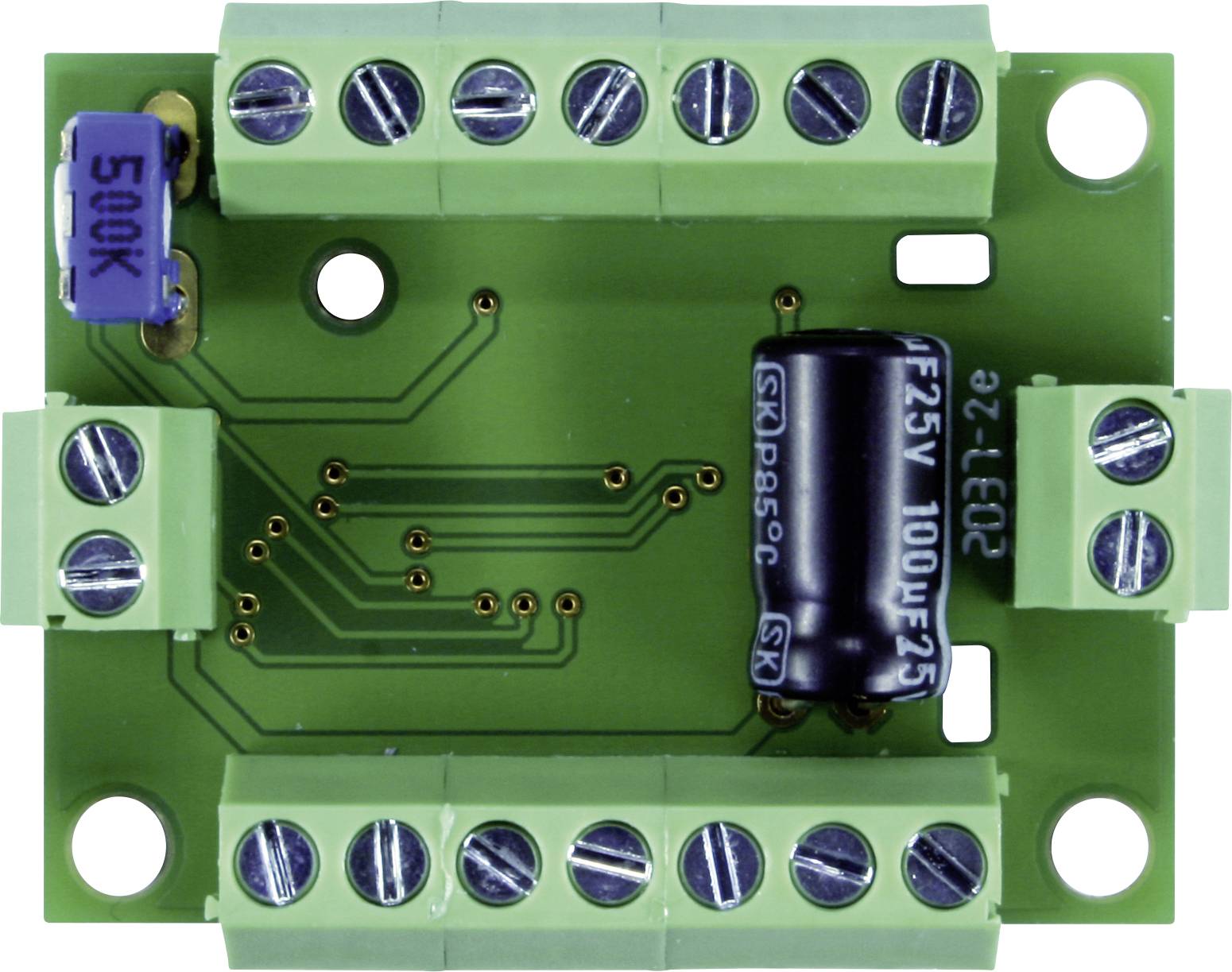

Electronic circuit board with green PCB, two rows of screw terminals, a 500K potentiometer, and a black capacitor.

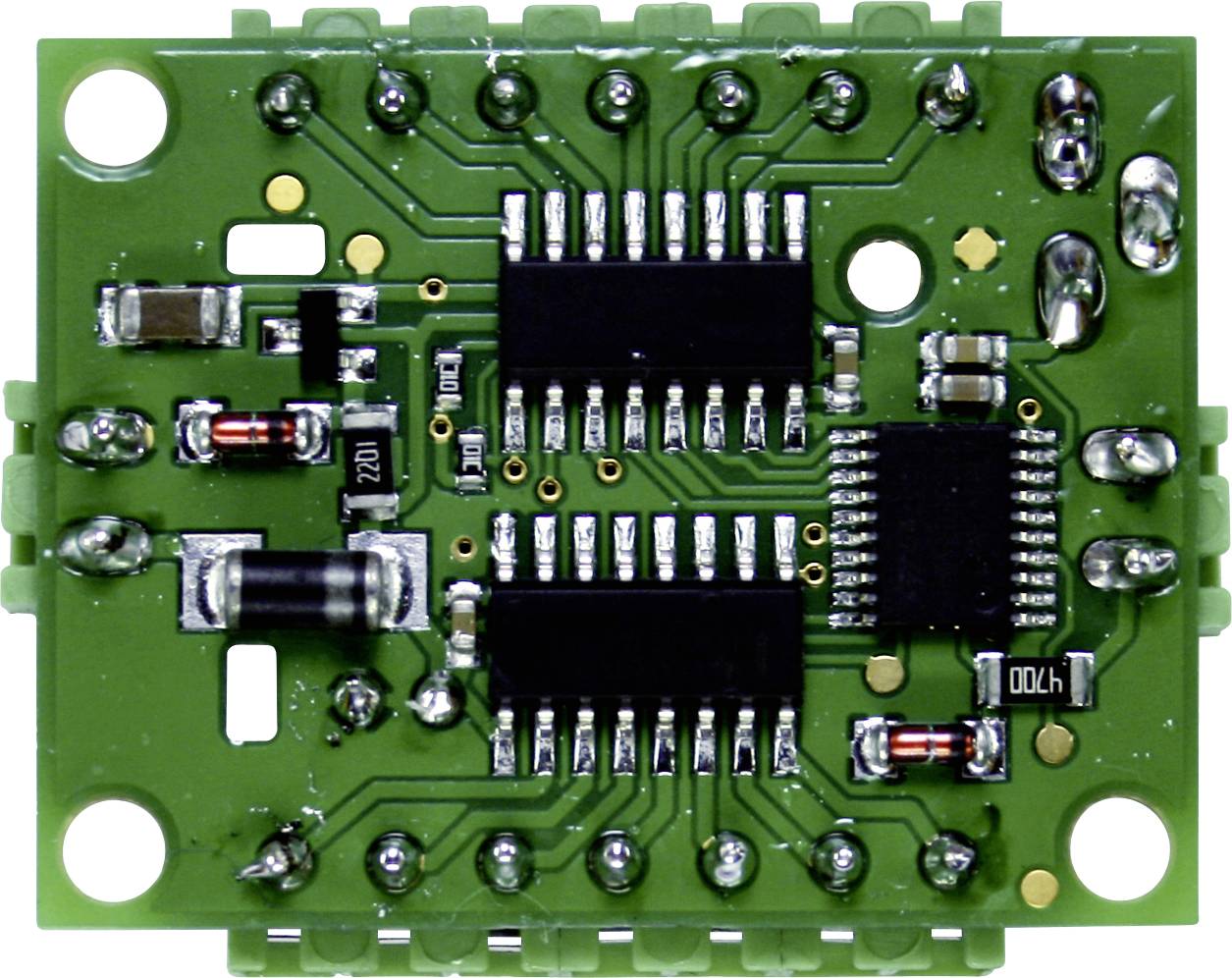

Green electronic circuit board with multiple integrated circuits, resistors, and capacitors, crucial for electronic devices.

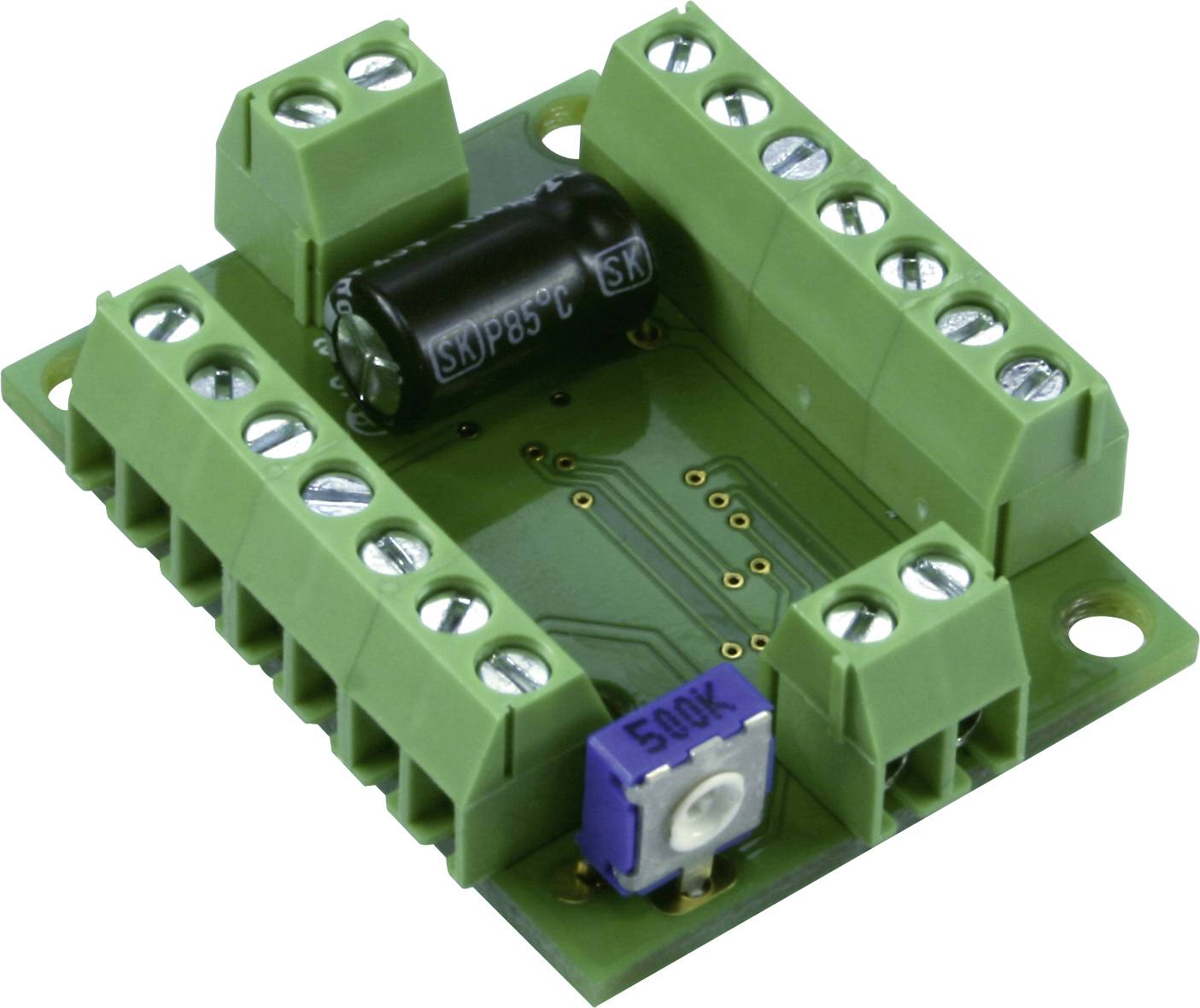

A green electronic circuit board with multiple ports and components, including a black capacitor and a blue rotary switch.

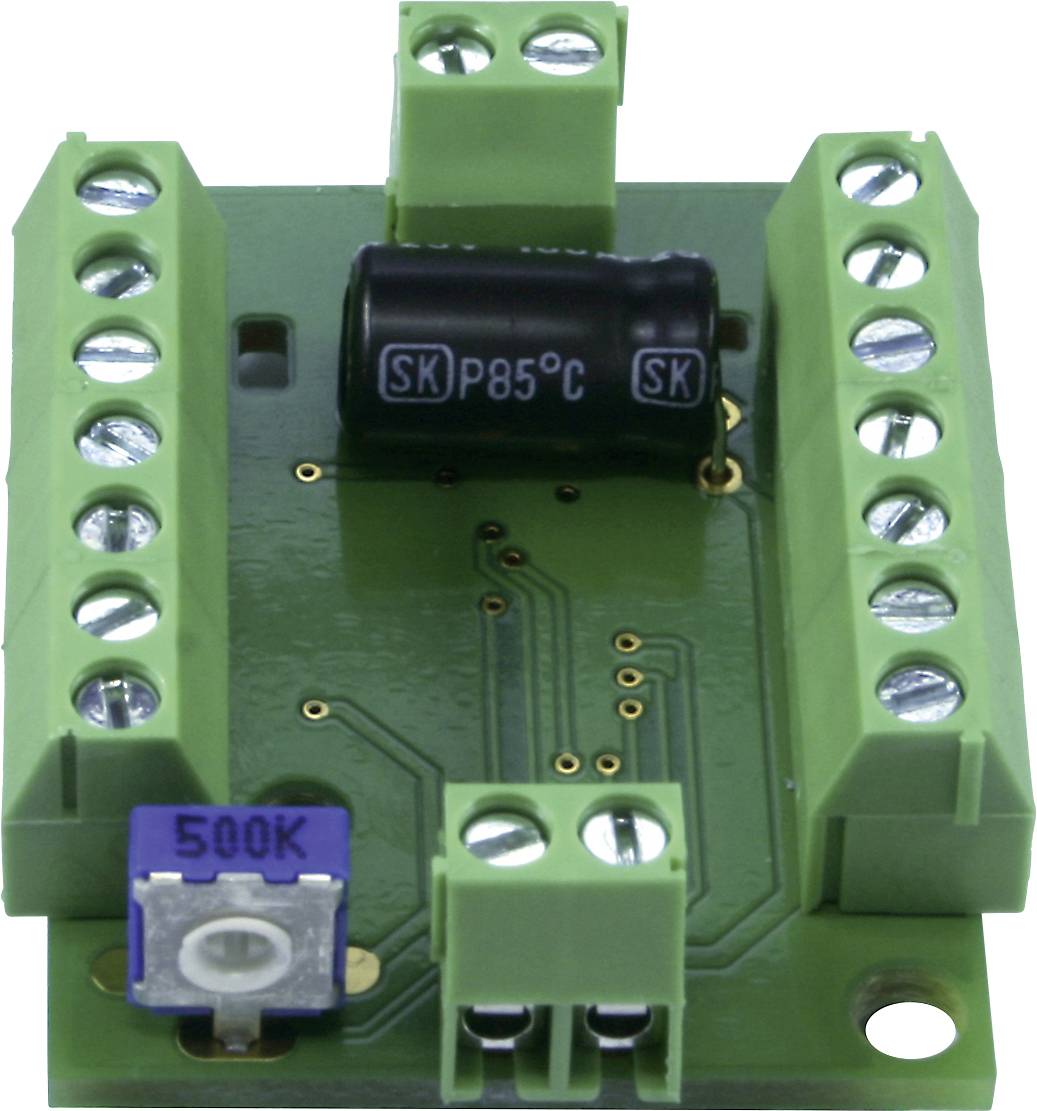

A green printed circuit board with several green screw terminals and a blue adjustable resistor (500k) mounted on it.

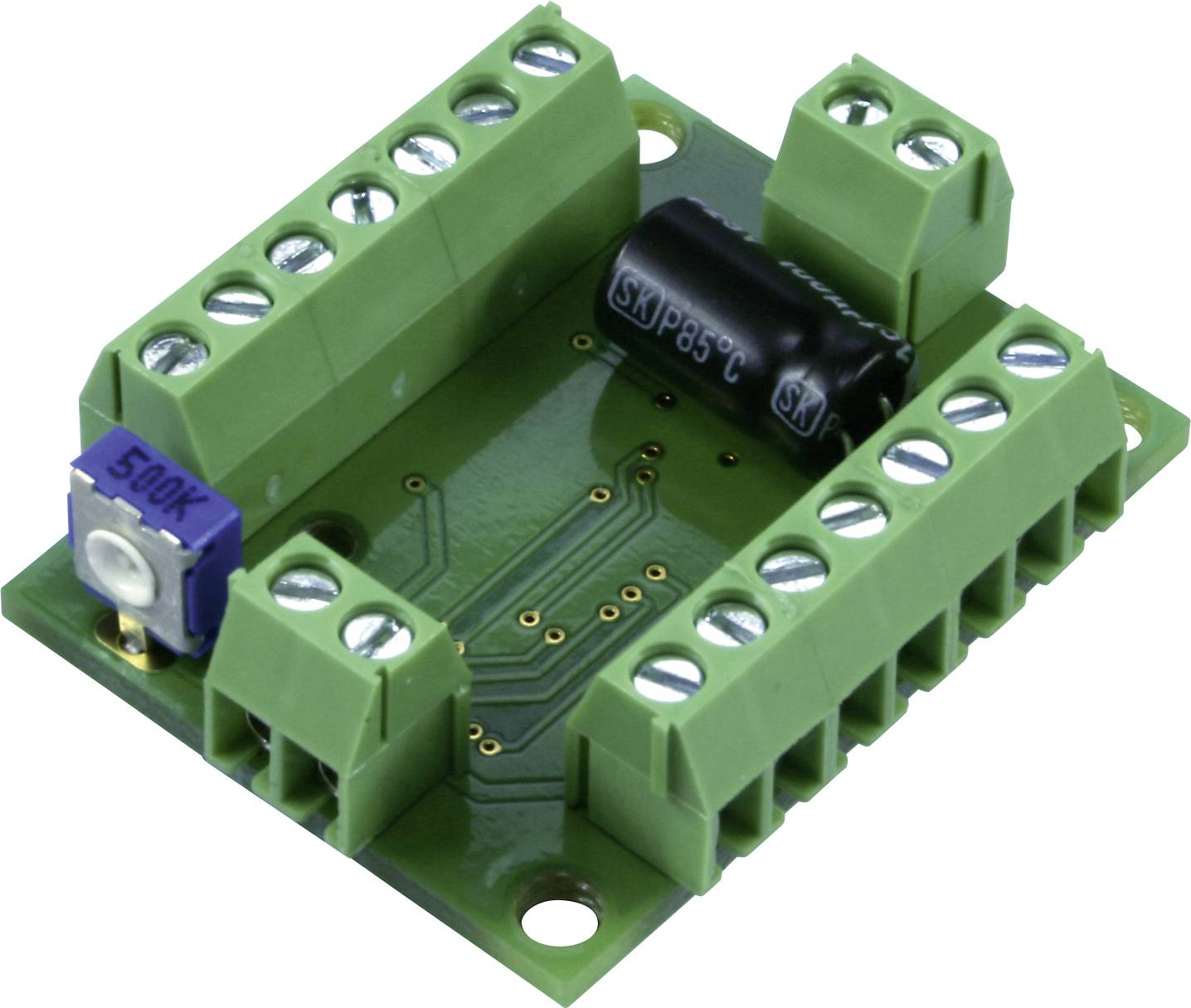

Electronic circuit board with several green terminal blocks and a black capacitor.

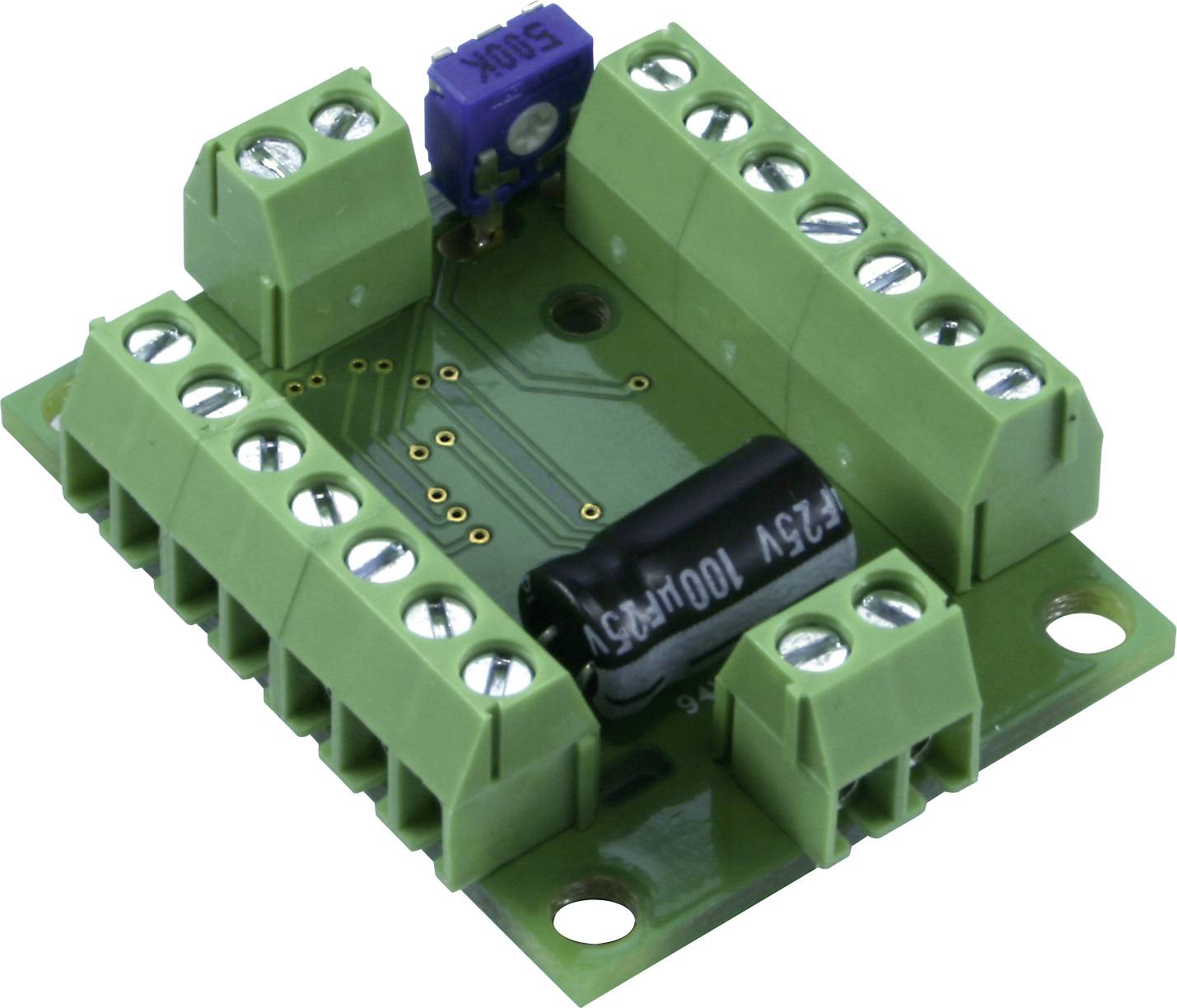

'Green printed circuit board with multiple screw terminals and a large black capacitor, likely for electrical connections.'
1/8
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
31 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 19.99 / piece)
€ 19.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Size

Universal

Product type

Flashing control circuits

Functions

Street lamps

Type

Assembly kit

Age category

15 years and over

Type

Assembly Kit

Manufacturer part #

53-04045-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373279 TAMS Elektronik 53-04045-01-C BSA LC-NG-04 Flashing control circuits Street lamps 1 pc(s)

Warranty Terms

Warranty Terms 2373279 TAMS Elektronik 53-04045-01-C BSA LC-NG-04 Flashing control circuits Street lamps 1 pc(s)

Description

Simulation of switching on and off of either electric street lights or gas lights.
Electric lanterns: They slowly Heller up after switching on. When the device is switched off, the brightness is reduced by approx. 50% and then dimmed slowly.
Gas lanterns: They are either switched on and off together (with remote ignition) or one after the other (with manual ignition and deletion by lamp lighter and extinguisher). After switching on, they flicker in different patterns and Heller During operation, they flicker independantly at irregular intervals (due to "gas pressure fluctuations"). After switching off, they first light up with lower brightness before they go out.

This text is machine translated.

Features

  • 14 outputs (max. 200 mA each) for connecting incandescent lamps or LEDs (via series resistors) in electric street lamps or gas lanterns
  • Maximal total current: 1,000 mA
  • Use of the switching input: Start / end the sequence
  • Supply voltage: 12 - 18 V AC or 10 - 22 V DC.

Hints

Lamps and LEDs are not included.
