Buy TAMS Elektronik 53-04065-01-C BSA LC-NG-06 Flashing control circuits Emergency service vehicle 1 pc(s)

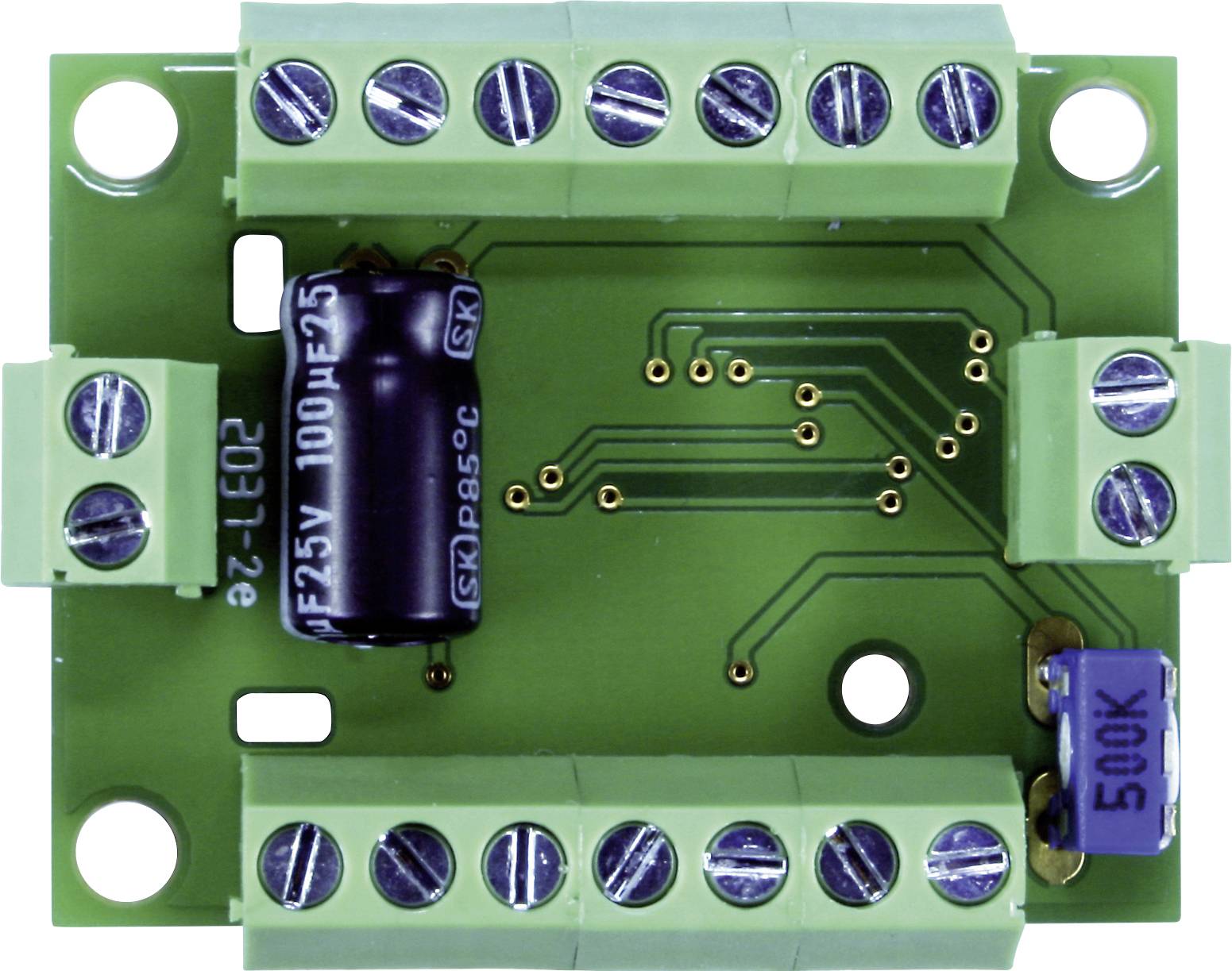

Electronic circuit board with multiple green connectors and a black capacitor, mounted on a green circuit board.

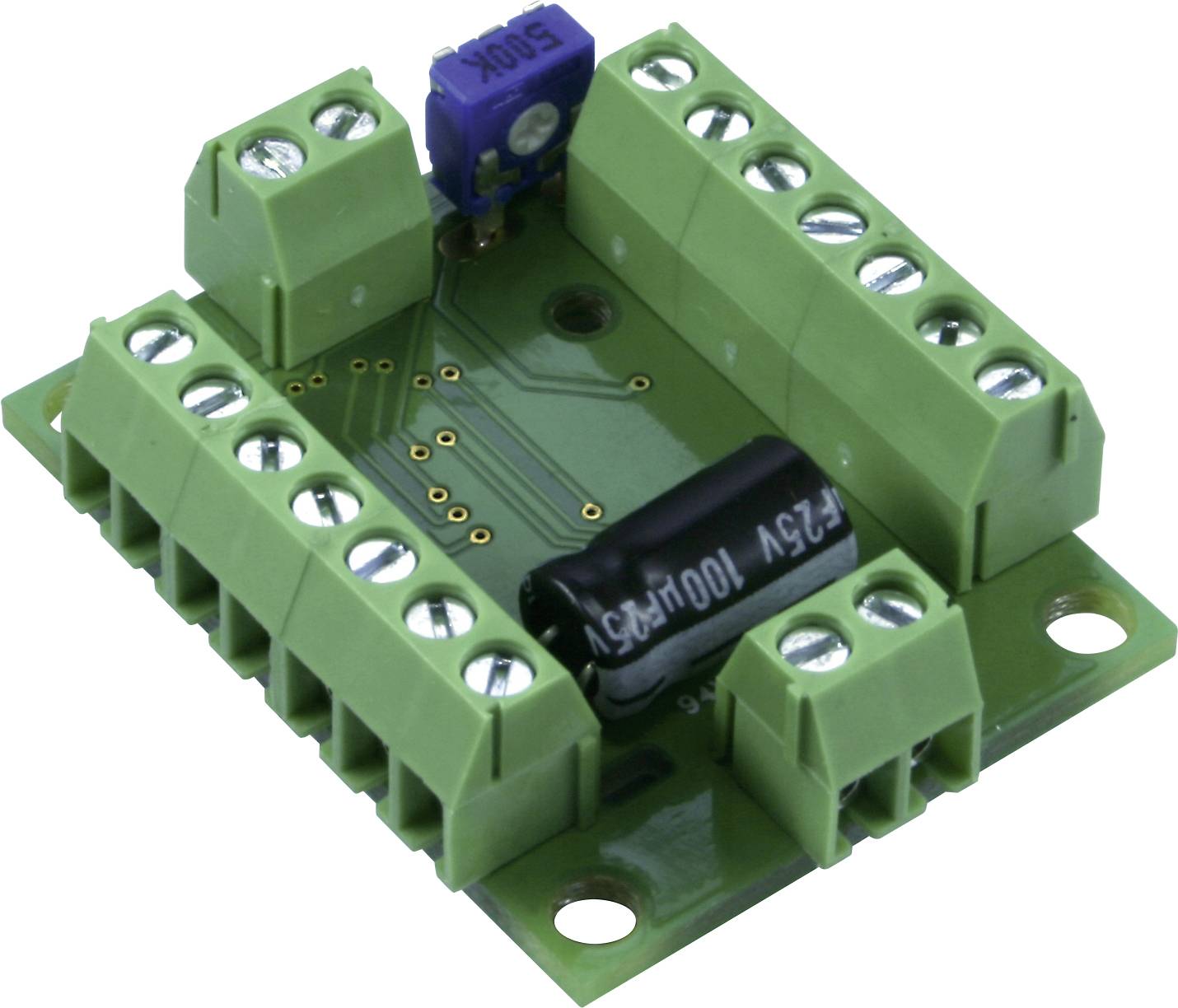

A green printed circuit board with multiple screw terminals, a blue potentiometer and a black capacitor, typical of electronic circuits.

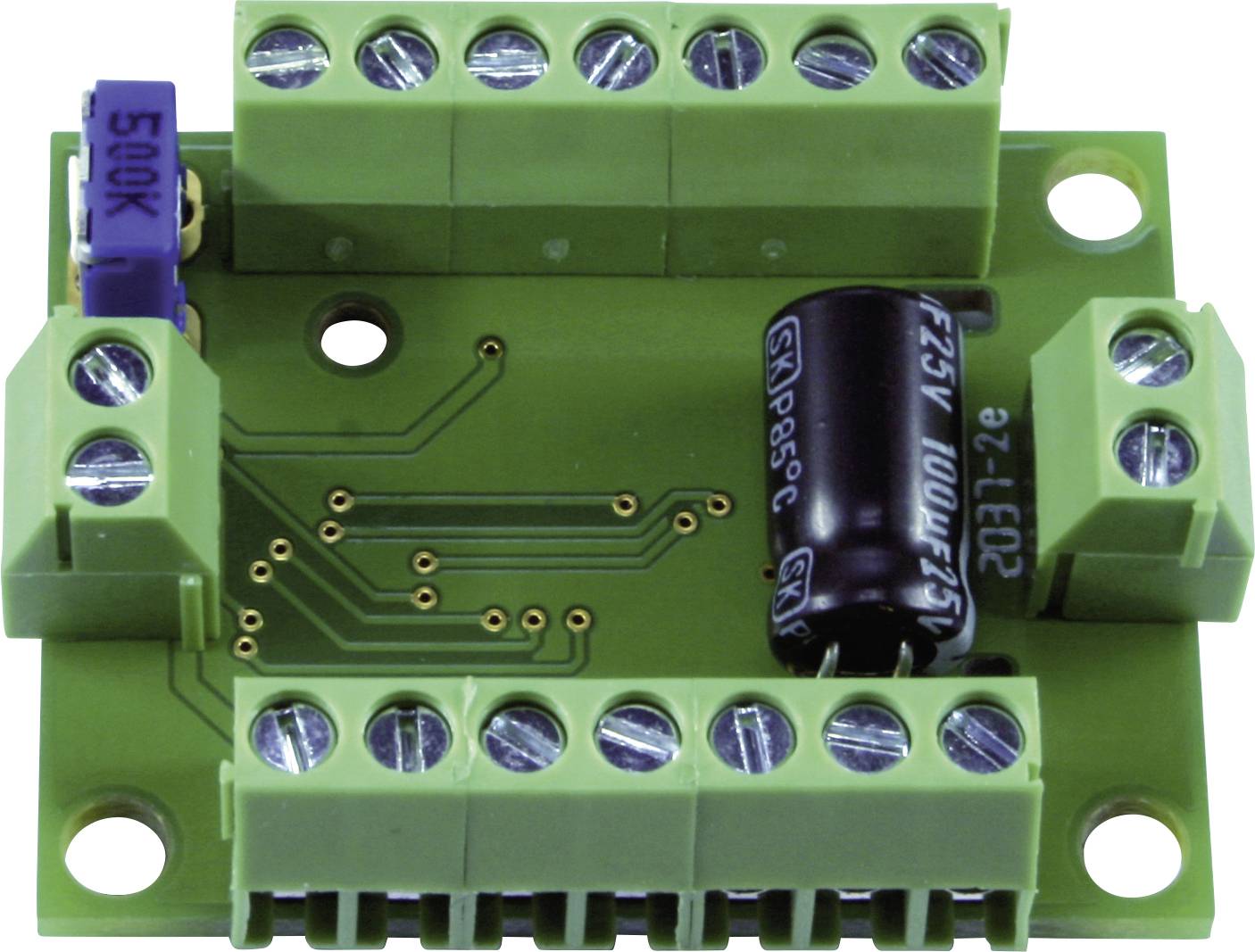

Green electronic circuit with multiple ports and a large black capacitor in the centre.

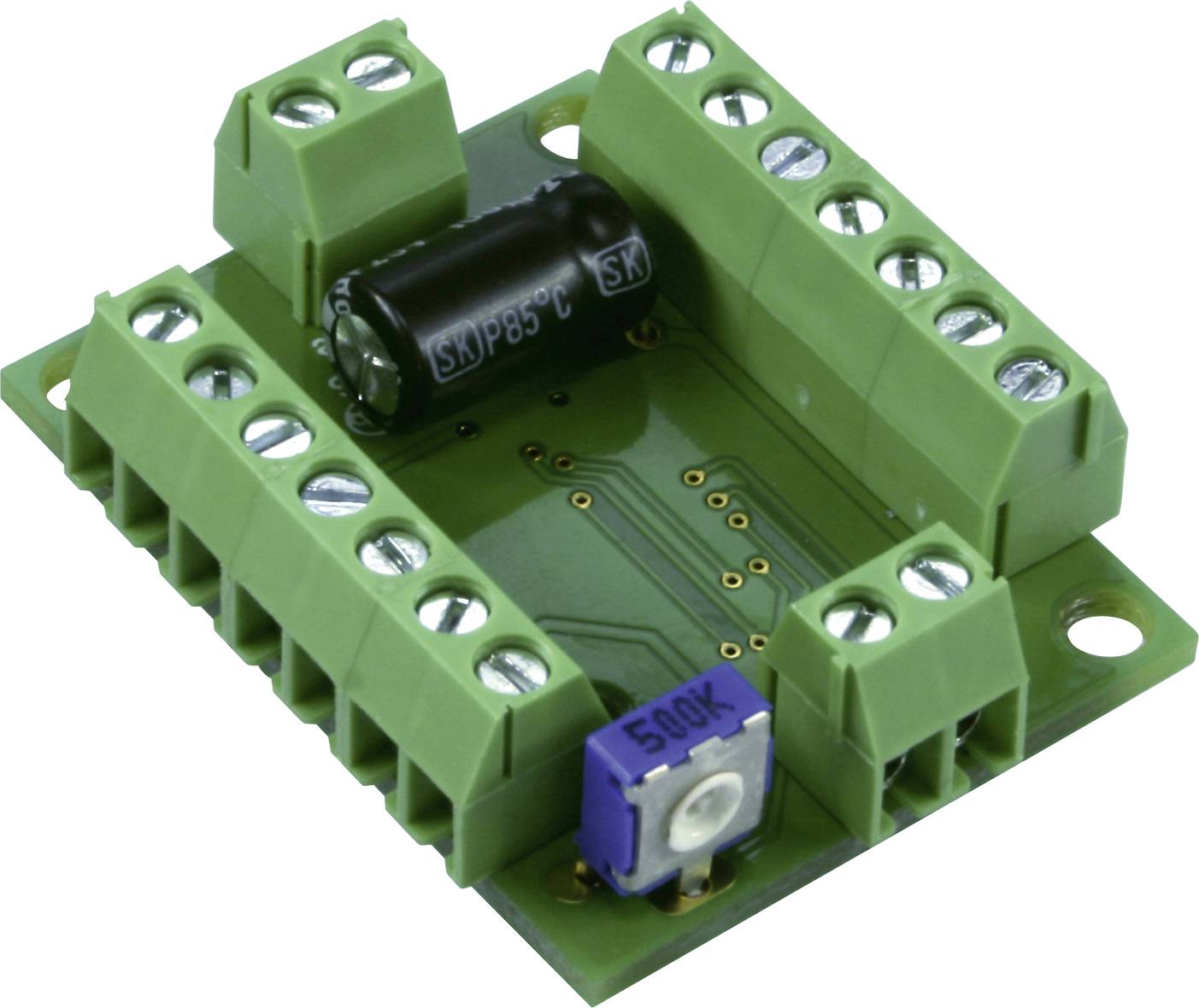

Green printed circuit board with multiple screw terminals, a black capacitor, and a blue potentiometer, suitable for electronic circuits.

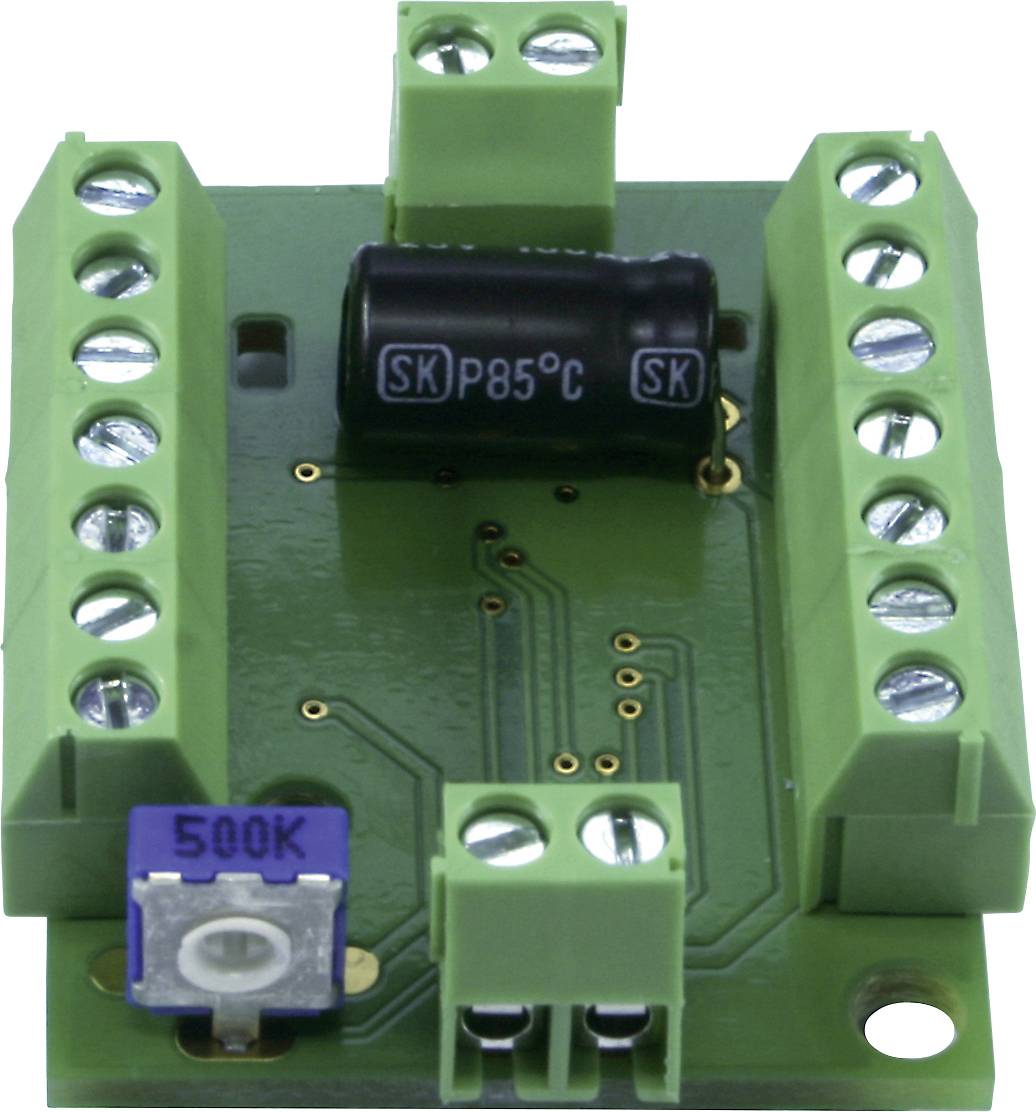

Green printed circuit board with a black capacitor and multiple screw terminals, used for electrical connections and circuits.

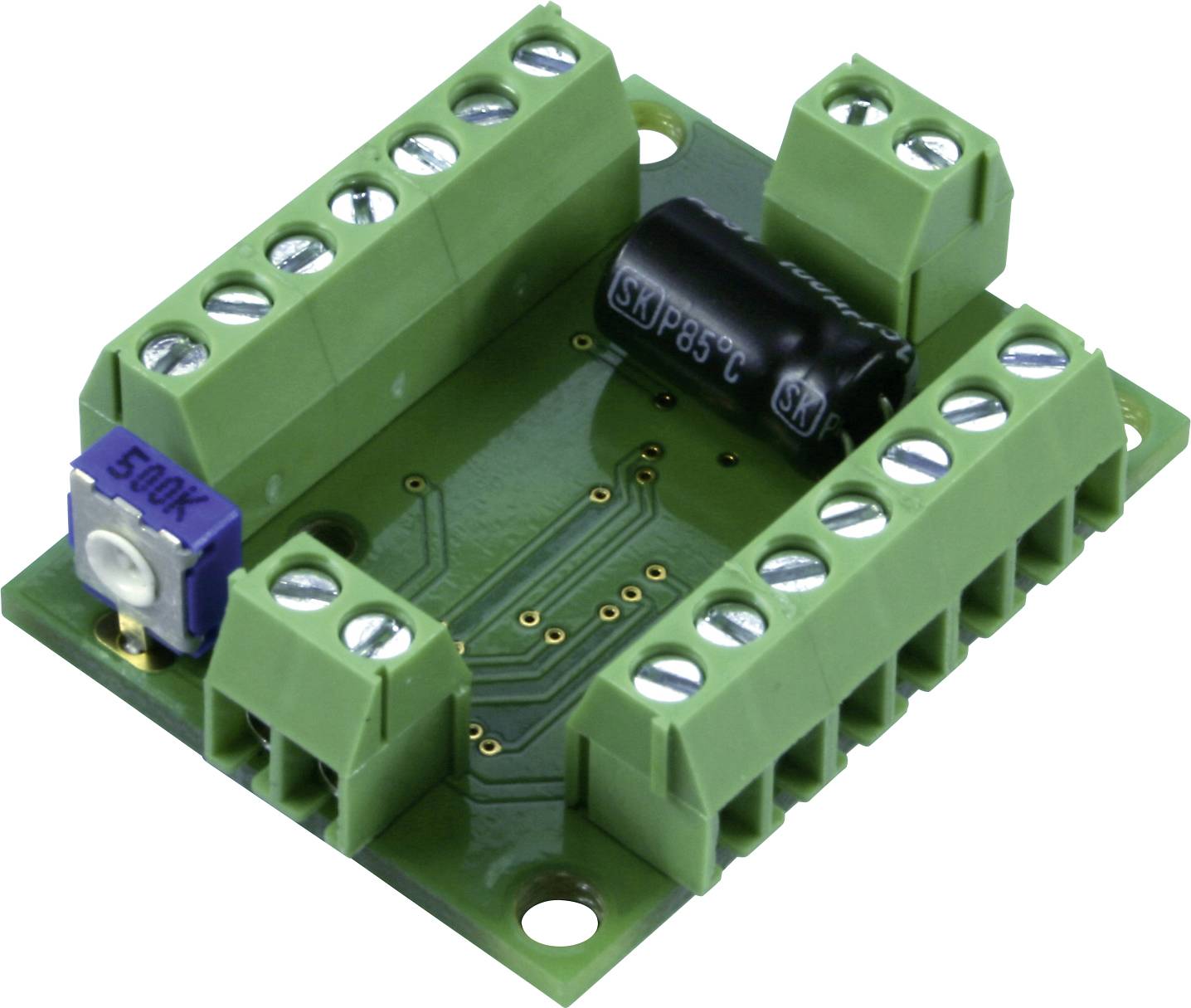

A green printed circuit board with connectors and resistors, used for electronic circuits.

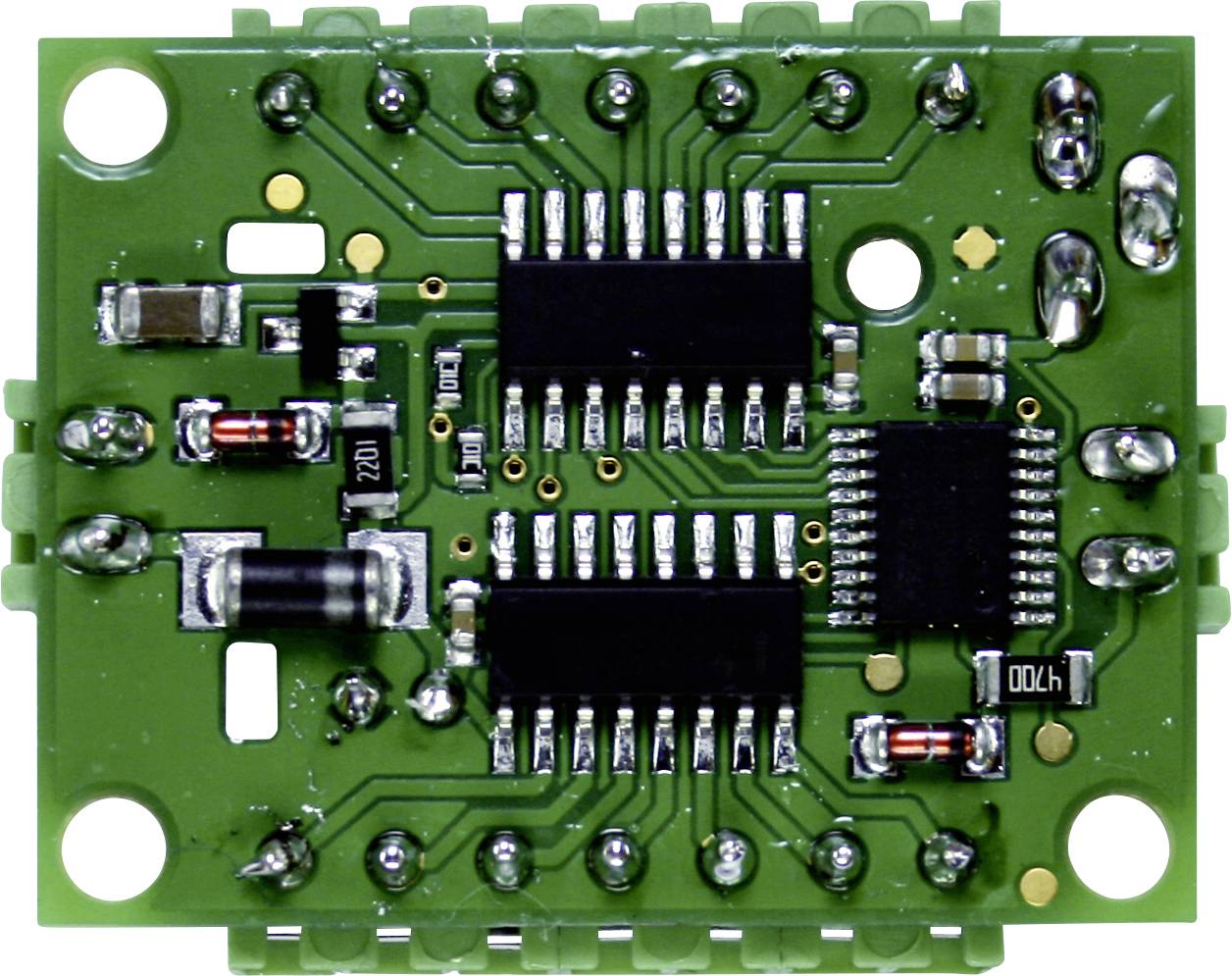

Electronic circuit board with multiple integrated circuits, resistors, and capacitors on a green substrate.

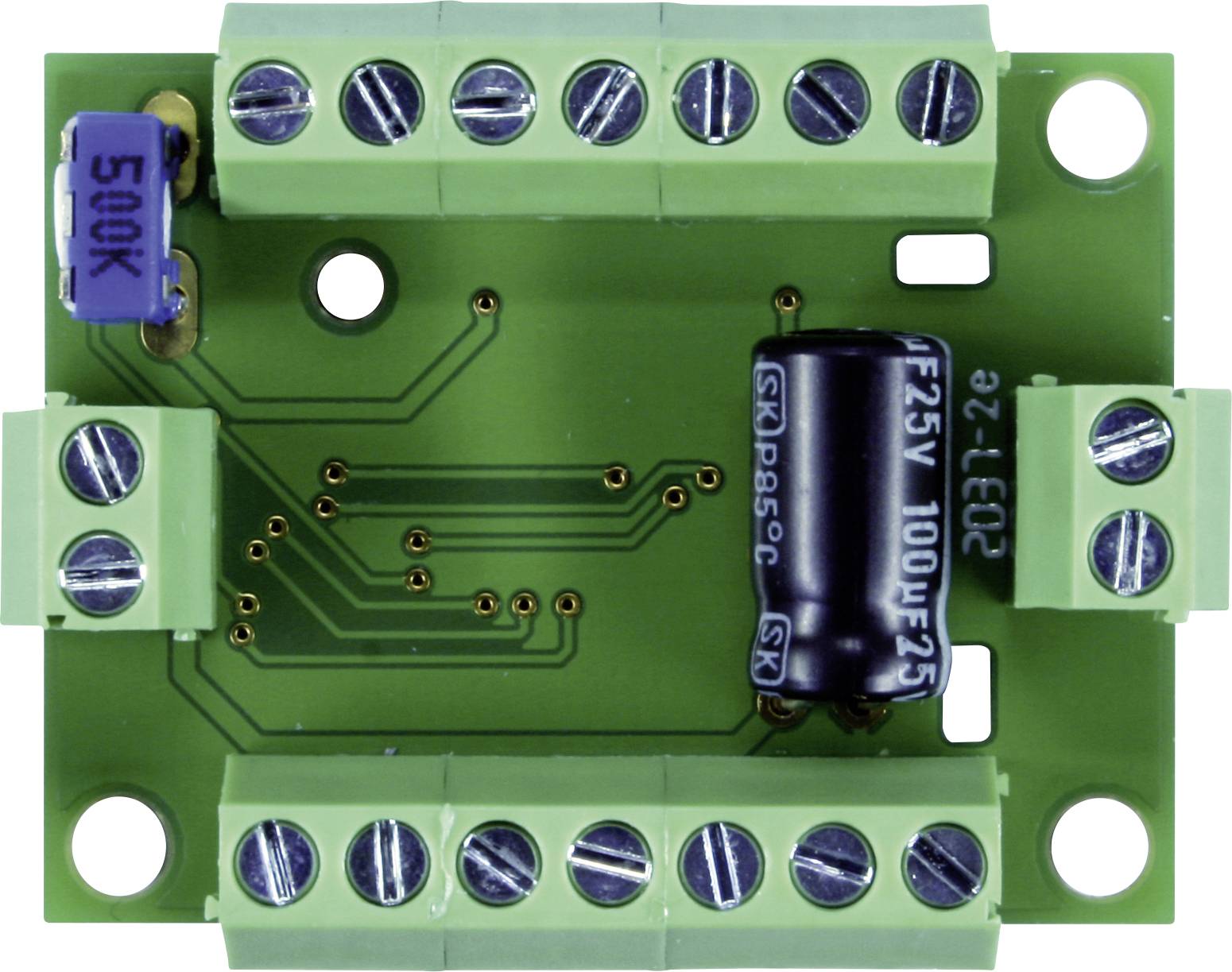

Green printed circuit board with silver screw terminals, a black cylindrical capacitor, and a blue 500K resistor.

1/8

Fast track dispatch on Fri, 11 Sep

45 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 16.80 / piece)

€ 16.80

plus VAT.

Report legal concerns

Technical specifications

Size: Universal

Functions: Emergency service vehicle

Type: Assembly kit

Age category: 15 years and over

Manufacturer part #: 53-04065-01-C

Type: Assembly Kit

Product type: Flashing control circuits

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373280 TAMS Elektronik 53-04065-01-C BSA LC-NG-06 Flashing control circuits Emergency service vehicle 1 pc(s)

Warranty Terms

Warranty Terms 2373280 TAMS Elektronik 53-04065-01-C BSA LC-NG-06 Flashing control circuits Emergency service vehicle 1 pc(s)

Description

For controlling the blue lights of one or more emergency vehicles. Flashing lights optionally as single flasher (for older vehicles) or double or triple flash (for modern vehicles). Connection for a loudspeaker (for playing back the sound of a martinhorn stored on the IC). Note on the stored sound: The LC-NG module is not designed as a sound module, the stored sound is correspondingly simple.

This text is machine translated.

Features

14 outputs (max. 200 mA each), of which 13 outputs for connecting incandescent lamps or LEDs (via series resistors) and 1 output for connecting a loudspeaker (impedance at least 8 Ohm, recommended at least 32 Ohm)
Maximal total current: 1,000 mA
Use of the switching input: Start / end the sequence
Settings on the trim potentiometer: Selection of the start mode
Supply voltage: 12 - 18 V AC or 10 - 22 V DC.
