TAMS Elektronik 53-04085-01-C BSA LC-NG-08 Flashing control circuits Fire & Rescue station 1 pc(s)

A green circuit board with multiple green terminal blocks, a black capacitor, and a blue rotary knob.

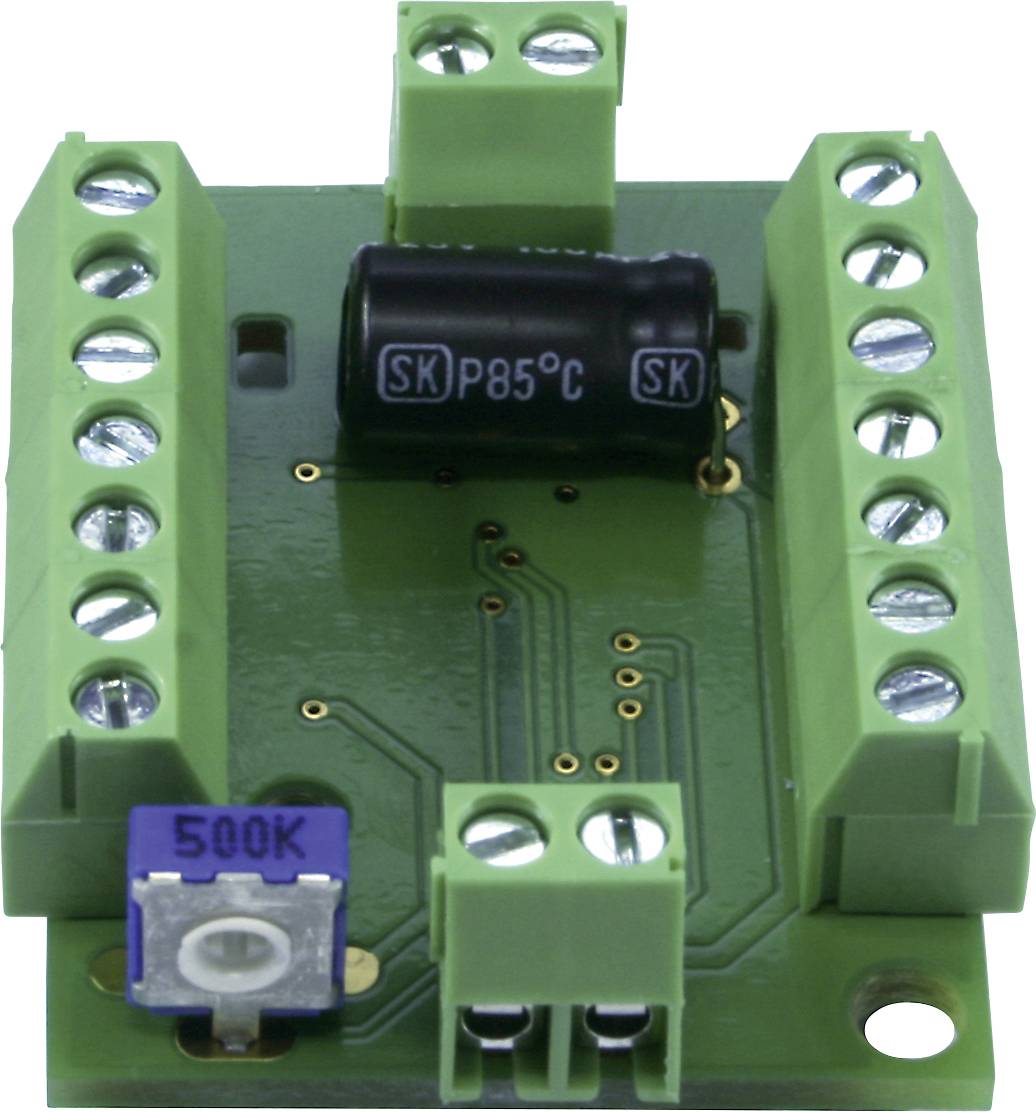

A green electronic circuit with multiple terminals and a black cylinder in the centre. A potentiometer is labelled with '500K'.

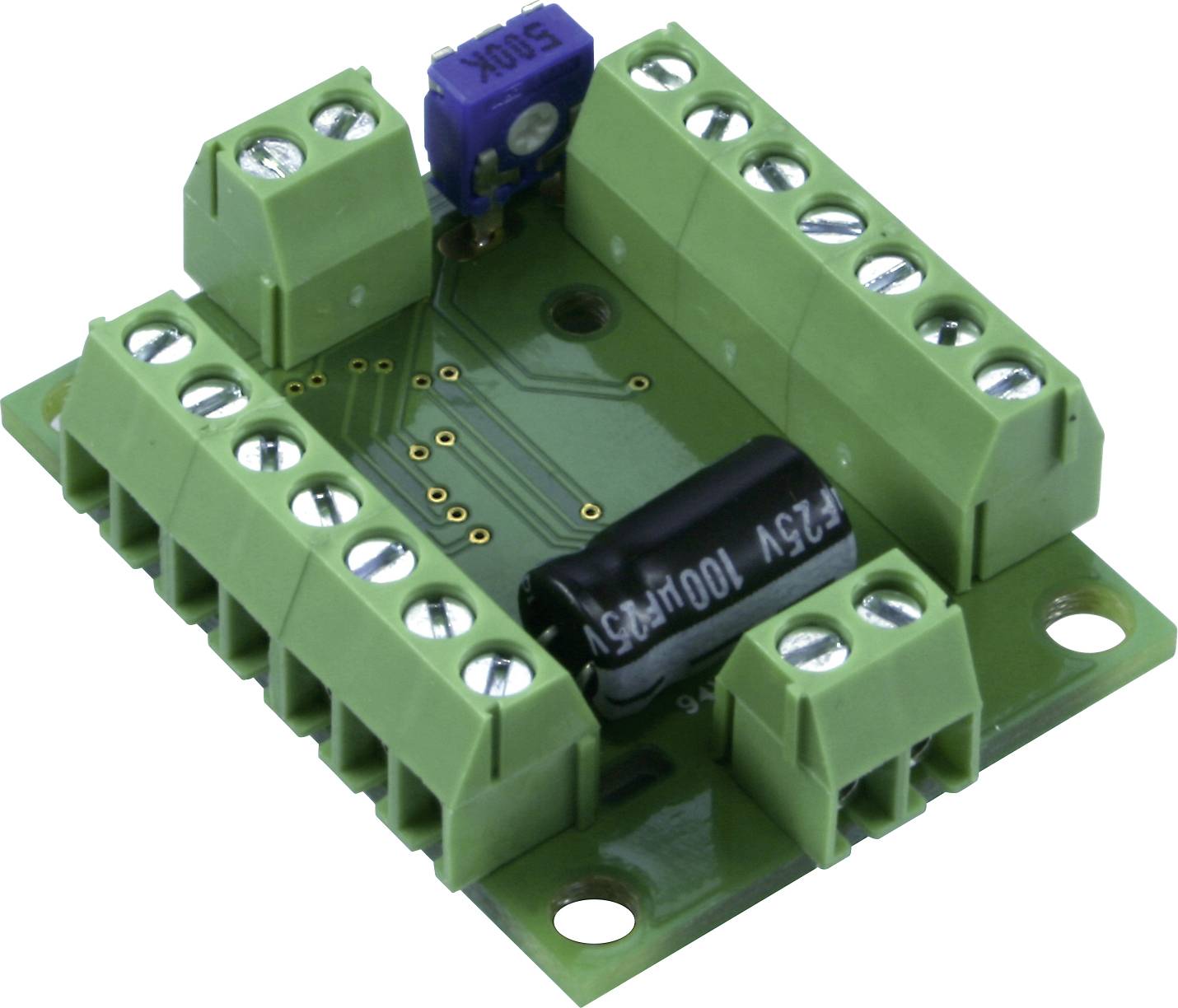

Small green printed circuit board with twelve screw terminals, a capacitor, and a resistor. Used in electronic circuits.

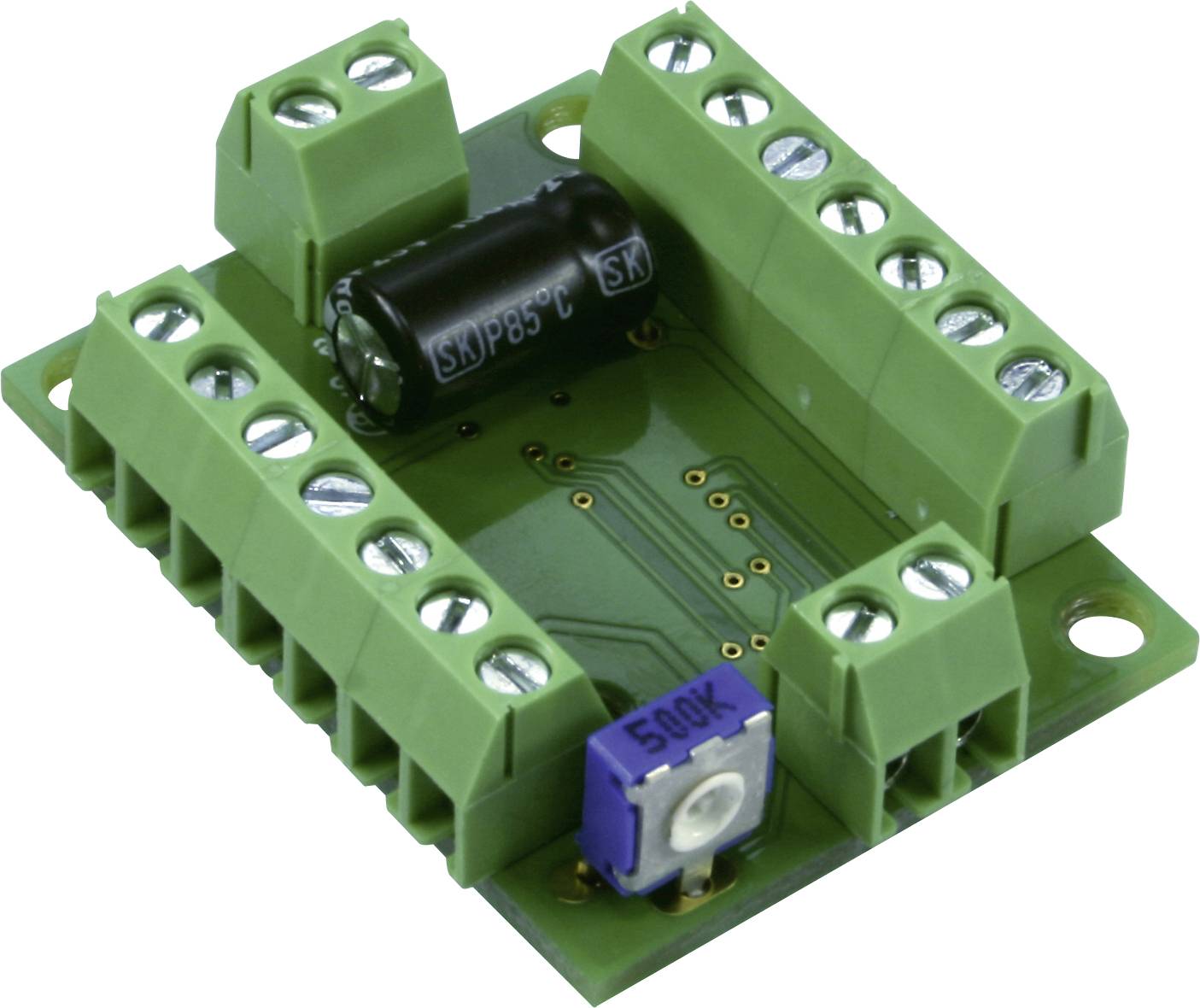

Green electronic circuit with multiple terminal blocks and a black capacitor.

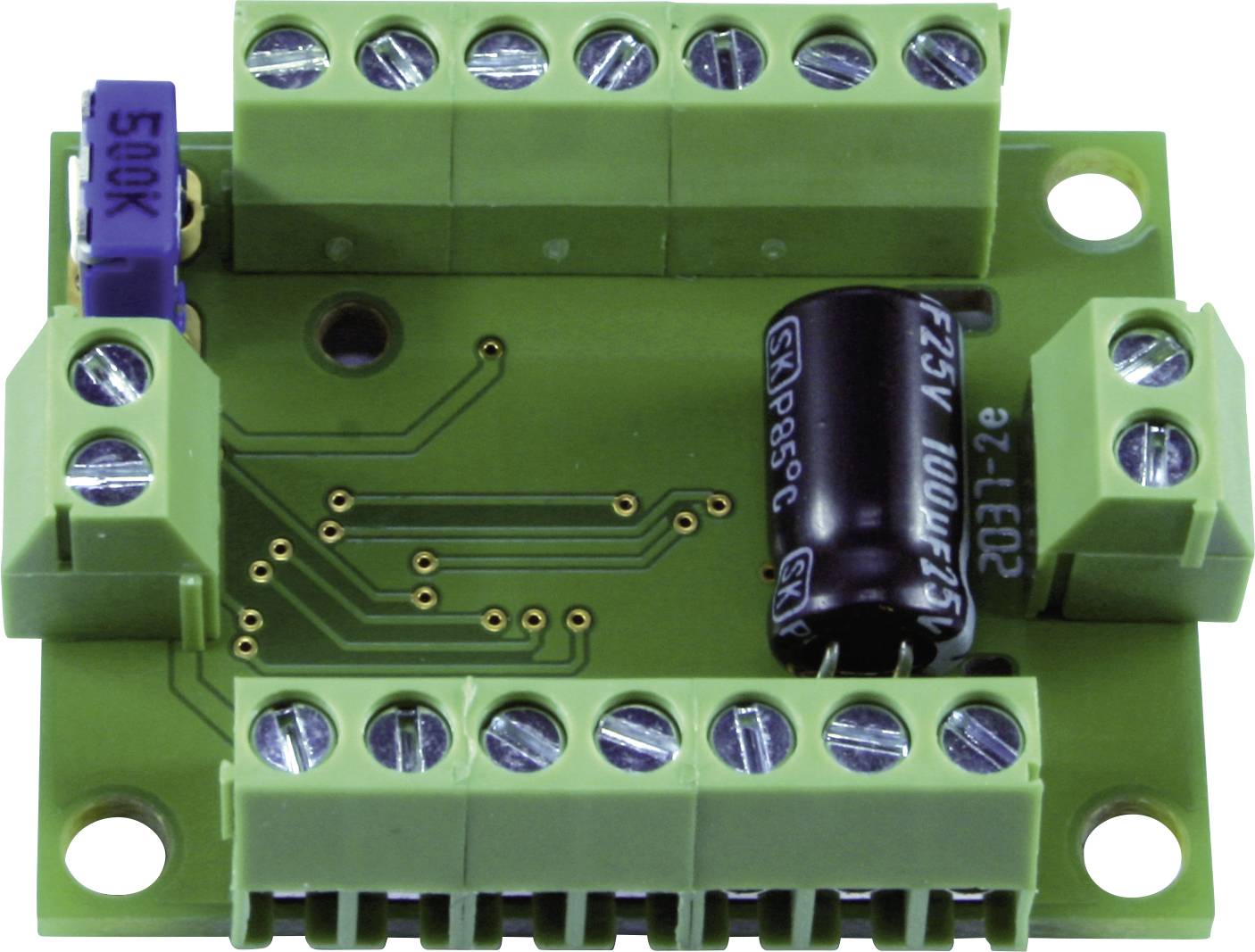

Green electronic circuit board with multiple screw terminals, a rotary potentiometer, and a black capacitor, typical of electronic circuits.

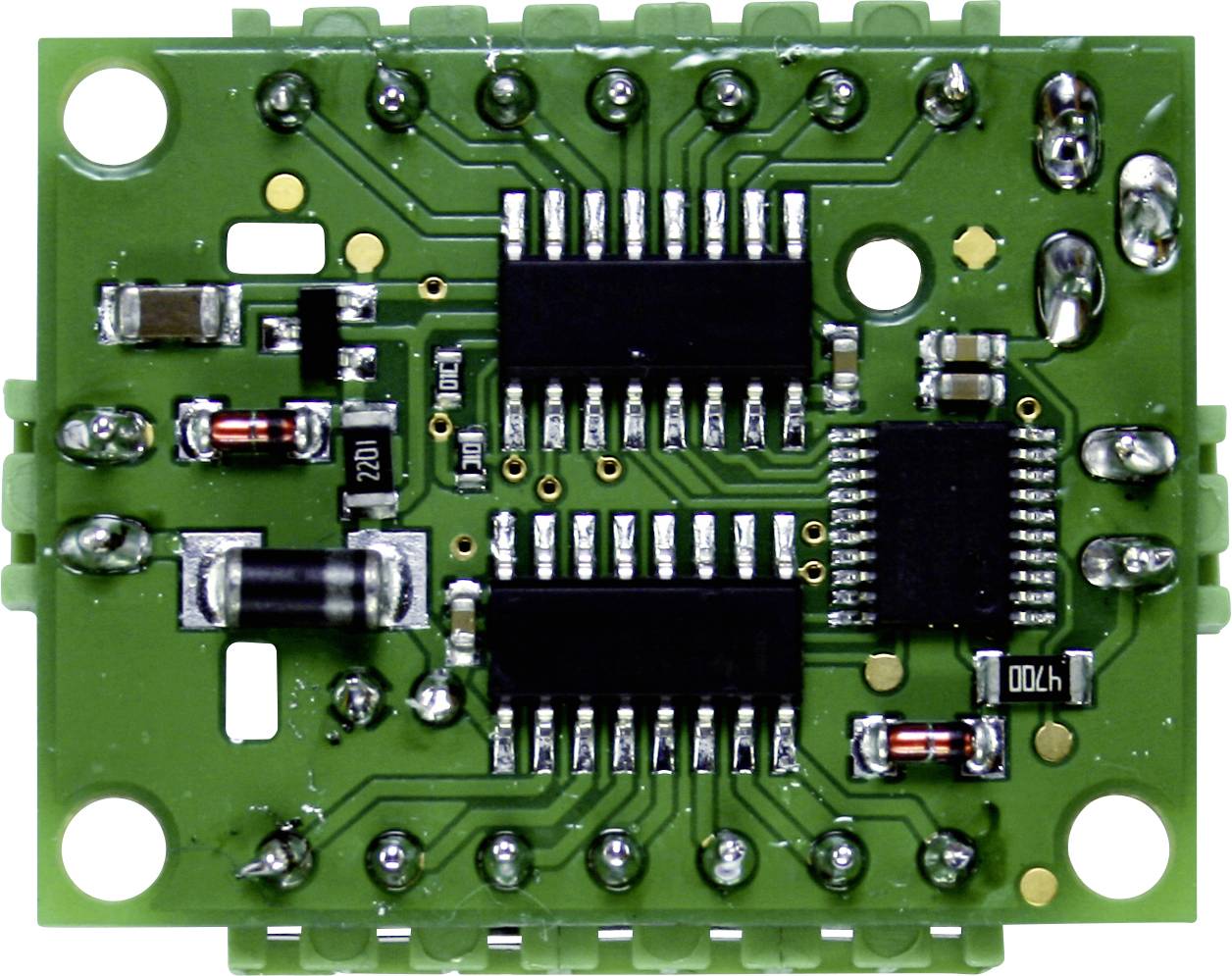

Green circuit board with multiple integrated circuits and electronic components, including connectors and resistors.

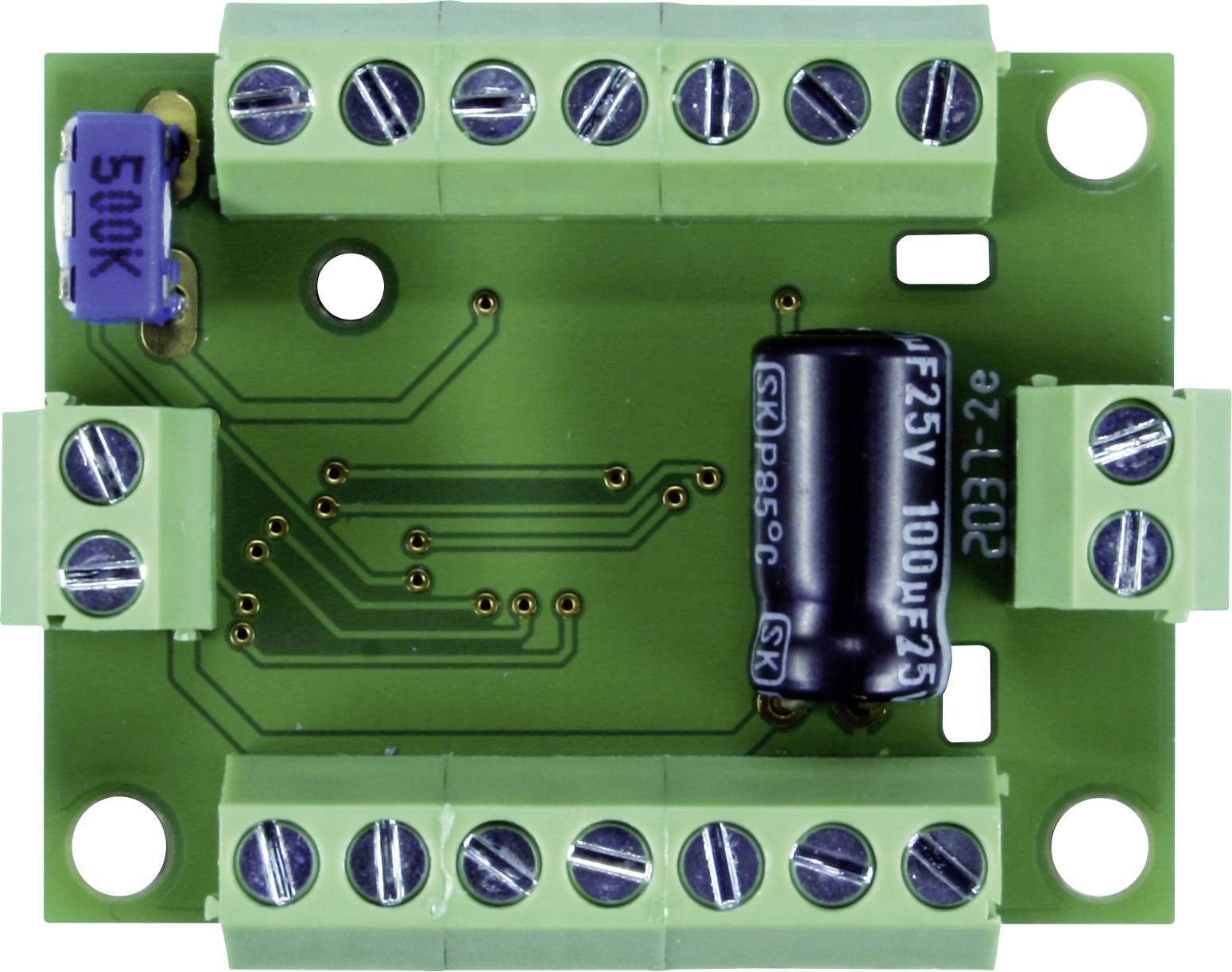

A green printed circuit board with a 500K potentiometer, an SKP capacitor, and several screw terminals.

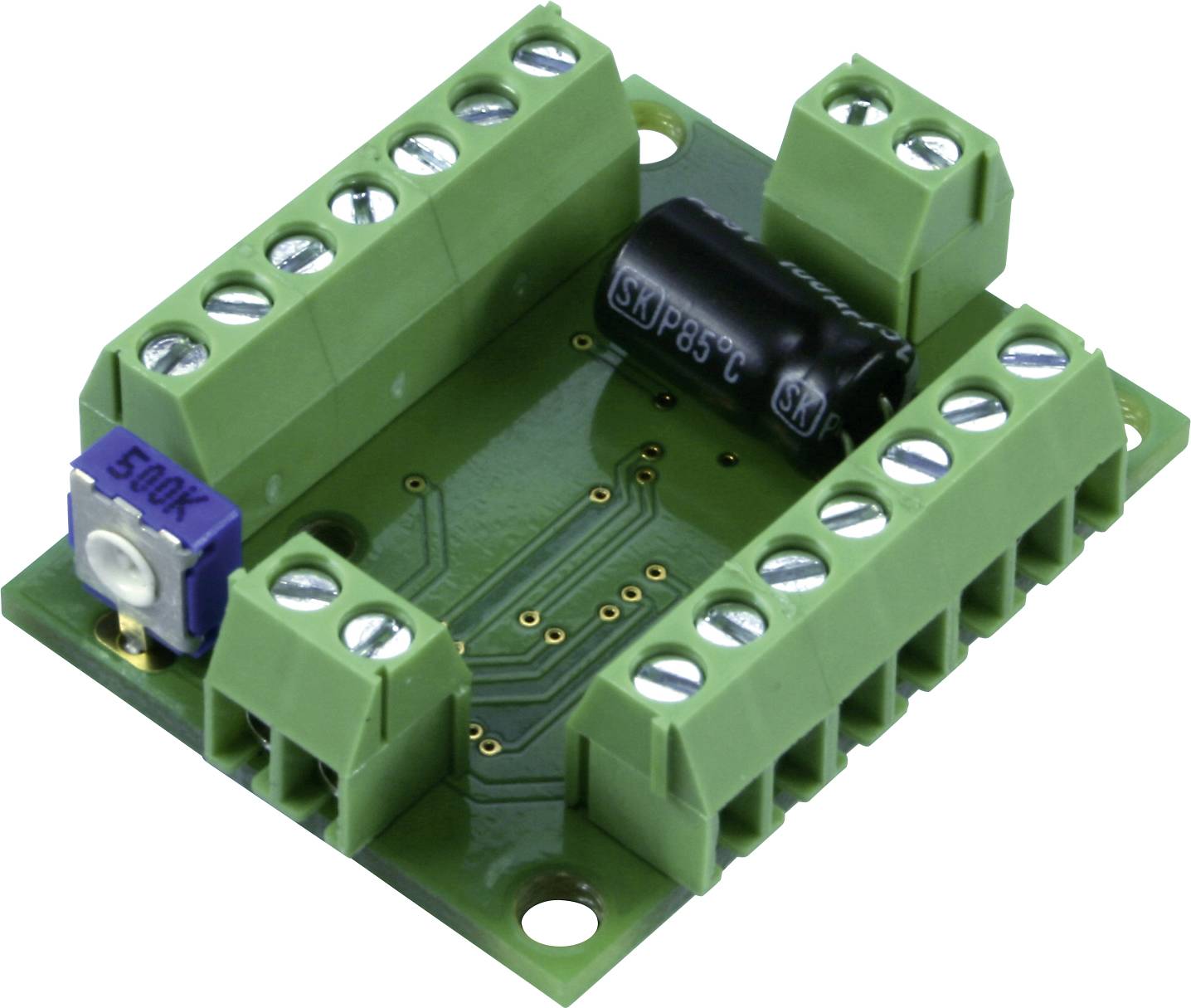

'Green printed circuit board component with multiple connections and a black cylinder.'
1/8
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
6 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 17.99 / piece)
€ 17.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 6 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Size

Universal

Product type

Flashing control circuits

Functions

Fire & Rescue station

Type

Assembly kit

Age category

15 years and over

Type

Assembly Kit

Manufacturer part #

53-04085-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373283 TAMS Elektronik 53-04085-01-C BSA LC-NG-08 Flashing control circuits Fire & Rescue station 1 pc(s)

Warranty Terms

Warranty Terms 2373283 TAMS Elektronik 53-04085-01-C BSA LC-NG-08 Flashing control circuits Fire & Rescue station 1 pc(s)

Description

For controlling the lighting, siren and gate(s) of a fire station as well as the flashing lights and the siren of the emergency vehicles. Flashing lights optionally as single flasher (for older vehicles) or double flasher (for modern vehicles). Change between "alarm" and "normal operation" automatically after random long pauses or by a short earth pulse at the switching input. Note on the stored sound: The LC-NG module is not designed as a sound module, the stored sound is correspondingly simple.

This text is machine translated.

Features

  • 14 outputs (max. 200 mA each), of which:
  • 1 output for connecting a loudspeaker (impedance at least 8 ohms, recommended at least 32 ohms), which plays the siren or a siren.
  • 5 outputs for controlling the flashing lights of (several) emergency vehicles*
  • 1 output for connecting one or more servos that open the fire station doors or doors. Note: An external power supply is required for the servos (e.g. Servo board Conrad Item No. 499661).
  • 1 output that is switched on and off in parallel with the servo output
  • 6 exits for the lighting in the fire station*
  • 1 output for a warning light*
  • *Lighting outputs for connecting incandescent lamps or LEDs (via series resistors)
  • Maximal total current: 1,000 mA
  • Using the switching input: Triggering the alarm
  • Using the trim potentiometer: Sets the maximum length of the pause until the next alarm is triggered automatically
  • Supply voltage: 12 - 18 V AC or 10 - 22 V DC.

Hints

Lamps, LEDs, loudspeakers, servos and power supply for servos are not included in the delivery.
