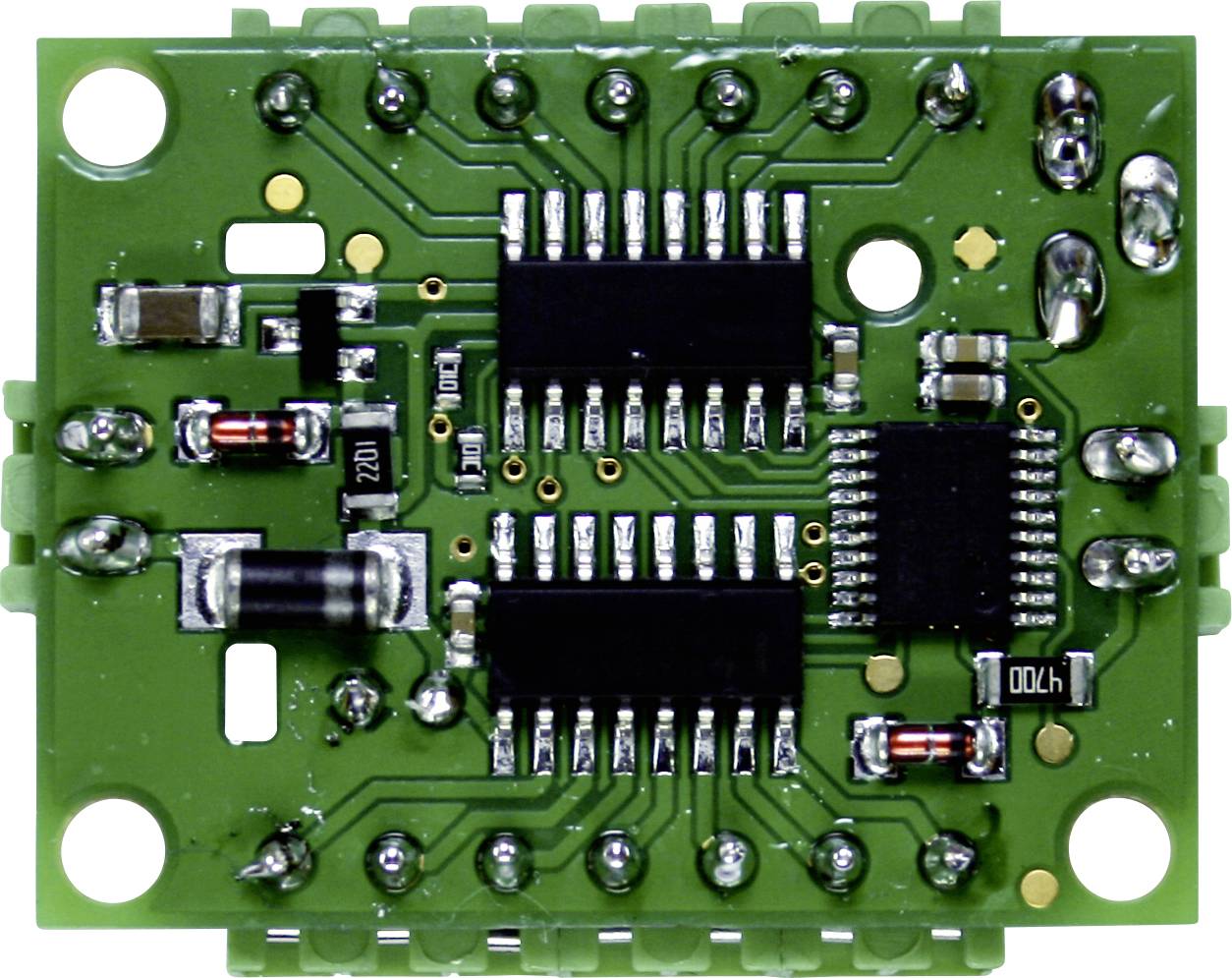

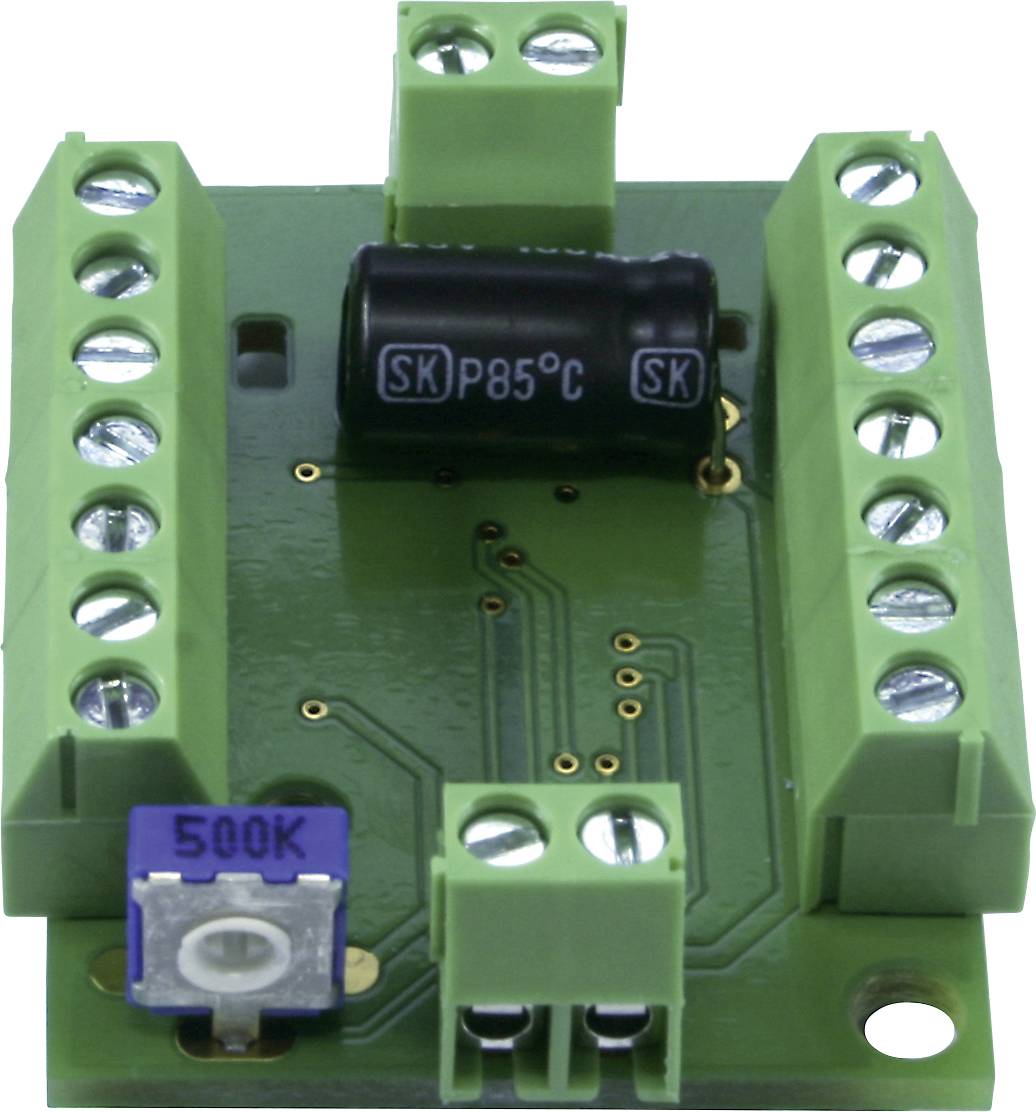

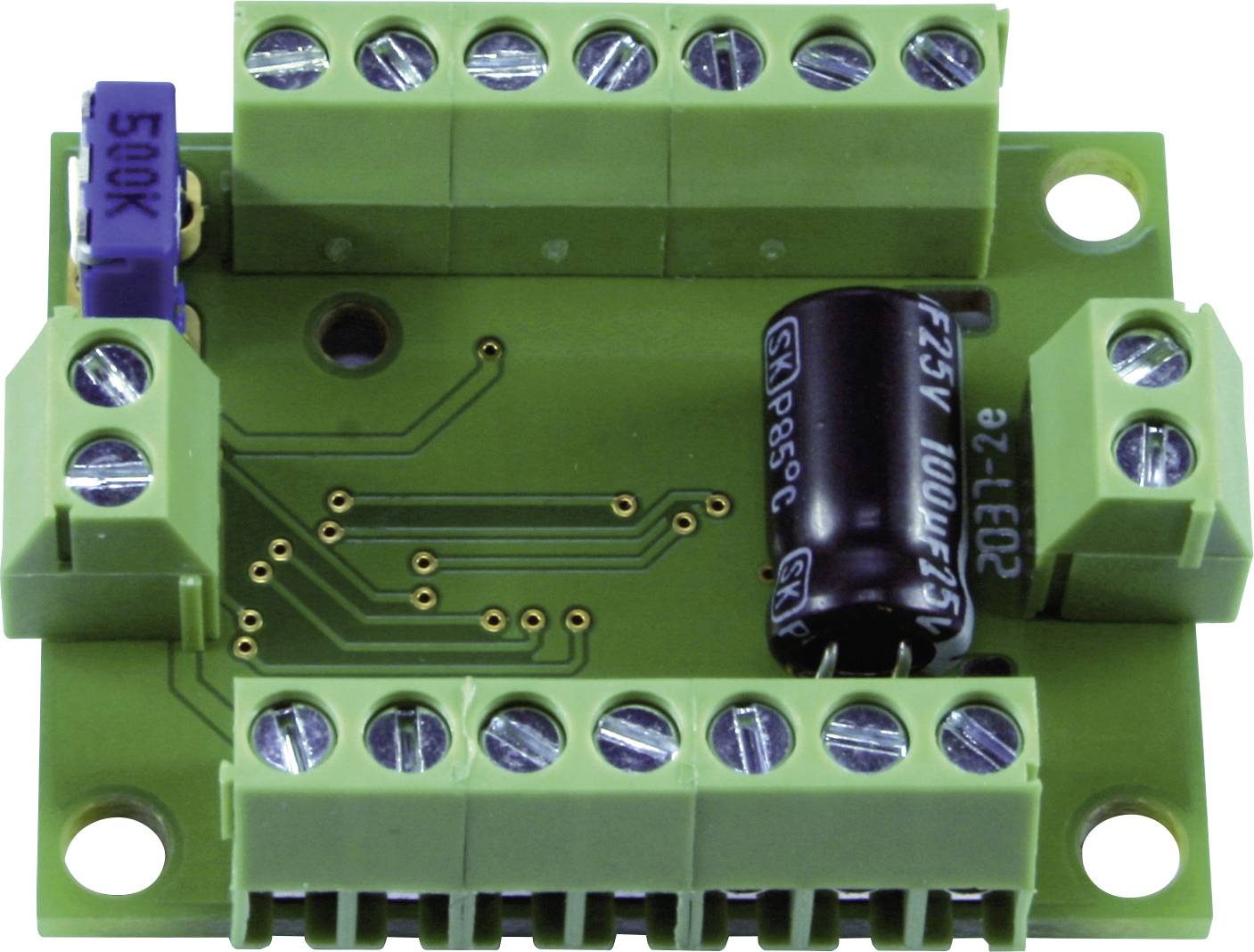

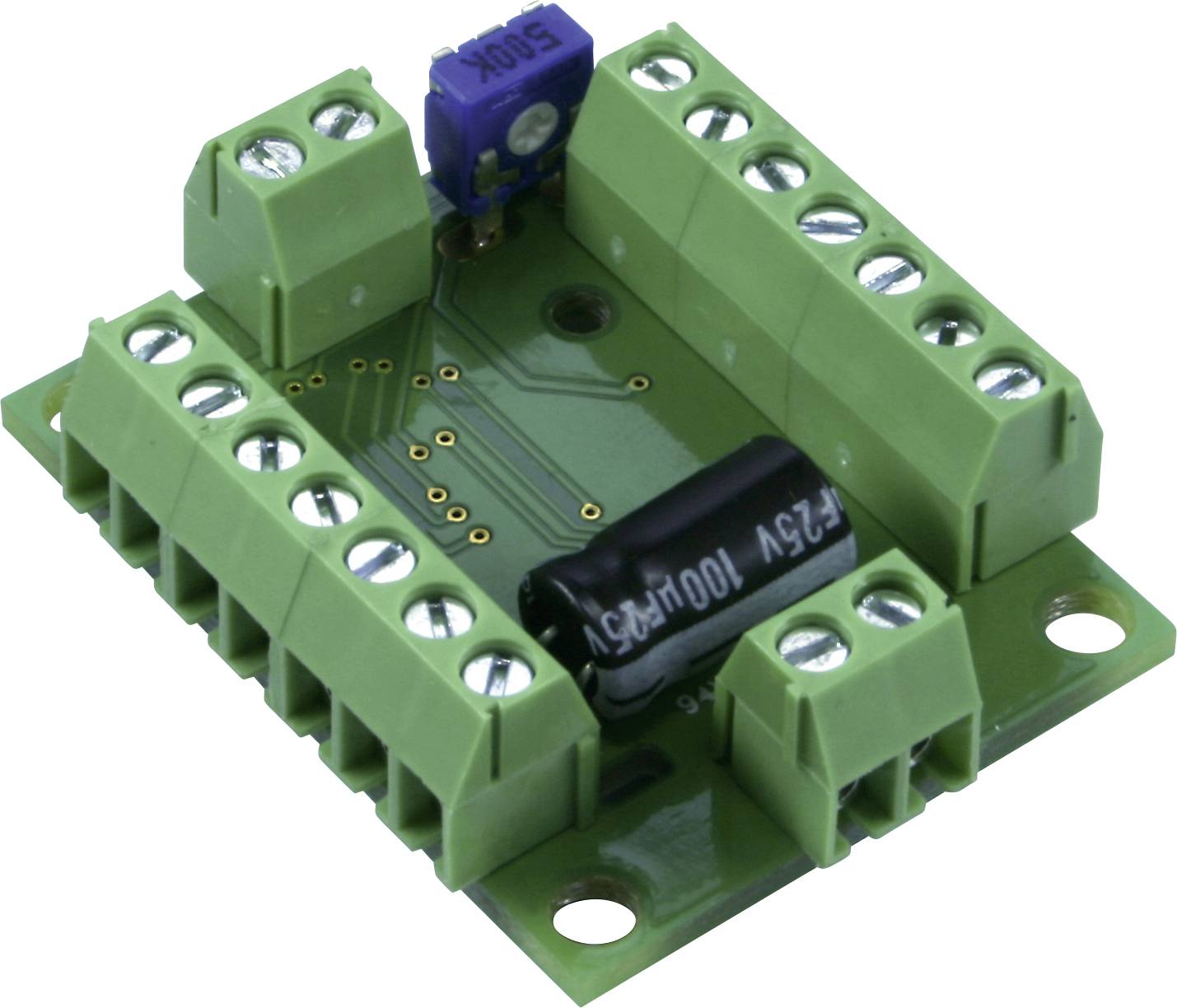

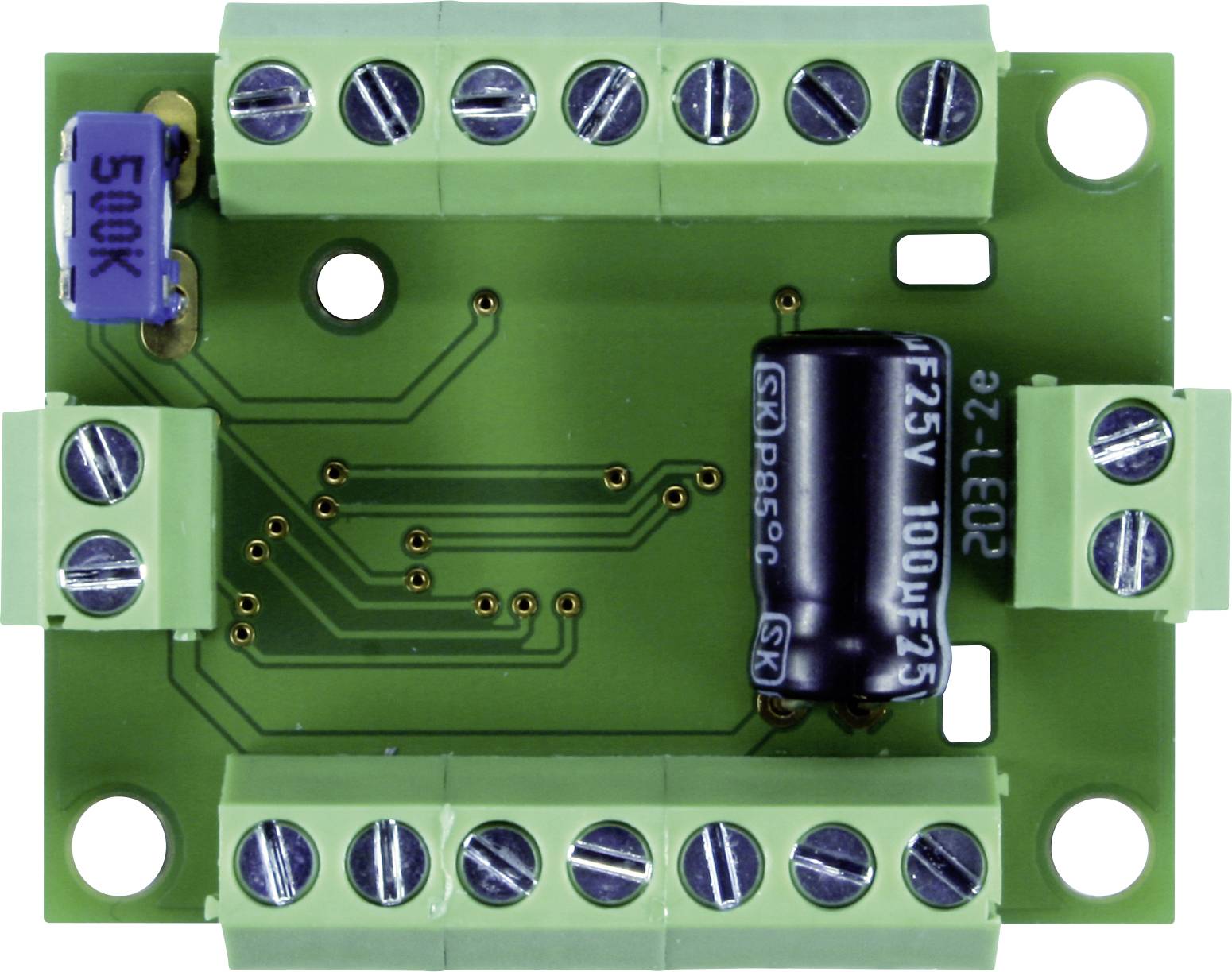

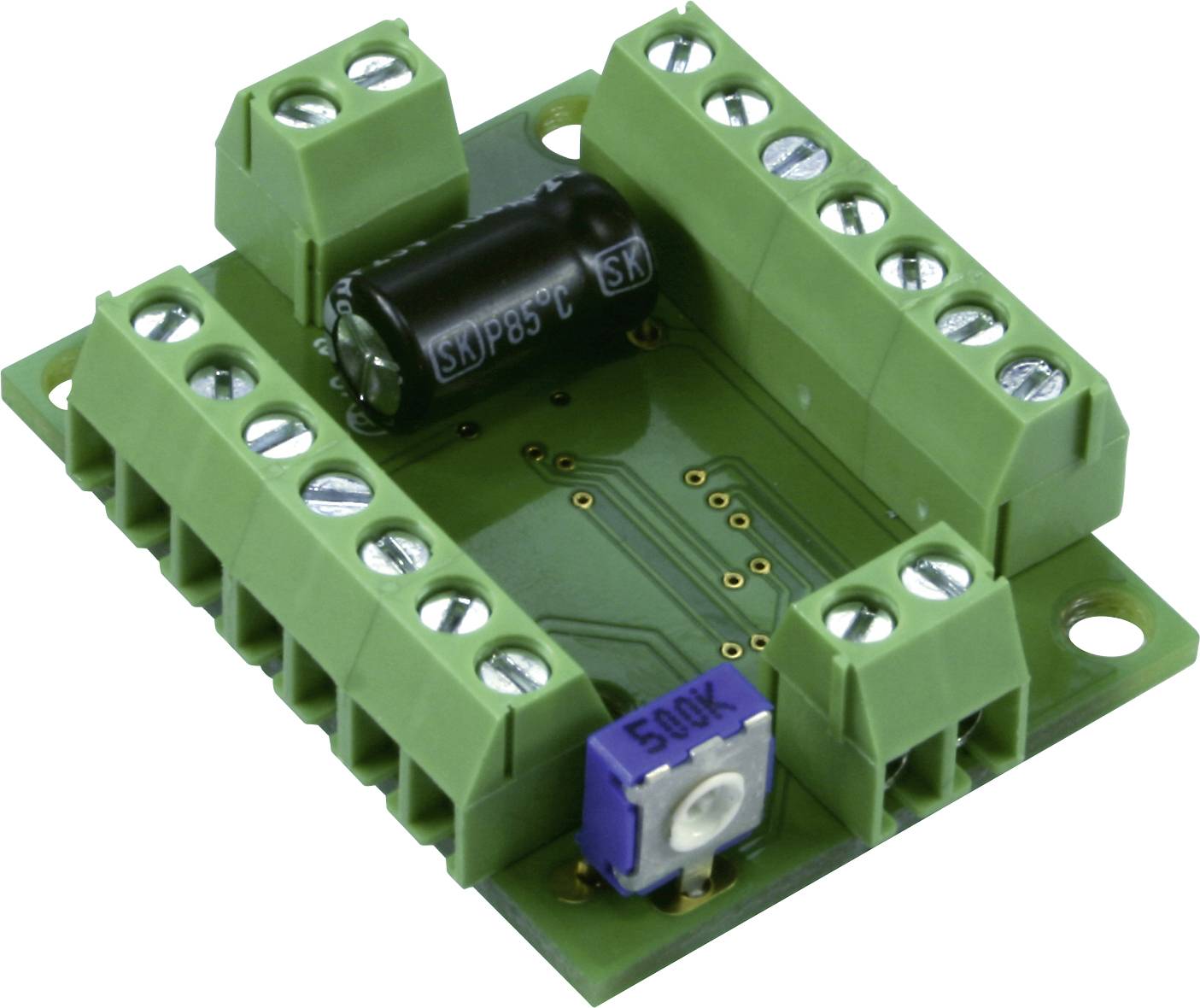

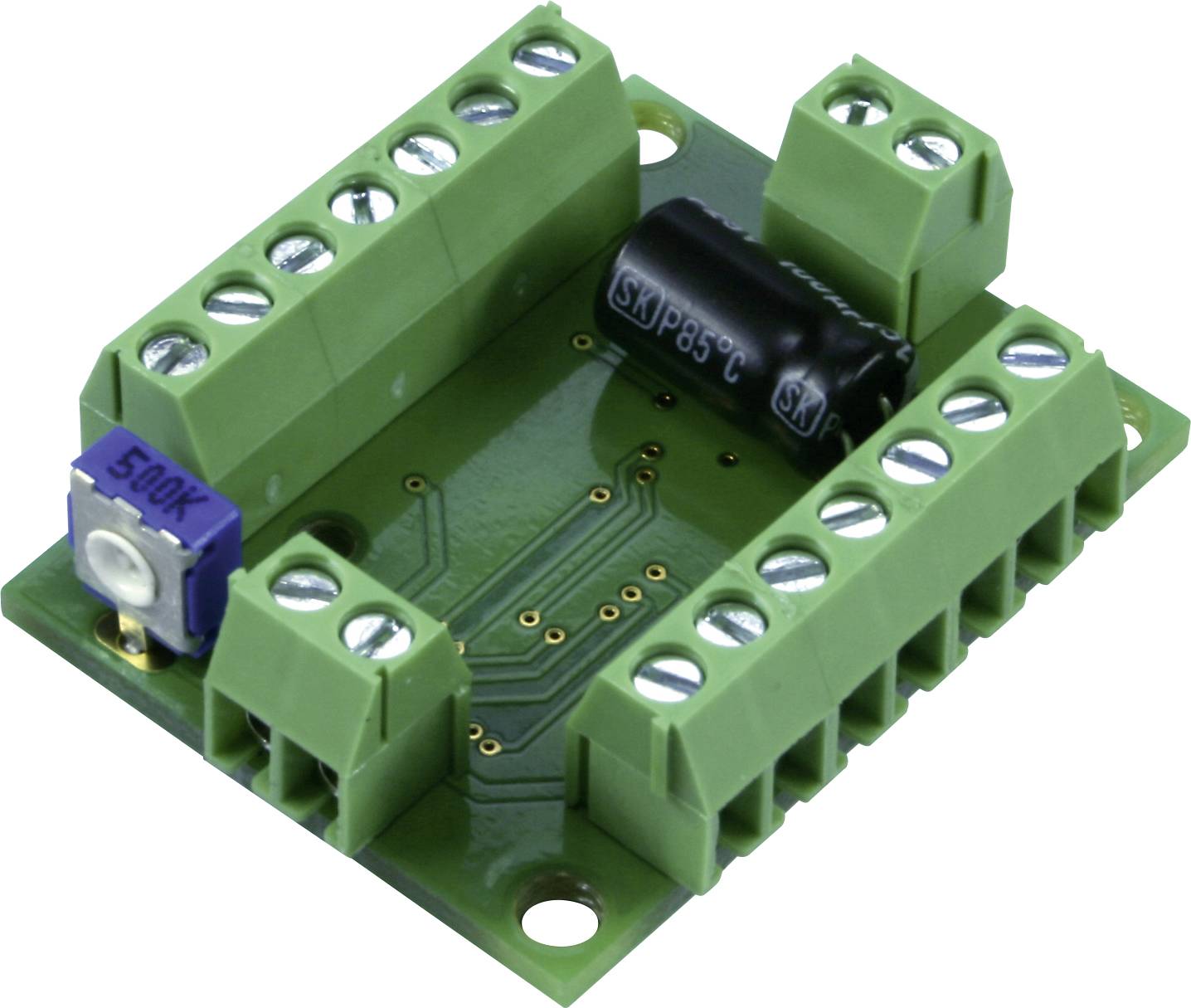

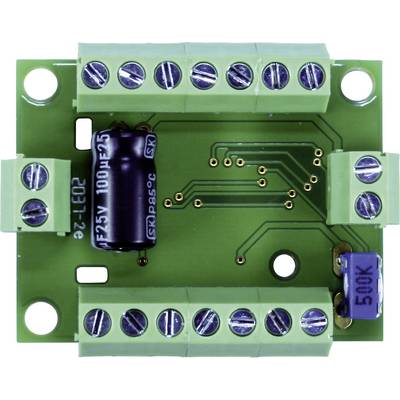

Name: TAMS Elektronik 53-04126-01-C BST LC-NG-12 Flashing control circuits Event 1 pc(s)
Brand: TAMS Elektronik
SKU: 2373290
Availability: InStock

Technical specifications

Size: Universal

Product type: Flashing control circuits

Functions: Event

Type: Prefab component

Age category: 15 years and over

Manufacturer part #: 53-04126-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373290 TAMS Elektronik 53-04126-01-C BST LC-NG-12 Flashing control circuits Event 1 pc(s)

Warranty Terms

Warranty Terms 2373290 TAMS Elektronik 53-04126-01-C BST LC-NG-12 Flashing control circuits Event 1 pc(s)

Description

Simulation of different lighting effects in one event: Flash lights of the photographers ("paparazzi"), show light and stroboscope. The stroboscope is switched on automatically after random pauses or a short earth pulse at the switching input.

This text is machine translated.

Features

14 outputs (max. 200 mA each) for connecting incandescent lamps or LEDs (via series resistors), of which:
6 outputs for the flash lights of the photographers ("paparazzi"), which are triggered occasionally and generate flash-light thunderstorms at irregular intervals
6 outputs for show light, with which light effects and spotlights are generated e.g. on the stage or on the catwalk
2 outputs for stroboscopes
Maximal total current: 1,000 mA
Using the switching input: Switching on the stroboscope
Settings on the trim potentiometer: Speed of the switching sequence at the outputs for show light
Supply voltage: 12 - 18 V AC or 10 - 22 V DC.

Hints

Lamps and LEDs are not included.
