Completely revised and extended version of the hot wolf control is appreciated by analogue train workers
Technical specifications
Product type
Terminal
Features
for DC trains
Type
Prefab component
Age category
15 years and over
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3411627 TAMS Elektronik 56-40007-01 Terminal Prefab component for DC trains
Description
Individual adjustment of the parameters for controlling locomotive motors in analogue mode. Setting options: Pure DC voltage, pulse voltage (PWM) or overlay of DC voltage and PWM. Ruckfree start-up, soft acceleration and braking, precise setting of the driving speed and realistic highest speed in analogue mode. Internal memory for 250 different individual vehicle profiles.

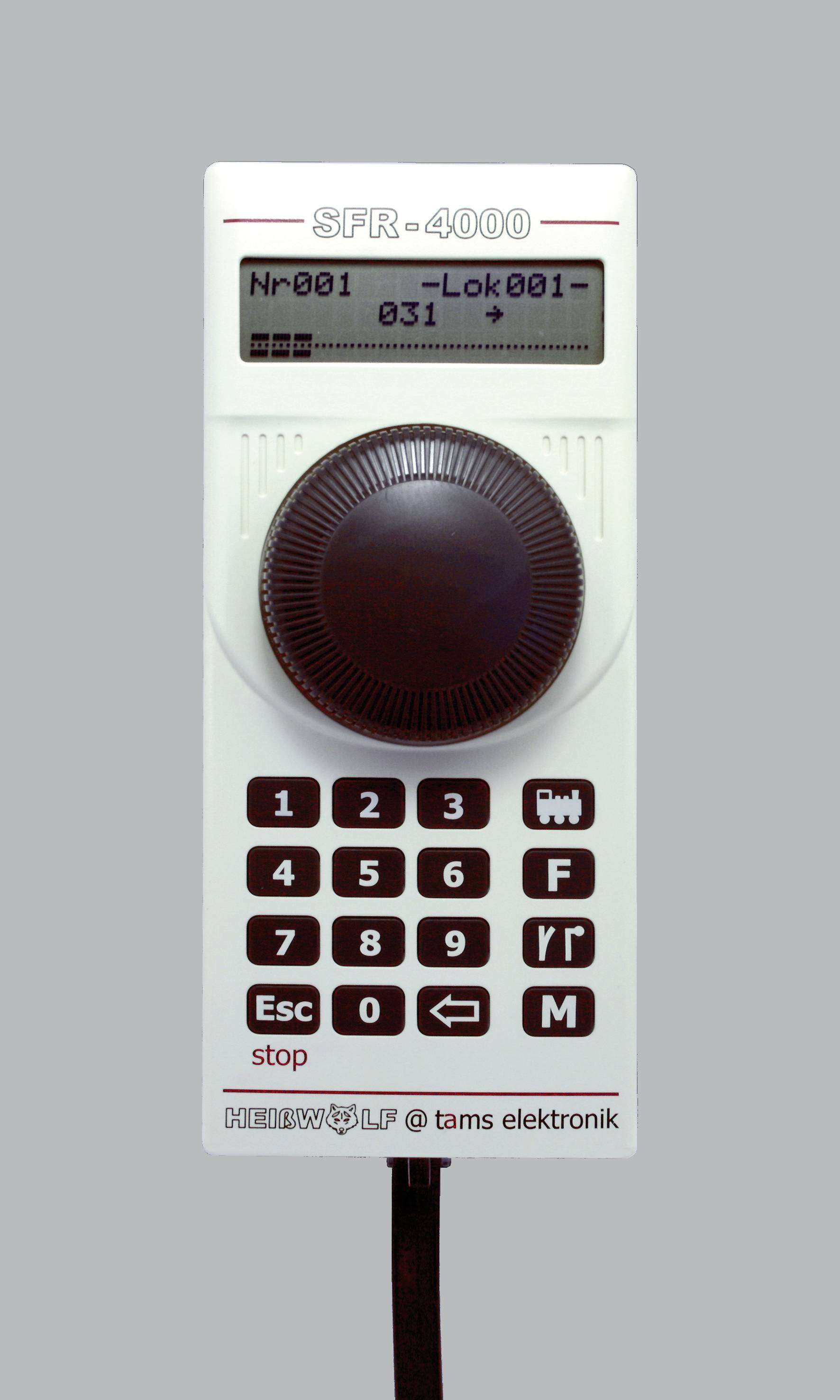

Hand control (control unit) with modern control concept: Change between driving mode, setting the locomotive profile and configuration of the system settings by pressing the associated symbol key Fast entry of numerical values via the numeric keys Display of all important information in clear text in the display
Power unit: Serially in a solid aluminum housing Reliable heat dissipation through the top-lying heat sink even at a high output current
System settings: Two control modes to choose from: DC mode (change of direction when driving at gear 0) or AC mode (change of direction by pressing the knob) Optional display of the driving voltage or driving stage (1...128) Selectable display of the setpoint or actual value during acceleration/braking Response time between detection of an overcurrent and switch-off of the output voltage: 0.2 ….10.0 seconds Operation with one or more SFR-4000 speed controllers
Settings for locomotive profiles: Maximum voltage (2.0…14.0 V) Starting voltage and impulse voltage Impulse frequency during start-up and at maximum voltage Duration of acceleration and braking (separately adjustable, 1...240 seconds) Locomotive name
Key features: Two different switched track connections: These enable the short-circuit free drive in and out into a terminal loop. Built-in synchronization module: Interference-free crossing of the boundaries between different circuits is possible.
Electrical properties: Output voltage of 0 to 14 Vdc Output current: Max. 1.5 A DC current (continuous)
Safety devices: Over heating protection Overcurrent cut-off Connection option for EMERGENCY STOP button
This text is machine translated.
Scope of delivery
Power Unit for drive controller SFR-4000 (power unit)
Hand control for drive controller SFR-4000 (manual control)
Connection cable with RJ12 plugs (Western cables, 6P6C, length: Approx. 3.00 m) for connecting hand control and power unit
Pluggable connection terminal (6-pin) for connections to power supply and rails
Socket connector (5-pin) for optional connections to emergency stop button and further SFR-4000
System requirements
AC-voltage transformer with an output voltage of 16 - 18 V and an output current of at least 2.6 A or DC power supply with an output voltage of 22 - 24 V and an output current of at least 2.6 A.
Description
Individual adjustment of the parameters for controlling locomotive motors in analogue mode. Setting options: Pure DC voltage, pulse voltage (PWM) or overlay of DC voltage and PWM. Ruckfree start-up, soft acceleration and braking, precise setting of the driving speed and realistic highest speed in analogue mode. Internal memory for 250 different individual vehicle profiles.
Hand control (control unit) with modern control concept: Change between driving mode, setting the locomotive profile and configuration of the system settings by pressing the associated symbol key Fast entry of numerical values via the numeric keys Display of all important information in clear text in the display
Power unit: Serially in a solid aluminum housing Reliable heat dissipation through the top-lying heat sink even at a high output current
System settings: Two control modes to choose from: DC mode (change of direction when driving at gear 0) or AC mode (change of direction by pressing the knob) Optional display of the driving voltage or driving stage (1...128) Selectable display of the setpoint or actual value during acceleration/braking Response time between detection of an overcurrent and switch-off of the output voltage: 0.2 ….10.0 seconds Operation with one or more SFR-4000 speed controllers
Settings for locomotive profiles: Maximum voltage (2.0…14.0 V) Starting voltage and impulse voltage Impulse frequency during start-up and at maximum voltage Duration of acceleration and braking (separately adjustable, 1...240 seconds) Locomotive name
Key features: Two different switched track connections: These enable the short-circuit free drive in and out into a terminal loop. Built-in synchronization module: Interference-free crossing of the boundaries between different circuits is possible.
Electrical properties: Output voltage of 0 to 14 Vdc Output current: Max. 1.5 A DC current (continuous)
Safety devices: Over heating protection Overcurrent cut-off Connection option for EMERGENCY STOP button
This text is machine translated.
Scope of delivery
Power Unit for drive controller SFR-4000 (power unit)
Hand control for drive controller SFR-4000 (manual control)
Connection cable with RJ12 plugs (Western cables, 6P6C, length: Approx. 3.00 m) for connecting hand control and power unit
Pluggable connection terminal (6-pin) for connections to power supply and rails
Socket connector (5-pin) for optional connections to emergency stop button and further SFR-4000
System requirements
AC-voltage transformer with an output voltage of 16 - 18 V and an output current of at least 2.6 A or DC power supply with an output voltage of 22 - 24 V and an output current of at least 2.6 A.
