TAMS Elektronik 72-00065-01-C Switching amplifier Assembly kit
EAN:
Part number:
Item no:
32 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
3
6% = € 0.37
€ 6.34
5
8% = € 0.51
€ 6.20
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€
Highlights & Details

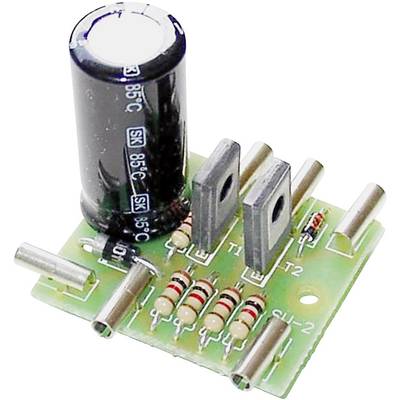

Switching amplifier SV-2
- The powerful shock "extra"
- 30 mm high
- is ideal for old Märklin points
Technical specifications
- Type
Assembly kit
- Output current
1 A
- Operating voltage
16-24 V DC/AC
- Length
31 mm
- Width
27 mm
- Height
30 mm
- Dim
(L x W x H) 31 x 27 x 30 mm
- Age category
15 years and over
- Product type
Switching amplifier
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1492525 TAMS Elektronik 72-00065-01-C Switching amplifier Assembly kit
Description
The switching amplifier SV-2 provides the energy for the flipping a switch with double-coil drive available.
This text is machine translated.
This text is machine translated.
Features
- Use for switching sluggishly points. These can be switched independently of the power of the transformer
- Common switching of several points. These are each connected to a separate switching amplifier and can then together by means of a pulse can be switched.
- The activation of the switching process: by means of a transistor, as soon as one of the two inputs for a short time is connected to ground.
- Production of the necessary ground contact: e.g. via buttons, control panel, switch track or similar.
- Connection via mini banana plug.
Scope of delivery
- Assembly Kit
- User manual.
Hints
Soft decoder is to trigger the switching process is not suitable.
