TAMS Elektronik 81-30258-10-C LED + leads Blue, Translucent 10 pc(s)
EAN:
Part number:
Item no:
Total (€ 4.29 / piece)
€ 4.29
incl. VAT
14-day return policy included
Highlights & Details

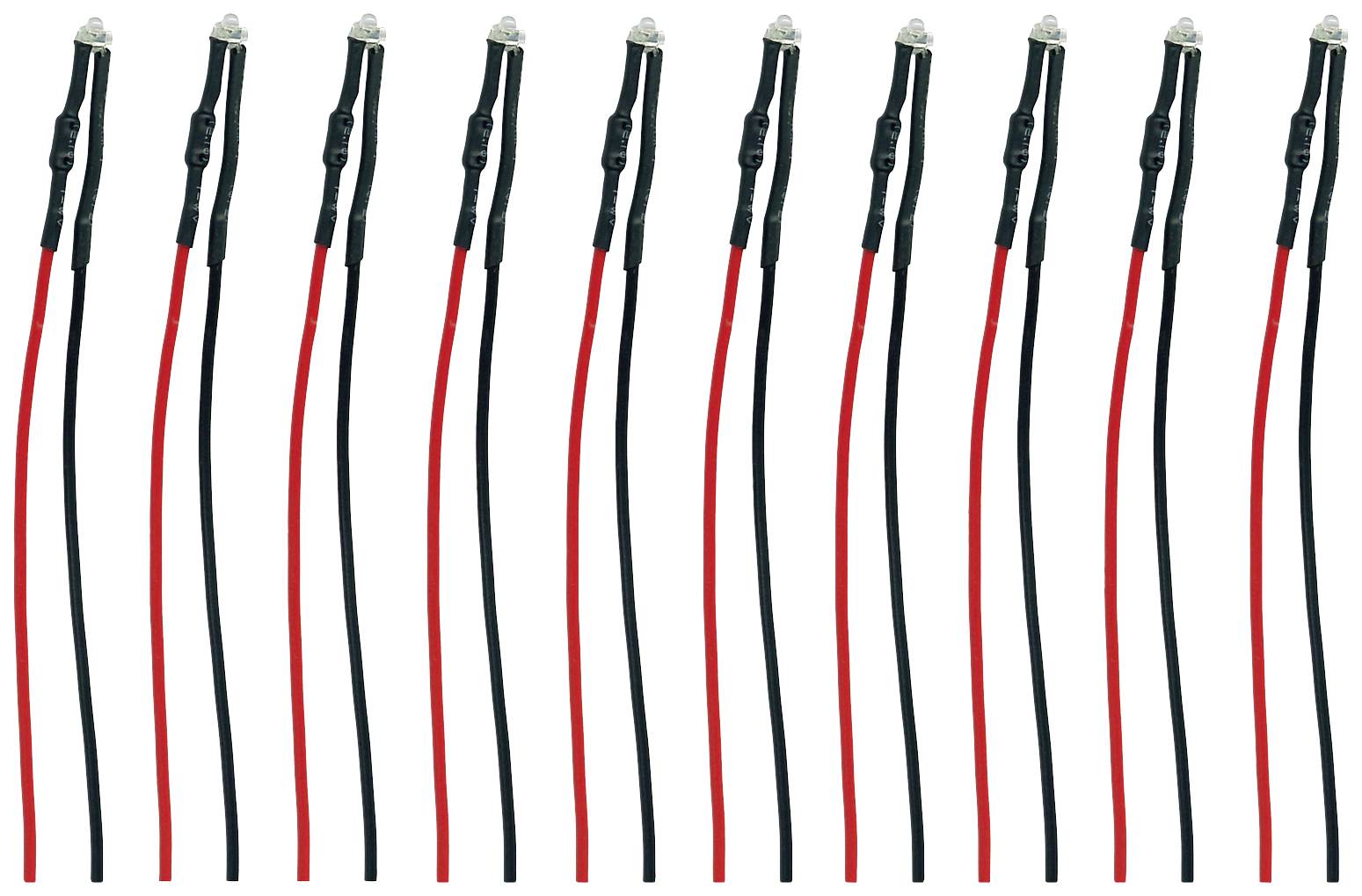

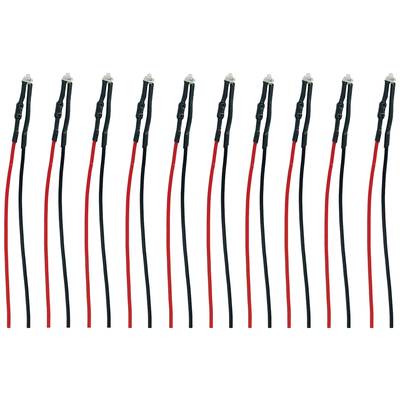

LEDs 3 mm, diffuse, with series resistor, blue
- With soldered connection wires and series resistor for 10-24 V
Technical specifications
- Connection wires: Red/black (+/-), length: Approx. 20 cm
- Casing: Diffuse
- Light color: Blue
- Wavelength 460-463 nm
- Brightness 300-400 mcd
- Radiance Angle: 30 °
- Current 8-20 mA
- Product type
LED
- Features
+ leads
- LEDs
10 pc(s)
- Factory colour
Blue
Translucent
- Min. operating voltage
10 V
- Max. operating voltage
24 V
- Operating voltage
10 - 24 V
- (Ø)
3 mm
- Dim
(Ø) 3 mm
- Age category
15 years and over
- Manufacturer part #
81-30258-10-C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3207375 TAMS Elektronik 81-30258-10-C LED + leads Blue, Translucent 10 pc(s)
Description
Designed for applications on the model railways for supply voltage 10 - 24 V (parallel connection). For direct connection to the outputs of circuits or voltage supply.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 LEDs
