TE Connectivity Socket housing PCB HDSCS, MCP Total number of pins 8 1-1564416-1 1 pc(s)

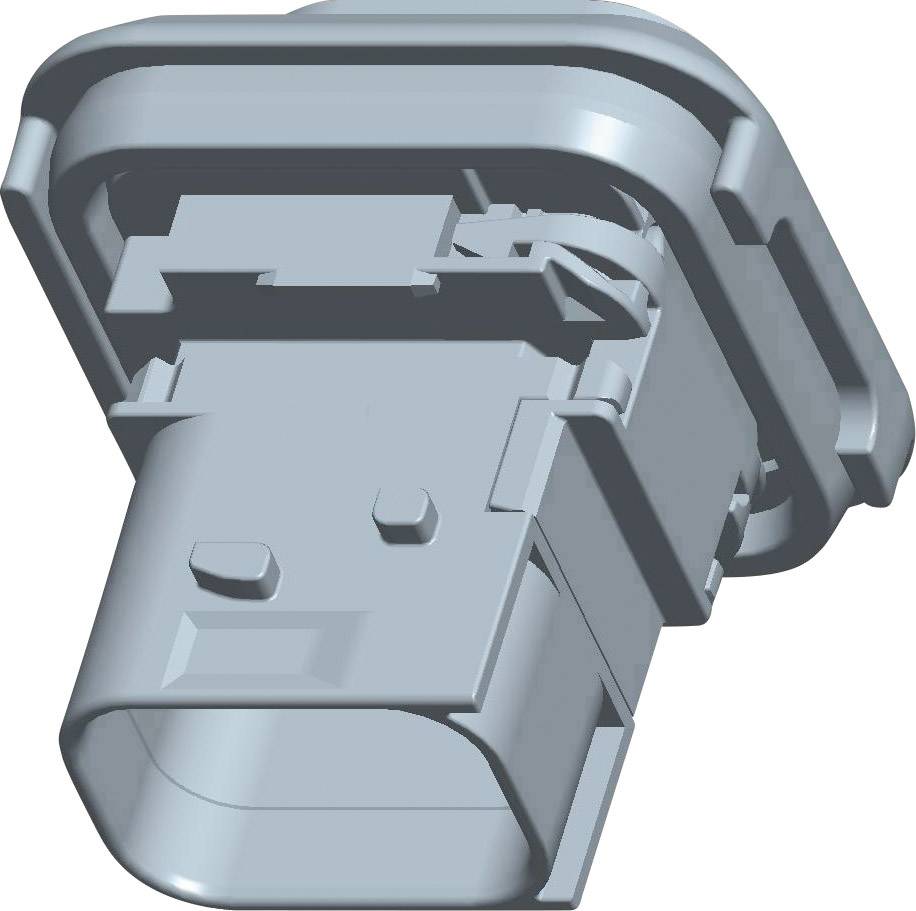

Electronic component in a grey plastic housing, viewed from an angled perspective, showing details of mounting and contacts.
Image similar
Product type
Socket housing PCB
Connector type
Plug, straight
No. of rows
2
Series
HDSCS, MCP
Total number of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
48 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 3.29 / piece)
€ 3.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Flat plug housing with flange HDSCS, MCP

  • Content: 1 pc(s)
  • No. of rows: 2
  • Total number of pins: 8

Our service for you

Technical specifications

Product type

Socket housing PCB

Connector type

Plug, straight

No. of rows

2

Connector system

automotive

Series

HDSCS, MCP

Pins per row

4

Total number of pins

8

Width

47.05 mm

Pin shape

Rectangular

Content

1 pc(s)

AWG max.

12

AWG (min.)

12

Dim

(L x W x H) 39.8 x 47.05 x 42.5 mm

Connection

Type C CEE 7/16 plug 1.6 mm

Code

A

Case material

Thermoplastic material

Manufacturer part #

1-1564416-1

Factory colour

Black

Industrial packaging

No

Insulation material

Thermoplastic material

Nominal voltage

42 V DC

Height

42.5 mm

Length

39.8 mm

max. cross section

1 mm²

Min. cross section

1 mm²

RoHS-compliant

Yes

IP67/IP69K

Max. temperature

+140 °C

Min. temperature

-40 °C

Type

HDSCS, MCP
