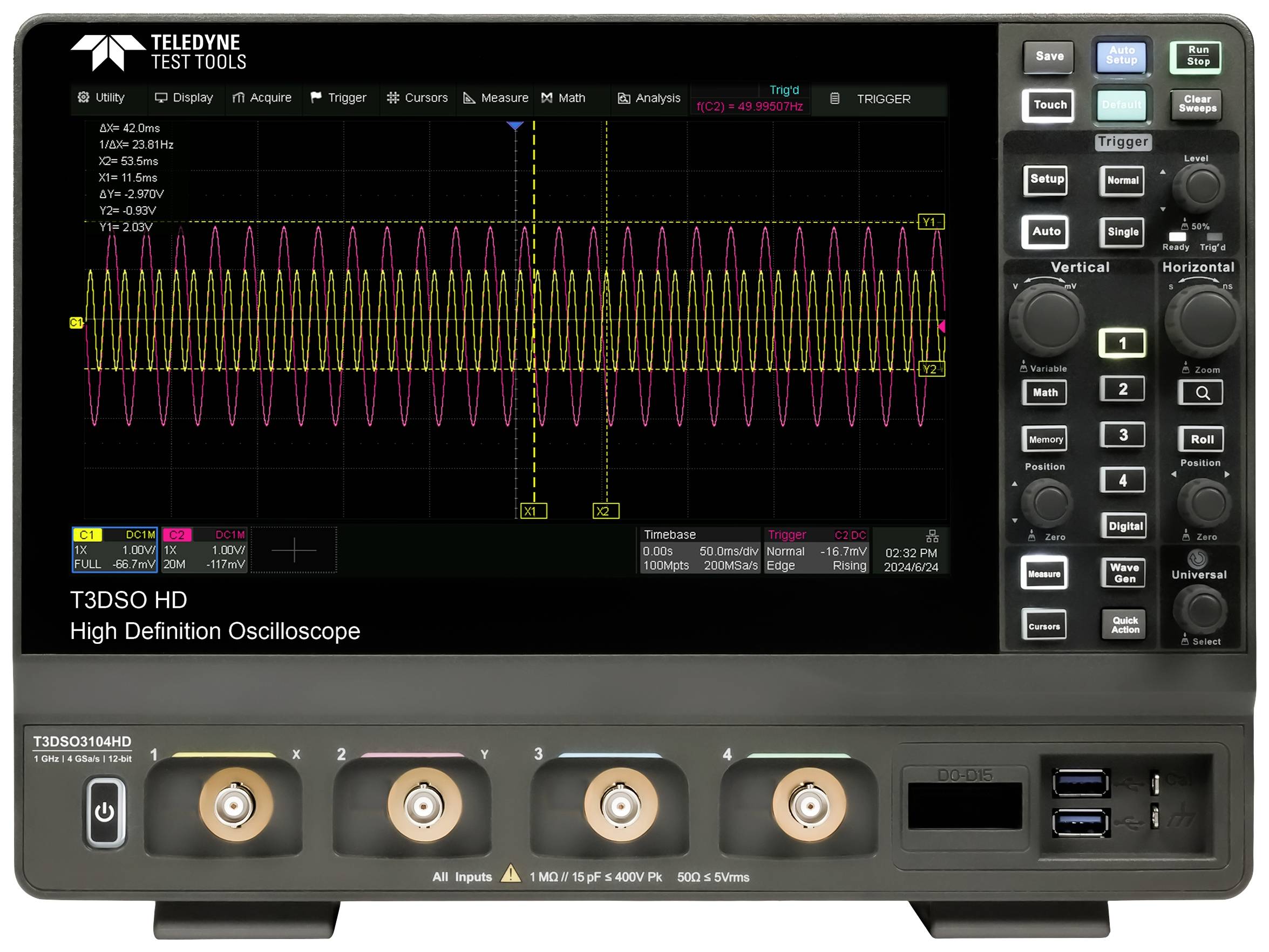

An oscilloscope displays a sine wave on the screen. Controls are visible on the right, and connections are located at the bottom.

An oscilloscope displays a sine wave on the screen. Controls are visible on the right, and connections are located at the bottom.

Image similar

Teledyne LeCroy

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 9,299.00 / piece)

€ 9,299.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Teledyne LeCroy digital oscilloscope, 500 MHz, 4 GS/s, 4 CH, 400 Mpts/ch

500 MHz
No. of analogue inputs 4

Technical specifications

Product type: Digital

Bandwidth: 500 MHz

Channel sample rate: 4 GS/s

Displays: TFT LCD 1024 x 600

Resolution: 12 Bit

Screen size: 25,65 cm

Oscilloscope features: Mixed signal (MSO)

Time base: 500 ps/div - 1000 s/div

No. of analogue inputs: 4

: Manufacturer's standards (no certificate)

Input impedance: 1 MΩ

Input coupling: DC AC GND

Power supply (details): 100-240 VAC 50/60 Hz

Dim: (L x W x H) 149 x 317.20 x 236 mm

Weight: 4.1 kg

No. of digital inputs (max.): 16

Display: TFT LCD 1024 x 600

Width: 317.20 mm

Height: 236 mm

Length: 149 mm

Interfaces: USB device
USB host
LAN

Channel memory depth: 400 MP

Type: T3DSO3054HD PROMO1

Documents & Downloads

Datasheet

Datasheet 3305765 Teledyne LeCroy T3DSO3054HD PROMO1 Digital 500 MHz 4-channel 4 GS/s 400 MP 12 Bit Mixed signal (MSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3305765 Teledyne LeCroy T3DSO3054HD PROMO1 Digital 500 MHz 4-channel 4 GS/s 400 MP 12 Bit Mixed signal (MSO) 1 pc(s)

Description

Teledyne LeCroy T3DSO3000HD Series oscilloscopes are all 12-bit high definition oscilloscopes available in 4-channel 200 MHz, 350 MHz, 500 MHz and 1 GHz bandwidths. The series comes standard with a 16-channel logic probe that provides MSO capability. All oscilloscopes come standard with all trigger/decoder and analysis software. This provides customers with a comprehensive analysis tool for their design and verification requirements. Each oscilloscope is supplied as standard with all trigger/decoder and analysis software as well as a 16-channel logic probe that offers mixed-signal capabilities.

This text is machine translated.

Features

Includes all trigger/decoder and analysis software
A 16-channel logic probe for mixed signal capability as standard with a large 10.1" color touch screen

Scope of delivery

4x passive probes
USB cable
Power cable;
Wireless mouse
Quick start instructions
Calibration certificate

Description

Teledyne LeCroy T3DSO3000HD Series oscilloscopes are all 12-bit high definition oscilloscopes available in 4-channel 200 MHz, 350 MHz, 500 MHz and 1 GHz bandwidths. The series comes standard with a 16-channel logic probe that provides MSO capability. All oscilloscopes come standard with all trigger/decoder and analysis software. This provides customers with a comprehensive analysis tool for their design and verification requirements. Each oscilloscope is supplied as standard with all trigger/decoder and analysis software as well as a 16-channel logic probe that offers mixed-signal capabilities.

This text is machine translated.

Features

Includes all trigger/decoder and analysis software
A 16-channel logic probe for mixed signal capability as standard with a large 10.1" color touch screen

Scope of delivery

4x passive probes
USB cable
Power cable;
Wireless mouse
Quick start instructions
Calibration certificate
