Name: Teledyne LeCroy T3DSOH1102 Handheld oscilloscope 100 MHz 2-channel 1 GS/s 12 MP 8 Bit Handheld 1 pc(s)
Brand: Teledyne LeCroy
SKU: 2986985
Availability: BackOrder

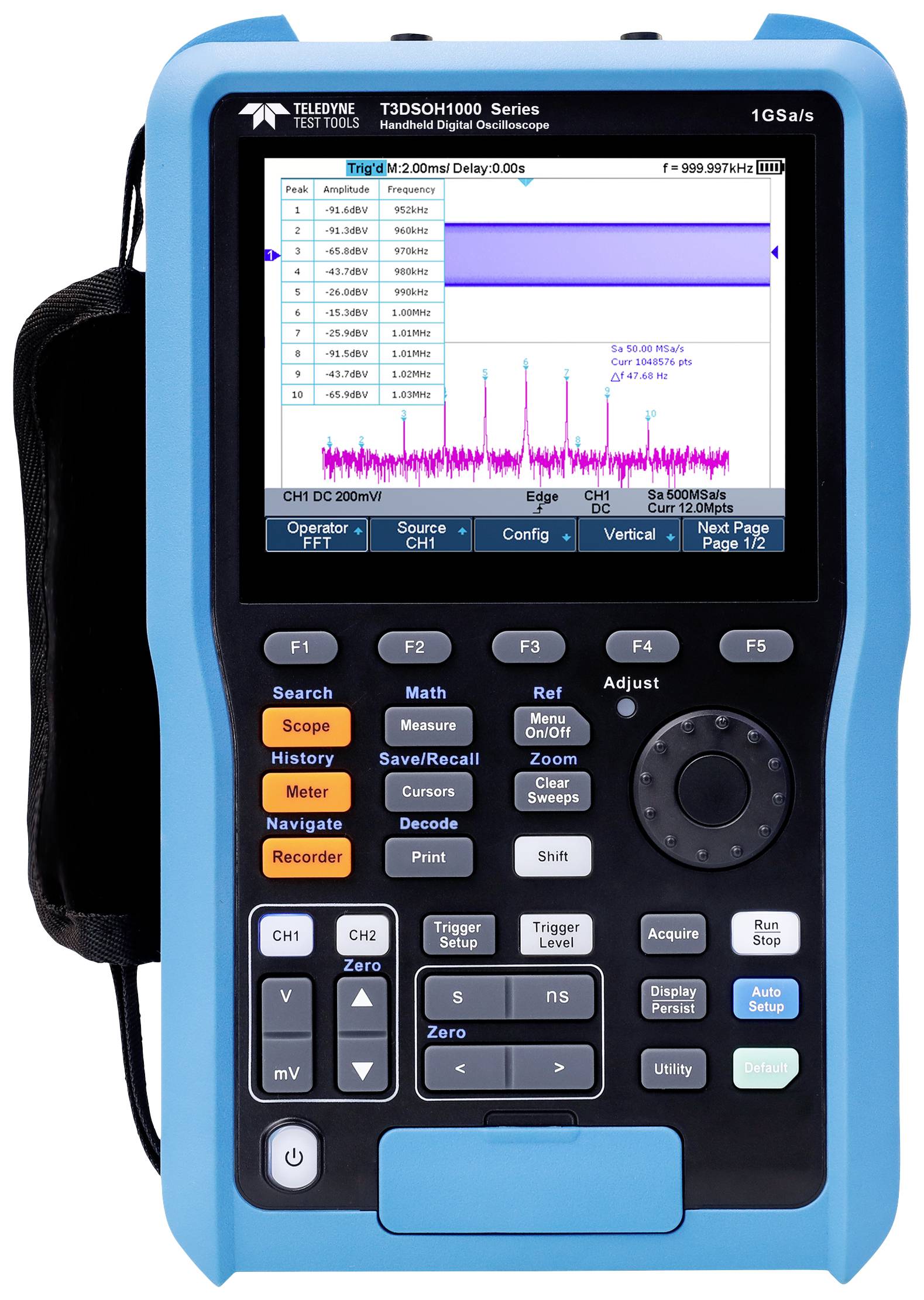

A portable digital oscilloscope with a colour display shows a signal diagram. Numerous buttons for various settings are present.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 2,465.00 / piece)

€ 2,465.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

100 MHz, 2-channel, hand oscilloscope, 1 GS/s sampling rate and 12 Mpts memory

100 MHz
No. of analogue inputs 2

Technical specifications

Product type: Handheld oscilloscope

Bandwidth: 100 MHz

Channel sample rate: 1 GS/s

Displays: TFT LCD, 5.6", 640 x 480 Pixel

Resolution: 8 Bit

Screen size: 14,22 cm (5.6")

Oscilloscope features: Handheld

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Reading category: CAT II 300 V
CAT III 300 V

Input impedance: 1 MΩ±2%

Dim: (L x W x H) 276 x 168 x 68 mm

Weight: 1.75 kg

Display: TFT LCD 640 x 480 p

Width: 168 mm

Height: 68 mm

Length: 276 mm

Interfaces: I²C

Channel memory depth: 12 MP

Type: T3DSOH1102

Documents & Downloads

Datasheet

Datasheet 2986985 Teledyne LeCroy T3DSOH1102 Handheld oscilloscope 100 MHz 2-channel 1 GS/s 12 MP 8 Bit Handheld 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2986985 Teledyne LeCroy T3DSOH1102 Handheld oscilloscope 100 MHz 2-channel 1 GS/s 12 MP 8 Bit Handheld 1 pc(s)

Description

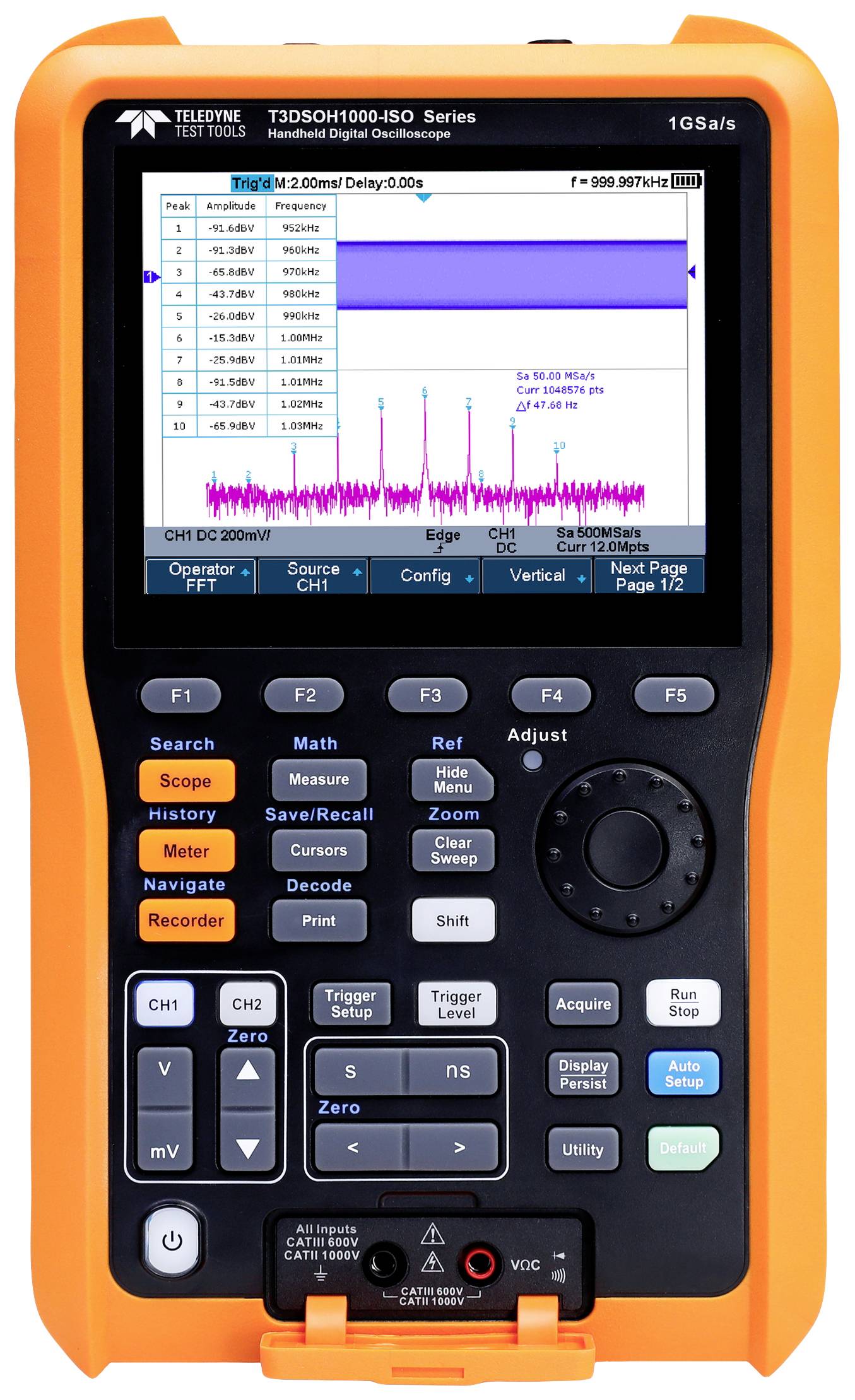

The DSOH1000 and DSOH1000-ISO handheld oscilloscope from Teledyne Test Tools combine oscilloscope, recorder and multimeter functions in a practical and portable design. With a weight of only 1.7 kg (3.8 lb), the battery-operated oscilloscopes of the DSOH series can be used for field tests, the automotive industry, research and development as well as for industrial maintenance.

This text is machine translated.

Features

Models with 100 MHz and 200 MHz bandwidth
Maximum sampling rate of 1 GSa/s.
Waveform acquisition rates of up to 100,000 WFM/s.
Vertical range from 2 mV/div to 100 V/div
Up to 12 Mpts recording memory
Sequence acquisition mode (up to 80,000 segments)
Historical waveform recording (history) with up to 80,000 images
38 automatic measurement parameters
It supports 256-stage intensity gradations and color temperature display modes
Intelligent trigger: Flank, slope, pulse width, window, run, Interval, Timeout (Dropout), Pattern
Serial bus triggering and decoding (standard) for IIC, SPI, UART, CAN and LIN protocols
Video trigger/HDTV

Scope of delivery

Oscilloscope
USB cable
Quick start instructions
2x multimeter test leads
Mains adapter
Battery
SCD600MA Current measuring adapter
SCD10A current measuring adapter
Carrying case
