Telegärtner 100024538 100024538 N adapter - N plug 1 pc(s) Piece

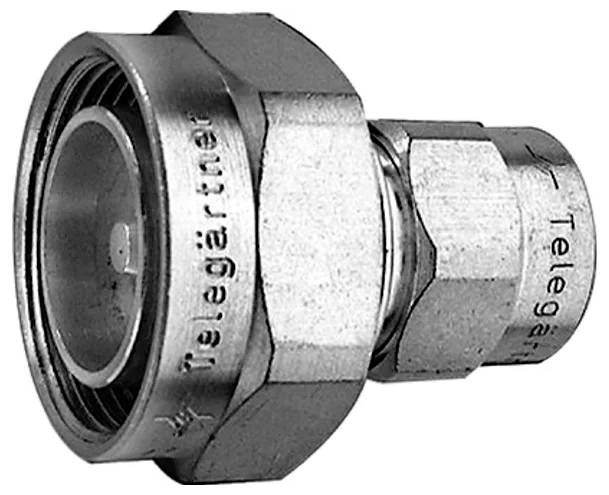

Metal coaxial cable connector with threaded coupling and hexagonal body, labeled Telegärtner<br>

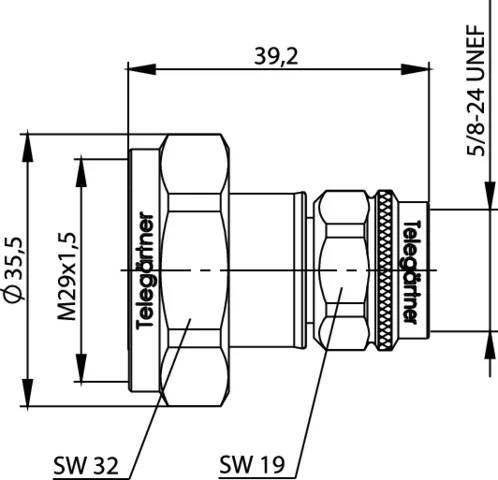

Technical drawing of a TeleGardner fitting, showing side profile with dimensions: 39.2 length, Ø35.5, M29x1.5, 5/8-24 UNEF, SW 32, and SW 19.
1/2
Image similar
Packaging type
Piece
Product type
N adapter
Type B
N plug
Connector type
Adapter
Impedance
50 Ω
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Tue 10 Nov
3 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 83.99 / piece)
€ 83.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 3 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

7-16 on N Sti-Sti

  • - N plug

Technical specifications

Packaging type

Piece

Product type

N adapter

Type B

N plug

Connector type

Adapter

Impedance

50 Ω

Content

1 pc(s)

Manufacturer part #

100024538

RoHS-compliant

Yes

Type

100024538

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 3741926 Telegärtner 100024538 100024538 N adapter - N plug 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3741926 Telegärtner 100024538 100024538 N adapter - N plug 1 pc(s) Piece

Description

Notes: IP68
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design:7-16 (m) / N (m)
Max. Frequency:8 GHz
Return loss: Typ.: 1 GHz: -42 dB; 4 GHz: -35 dB; 6 GHz: -33 dB
Passive intermodulation: Type: -164 dBc 2x20 W 2.2 GHz

This text is machine translated.
