Buy Tempo Communications 551EU Cable locator Cable tracking

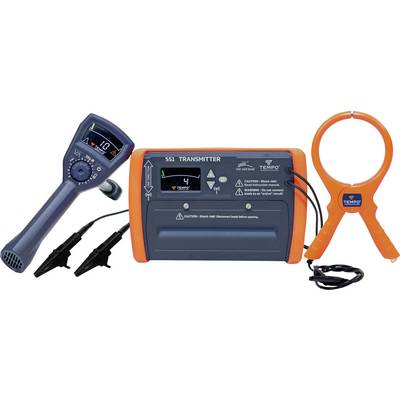

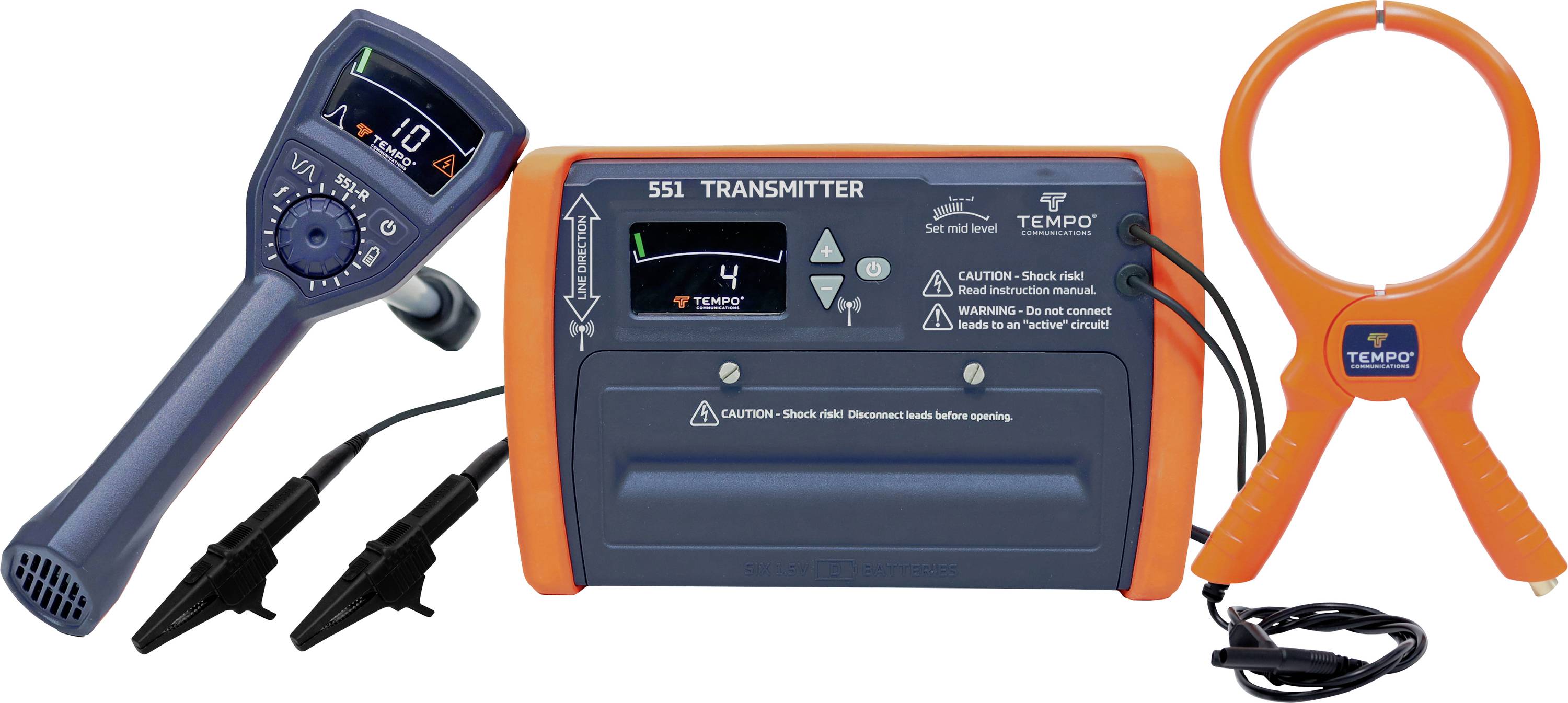

A cable locator set with a transmitter, receiver, and signal clamp, used for detecting and tracing cables underground.

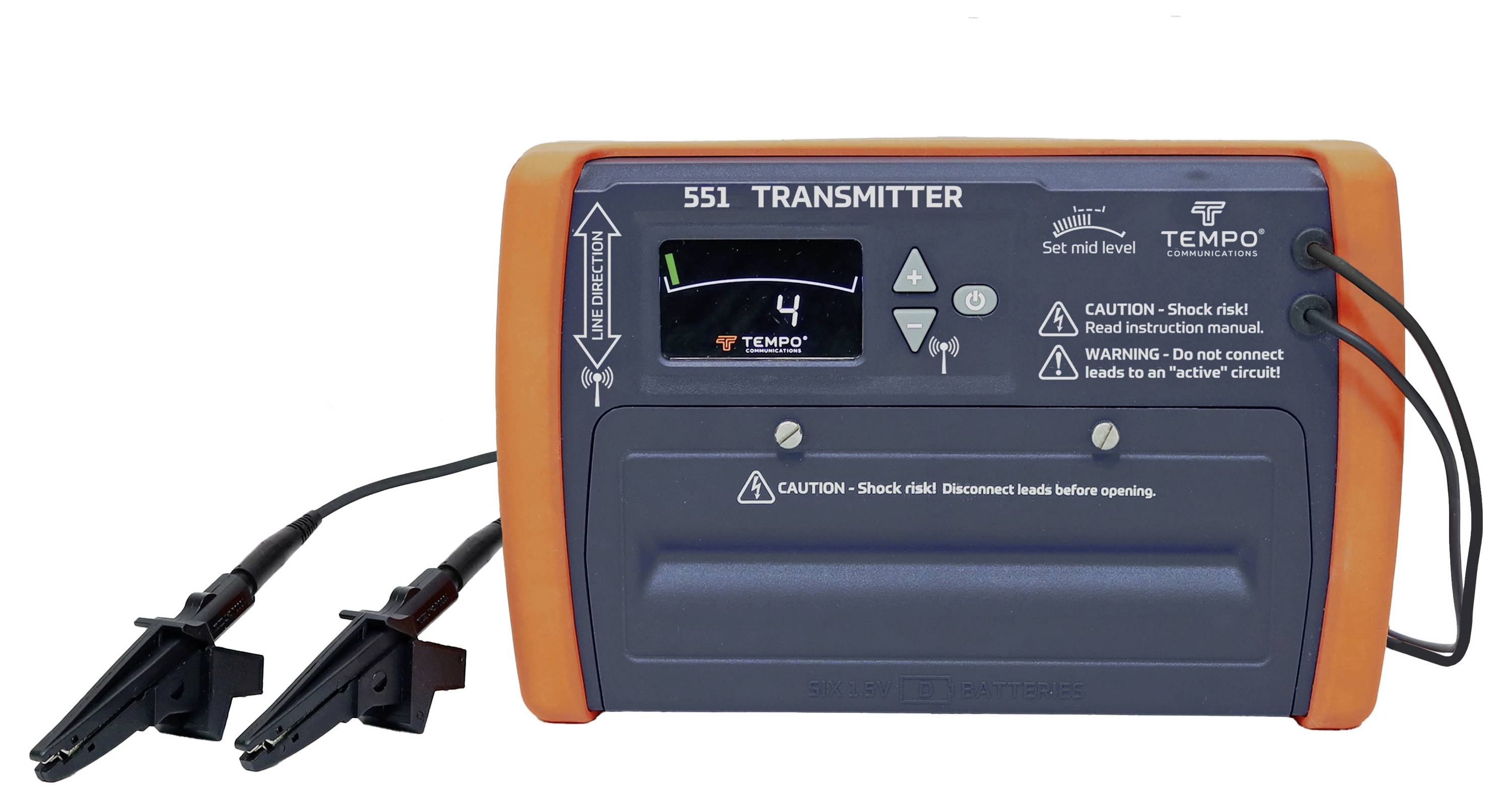

A device labeled '551 Transmitter' with a digital display showing the number 4. It has two attached cables and warning symbols on its surface.

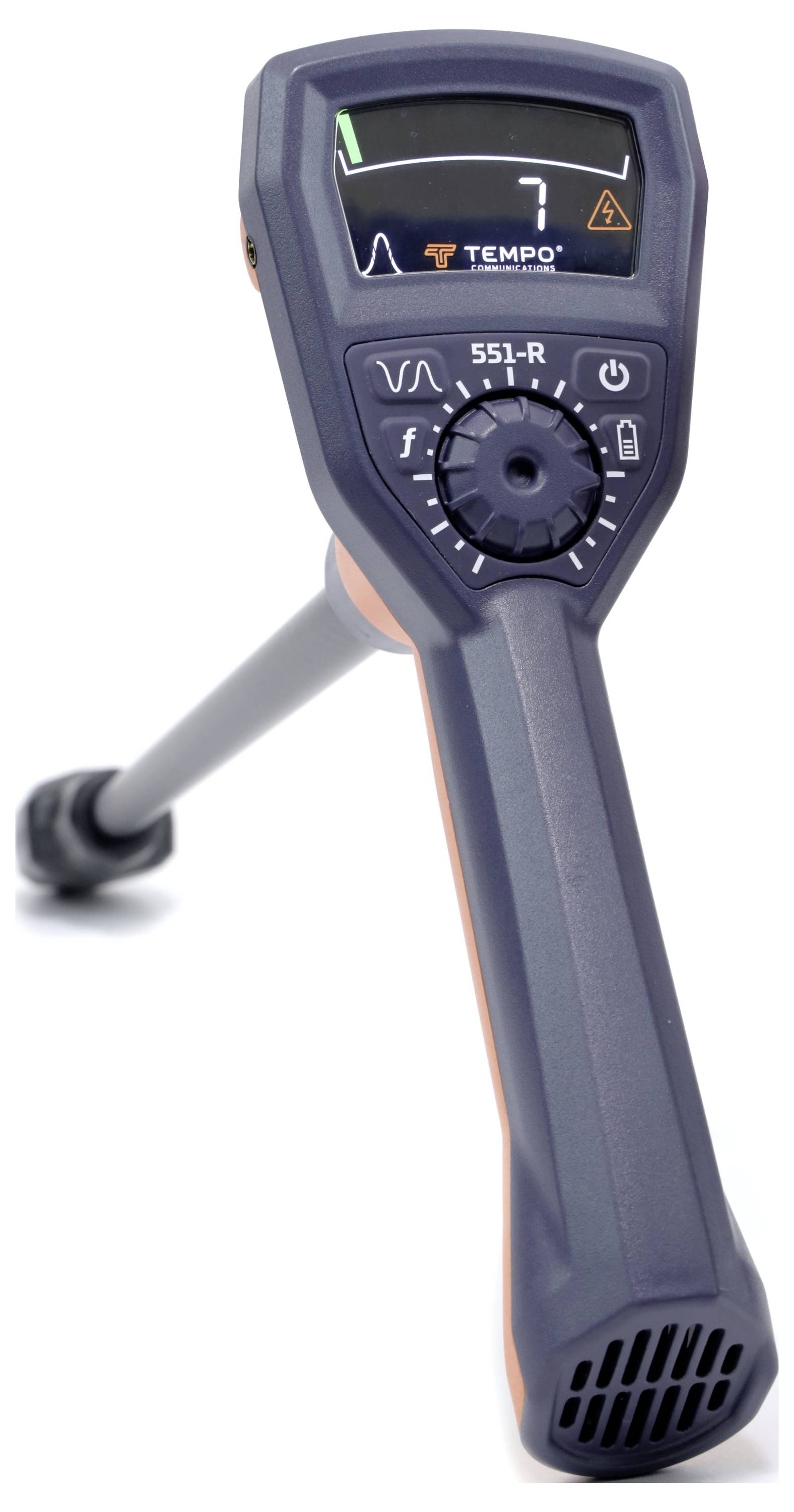

'Tempo 551-R' device with a display showing '7', control dial, and various icons. Used for cable and wire locating tasks.

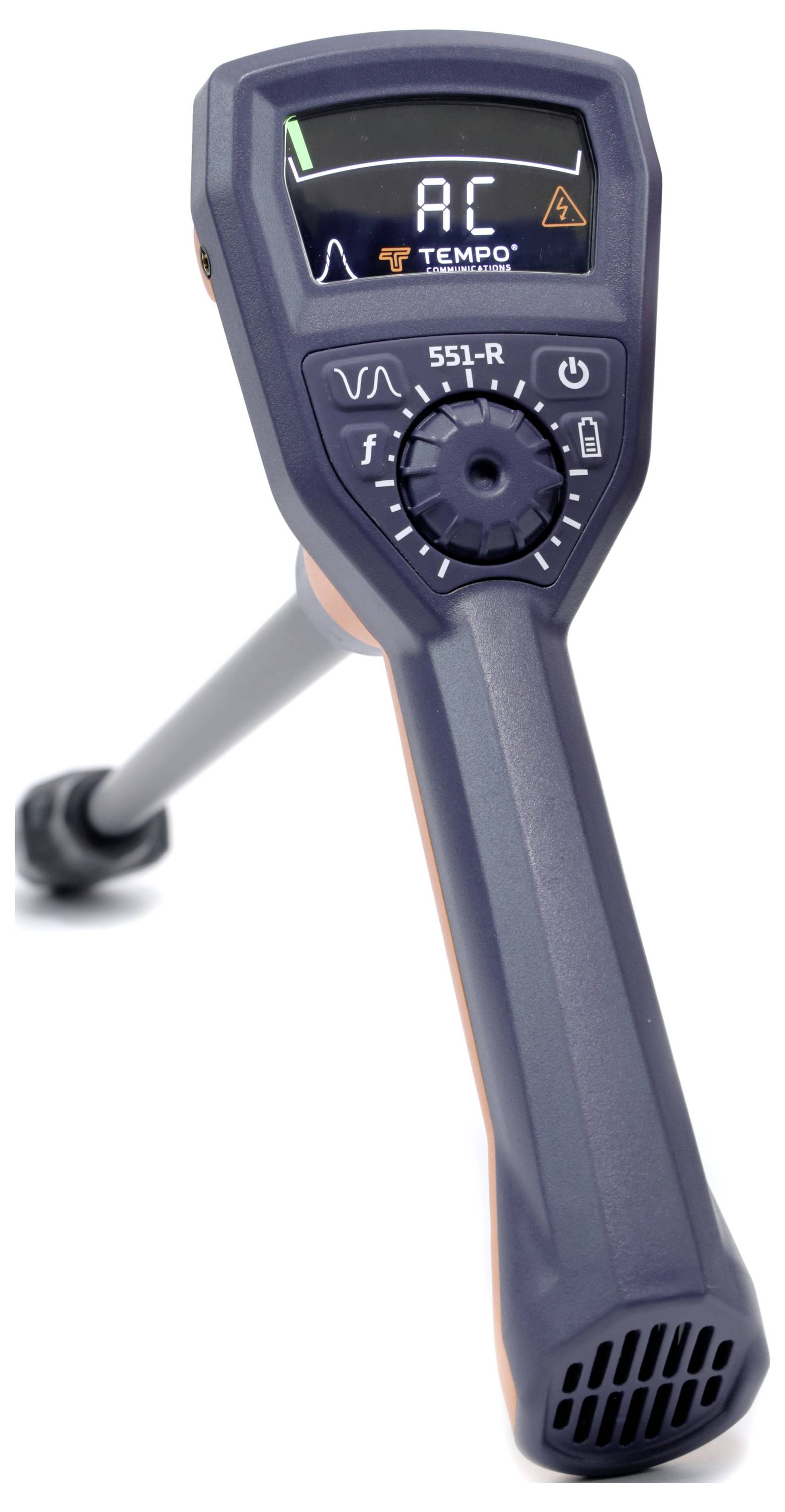

Long-handled digital device with display and control dial for detecting AC signals, branded with 'Tempo'.

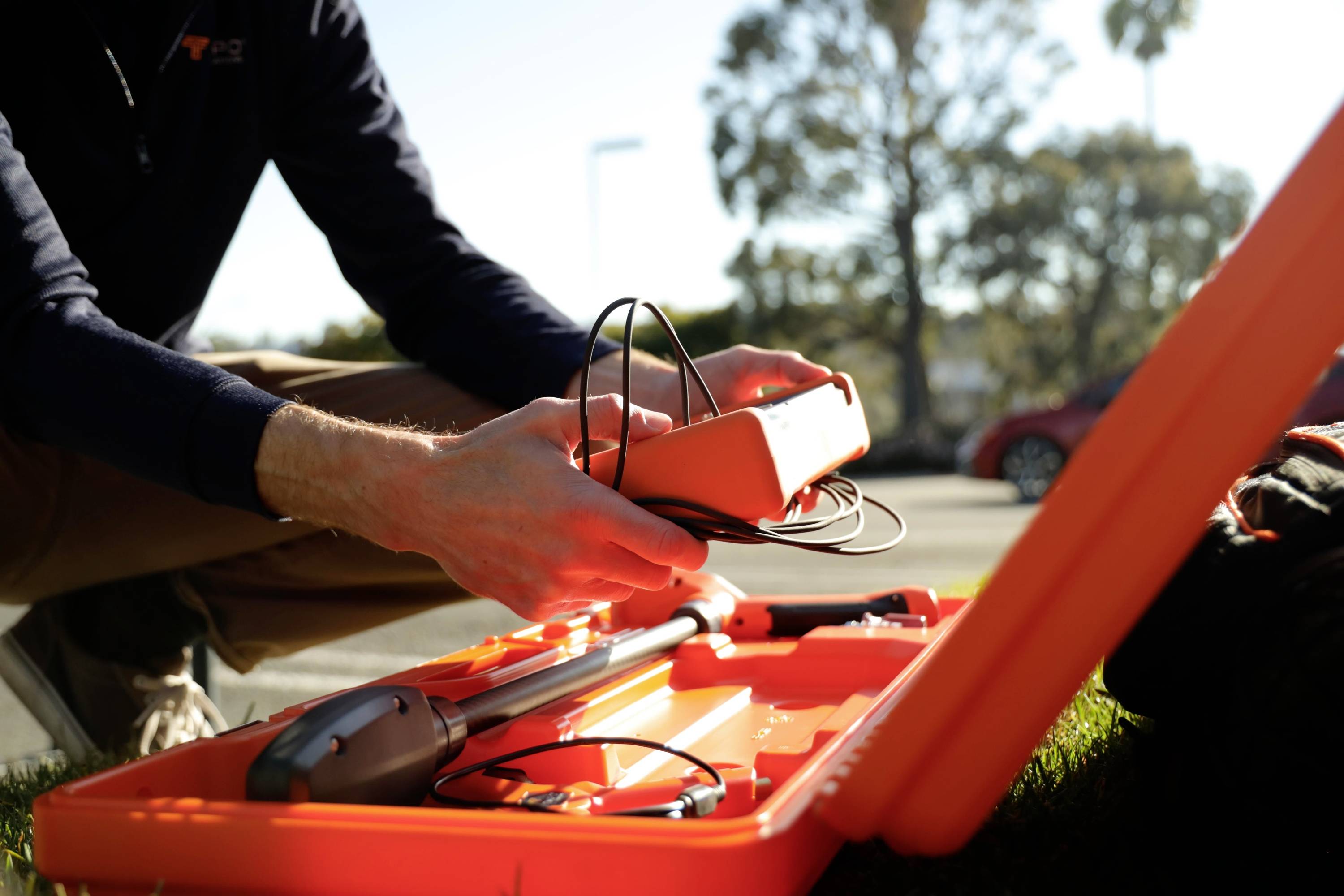

A person adjusts equipment in an open orange case outdoors, possibly preparing for a technical setup or fieldwork.

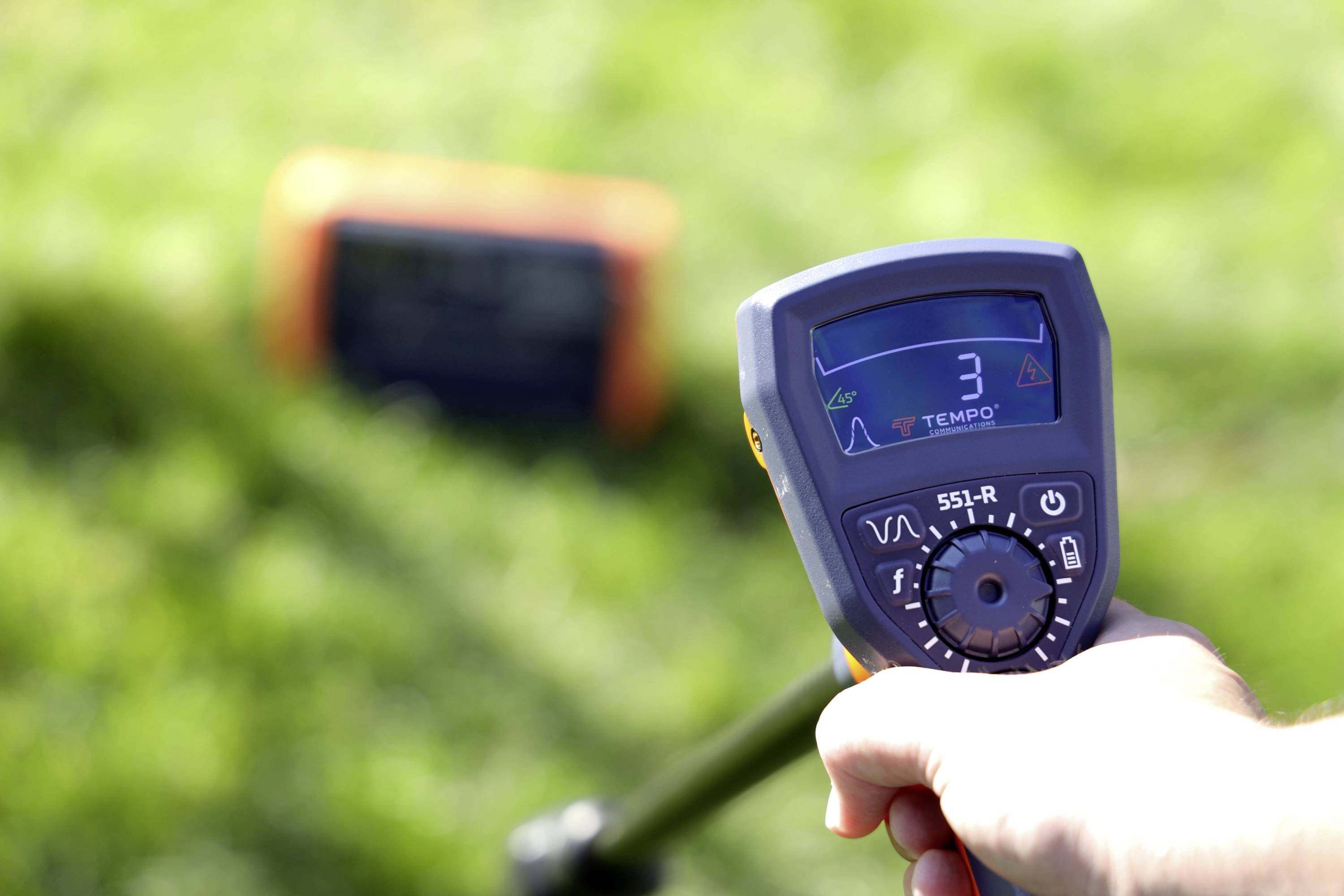

A hand holds a Tempo device with a screen displaying the number '3', aimed at an orange object on grass, suggesting measurement or detection.

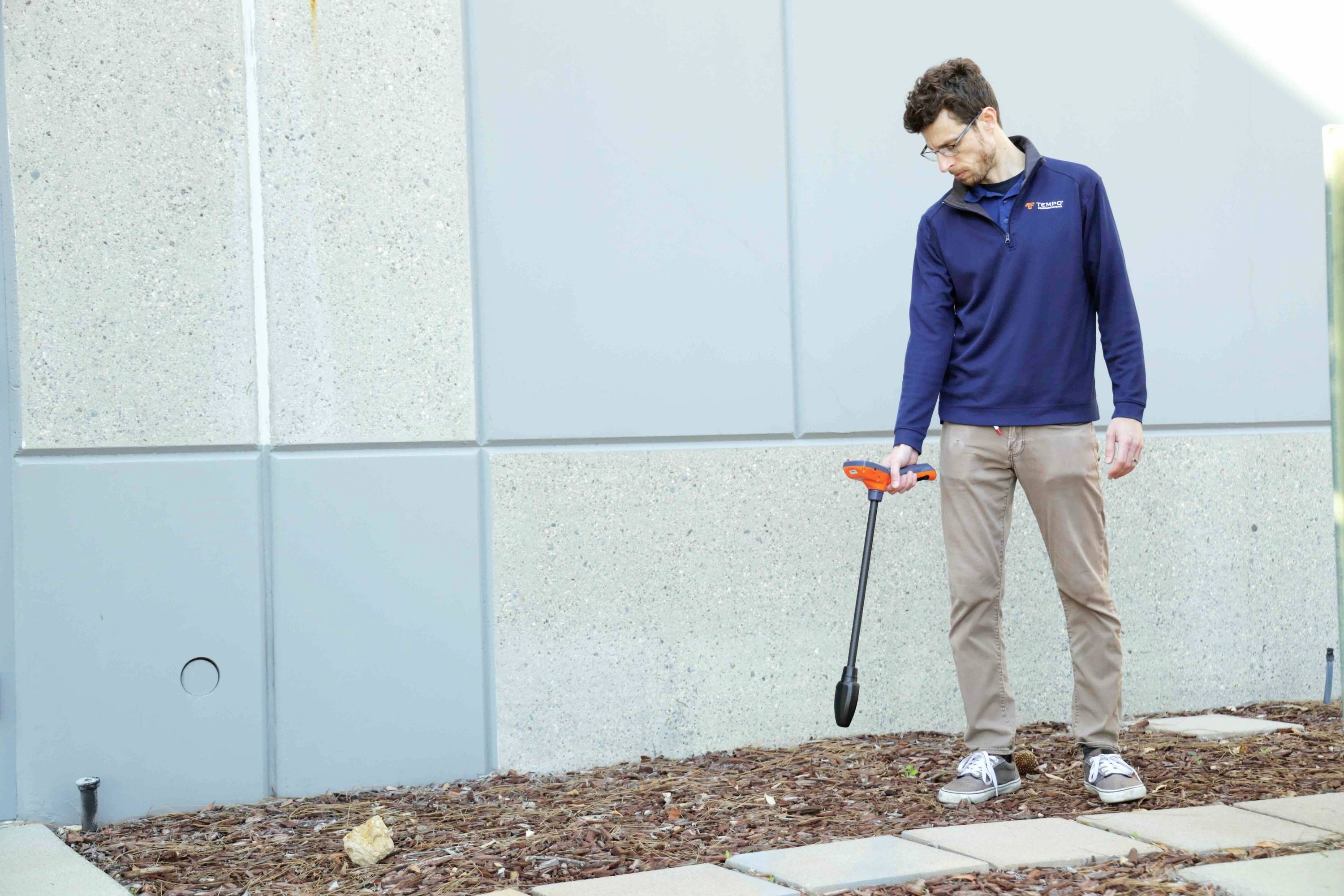

A man in casual attire uses a metal detector to search the mulched ground near a building's concrete wall.

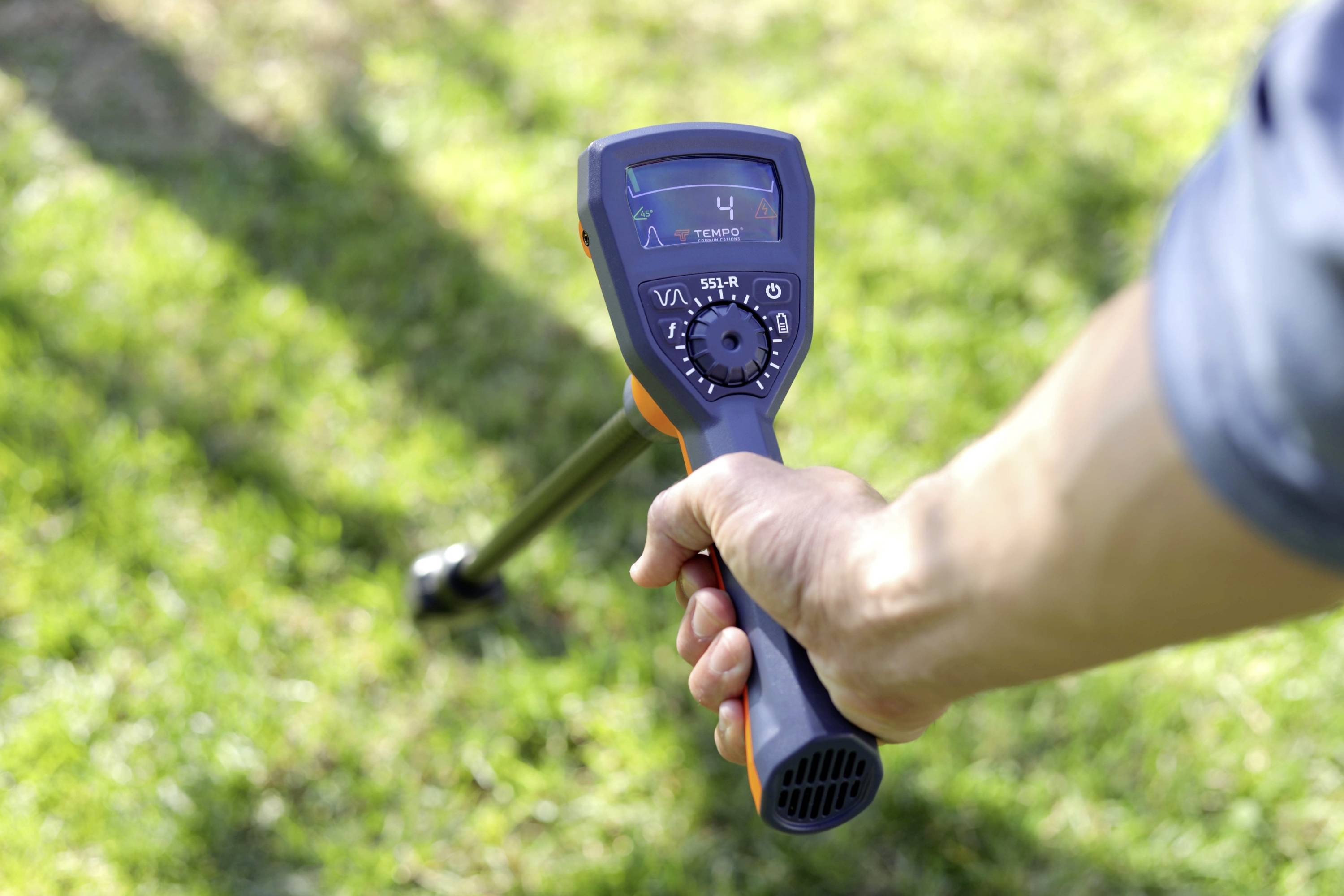

A person holds a metal detector over grassy ground, scanning for buried objects. The display shows '4' with various settings visible.

A person's hand using an orange handheld device to check a pipe connection in a garden area covered with wood chips.

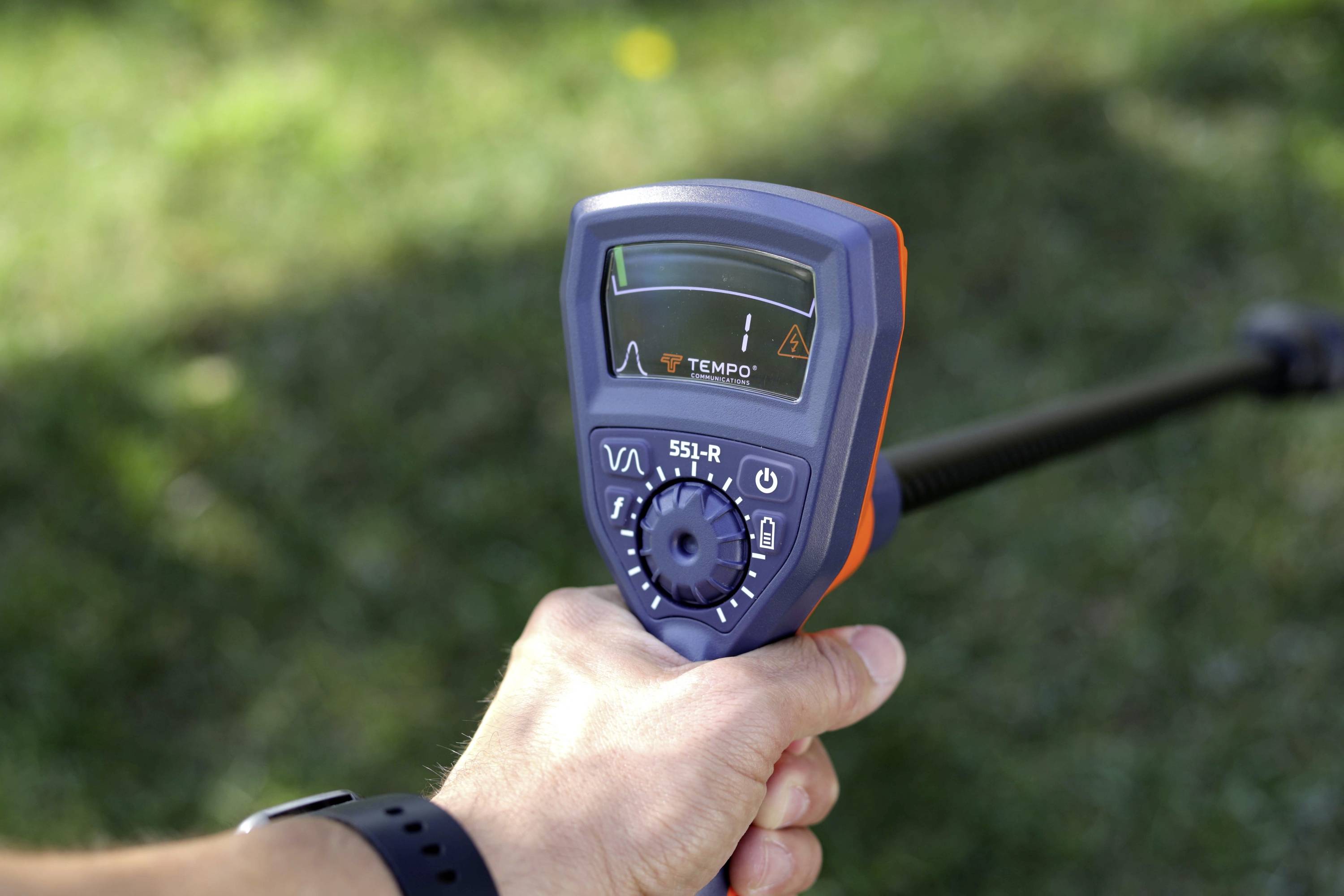

A hand holding a device with a digital screen and multiple dials, used for field measurements or detection, with grass in the background.

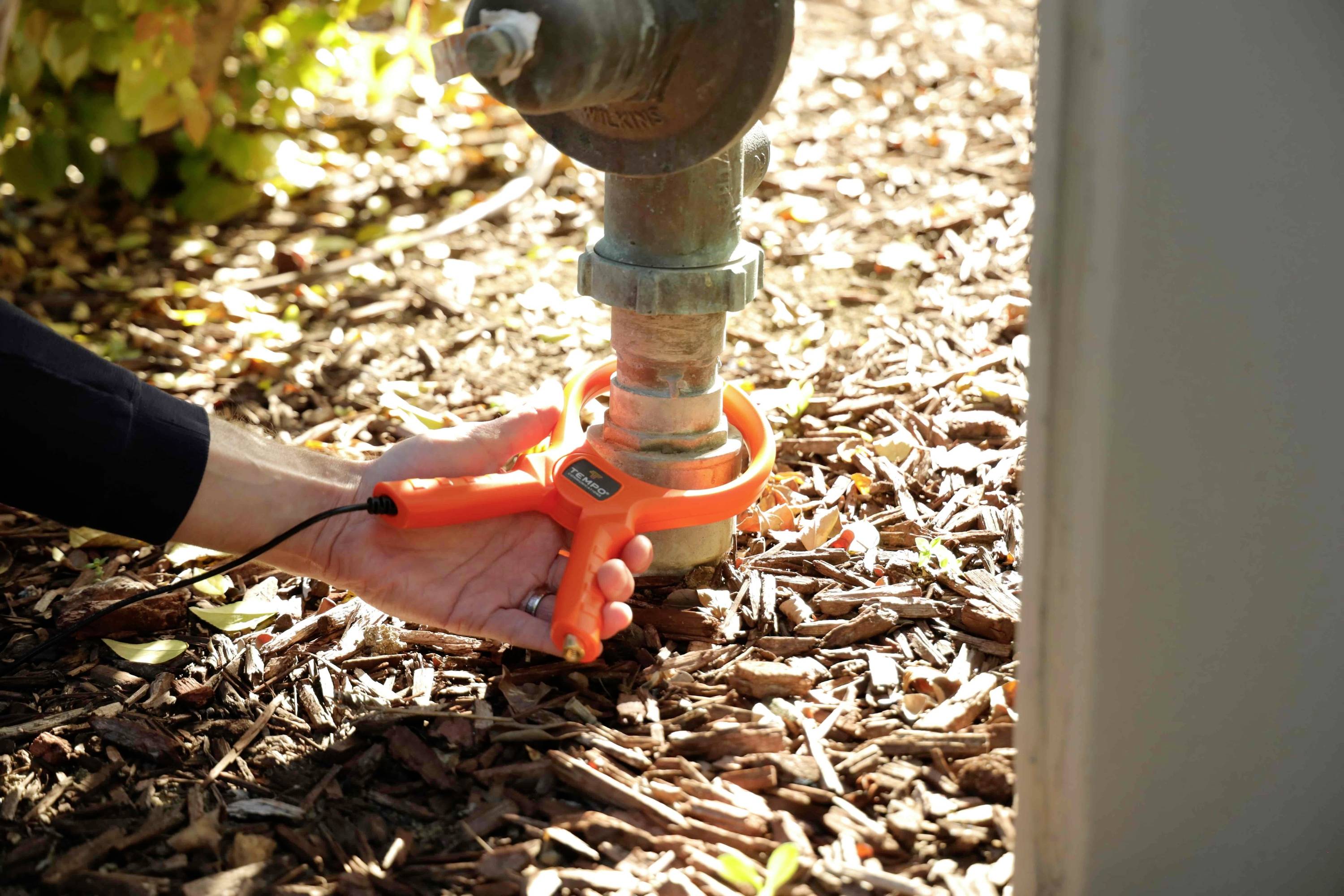

A hand holds an orange water leak detection device around an outdoor pipe above mulch, indicating testing or maintenance work.

1/11

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,357.14 / piece)

€ 1,357.14

plus VAT.

Report legal concerns

Highlights & Details

551EU Advanced cable detector

Perfect for finding:
Electric cable
Communication cable
Control cable for irrigation
Accompanying heating wires
Metallic pipes

Technical specifications

Maximum depth: Up to a depth of over 6 meters (20+ ft)
Maximum distance: Over 1.6 km (1 mile)
Dust and splash proof according to IP54
Operating frequencies 1.75 kHz, 33 kHz and 133 kHz.
(It also has a passive mode that works at 50/60 Hz)

Product type: Cable locator

Function: Cable tracking

Dim: (L x W x H) 711 x 321 x 104 mm

Weight: 5.2 kg

Weight (transmitter): 1.94 kg

Weight, information: incl. batteries

Width: 321 mm

Height: 104 mm

Length: 711 mm

Type: 551EU

Documents & Downloads

Datasheet

Datasheet 3466158 Tempo Communications 551EU Cable locator Cable tracking

User & Safety Instructions

User & Safety Instructions 3466158 Tempo Communications 551EU Cable locator Cable tracking

Description

The 551EU has been developed for technicians and is equipped with extended functions
You know everything, WAS you expect from a locating device for buried cables. With our
In spite of electrical interference, two-frequency transmitter allows you to locate the cables between
Select Peak and Zero mode, a stronger, more reliable signal with IntelliTrack™
Receive noise suppression and much more!
Whether you use underground electrical lines, irrigation wires,
Locate telecommunications cable or metal pipes, this rugged, IP54 certified
Detector is designed for precision and performance.

This text is machine translated.

Features

Operating frequencies
Direct connection 1.75 kHz+ 33 kHz simultaneous
Inductive coupler 33 kHz
Inductive antenna 133 kHz

Hints

Also required: 4 AA batteries and 6 D batteries (not included)
