Name: Tempo Communications 55504929 FO connector tester
Brand: Tempo Communications
SKU: 3015261
Availability: BackOrder

A handy fibre-tip pen in orange and blue with a storage cap. Used for precise cleaning tasks.

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,625.00 / piece)

€ 1,625.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

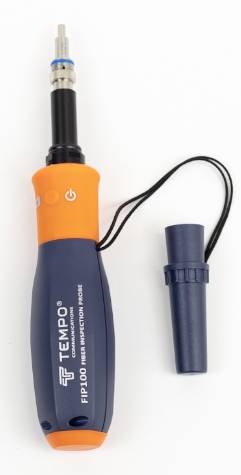

FIPS 100 KIT FIBER INSPECTION PROBE KIT

Inspect wire end sleeves and bulkhead according to IEC61300-3-35
One-handed operation with one button
Auto-focus, auto-detection, auto-test
LED pass/fail indicator on the probe
Small form factor allows inspection of hard to reach connections
Create and share reports on Android and iOS devices
IEC, IPC and user-defined test criteria

Technical specifications

Field of view 612 x 460
Image size 2592 x 1944 pixels
Accumulator type Li-ion
Operating time: 60 hours
Charging time: Approx. 4 hours
Battery charger voltage 100 - 240 V/AC
Operating temperature: 0 to +50 °C
Storage temperature -40 °C to +70 °C

Product type: FO connector tester

Optical display: Yes

Display: LED

Weight: 150 g

Length: 226 mm

Type: 55504929

Documents & Downloads

Datasheet

Datasheet 3015261 Tempo Communications 55504929 FO connector tester

User & Safety Instructions

User & Safety Instructions 3015261 Tempo Communications 55504929 FO connector tester

Description

The FIP100 from Tempo is a fully automated inspection tool that allows for a quick and reliable analysis of the end surfaces and bulkheads of glass fiber connectors. Check the cleanliness of the connector before connecting.

This text is machine translated.

Features

Applications Check the cleanliness of the connector before connecting. Certify the condition of the connector during installation. Document damage to the connector during troubleshooting. Inspection is essential for proper fiber handling in all networks. Good/Poor results in seconds: With a single press of a button, the FIP100 automatically captures and centralizes the end-face image and analyzes it according to the industry standards IEC 61300-3-35, IPC-8497-1, AT&T TP-76461 and other user-defined criteria. Unbound operation: One-button operation and the "Pass/Not Passed" LED display enable operation without reference to the mobile APP. Wide range of adapter tips: Interchangeable adapter tips support inspection of fiber connectors for a variety of patch cables and wall-mounted connectors with PC/UPC or APC polished end faces. Smart device apps: Auto-focus, auto-sensing, and automatic test functions (IEC). , IPC, industry standard and custom inspection rules. Pinch-to-zoom images of the fiber end faces. Reporting. Multi-lingual graphical user interface (GUI). Job storage with day/time stamp

Scope of delivery

FIPS 100, EU power supply
Carrying case
2.5 mm universal connector
Quick reference card
