Name: Testboy TB 20 PLUS Continuity tester CAT II 300 V LED, Acoustic
Brand: Testboy
SKU: 3857144
Availability: OutOfStock

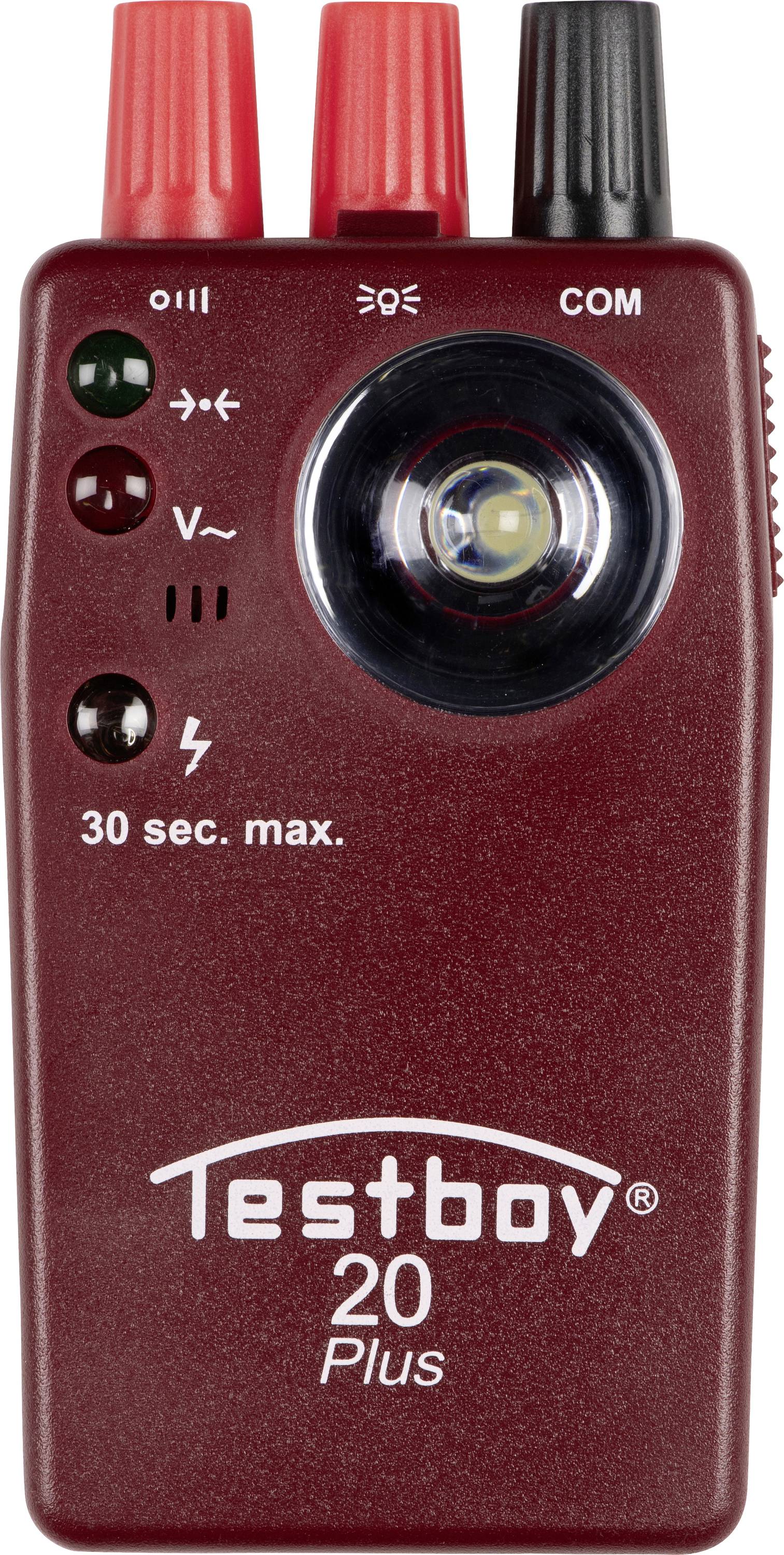

A maroon Testboy 20 Plus electrical tester with three top terminals, a central flashlight lens, and labels including 'COM' and '30 sec. max.'

Datasheet (PDF)

EAN:

Part number:

Item no:

Currently not available

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 41.99 / piece)

€ 41.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Testboy TB 20 PLUS external voltage-protected continuity tester with LED-torch

Reliable continuity tester
Contact-free voltage sensor
High power LED torch;

Technical specifications

Continuity test visually 0 - 20 Ω
Acoustic continuity test: 0 – 250 Ω
Test voltage: 4.5 V
Test current: Optical 10 mA / acoustic 2 mA
Power supply 3× 1.5 V AA (LR06)

Product type: Continuity tester

Reading type: Continuity
Voltage testing
Phase

Display: LED
Acoustic

V AC reading range: 110 up to 300 V

Reading category: CAT II 300 V

: IP20

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 120 x 60 x 30 mm

Weight: 90

Max. frequency: 60 Hz

Min. frequency: 50 Hz

Frequency range: 50 Hz - 60 Hz

V AC reading range (max.): 300 V

V AC reading range (min.): 110 V

Width: 60 mm

Height: 30 mm

Length: 120 mm

Type: TB 20 PLUS

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3857144 Testboy TB 20 PLUS Continuity tester CAT II 300 V LED, Acoustic

User & Safety Instructions

User & Safety Instructions 3857144 Testboy TB 20 PLUS Continuity tester CAT II 300 V LED, Acoustic

Description

The Testboy TB 20 PLUS is a consistent enhancement of the tried and tested continuity tester technology. It is characterized by a wide range of applications during testing of wires, cables and components. Along with the optical and acoustic continuity test the non-contact voltage sensor enables a quick detection of alternating voltages through cable insulation – for instance, for troubleshooting in cable drums or light chains. The integrated external voltage protection up to 300 V thereby provides maximum security in the daily work.

This text is machine translated.

Features

Visual (0–20 Ω) and acoustic (0–250 Ω) continuity test
Contact-free voltage sensor for locating alternating voltages starting from 110 V AC
Single-pole phase search and integrated current warning
External voltage protected up to 300 V AC/DC (max. 30 seconds)

Scope of delivery

Testboy TB 20 PLUS continuity tester
2x test leads with test tips
User manual

Description

Features

Visual (0–20 Ω) and acoustic (0–250 Ω) continuity test
Contact-free voltage sensor for locating alternating voltages starting from 110 V AC
Single-pole phase search and integrated current warning
External voltage protected up to 300 V AC/DC (max. 30 seconds)
