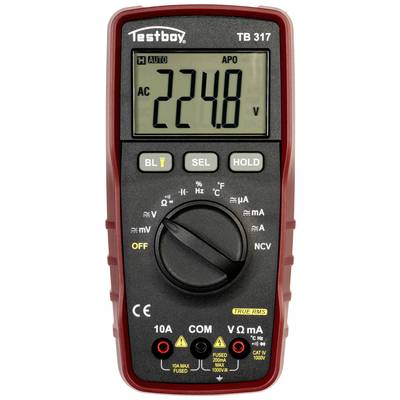

Testboy TB317 Handheld multimeter Digital incl. voltmeter CAT IV 1000 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 159.66 / piece)
€ 159.66
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (max.)
1000 V
- A DC reading range (max.)
10 A
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
600 Ω - 60 MΩ
- Reading range - capacity
60 nF - 60 mF
- Frequency reading range
10 Hz -10 MHz
- Temperature
-200 to +1300 °C
- Measurement type (details)
True RMS
- Power supply (details)
9 V block
- Height
190 mm
- Width
90 mm
- Weight
470 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 1000 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
TB317
- Display
Digital
- Dim
(W x H) 90 mm x 190 mm
- Temperature reading range (max.)
+1300 °C
- Temperature reading range (min.)
-200 °C
- Features
incl. voltmeter
Documents & Downloads
Datasheet
Datasheet 2858386 Testboy TB317 Handheld multimeter Digital incl. voltmeter CAT IV 1000 V
User & Safety Instructions
User & Safety Instructions 2858386 Testboy TB317 Handheld multimeter Digital incl. voltmeter CAT IV 1000 V
Description
The new Testboy 317 digital multimeter opens up numerous possibilities of measuring and testing. The Testboy 317 is a professional true RMS multimeter. Apart from the standard functions, the device tests the temperature, the resistance, frequencies up to 10 MHz and capacitance measurements up to 60 mF. The Testboy 317 is used in the electrical installation, service and industry sectors. The contact-less voltage tester and the well-readable 40 mm LC-display with background lighting simplify the work with this real all-round talent.
This text is machine translated.
This text is machine translated.
Features
- Display: Large, illuminated LCD
- Polarity display: Automatic
- Overflow display: "OL" is displayed
- Data hold
- Backlight
- Auto power-off
- F 200 mA self-resetting (maintenance-free) and F 10A (10.3 x 38 mm)
Scope of delivery
- CAT IV test lead set
- 1x 9 V battery
- Temperature sensor;
- Holster
- Bag
