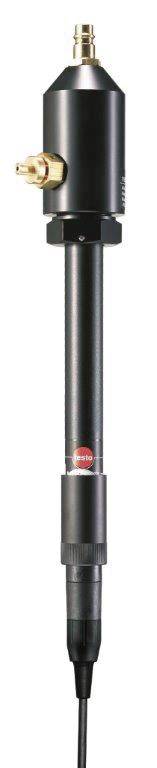

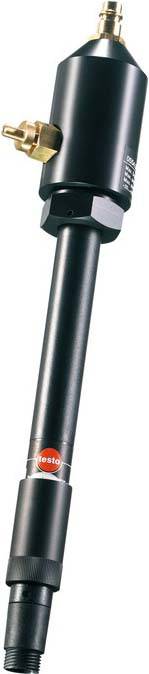

testo 0636 9835 Universal probe -30 up to +50 °C 0 up to 100 RH Sensor type NTC
EAN:
Part number:
Item no:
Number
Total (€ 999.16 / piece)
€ 999.16
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Compressed air dew point sensor with measuring chamber
- Sensor type NTC
- -30 up to +50 °C
- Mini DIN connector
Technical specifications
- Length of the sensor tube: 300 mm
- Cable length: 1.5 m
- Accuracy:
- ±0.9°C tpd (+0.1.. +50°C tpd)
- Product type
Universal probe
- Sensor type
NTC
- Pick-up time (details)
300 s
- Temperature reading range (min.)
-30 °C
- Temperature reading range (max.)
+50 °C
- Dim
(L x W x H) 480 x 140 x 50 mm
Manufacturer's standards (no certificate)
- Connector
Mini DIN connector
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Temperature reading range
-30 up to +50 °C
- Width
140 mm
- Height
50 mm
- Length
480 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 102153 testo 0636 9835 Universal probe -30 up to +50 °C 0 up to 100 RH Sensor type NTC
Description
Pressure dew point sensor for measurement in compressed air systems, fixed cable stretched.
