Name: testo 865s IR camera -20 up to +280 °C 160 x 120 Pixel 9 Hz
Brand: testo
SKU: 2576364
Availability: InStock

A thermal imaging camera displays a menu with options such as 'Image Gallery', 'Configuration', and 'Energy Saving' on a display.

A Testo thermal imaging camera with a digital display. It shows a menu with options such as 'Image Gallery', 'Palette', and 'Configuration'.

Thermal imaging camera with display shows menu options such as 'Measurement Settings', 'Palette' and 'Configuration'. Main colour is Black.

Thermal imaging camera displays the temperature distribution of a radiator on the screen. Temperature is 28.3 degrees Celsius.

Thermal imaging camera displays striped thermal image on screen. Device with black casing and orange control elements.

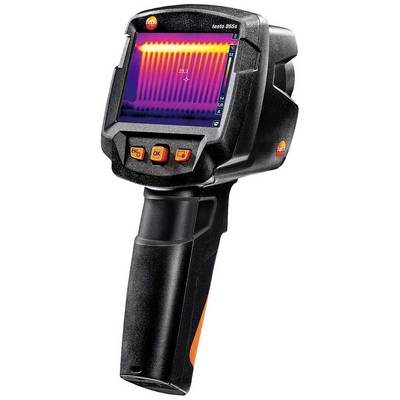

Handheld thermal imaging camera displays heat distribution on screen. Device provides temperature measurement for technical inspections.

A hand is holding a thermal imaging camera, which shows a wall with a clear temperature difference.

A hand is holding a thermal imaging camera displaying the temperature distribution of a radiator. The screen shows warm and cool areas.

A person is holding a thermal imaging camera displaying technical equipment with temperature variations on the screen.

A person is using a thermal imaging camera to check electrical switchboards for overheating or issues.

1/10

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,315.00 / piece)

€ 1,529.00

-14 %

€ 1,315.00

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Testo 865s - Infrared camera (160 x 120 Pixel)

9 Hz Thermal imaging camera
Temperature reading range -20 up to +280 °C
160 x 120 Pixel Bolometer matrix
Thermal sensitivity 100 mK

Technical specifications

Internal memory: 2.8 GB

Type: 865s

Product type: IR camera

Bolometer array: 160 x 120 Pixel

Interfaces: USB

Temperature reading range (max.): +280 °C

Colour schemes: 4

Temperature reading range (min.): -20 °C

Optics: 31° x 23°

Frame rate: 9 Hz

Display resolution: 320 x 240 Pixel

: IP54

Thermal sensitivity: 100 mK

Dim: (L x W x H) 219 x 96 x 95 mm

Temperature resolution: 0.10 °C

Display: TFT 8.9 cm

Emission level (max.): 1

Emission level (min.): 0.01

Focus: Fixed-focus

Geometric resolution (IFOV): 3.4 mrad

Weight: 510 g

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Temperature reading range: -20 up to +280 °C

Min. focusing distance: 0.5 m

Width: 96 mm

Height: 95 mm

Length: 219 mm

Connection: USB

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Bolometer array

Interfaces

Temperature reading range (max.)

Colour schemes

Frame rate

Thermal sensitivity

Display resolution

Temperature reading range (min.)

testo 865s IR camera -20 up to +280 °C 160 x 120 Pixel 9 Hz

Item no:2576364

Fast track dispatch on Wed 4 Nov

8 Piece(s)Conrad Electronic

This article

160 x 120 Pixel

USB

+280 °C

9 Hz

100 mK

320 x 240 Pixel

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,315.00^*

testo 868s IR camera -30 up to +650 °C 160 x 120 Pixel 9 Hz incl. data analysis software, Wi-Fi, Built-in digital camera

Item no:2576365

Fast track dispatch on Wed 4 Nov

15 Piece(s)Conrad Electronic

160 x 120 Pixel

USB

+650 °C

9 Hz

80 mK

320 x 240 Pixel

-30 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,499.00^*

testo 872s IR camera -30 up to +650 °C 320 x 240 Pixel 9 Hz Wi-Fi

Item no:2576367

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

320 x 240 Pixel

USB

+650 °C

9 Hz

50 mK

320 x 240 Pixel

-30 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,619.00^*

testo 883-1 IR camera -30 up to +650 °C 320 x 240 Pixel 27 Hz Wi-Fi

Item no:2350507

Fast track dispatch on Wed 4 Nov

8 Piece(s)Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

+650 °C

27 Hz

40 mK

320 x 240 Pixel

-30 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4,845.00^*

testo 883-1 Set IR camera -30 up to +650 °C 320 x 240 Pixel 27 Hz Wi-Fi

Item no:2350508

Fast track dispatch on Wed 4 Nov

2 Piece(s)Conrad Electronic

320 x 240 Pixel

USB A (USB 2.0)

+650 °C

27 Hz

40 mK

320 x 240 Pixel

-30 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6,099.00^*

testo 865s IR camera Calibrated to (DAkkS standards) -20 up to +280 °C 160 x 120 Pixel 9 Hz incl. data analysis software

Item no:2743224

Unavailable

Conrad Electronic

160 x 120 Pixel

USB

+280 °C

9 Hz

100 mK

320 x 240 Pixel

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

testo 865s IR camera Calibrated to (ISO standards) -20 up to +280 °C 160 x 120 Pixel 9 Hz incl. data analysis software

Item no:2743454

Unavailable

Conrad Electronic

160 x 120 Pixel

USB

+280 °C

9 Hz

100 mK

320 x 240 Pixel

-20 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

testo 868s IR camera Calibrated to (DAkkS standards) -30 up to +650 °C 160 x 120 Pixel 9 Hz Built-in digital camera, incl. data analysis software, Wi-Fi

Item no:2743221

Unavailable

Conrad Electronic

160 x 120 Pixel

USB

+650 °C

9 Hz

80 mK

320 x 240 Pixel

-30 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

testo 868s IR camera Calibrated to (ISO standards) -30 up to +650 °C 160 x 120 Pixel 9 Hz Wi-Fi

Item no:2743451

Unavailable

Conrad Electronic

160 x 120 Pixel

USB

+650 °C

9 Hz

80 mK

320 x 240 Pixel

-30 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

testo 871s IR camera -30 up to +650 °C 240 x 180 Pixel 9 Hz Wi-Fi, Built-in digital camera, incl. data analysis software

Item no:2576366

Currently not available

Conrad Electronic

240 x 180 Pixel

USB

+650 °C

9 Hz

80 mK

480 x 360 Pixel

-30 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,375.00^*

Documents & Downloads

Datasheet

Datasheet 2576364 testo 865s IR camera -20 up to +280 °C 160 x 120 Pixel 9 Hz

User & Safety Instructions

User & Safety Instructions 2576364 testo 865s IR camera -20 up to +280 °C 160 x 120 Pixel 9 Hz

Conformity certificate

Conformity certificate 2576364 testo 865s IR camera -20 up to +280 °C 160 x 120 Pixel 9 Hz

Description

The infrared camera Testo 865s offers professional technology and concentrates on functions, which are needed in the daily life of a craftsman. The Testo 865s is an easy to use infrared camera. Optimized for fast and efficient working. With the Testo ScaleAssist function for an optimal setting of the infrared scale in the building thermography and the IFOV-Warner for avoiding measurement errors, you always create the perfect infrared image. The infrared camera Testo 865s can be used for detecting leaks, detecting overheated connections, locating thermal bridges or detecting structural defects. The infrared camera Testo 865s is ideal for applications around the daily maintenance and installation in trade and industry. It enables time-saving quality assurance and ensures reliable production control. The infrared camera Testo 865s fits well in the hand and convinces through intuitive use in modern tile optics. Very good image quality due to high resolution. With the IFOV-Warner the distance to the object to be measured / measuring spot size is determined and the measuring spot is displayed on the thermal image - this prevents measuring errors, because the camera shows you exactly what was to be measured. With the free professional software IRSoft you can analyze your pictures on the PC and create professional reports. Thermal images can be stored in JPEG as required.

This text is machine translated.

Features

Infrared resolution 160 x 120 pixelsWith Testo SuperResolution technology 320 x 240 pixelsAutomatic detection of hot and cold spots19,200 temperature measuring points

Scope of delivery

Carrying case
USB cable
Power supply unit
Lithium-ion rechargeable battery
IRSoft PC software on www.testo.com for free download

System requirements

Windows 10/Windows 8.1

Description

Features

Infrared resolution 160 x 120 pixelsWith Testo SuperResolution technology 320 x 240 pixelsAutomatic detection of hot and cold spots19,200 temperature measuring points
