Name: TOOLCRAFT TO-11186196 Ramp (L x W x H) 908 x 308 x 220 mm
Brand: TOOLCRAFT
SKU: 3728732
Availability: InStock

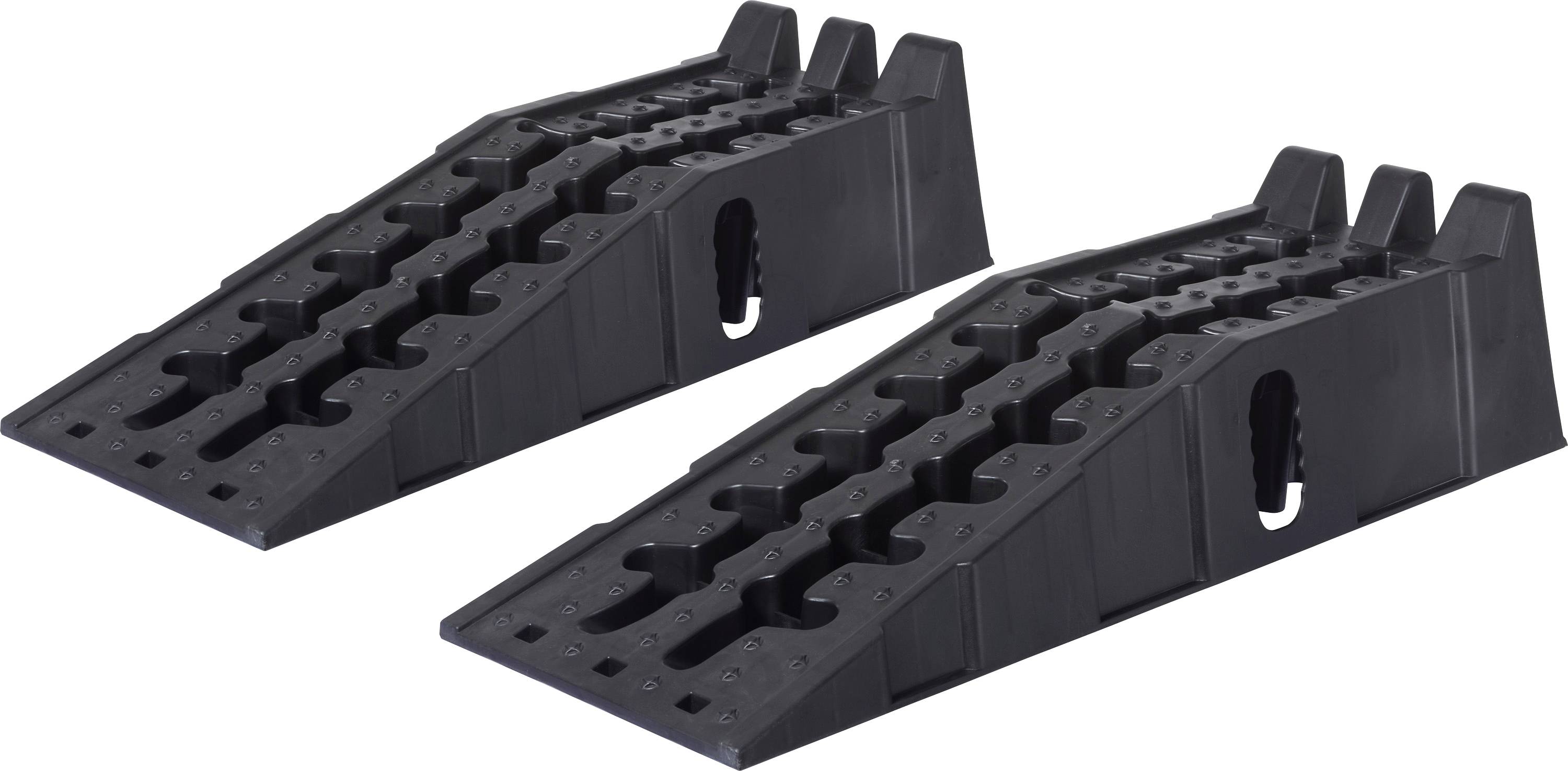

Two black rubber wheel chocks with molded grip holes and sloped ramps, shown side by side on a white background.

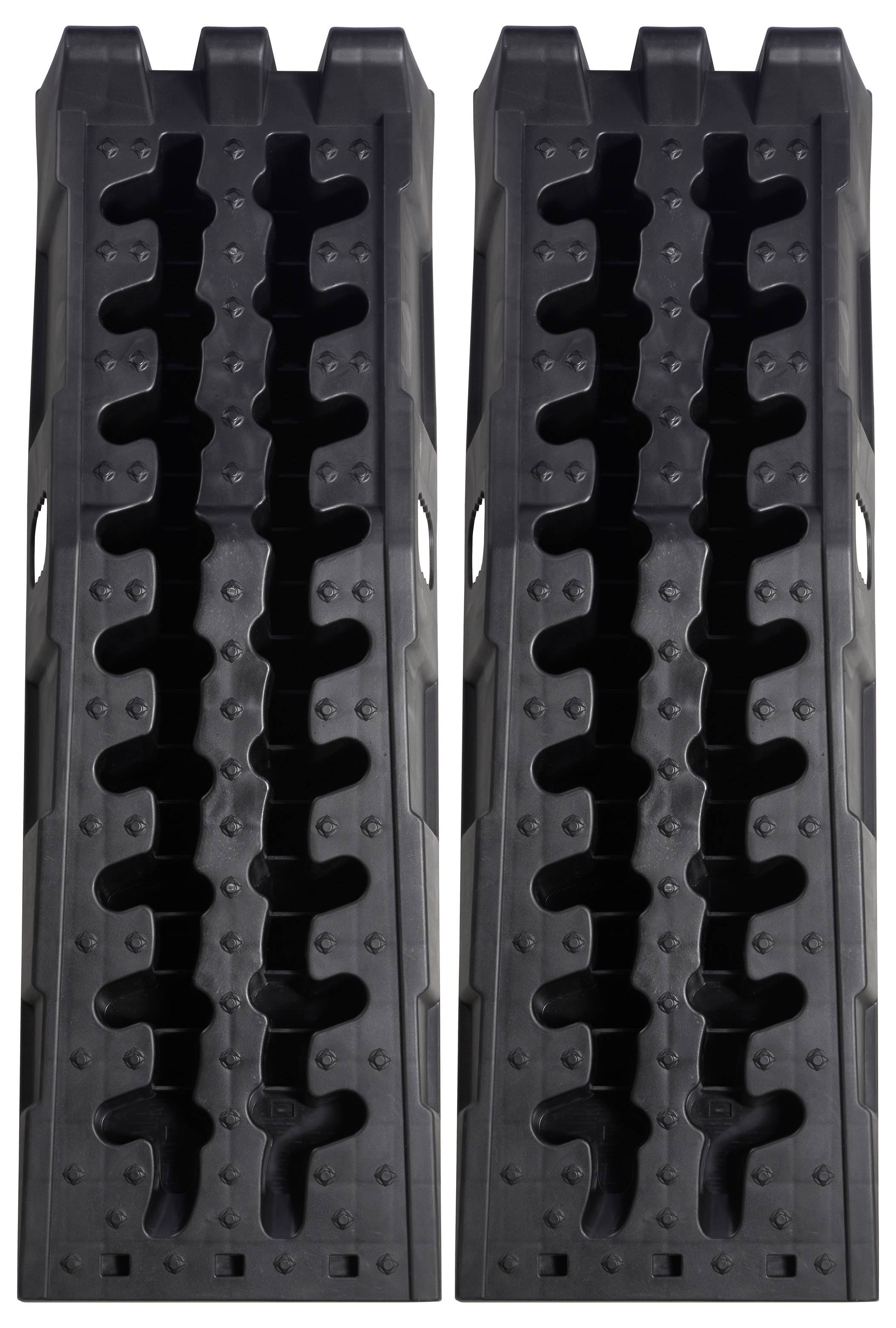

Two black rubber vehicle traction mats with deep tread patterns, shown side by side on a white background.

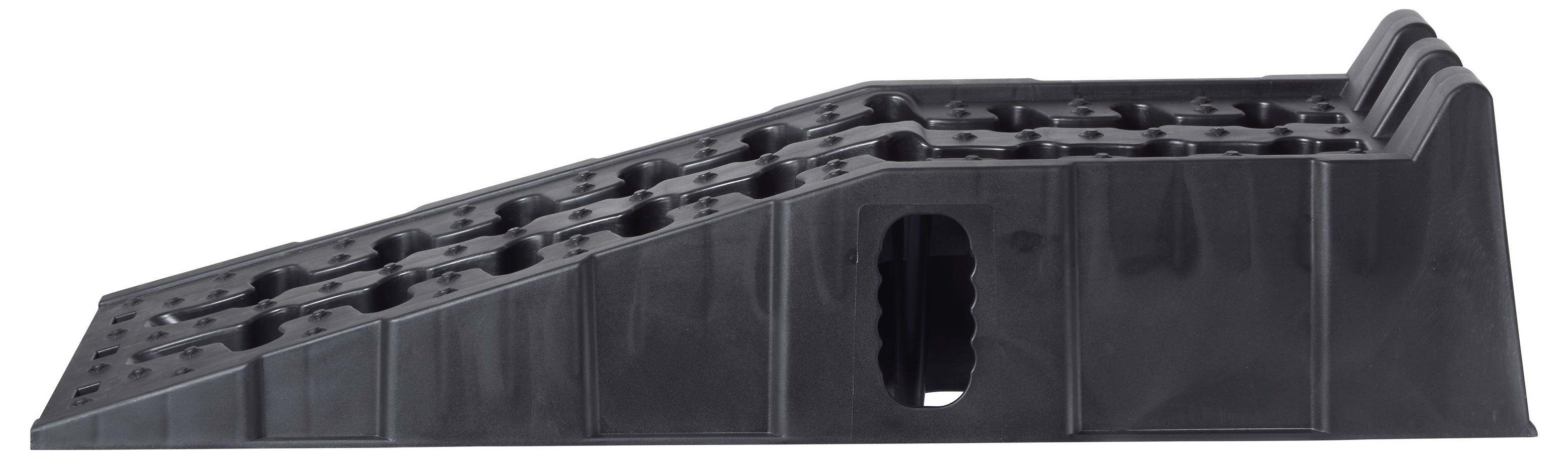

Black plastic wheel chock with a ridged, sloped surface and handle cutout, used to secure a vehicle wheel.

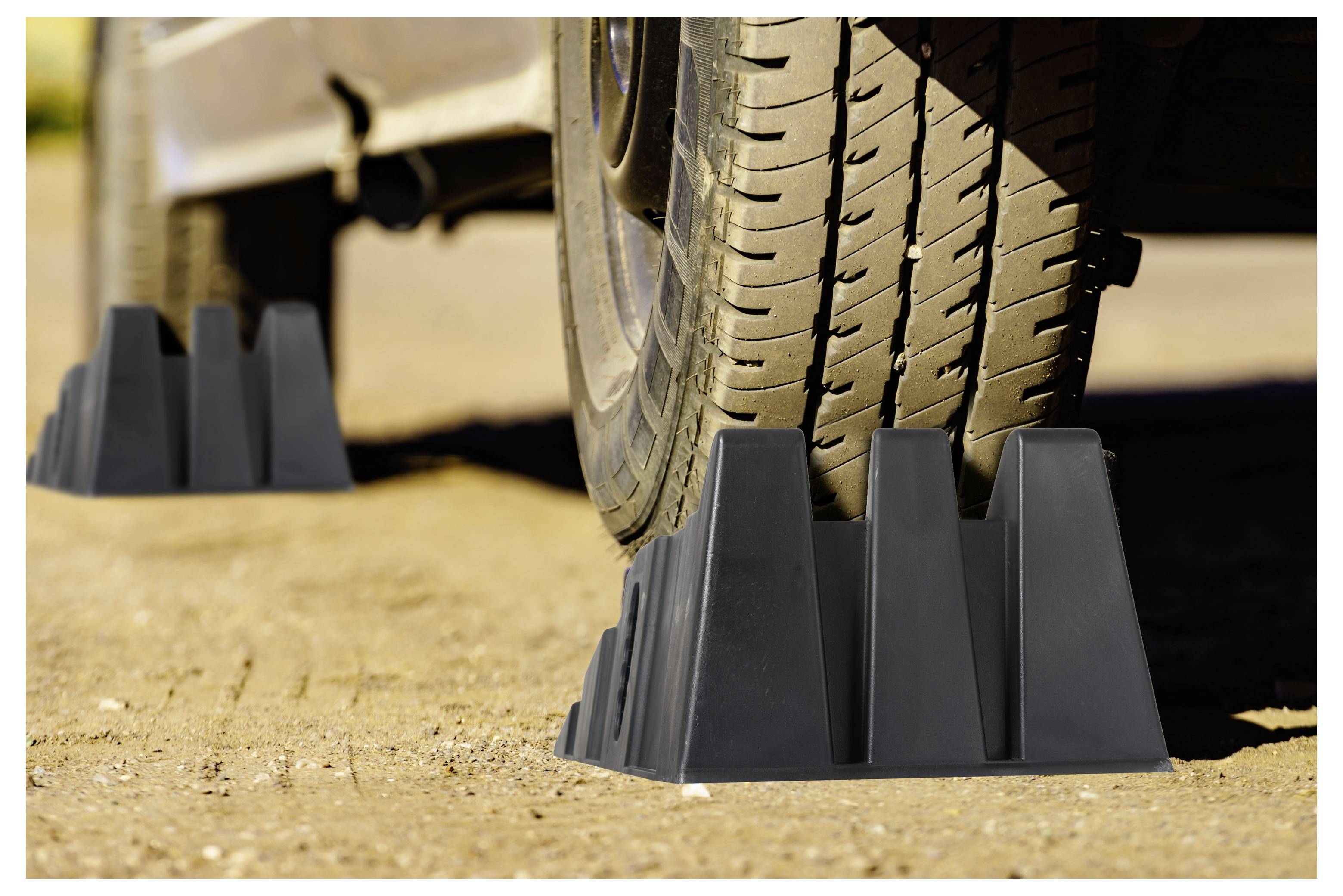

Car tire resting on a black wheel stabilizer on a dirt surface, showing the vehicle is parked and secured.

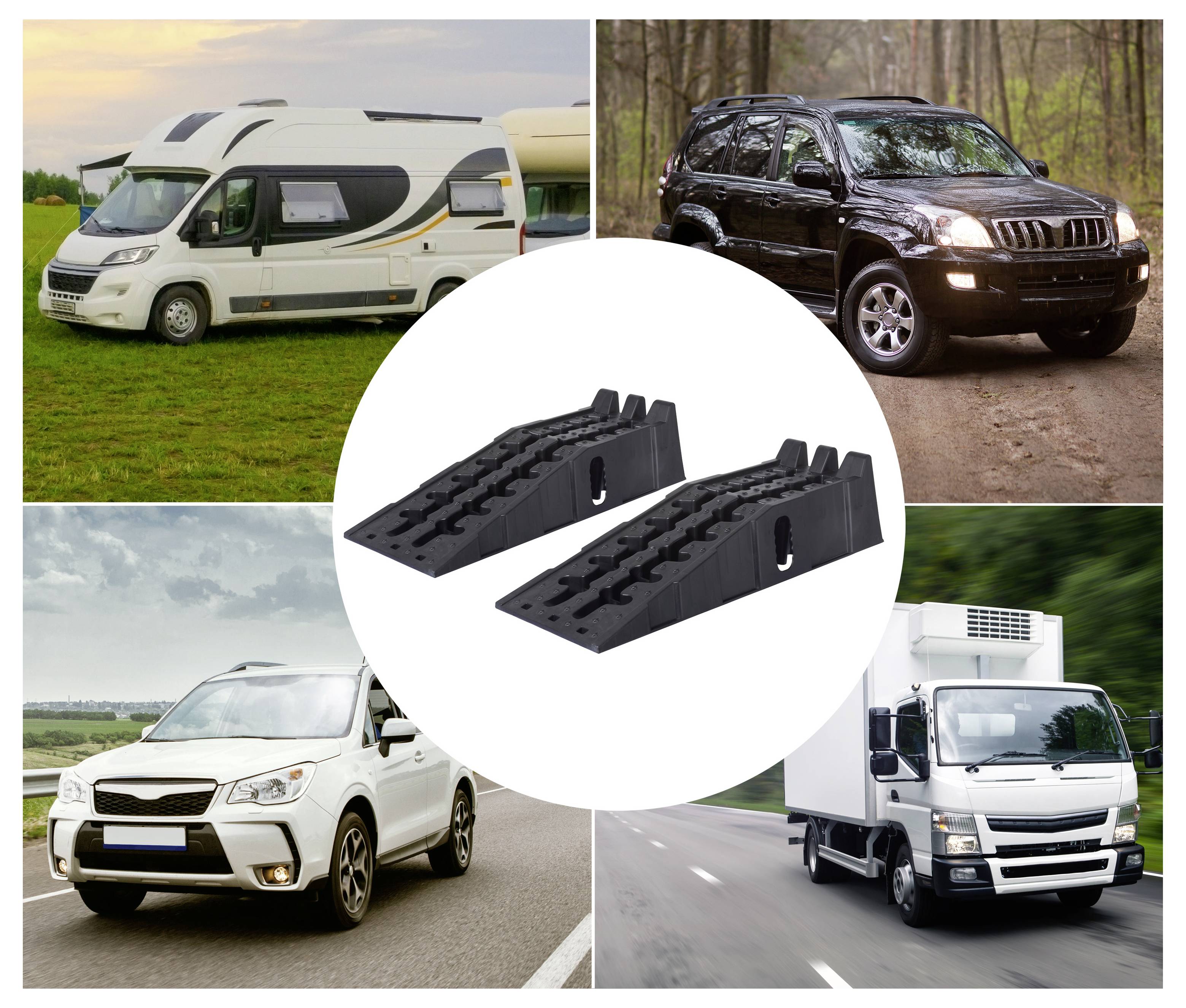

Two black wheel chocks shown in the center, surrounded by images of a motorhome, SUV, car, and truck to indicate vehicle use.

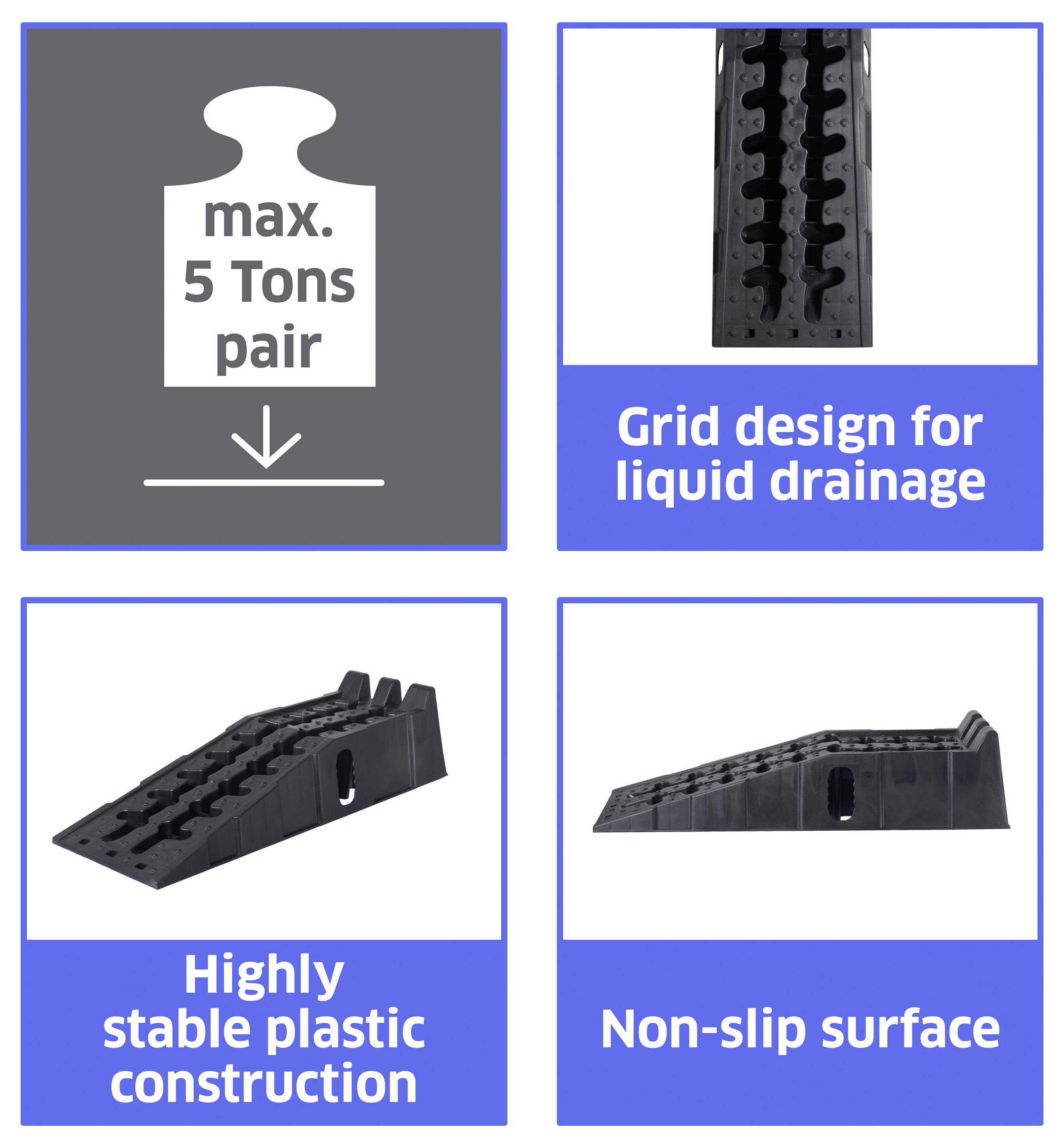

Product features infographic showing a plastic wheel chock pair: max 5 tons, grid drainage design, highly stable construction, non-slip surface.

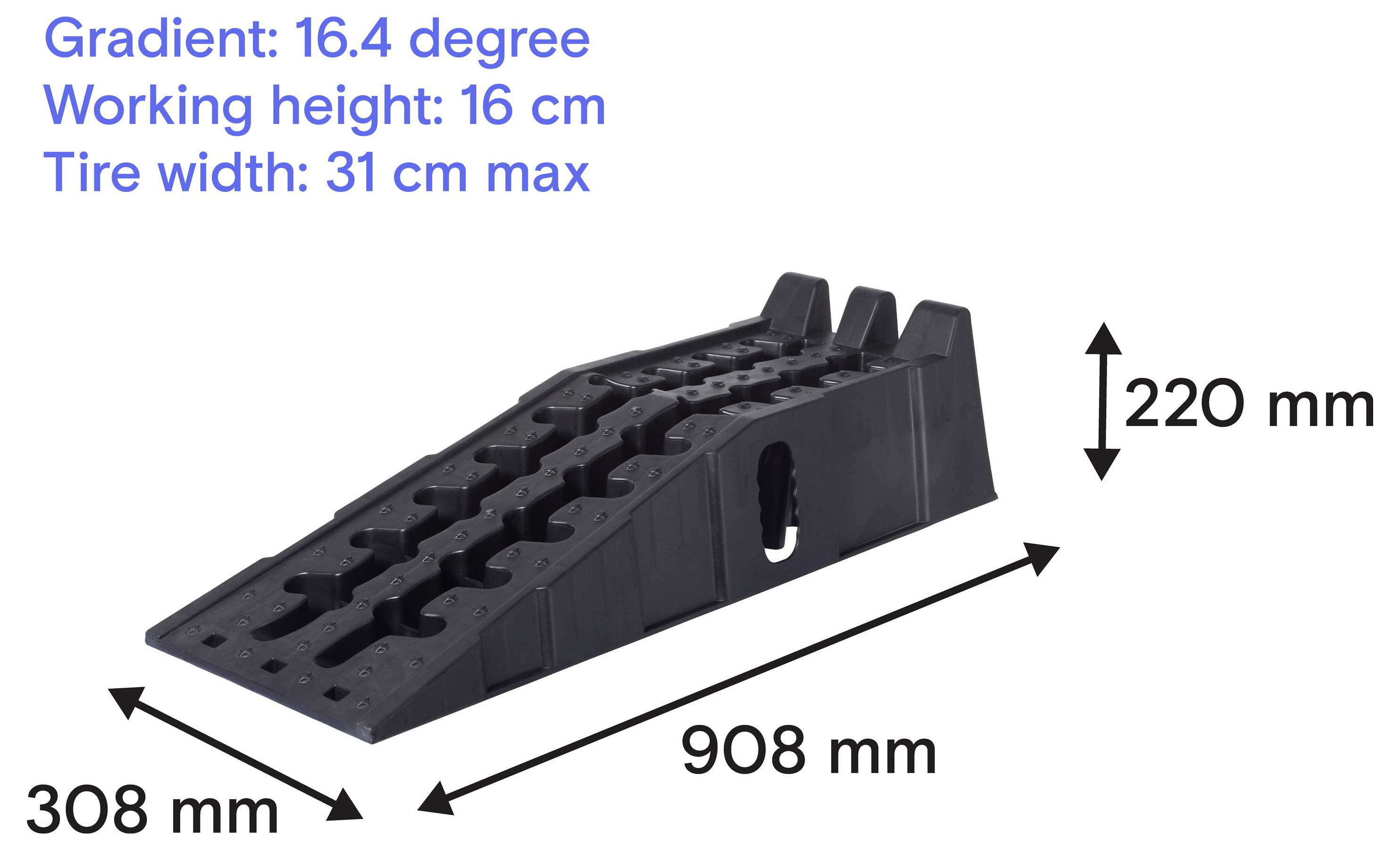

Black rubber vehicle ramp shown in side view with dimensions labeled 908 mm long, 308 mm wide, 220 mm high; notes: gradient 16.4 degrees, working height 16 cm, tire width 31 cm max.

1/7

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

46 Pair

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 2 pc(s))

Pair

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TOOLCRAFT drive-on ramps 5 tons 908x308x220mm 2 pieces

Robust design ideal for heavy-duty vehicles
High load capacity of 5 tons per pair
Versatile for a wide range of applications
Integrated overrun protection

Technical specifications

Dim: (L x W x H) 908 x 308 x 220 mm

Product type: Ramp

Factory colour: Black

Width: 308 mm

Height: 220 mm

Content: 2 pc(s)

Length: 908 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3728732 TOOLCRAFT TO-11186196 Ramp (L x W x H) 908 x 308 x 220 mm

Description

The drive-on ramps are made of highly sturdy plastic and are designed for use in commercial and industrial environments. With a load capacity of up to 5 tons per pair, they are suitable for receiving heavy vehicles and facilitate maintenance or monitoring at the bottom. An integrated crossing protection at the upper end of the ramp supports the exact positioning of the wheels.

Stable construction
The ramps are made of a durable plastic and offer a load capacity of up to 5 tons in pairs. This enables reliable use in corresponding vehicles on the company premises or in the hall.

Safe start-up process and procedure
The surface is skid-proof structured to give the tires the necessary support while driving. In addition, the construction has a lattice design, through which any liquid like water can run down unhindered.

Matched size
With an increase of 16.4 degrees and the suitability for tire widths of up to 31 cm, the ramps can be used for various vehicles. The resulting working height of 16 cm creates the corresponding free space under the vehicle driven on.

This text is machine translated.
