Buy TP-LINK INSIGHT S445(2.8MM) INSIGHT S445(2.8MM) Corded IP CCTV camera

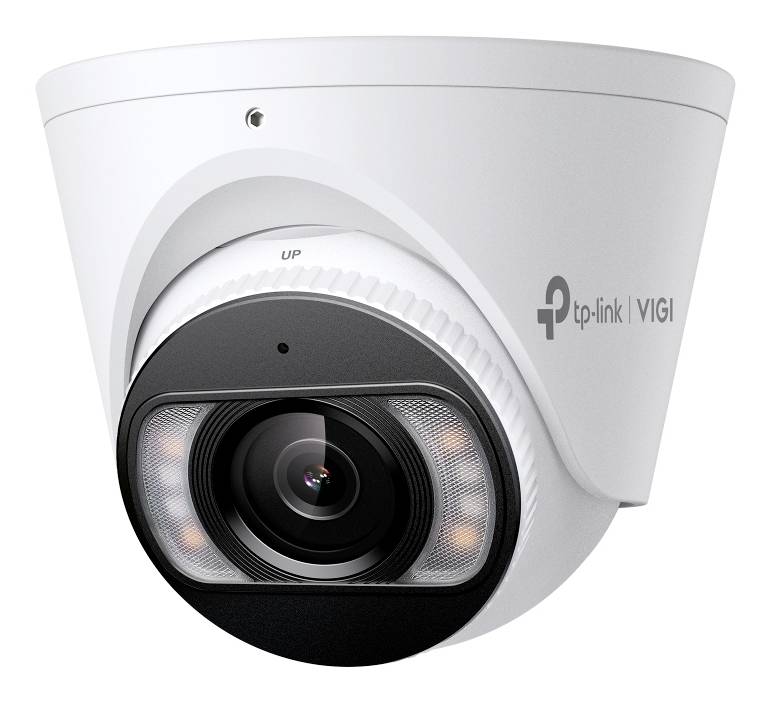

White TP-Link VIGI dome security camera with central lens and infrared LEDs, shown front view on a plain background.

White smoke detector alarm with vented center and test button, shown isolated on a white background.<br>

1/2

Datasheet (PDF)

Fast track dispatch on Mon, 21 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 138.65 / piece)

€ 138.65

plus VAT.

Only 2 Piece(s) available

14 days return policy included

Report legal concerns

Corded IP-Dome camera;TP-LINKINSIGHT S445(2.8MM);INSIGHT S445(2.8MM)Outdoors

Highlights & Details

Outdoor IP security camera
CMOS 25.4 / 2.7 mm (1 / 2.7") 4 MP 2688 x 1520 pixels
Wired Ethernet/LAN
Night vision IR/white
Turret room ceiling Waterproof
IP67 weather proof
480 g

Technical specifications

Supported positioning: Outside
Form factor: Turret
Tilt angle range 0 - 90°
Supported audio formats: G.711 A-law

Product type: CCTV camera

Camera type: Dome camera

Power supply: 12 V / DC
PoE (Power over Ethernet)

Sensor type: CMOS

Focal length: 2,8 mm

App compatibility: Yes

Transfer type: Corded

Light sensitivity (+ IR): 0 lx

Light sensitivity (- IR): 0.005 lx

IR range (max.): 30 m

Used at: Outdoors

Type: microSD card (up to 512 GB)

Width: 111 mm

Height: 83.7 mm

Depth: 111 mm

(Ø): 111 mm

Dim: (Ø x H) 111 mm x 83.7 mm

Weight: 480 g

F-numbers: F1.6

Enclosure material: Metal

Factory colour: White

: IP67

Signal standard: IP

Bluetooth: No

Display resolution: 2688 x 1520 Pixel

Material (details): Metal

Microphone: Yes

Type: IP-security camera / Turret-network camera

10/100/1000 Mbps ports: 1 x

Sensor type: CMOS

Wi-Fi: No

UKCA: yes

Screws included: yes

Operating temperature (T-T): -30 - 60 °C

Weatherproof: yes

Ethernet LAN: yes

Storage relative humidity (H-H): 0 - 95 %

Minimum illumination: 0 Lux

Password protection: yes

Optical sensor size: 25,4 / 2,7 mm (1 / 2.7")

Maximum operating distance: 64 m

Power consumption (Power over Ethernet (PoE)): 12 W

Infrared (IR) cut-off filter: yes

DC-in jack: yes

Fixed focus: yes

Remote viewing: yes

Built-in speaker(s): yes

Web browser: yes

Highlight Compensation (HLC): yes

Digital Wide Dynamic Range (DWDR): yes

Observe distance: 27 m

Detect distance: 64 m

Recognize distance: 13 m

Identify distance: 6 m

Dynamic range: 120 dB

Progressive scan: yes

Web-based management: yes

Mirror: yes

Reset button: yes

Manual: yes

Cloud-managed: yes

Bit rate range: 0 - 64 Kbit/s

Human and vehicle targets classification: yes

Digest authentication: yes

Drilling template included: yes

Maximum aperture number: 1.6

Night vision: yes

Live view: yes

Fixed focal length: 2.8 mm

Built-in siren: yes

Video motion detection: yes

IP address filtering: yes

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 0 - 95 %

Number of microphones: 1

Storage temperature (T-T): -40 - 60 °C

Total megapixels: 4 MP

Back Light Compensation (BLC): yes

Mounting kit: yes

Video recording: yes

HTTPS encryption: yes

Wide Dynamic Range (WDR): yes

Day/night mode: yes

Number of cameras: 1

Power consumption (max): 11 W

Motion sensor: yes

Sample rate: 8 kHz

Documents & Downloads

Datasheet

Datasheet 3808190 TP-LINK INSIGHT S445(2.8MM) INSIGHT S445(2.8MM) Corded IP CCTV camera

User & Safety Instructions

User & Safety Instructions 3808190 TP-LINK INSIGHT S445(2.8MM) INSIGHT S445(2.8MM) Corded IP CCTV camera

Information

Information 3808190 TP-LINK INSIGHT S445(2.8MM) INSIGHT S445(2.8MM) Corded IP CCTV camera

Description

Compact 4-megapixel network turntable camera with a 2.8-mm fixed-lens lens and a light-sensitive 1/2.7-inch progressive scan CMOS sensor for area-wide surveillance. The camera uses modern H.265+ compression for reducing the data stream and offers a dual night vision solution via IR and white light LEDs for color images in darkness. With a dynamic range of 120dB WDR, the backlight situations are precisely balanced. The system is weather-proof according to IP67 and supports the power supply via PoE or 12V DC. An in-built microphone and a loudspeaker permit direct audio communication on the spot, while an integrated micro-SD slot takes up storage media of up to 512 GB for the decentralized recording.

This text is machine translated.

Features

Intelligent Hybrid Night Vision (IR & White Light LEDs)
Integrated two-way audio (microphone & speaker)
Reliable weather protection (IP67)
120dB WDR for extreme light contrast
Local micro SD slot (up to 512 GB); PoE power supply

Scope of delivery

Incl. drilling template
Screws and rawlplugs
Protective sleeve for RJ45 plug
Instructions, cable adapter for inputs and outputs

Hints

No MicroSD card included, no power supply included

System requirements

Windows, iOS, Android
