TP-LINK VIGI NVR1008H VIGI NVR1008H IP Network video recorder
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 129.99 / piece)
€ 129.99
incl. VAT
Only 3 Piece(s) available
Highlights & Details
IP-TP-LINKVIGI NVR1008H;VIGI NVR1008H
- Video input channels: 8 channels
- 1,920 x 1,080 pixels
- HDD interface SATA
- Number of Ethernet LAN ports (RJ-45): 1 1U rack mount
Technical specifications
- Video input channels: 8 channels
- Number of channels played simultaneously: 4 channels
- 80 Mbps input bandwidth
- Output bandwidth 60 Mbit/s.
- Rack capacity: 1U
- Product type
Network video recorder
- App compatibility
Yes
- Width
246.2 mm
- Height
42.6 mm
- Depth
148.2 mm
- Dim
(W x H x D) 246.2 x 42.6 x 148.2 mm
- Weight
578.5 g
- Factory colour
Black
- Signal standard
IP
- Display resolution
1920 x 1080 Pixel
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
2 x
- Memory capacity
0 GB
- Output voltage
12 V
- 10/100/1000 Mbps ports
1 x
- PSU power
18 W
- Wi-Fi
No
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Audio RCA inputs
1
- Audio RCA outputs
1
- DC-in jack
yes
- Number of HDDs supported
1
- Rack mounting
yes
- Maximum storage capacity
0 TB
- Package weight
1.07 kg
Documents & Downloads
Datasheet
Datasheet 3808173 TP-LINK VIGI NVR1008H VIGI NVR1008H IP Network video recorder
User & Safety Instructions
User & Safety Instructions 3808173 TP-LINK VIGI NVR1008H VIGI NVR1008H IP Network video recorder
Description
Security is never shut down

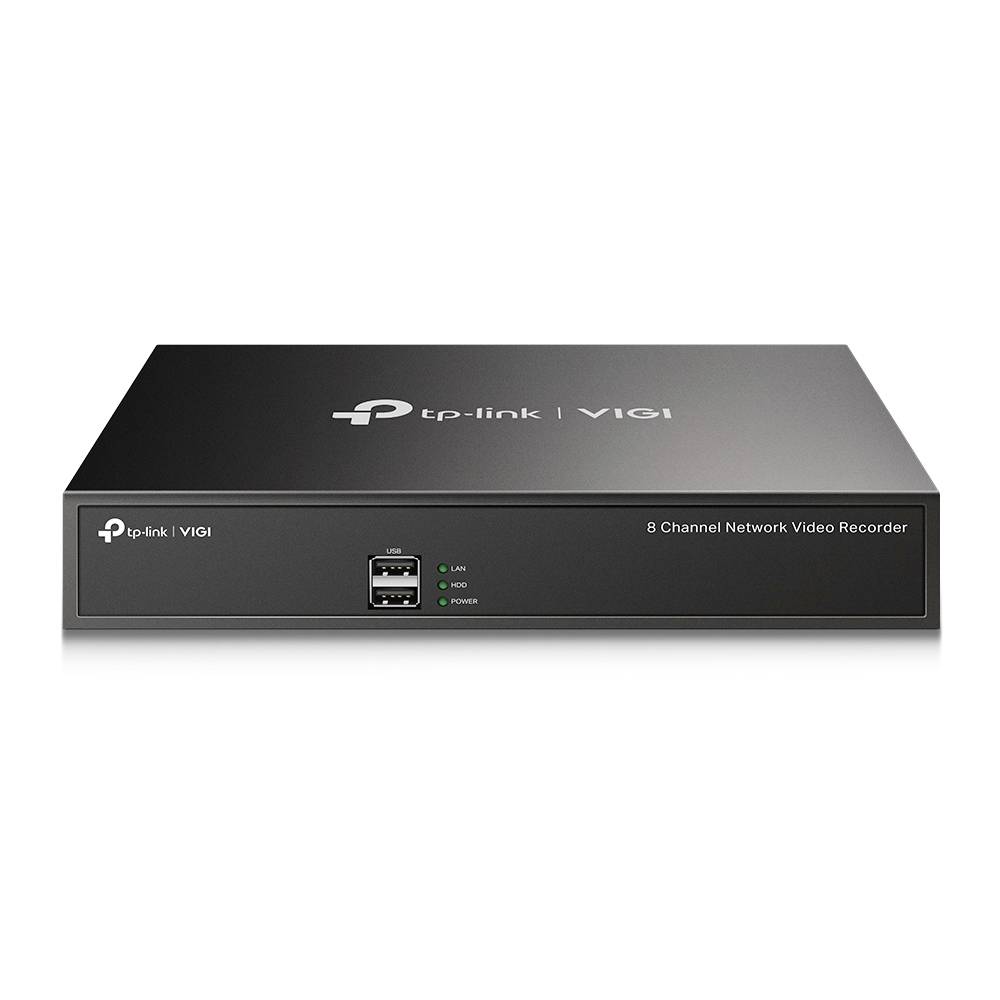

VIGI NVR1008H 8-channel network video recorder
VIGI NVR introduction
The VIGI network video recorder coordinates with camera systems to help you view, store, and play videos.
Security for every hour and every day.
24/7 continuous recording
Automatically stores up to 10 TB of film material from connected cameras to secure your data for quick and easy access.
All from any angle on a screen.
8-channel real-time live view
A sharp image resolution of up to 5 MP and a 8-channel display see to it that you can capture every detail from every viewing angle.
Checking records is faster than ever.
Simultaneous playback
† Feed up to 4 cameras simultaneously, increase playback speed and find events in the video plan to easily check the footage.
Keep everything in the view even while traveling.
Remote Monito
The dedicated VIGI APP was developed for remote monitoring and offers simplicity and convenience.
No more compatibility lists
ONVIF ensures compatibility
Simply add VIGI IPCs and other brands and build a powerful and varied network with barrier-free compatibility.
Up to 720 days of locally stored footage.
1 HDD (up to 10 TB)
Stores up to 10 TB (720 days video) on a SATA hard disk and protects your data storage locally.
Greet your visitors through the camera.
Two-way audio
With voice intercom support, you can have two-way conversations while you watch your feed from anywhere. Suitable for administration.
More bandwidth for more cameras.
80 Mbit/s video access bandwidth
High video access bandwidth ensures that your NVR connects more high-resolution cameras.
Based on laboratory tests with VIGI cameras, VIGI NVR can connect up to eight 4 MP cameras.
Manage everything centrally.
Run your business with peace and quiet.
The professional monitoring system VIGI from TP-LINK is designed to protect the company you have worked hard at any time and anywhere. Our outstanding features, reliable quality guarantees and simplified installation combine to ensure the security of your business.
This text is machine translated.
VIGI NVR1008H 8-channel network video recorder
VIGI NVR introduction
The VIGI network video recorder coordinates with camera systems to help you view, store, and play videos.
Security for every hour and every day.
24/7 continuous recording
Automatically stores up to 10 TB of film material from connected cameras to secure your data for quick and easy access.
All from any angle on a screen.
8-channel real-time live view
A sharp image resolution of up to 5 MP and a 8-channel display see to it that you can capture every detail from every viewing angle.
Checking records is faster than ever.
Simultaneous playback
† Feed up to 4 cameras simultaneously, increase playback speed and find events in the video plan to easily check the footage.
Keep everything in the view even while traveling.
Remote Monito
The dedicated VIGI APP was developed for remote monitoring and offers simplicity and convenience.
No more compatibility lists
ONVIF ensures compatibility
Simply add VIGI IPCs and other brands and build a powerful and varied network with barrier-free compatibility.
Up to 720 days of locally stored footage.
1 HDD (up to 10 TB)
Stores up to 10 TB (720 days video) on a SATA hard disk and protects your data storage locally.
Greet your visitors through the camera.
Two-way audio
With voice intercom support, you can have two-way conversations while you watch your feed from anywhere. Suitable for administration.
More bandwidth for more cameras.
80 Mbit/s video access bandwidth
High video access bandwidth ensures that your NVR connects more high-resolution cameras.
Based on laboratory tests with VIGI cameras, VIGI NVR can connect up to eight 4 MP cameras.
Manage everything centrally.
Run your business with peace and quiet.
The professional monitoring system VIGI from TP-LINK is designed to protect the company you have worked hard at any time and anywhere. Our outstanding features, reliable quality guarantees and simplified installation combine to ensure the security of your business.
This text is machine translated.
Features
- Continuous recording around the clock: Automatically stores up to 10 TB of film material from connected cameras, in order to secure your data for a quick and easy access
- 8-channel real-time live view: Sharp picture resolution with up to 5 MP and a 8-channel display see to it that you capture every detail from every viewing angle
- Simultaneous playback: Play back footage from up to 4 cameras† at the same time, increase playback speed and search for events in the video program to easily check the footage
- Remote monitoring: The dedicated VIGI APP was developed for remote monitoring and allows easy and convenient monitoring
- H.265+: Without using additional bandwidth, the camera transmits compressed, crystal-clear videos to save space, relieve the network and reduce surveillance costs without compromising image quality
- Ensure ONVIF compatibility**: Accessible compatibility means you can easily add VIGI and other brands of IPCs to build a powerful and versatile network
- 1 HDD interface (up to 10 TB)△: Store up to 10 TB (720 days* video) on a SATA-hard disk and back up your data locally
- Two-way audio: Thanks to the intercom support, you can have two-way conversations while you view your material from anywhere. Suitable for management
- 80 Mbps video access bandwidth: High video access bandwidth ensures your NVR can connect more high resolution cameras. Based on laboratory tests with VIGI cameras, the VIGI NVR can connect up to eight 4MP cameras
Scope of delivery
- Inclusive of power supply with power cable
- USB mouse
- 19" rack holder, screws
- Rubber buffer for housing
- User manual.
- HDD-cable
- CCTV sign
Hints
Hard disk not included
System requirements
- Windows, iOS, Android
