Name: TracoPower TMR 6-1221 DC/DC converter (print) 12 V DC 5 V DC 600 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Brand: TracoPower
SKU: 1086520
Price: 28.99 EUR
Availability: InStock

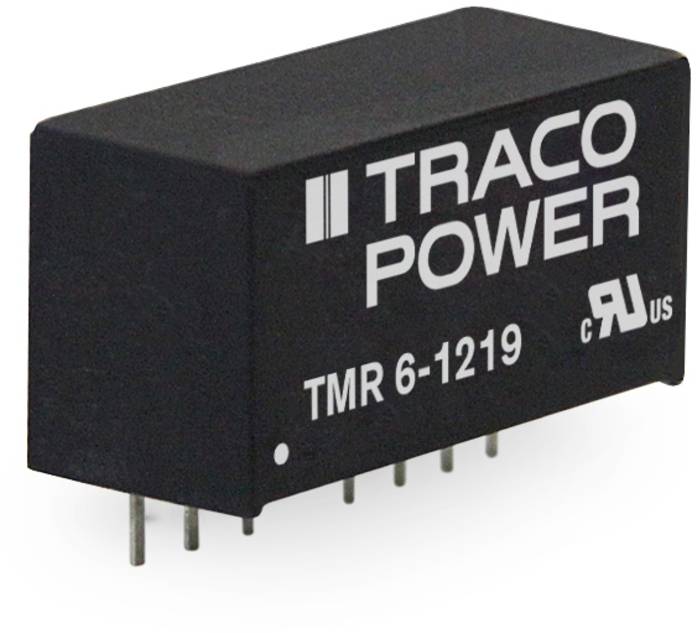

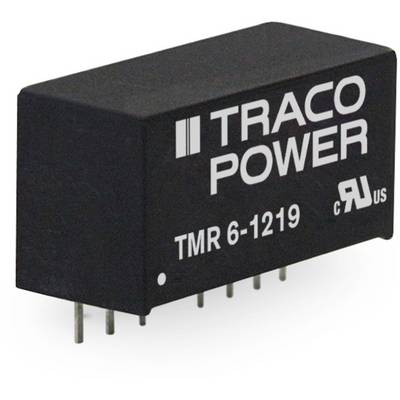

'TRACO POWER TMR 6-1219' voltage converter with multiple pins and labelling, suitable for electronic applications.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 28.99 / piece)

€ 28.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

DC-DC Converter, 6 W, 12 V/±5 V

Highest power density in ultra-compact SIP-8 package
Wide 2:1 input voltage range
Smallest footprint 6W converter
Full SMD design
Temperature range –40° to +65°C
High efficiency
Indefinite short-circuit protection
I/O isolation 1500 VDC
Remote On/Off control
Fully RoHS compliant
3-year product warranty

Technical specifications

Input voltage range: 9-18 V
Output voltage: ±5 V
Output current: ±600 mA
Power: 6 Watt
Efficiency: 82 %
Regulation: Input variation: 0.2 % max., Load variation (0-100%): 1.0 % max
Ripple and noise: <50 mVpk-pk (20 MHz bandwidth)
Short circuit protection: indefinite, automatic recovery
Operating temperature range:-40°C to +65°C (without derating)
Safety standards: UL/cUL 60950-1, IEC/EN 60950-1

Product type: DC/DC converter (print)

Type: TMR 6-1221

Nominal voltage: 12 V DC

Min. input voltage: 18 V DC

Input voltage (max.): 75 V DC

No. of outputs: 2 x

Output voltages: 5 V DC

Max. output current: 600 mA

Output current (max.) - rounded: 600 mA

Efficiency (max.): 82 %

: 6 W

Enclosure: SIL 8

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 65 °C

Dim: (L x W x H) 9.1 x 21.8 x 15.3 mm

Height: 15.3 mm

Length: 9.1 mm

Width: 21.8 mm

Weight: 4.8 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1086520 TracoPower TMR 6-1221 DC/DC converter (print) 12 V DC 5 V DC 600 mA 6 W No. of outputs: 2 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1086520 TracoPower TMR 6-1221 DC/DC converter (print) 12 V DC 5 V DC 600 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1086520 TracoPower TMR 6-1221 DC/DC converter (print) 12 V DC 5 V DC 600 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Description

The TMR-6 series is a new family of isolated 6W dc-dc converter modules with regulated output, featuring wide 2:1 input voltage ranges. The product comes in a ultra-compact SIP-8 plastic package with a small footprint occupying only 2.0 cm2 (0.3 square in.) of board space. An excellent efficiency allows –40° to +65°C operation temperatures. Further features include remote On/Off control and continuous short circuit protection. The very compact dimensions of these converters make them an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics.
