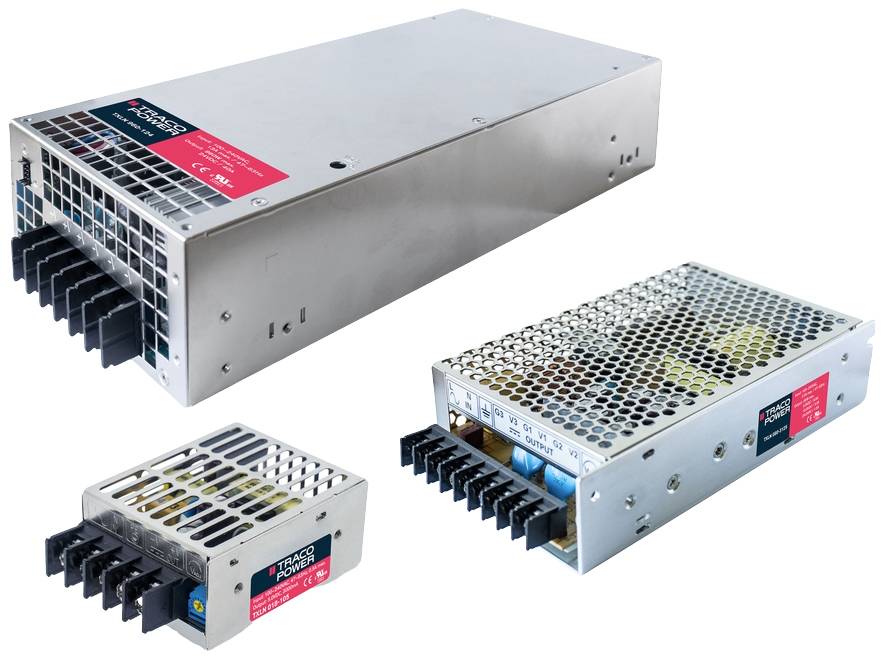

TracoPower TXLN 080-3125 AC/DC PSU module (+ enclosure) 5 V DC 8 A 80 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 83.99 / piece)
€ 83.99
incl. VAT
14-day return policy included
Highlights & Details
AC/DC PSU Components
- Output 5 V DC / 8 A
- Power 80 W
- Screw terminal
Technical specifications
- Product type
AC/DC PSU module (+ enclosure)
- Input voltage (max.)
264 V AC
- Max. output current
8 A
- Output current (max.) - rounded
8 A
- Min. input voltage
88 V AC
- Dim
(L x W x H) 159.0 x 95.0 x 38.0 mm
- Output voltage (max.)
5 V DC
- Connection
Screw terminal
80 W
- No. of outputs
3 x
- Type
closed
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
50 °C
- Operating temperature (min.)
-20 °C
- Weight
460 g
- Width
95.0 mm
- Height
38.0 mm
- Length
159.0 mm
- Type
TXLN 080-3125
- MTBF
232000 h
- Output current 2 (max.)
3.50 A
- Output current 3 (max.)
1.50 A
- Output current (min.)
0 mA
- Output voltage 2 (max.)
12 V DC
- Output voltage 2 (min.)
12 V DC
- Output voltage 3 (max.)
24 V DC
- Output voltage 3 (min.)
24 V DC
- Output voltage (min.)
5 V DC
- PFC
No
