Name: TracoPower TXM 075-115 SMPSU 16.5 V DC 5 A 75 W
Brand: TracoPower
SKU: 1083077
Availability: InStock

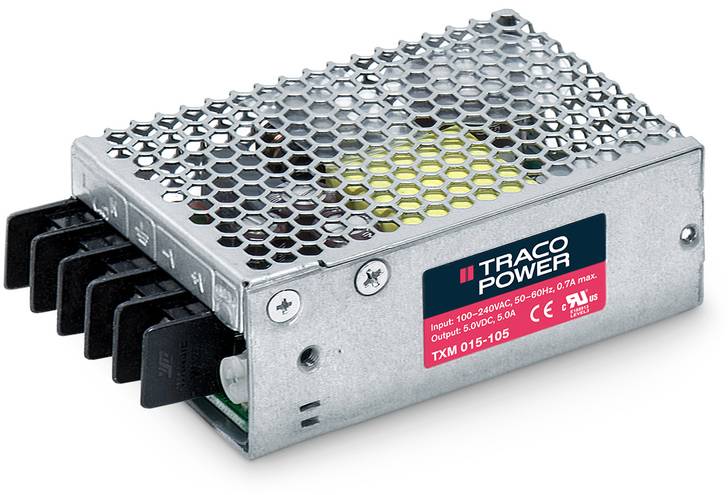

Metal enclosure of a Traco Power power supply with ventilation slots and identification label on the side.

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

AC-DC power supply, 75 W, 15 V/5.0 A

Very compact metal cased power supplies
Cost optimized design
High operating temperature up to 70°C
Low no load power consumption <0.5W up to 75 W units
Screw terminal block
No internal fan up to 150 W models
Universal input AC input full range
Withstand 300 VAC surge input for 5 s
Adjustable output voltage
3-year product warranty

Technical specifications

Input voltage range: 90-264 VAC
Output voltage range (adjustable): 14.2-16.5 VDC
Output current: 5.0 A
Power: 75 W
Efficiency: 86 % (at 230 VAC)
Regulation: Input variation: 0.5 % max., Load variation (10-100 %): 2.0 % max
Over load protection mode: constant power, automatic recovery (Hiccup mode)
Over voltage protection: 105-150 % of Vout norm
Operating temperature range: see datasheet, Derating: see datasheet
I/O isolation: 3000 VAC (60 s)
Safety standards: cUL/UL 60950-1,IEC/EN 60950-1, CB scheme

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

Min. input voltage: 90 V AC

Dim: (L x W x H) 99 x 129 x 38 mm

Output voltage (max.): 16.5 V DC

Connection: Screw terminal

: 75 W

Type: closed

Weight: 380 g

Width: 129 mm

Height: 38 mm

Length: 99 mm

Type: TXM 075-115

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Power

Output current (max.) - rounded

Product type

Output voltage (max.)

Min. input voltage

TracoPower TXM 075-115 SMPSU 16.5 V DC 5 A 75 W

Item no:1083077

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

This article

75 W

5 A

SMPSU

16.5 V DC

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 61.99^*

TracoPower TXM 015-103 SMPSU 3.6 V DC 4 A 15 W

Item no:1083055

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

15 W

4 A

SMPSU

3.6 V DC

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

TracoPower TXM 015-112 SMPSU 13.2 V DC 1.3 A 15 W

Item no:1083057

Fast track dispatch on Wed 14 Oct

11 Piece(s)Conrad Electronic

15 W

1.3 A

SMPSU

13.2 V DC

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

TracoPower TXM 015-115 SMPSU 16.5 V DC 1 A 15 W

Item no:1083058

Fast track dispatch on Wed 14 Oct

6 Piece(s)Conrad Electronic

15 W

1 A

SMPSU

16.5 V DC

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

TracoPower TXM 025-103 SMPSU 3.6 V DC 5 A 25 W

Item no:2789985

Available soon

Conrad Electronic

25 W

5 A

SMPSU

3.6 V DC

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 33.99^*

TracoPower TXM 025-105 SMPSU 5.5 V DC 5 A 25 W

Item no:1083061

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

25 W

5 A

SMPSU

5.5 V DC

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 38.99^*

TracoPower TXM 025-112 SMPSU 13.2 V DC 2.1 A 25 W

Item no:1083062

Fast track dispatch on Wed 14 Oct

3 Piece(s)Conrad Electronic

25 W

2.1 A

SMPSU

13.2 V DC

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28.99^*

TracoPower TXM 025-124 SMPSU 26.4 V DC 1.1 A 25 W

Item no:1083064

Available soon

Conrad Electronic

25 W

1.1 A

SMPSU

26.4 V DC

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 37.99^*

TracoPower TXM 035-105 SMPSU 5.5 V DC 6 A 35 W

Item no:2789986

Available soon

Conrad Electronic

35 W

6 A

SMPSU

5.5 V DC

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 41.99^*

TracoPower TXM 035-112 SMPSU 13.2 V DC 3 A 35 W

Item no:1083066

Fast track dispatch on Wed 14 Oct

4 Piece(s)Conrad Electronic

35 W

3 A

SMPSU

13.2 V DC

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 34.99^*

Documents & Downloads

Datasheet

Datasheet 1083077 TracoPower TXM 075-115 SMPSU 16.5 V DC 5 A 75 W

User & Safety Instructions

User & Safety Instructions 1083077 TracoPower TXM 075-115 SMPSU 16.5 V DC 5 A 75 W

Warranty Terms

Warranty Terms 1083077 TracoPower TXM 075-115 SMPSU 16.5 V DC 5 A 75 W

Description

The TRACOPOWER TXM series is a family of encased power supplies designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, they are easy to install in any equipment. There are 40 models with single output voltages from 3.3 VDC to 48 VDC in 9 power ranges from 15 W to 320 W. These power supplies have universal input and comply with European EMC standards and the Low Voltage Directive (LVD).
