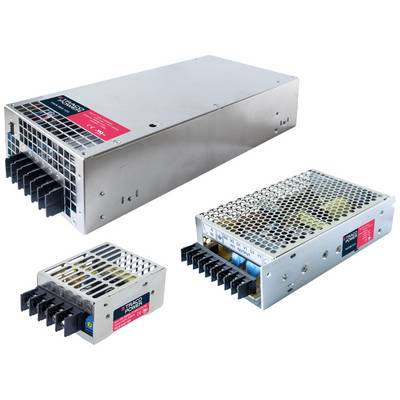

TracoPower TXLN 320-124 AC/DC PSU module (+ enclosure) 24 V DC 13.4 A 320 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Highlights & Details
AC/DC PSU Components
- Output 24 V DC / 13.4 A
- Power 320 W
- Screw terminal
Technical specifications
- Product type
AC/DC PSU module (+ enclosure)
- Input voltage (max.)
264 V AC
- Max. output current
13.4 A
- Output current (max.) - rounded
13.4 A
- Min. input voltage
85 V AC
- Dim
(L x W x H) 222.2 x 115.0 x 30.0 mm
- Output voltage (max.)
24 V DC
- Connection
Screw terminal
320 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
50 °C
- Operating temperature (min.)
-30 °C
- Weight
850 g
- Width
115.0 mm
- Height
30.0 mm
- Length
222.2 mm
- Type
TXLN 320-124
- MTBF
175900 h
- Output current (min.)
0 mA
- Output voltage (min.)
24 V DC
- PFC
Yes
