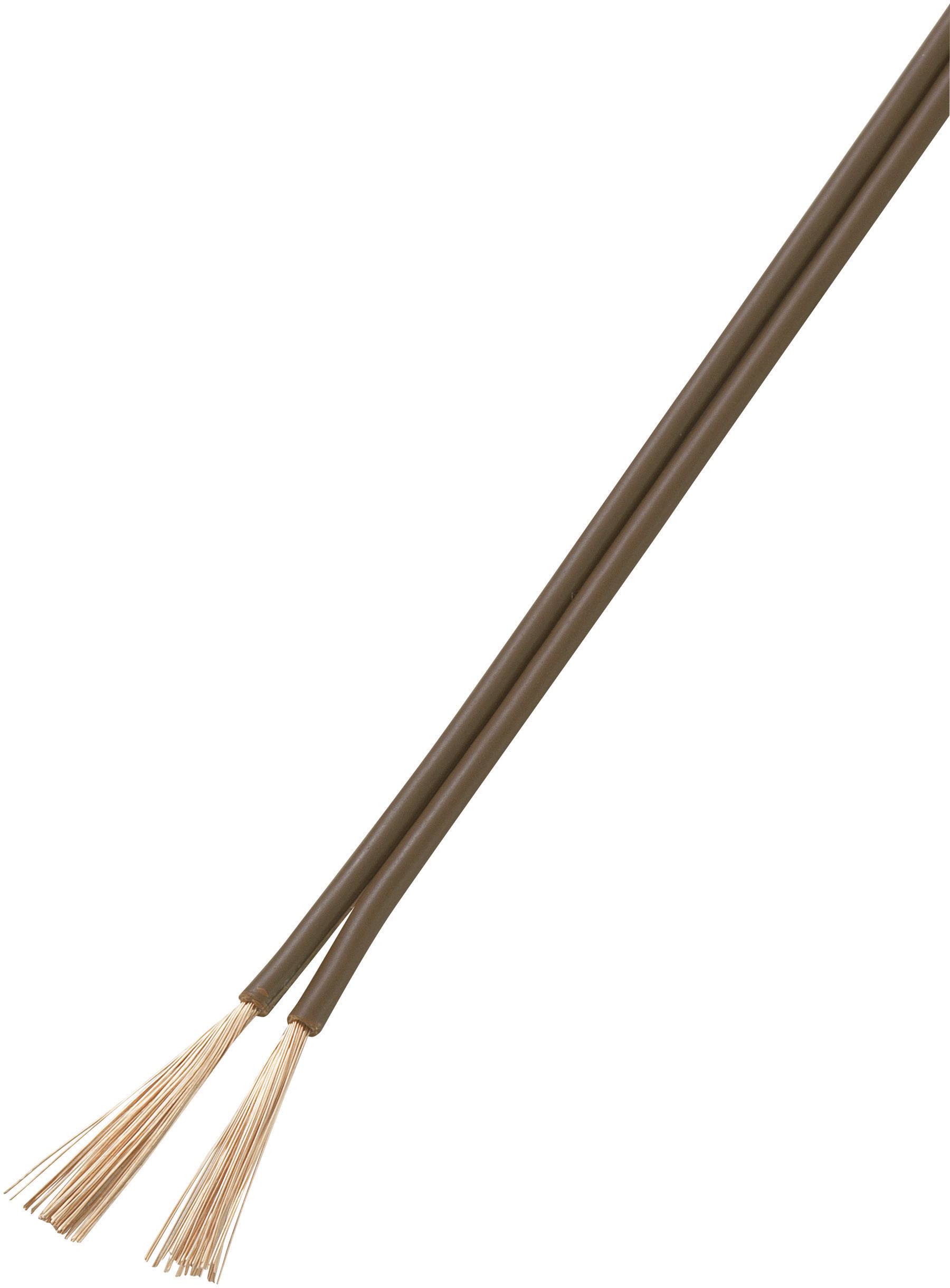

TRU COMPONENTS 93030c531 Strand 2 x 0.75 mm² Brown 25 m
EAN:
Part number:
Item no:
No. of leads
2 x
Cross section (each core)
0.75 mm²
Cable features
CCAW
Flexible
Flat
Product type
Strand
Cross section
2 x 0.75 mm²
Datasheet (PDF)
Technical specifications
- Wire identification by white bar.
- No. of leads
2 x
- Cross section (each core)
0.75 mm²
- Cross section
2 x 0.75 mm²
- Cable features
CCAW
Flexible
Flat
- Width
4.5 mm
- Height
2.3 mm
- Factory colour
Brown
- Content
25 m
- Nominal voltage
50 V DC
75 V AC
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Manufacturer part #
93030c531
- Insulation material
PVC
- Core layout
27 x 0.19 mm
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+70 °C
- Type
93030c531
- Product type
Strand
Documents & Downloads
Datasheet
Datasheet 1484679 TRU COMPONENTS 93030c531 Strand 2 x 0.75 mm² Brown 25 m
User & Safety Instructions
User & Safety Instructions 1484679 TRU COMPONENTS 93030c531 Strand 2 x 0.75 mm² Brown 25 m
Description
For connection of low-power electrical devices (radios, table lamps, clocks, etc.) with very low mechanical demands in domestic situations and where permitted in the corresponding device regulations. The cable can also be used as speaker cables. 6 mm² is particularly suited for connection of hifi speakers. The cable is not suitable for the connection of cooking and heating equipment or for use outdoors.
CCA describes bi-metallic single and multi-wired lines/cables that are copper-plated with an aluminium core for high-frequency usage areas.
Specification explanation:
The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases.
This text is machine translated.
CCA describes bi-metallic single and multi-wired lines/cables that are copper-plated with an aluminium core for high-frequency usage areas.
Specification explanation:
The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases.
This text is machine translated.
Scope of delivery
- Coil (25 m).
