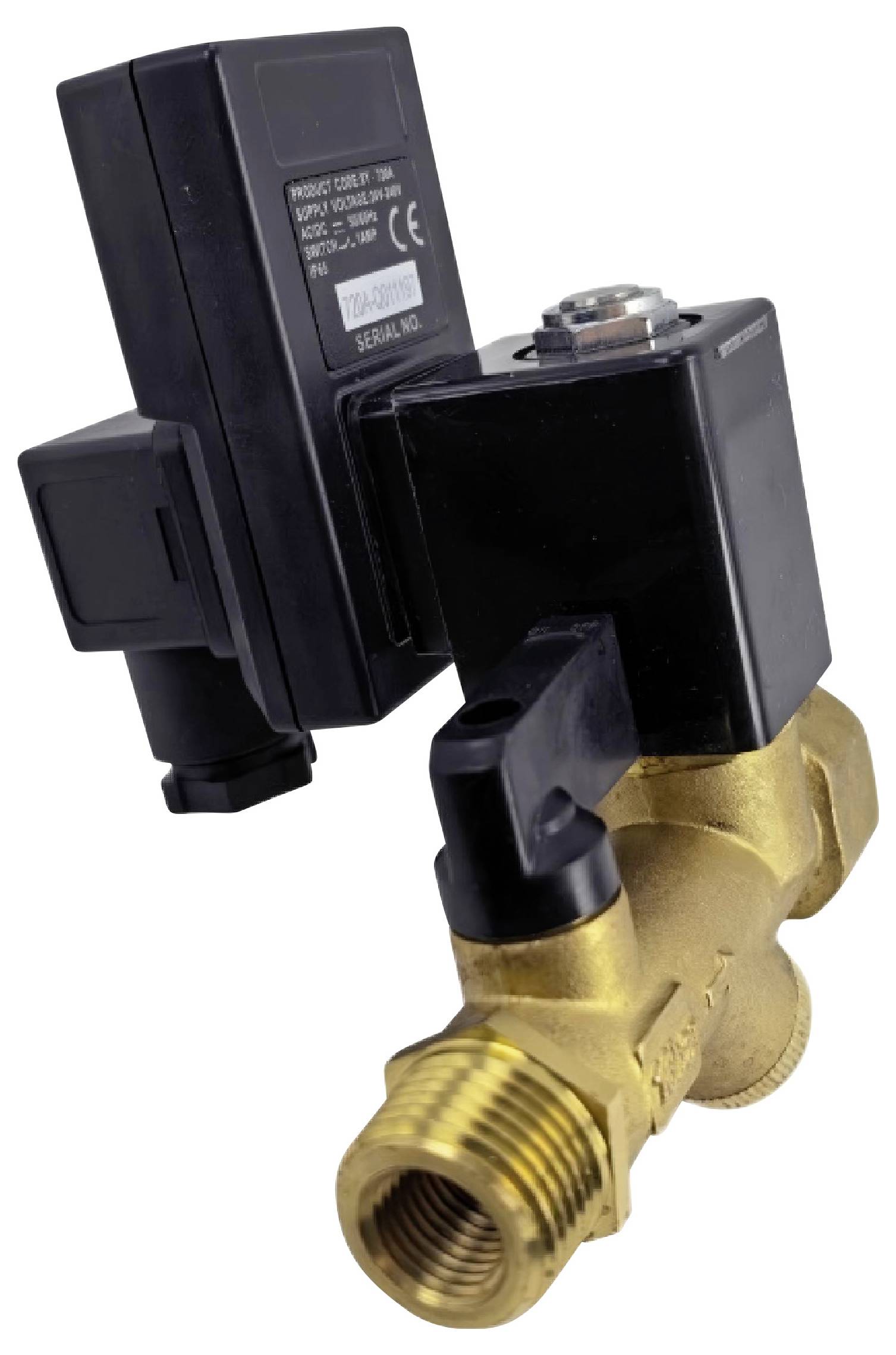

TRU COMPONENTS Directly actuated valve TC-14215428 TC-NT-728A-04/230VAC 230 V AC G 1/2 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 37.99 / piece)
€ 37.99
incl. VAT
14-day return policy included
Highlights & Details

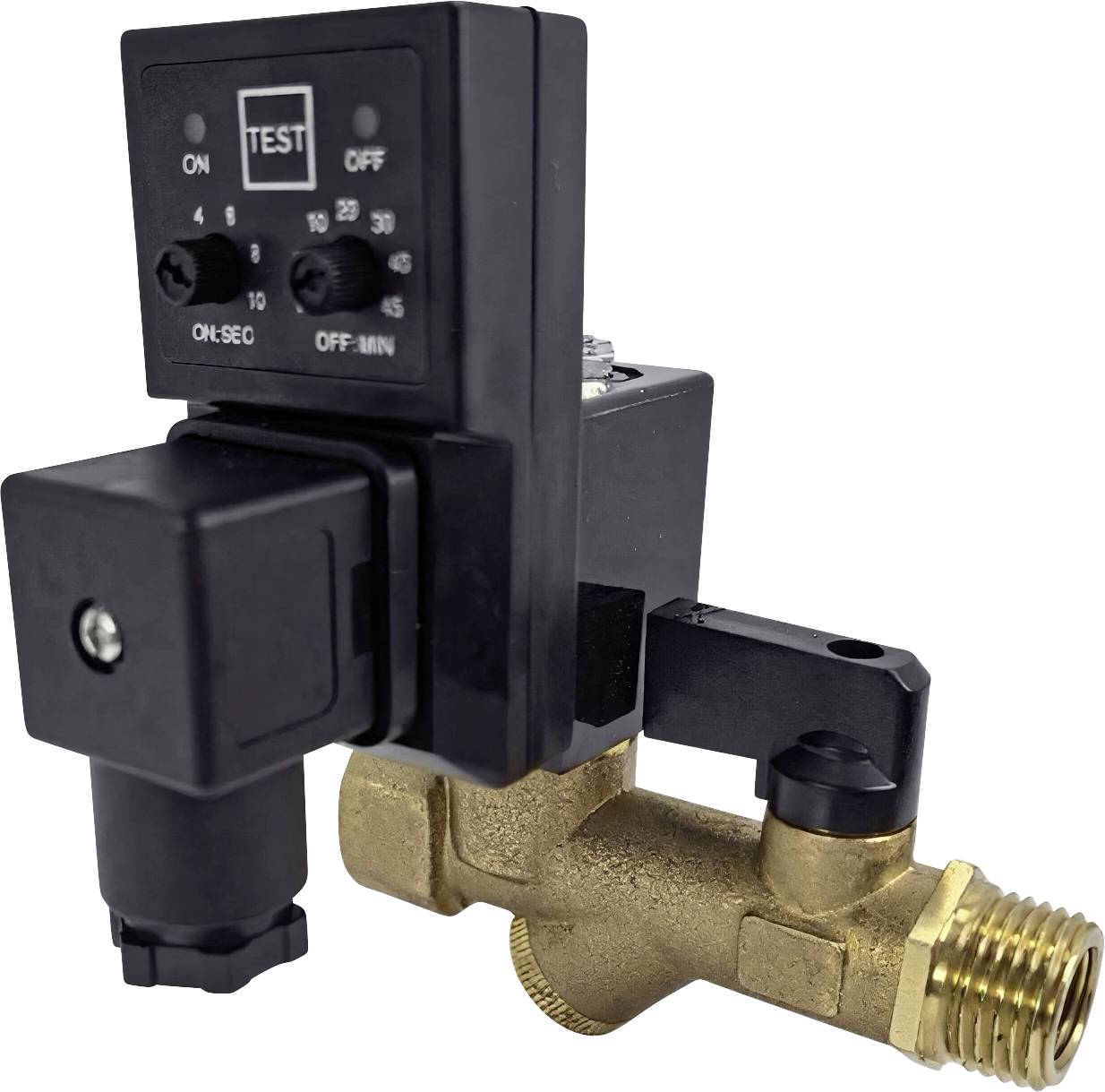

Directly controlled valve, time-controlled, 1/2", NC, 230V/AC 0-16bar
- Port size: G1/2
- Operating voltage: 230 V AC
- Max. pressure: 16 bar
- On/Off timer and Strainer
Technical specifications

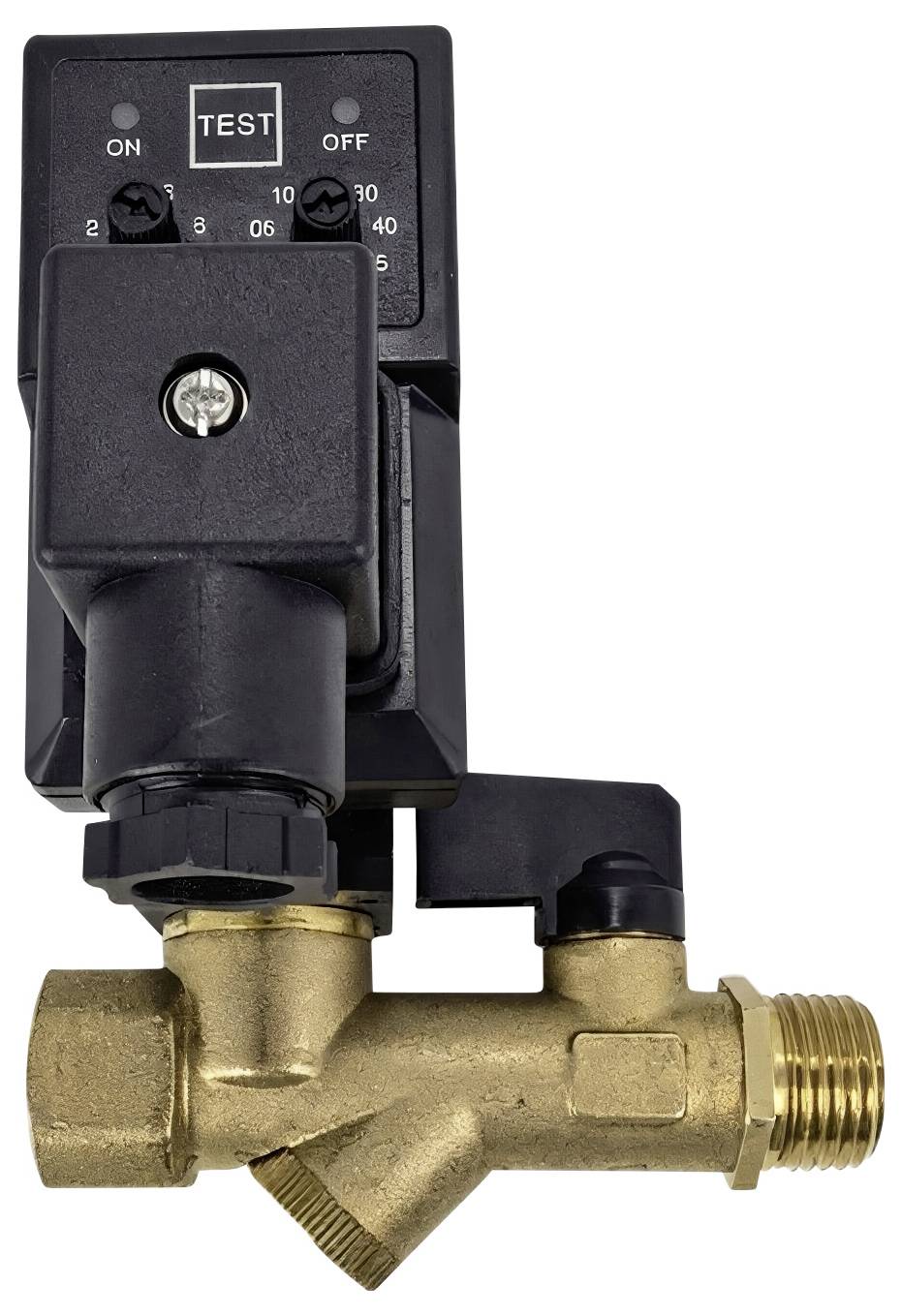

- Directly actuated valve with timer & strainer
- Product type
Directly actuated valve
- Operating voltage
230 V AC
- Max. operating pressure
16 bar
- Enclosure material
Brass
- Connection
G 1/2
- Operating temperature
-20 up to 60 °C
- Media temperature (range)
160 °C (max)
- Manufacturer part #
TC-14215428
- Type
On: 0.5 to 10 seconds
Off: 0.5 to 45 minutes
- Operating pressure (min.)
0 bar
- Max. operating temperature
60 °C
- Min. operating temperature
-20 °C
- Max. media temperature
160 °C
- QNn value
322.8 l/min
- Operating principle
Direct action
- KV value
0.26 m³/h
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3553857 TRU COMPONENTS Directly actuated valve TC-14215428 TC-NT-728A-04/230VAC 230 V AC G 1/2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553857 TRU COMPONENTS Directly actuated valve TC-14215428 TC-NT-728A-04/230VAC 230 V AC G 1/2 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
